6000w 8000w Fiber Laser Sheet Cutting Machine

Short Description:

GF-JH series 6000W 8000w laser cutter is equipped with nLIGHT or IPG laser generator as well as other efficient drive mechanism such as high precision gear rack, high precision linear guide rail, etc., and assembled through the advanced BECKHOFF CNC controller, It is a hi-tech product integrating laser cutting, precision machinery, CNC technology, etc. mainly used to cut and form carbon steel sheets, stainless steel sheets, aluminum alloys, composite materials, etc., with the features of high speed, high precision, high efficiency, high price performance ratio, and specially for the larger format metal sheets cutting, with the cutting area 2500mm*6000mm and 2500mm*8000mm, 6000w can cut max 25mm carbon steel sheet, and 12mm stainless steel sheet.


  • Model number: GF-2560JH / GF-2580JH
  • Laser source: IPG / nLight fiber laser generator
  • Laser power: 4000w 6000w 8000w
  • Laser head: Precitec laser cutting head
  • Cnc controller: Beckhoff controller
  • Cutting area: 2.5m X 6m, 2.5m X 8m
  • Max cutting thickness: 30mm CS, 16mm SS
  • Machine Details

    Material & Industry Application

    Machine Technical Parameters

    Product Tag

    4000w 6000w 8000w Fiber Laser Sheet Cutting Machine

    sheet laser cutting

    GF-JH series 6000W 8000w laser cutter is equipped with nLIGHT laser generator as well as other efficient drive mechanism such as high precision gear rack, high precision linear guide rail, etc., and assembled through the advanced BECKHOFF CNC controller, It is a hi-tech product integrating laser cutting, precision machinery, CNC technology, etc. mainly used to cut and form carbon steel sheets, stainless steel sheets, aluminum alloys, composite materials, etc., with the features of high speed, high precision, high efficiency, high price performance ratio, and specially for the larger format metal sheets cutting, with the cutting area 2500mm*6000mm and 2500mm*8000mm, 6000w can cut max 25mm carbon steel sheet, and 12mm stainless steel sheet.

    Machine Core Parts Details

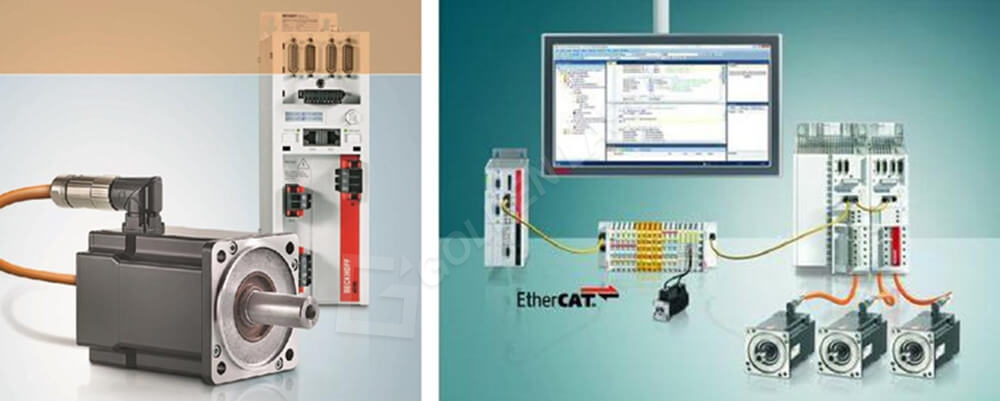

    Beckhoff Controller

    beckhoff controller

    In combination with the Motion Control solutions offered by the TwinCAT automation software, Beckhoff Drive Technology represents an advanced and complete drive system.

    PC-based control technology from Beckhoff is ideally suited for single and multiple axis positioning tasks with highly dynamic requirements.

    BECKHOFF latest single cable technology, combined power and coding cable into one, which can eliminate signal interference.

    High-precision photoelectric sensors and mechanical travel switches are installed on all the moving parts of the machine, which can capture every movement moment, and control machine act instantly.

    System signal transmission without interference, make sure the machine running with high dynamic, energy efficient and low cost.

    shuttle table

    Automatic Shuttle Table

    Integarted shutttle tables maximize the productivity and minimize the material handing times. The shuttle table changing system allows covenient loading of new sheets after unloading the of finished parts while the machine is cutting another sheet inside working area.

    The shuttle tables is fully electric and maintenance free , The table changes take place fast , smooth and energy-efficient.

    Rack and Pinion Motion System

    Golden Lasers use one of Atlanta’s high end racks, the HPR( High Precision Rack ) is a class 7 quality class and one of the highest available in today’s market. By using a class 7 rack it ensures accurate positioning and allows for higher acceleration and positioning speeds.

    rack
    liner guide

    Liner Guide Motion System

    New entry zone geometry for high precision ball runner blocks.

    High-precision ball runner blocks have an innovative entry zone. The ends of the steel segments are not supported by the ball runner block body and can therefore deflect elastically. This entry zone adjusts individually to the actual operating load of the ball runner block.

    The balls enter the load-bearing zone very smoothly, i.e. without any load pulsation.

    Germany Precitec Laser cutting Head

    High quality fiber laser cutting head , which can cut different metal materials in various thickness.

    During laser beam cutting, deviations in the distance (Zn) between nozzle (nozzle electrode) and material surface, which are caused by e.g. workpiece or position tolerances, may negatively affect the cutting result.

    The Lasermatic® sensor system enables precise distance control at high cutting speed. The distance to the workpiece surface is detected by means of capacitive distance sensors in the laser head. The sensor signal is transmitted to and analysed by the device.

    precitec laser head
    IPG laser generator

    IPG Fiber Laser Generator

    700W to 8KW Output Optical Power.

    Over 25% Wall-Plug Efficiency.

    Maintenance Free Operation.

    Estimated Diode Lifetime > 100,000 Hrs.

    Singe Mode Fiber Delivery.

    GF-JH Series Fiber Laser Cutting Machine In The United States

    GF-JH Series Fiber Laser Machine Demo Video in The United States


  • Previous:
  • Next:

  • Applicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel etc.

    Applicable Field

    Rail transportation, automobile, engineering machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household electrical appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchen utensils, decoration advertising, laser processing services and other machinery manufacturing industries etc.

    High Power Fiber Laser Cutting Metal Sheets Samples

    fiber laser sheet cutting machine



    4000w 6000w 8000w Fiber Laser Sheet Cutting Machine Technical Parameters

    Equipment model GF2560JH GF2580JH Remarks
    Processing format 2500mm*6000mm 2500mm*8000mm
    X Y axis maximum moving speed 120m/min 120m/min
    X Y axis maximum acceleration 1.5G 1.5G
    positioning accuracy ±0.05mm/m ±0.05mm/m
    Repeatability ±0.03mm ±0.03mm
    X-axis travel 2550mm 2550mm
    Y-axis travel 6050mm 8050mm
    Z-axis travel 300mm 300mm
    Oil circuit lubrication
    Dust extraction fan
    Smoke purification treatment system     Optional
    Visual observation window
    Cutting software CYPCUT/BECKHOFF CYPCUT/BECKHOFF Optional
    Laser power 2000W-10000W 2000W-10000W Optional
    Laser brand Nlight/IPG/Raycus Nlight/IPG/Raycus Optional
    Cutting head Manual focus / Auto focus Manual focus / Auto focus Optional
    cooling method Water cooling Water cooling
    Workbench exchange Parallel exchange/Climbing exchange Parallel exchange/Climbing exchange Determined based on laser power
    Workbench exchange time 45s 60s
    Workbench maximum load weight 2600kg 3500kg
    Machine weight 17T 19T
    Machine size 16700mm*4300mm*2200mm 21000mm*4300mm*2200mm
    Machine power 21.5KW 24KW Does not include laser, chiller power
    Power supply requirements AC380V 50/60Hz AC380V 50/60Hz
