1500w 2500w Full Pallet Table CNC Fiber Laser Zitsulo Zodula Makina

  • 1500w 2500w Full Pallet Table CNC Fiber Laser Zitsulo Zodula Makina

CHIKWANGWANI laser kudula makina ndi tebulo kusintha.Kapangidwe ka mpanda.IPG / nLIGHT 1500W 2500W fiber laser jenereta.Dulani zitsulo zosapanga dzimbiri 10mm, 20mm chitsulo chofewa.Kutengera zida ziwiri zotsekera zida zotsekera ndi Beckhoff Controller, kumathandizira kulondola kwambiri komanso kugwira ntchito bwino pakudula kwambiri.

Gwero la laser:IPG / nLight fiber laser jenereta

Mphamvu ya laser:1500w 2500w (1000w,1200w,2000w,3000w)

Laser mutu:Raytools kapena Precitec

Cnc wolamulira:Cypcut kapena Beckhoff controller

Malo odulidwa:1.5m X 3m, 1.5m X 4m, 1.5m X 6m, 2.0m X 4.0m, 2.0m X 6m.

  • Nambala yachitsanzo: GF-1530JH (GF-1540JH / GF-1560JH / GF-2040JH / GF-2060JH)

Tsatanetsatane wa Makina

Zofunika & Ntchito Zamakampani

Machine Technical Parameters

Zogwirizana nazo

1500w 2500w Full Pallet Table CNC CHIKWANGWANI Laser Chitsulo Kudula Makina GF-1530JH

laser kudula makina gf-1530jh

Mawonekedwe a Makina a Fiber laser

BECKHOFF CNC control system



1. Kuphatikizana ndi njira zothetsera Motion Control zoperekedwa ndi pulogalamu yamagetsi ya TwinCAT, Beckhoff Drive Technology imayimira makina apamwamba komanso athunthu.



2. Ukadaulo wotsogola wa PC kuchokera ku Beckhoff ndioyenera ntchito imodzi komanso zingapo zoyikira ma axis zomwe zimakhala ndi zofunika kwambiri.



3. Zojambulajambula za photoelectric zowonongeka kwambiri ndi makina oyendetsa maulendo amaikidwa pazigawo zonse zosuntha zamakina, zomwe zimatha kutenga mphindi iliyonse yoyenda, ndipo makina owongolera amachitapo kanthu nthawi yomweyo.



4. Kutumiza kwa chizindikiro cha dongosolo popanda kusokonezedwa, onetsetsani kuti makinawo akuyenda ndi mphamvu zambiri, zopatsa mphamvu komanso zotsika mtengo.

Chitetezo ndi Palibe Kuipitsa



Chotchinga chathunthu chimapereka chitetezo ku radiation ya laser yosawoneka komanso kuyenda kwamakina.

Gome logwirira ntchito pallet limapulumutsa nthawi yodyetsa



1. Thireyi ya kalembedwe ka drawer imapangitsa kusonkhanitsa kosavuta ndi kuyeretsa zotsalira ndi zigawo zing'onozing'ono, Gantry yoyendetsa galimoto iwiri, bedi lonyowa kwambiri, kukhazikika bwino, kuthamanga kwambiri komanso kuthamanga.



2. Utsi wopangidwa ndi kudula ukhoza kusefedwa mkati, ndi wosaipitsa komanso wokonda zachilengedwe.

Table ya shuttle yokha



1. Matebulo ophatikizika a shutttle amakulitsa zokolola ndikuchepetsa nthawi yoperekera zinthu.Kusintha kwa tebulo la shuttle kumalola kutsitsa kwabwino kwa mapepala atsopano pambuyo potsitsa.



2. Matebulo a shuttle ali ndi magetsi okwanira komanso osasamalira , Kusintha kwa tebulo kumachitika mofulumira, kosavuta komanso kogwiritsa ntchito mphamvu.

1500w CHIKWANGWANI Laser Mapepala Kudula Machine (zitsulo kudula makulidwe luso)

Zakuthupi

Kudula Malire

Koyera Dulani

Chitsulo cha carbon

14 mm

12 mm

Chitsulo chosapanga dzimbiri

6 mm

5 mm

Aluminiyamu

5 mm

4 mm

Mkuwa

5 mm

4 mm

Mkuwa

4 mm

3 mm

Chitsulo chagalasi

5 mm

4 mm

2500w CHIKWANGWANI Laser Mapepala Kudula Machine (zitsulo kudula makulidwe luso)

Zakuthupi

Kudula Malire

Koyera Dulani

Chitsulo cha carbon

20 mm

18 mm

Chitsulo chosapanga dzimbiri

10 mm

8 mm

Aluminiyamu

8 mm

6 mm

Mkuwa

8 mm

6 mm

Mkuwa

6 mm

4 mm

Chitsulo chagalasi

6 mm

5 mm

Fiber Laser Kudula Zitsulo Zitsanzo Zitsanzo

Makina odulira fiber laser4 laser-mapepala-kudula-makina-mtengo-mtengo2 zitsulo-mapepala-laser-kudula3



Malo Makasitomala - 2500w Fiber Laser Kudula Makina GF-1530JH Ku United Kingdom

Onerani Kanema - 2500w Fiber Laser Kudula Makina GF-1530JH

  • Zam'mbuyo:
  • Ena:

    • 1500w 2500w Full Pallet Table CNC CHIKWANGWANI Laser Chitsulo Kudula Makina GF-1530JH

    laser kudula makina gf-1530jh

    Mawonekedwe a Makina a Fiber laser

    BECKHOFF CNC control system



    1. Kuphatikizana ndi njira zothetsera Motion Control zoperekedwa ndi pulogalamu yamagetsi ya TwinCAT, Beckhoff Drive Technology imayimira makina apamwamba komanso athunthu.



    2. Ukadaulo wotsogola wa PC kuchokera ku Beckhoff ndioyenera ntchito imodzi komanso zingapo zoyikira ma axis zomwe zimakhala ndi zofunika kwambiri.



    3. Zojambulajambula za photoelectric zowonongeka kwambiri ndi makina oyendetsa maulendo amaikidwa pazigawo zonse zosuntha zamakina, zomwe zimatha kutenga mphindi iliyonse yoyenda, ndipo makina owongolera amachitapo kanthu nthawi yomweyo.



    4. Kutumiza kwa chizindikiro cha dongosolo popanda kusokonezedwa, onetsetsani kuti makinawo akuyenda ndi mphamvu zambiri, zopatsa mphamvu komanso zotsika mtengo.

    Chitetezo ndi Palibe Kuipitsa



    Chotchinga chathunthu chimapereka chitetezo ku radiation ya laser yosawoneka komanso kuyenda kwamakina.

    Gome logwirira ntchito pallet limapulumutsa nthawi yodyetsa



    1. Thireyi ya kalembedwe ka drawer imapangitsa kusonkhanitsa kosavuta ndi kuyeretsa zotsalira ndi zigawo zing'onozing'ono, Gantry yoyendetsa galimoto iwiri, bedi lonyowa kwambiri, kukhazikika bwino, kuthamanga kwambiri komanso kuthamanga.



    2. Utsi wopangidwa ndi kudula ukhoza kusefedwa mkati, ndi wosaipitsa komanso wokonda zachilengedwe.

    Table ya shuttle yokha



    1. Matebulo ophatikizika a shutttle amakulitsa zokolola ndikuchepetsa nthawi yoperekera zinthu.Kusintha kwa tebulo la shuttle kumalola kutsitsa kwabwino kwa mapepala atsopano pambuyo potsitsa.



    2. Matebulo a shuttle ali ndi magetsi okwanira komanso osasamalira , Kusintha kwa tebulo kumachitika mofulumira, kosavuta komanso kogwiritsa ntchito mphamvu.

    1500w CHIKWANGWANI Laser Mapepala Kudula Machine (zitsulo kudula makulidwe luso)

    Zakuthupi

    Kudula Malire

    Koyera Dulani

    Chitsulo cha carbon

    14 mm

    12 mm

    Chitsulo chosapanga dzimbiri

    6 mm

    5 mm

    Aluminiyamu

    5 mm

    4 mm

    Mkuwa

    5 mm

    4 mm

    Mkuwa

    4 mm

    3 mm

    Chitsulo chagalasi

    5 mm

    4 mm

    2500w CHIKWANGWANI Laser Mapepala Kudula Machine (zitsulo kudula makulidwe luso)

    Zakuthupi

    Kudula Malire

    Koyera Dulani

    Chitsulo cha carbon

    20 mm

    18 mm

    Chitsulo chosapanga dzimbiri

    10 mm

    8 mm

    Aluminiyamu

    8 mm

    6 mm

    Mkuwa

    8 mm

    6 mm

    Mkuwa

    6 mm

    4 mm

    Chitsulo chagalasi

    6 mm

    5 mm

    Fiber Laser Kudula Zitsulo Zitsanzo Zitsanzo

    Makina odulira fiber laser4 laser-mapepala-kudula-makina-mtengo-mtengo2 zitsulo-mapepala-laser-kudula3



    Malo Makasitomala - 2500w Fiber Laser Kudula Makina GF-1530JH Ku United Kingdom

    Onerani Kanema - 2500w Fiber Laser Kudula Makina GF-1530JH

  • Zam'mbuyo:
  • Ena:

    • Zofunika & Ntchito Zamakampani

    Fiber Laser Kudula Makina Ogwiritsa Ntchito Zida

    Kudula zitsulo zosapanga dzimbiri, mpweya zitsulo, wofatsa zitsulo, aloyi zitsulo, kanasonkhezereka, pakachitsulo zitsulo, masika zitsulo, titaniyamu pepala, kanasonkhezereka pepala, chitsulo pepala, inox pepala, zotayidwa, mkuwa, mkuwa ndi zina pepala zitsulo, mbale zitsulo, chitoliro zitsulo ndi chubu, etc



    Fiber Laser Cutting Machine Applicable Industries

    mbali makina, magetsi, pepala zitsulo nsalu, kabati magetsi, kitchenware, chikepe gulu, zida hardware, zitsulo mpanda, malonda chizindikiro zilembo, nyali kuunikira, zaluso zitsulo, zokongoletsera, zodzikongoletsera, zida zachipatala, mbali magalimoto ndi minda ena kudula zitsulo.



    Fiber Laser Kudula Zitsulo Mapepala

    Fiber laser kudula zitsanzo





    Machine Technical Parameters

    Makina Odulira a Fiber Laser Otsekedwa Ndi Pallet Changer GF-1530JH
    Mphamvu ya laser 1500w 2500w (1000w,1200w,2000w,3000w)
    Gwero la laser nLIGHT / IPG fiber laser jenereta
    Laser jenereta ntchito mode Kupitilira / Kusinthasintha
    Beam mode Multimode
    Pokonza pamwamba (L × W) 3000mm x 1500mm
    X axle stroke 3050 mm
    Y axle stroke 1550 mm
    Z axle stroke 100mm/120mm
    CNC ndondomeko Woyang'anira Beckhoff
    Magetsi AC380V±5% 50/60Hz (gawo 3)
    Kugwiritsa Ntchito Mphamvu Zonse 16kw pa
    Kulondola kwa malo (X, Y ndi Z axle) ± 0.03mm
    Bwerezani kulondola kwa malo (X, Y ndi Z axle) ± 0.02mm
    Kuthamanga kwakukulu kwa X ndi Y axle 120m/mphindi
    Max katundu wa tebulo ntchito 900kg pa
    Njira yothandizira gasi Njira yapawiri yamagetsi yamagetsi yamitundu 3 yamagwero amafuta
    Format imathandizidwa AI, BMP, PLT, DXF, DST, etc.
    Malo apansi 9 mx4m
    Kulemera 14T

    Zogwirizana nazo

    • 1500w Fully Automatic Fiber Laser Pipe Cutting Machine P2060A

      P2060/P3060/P3080

      1500w Fully Automatic Fiber Laser Pipe Cutting Machine P2060A
    • 1000w CHIKWANGWANI Laser Kudula Machine Pakuti Zitsulo GF-1510

      GF-1510

      1000w CHIKWANGWANI Laser Kudula Machine Pakuti Zitsulo GF-1510

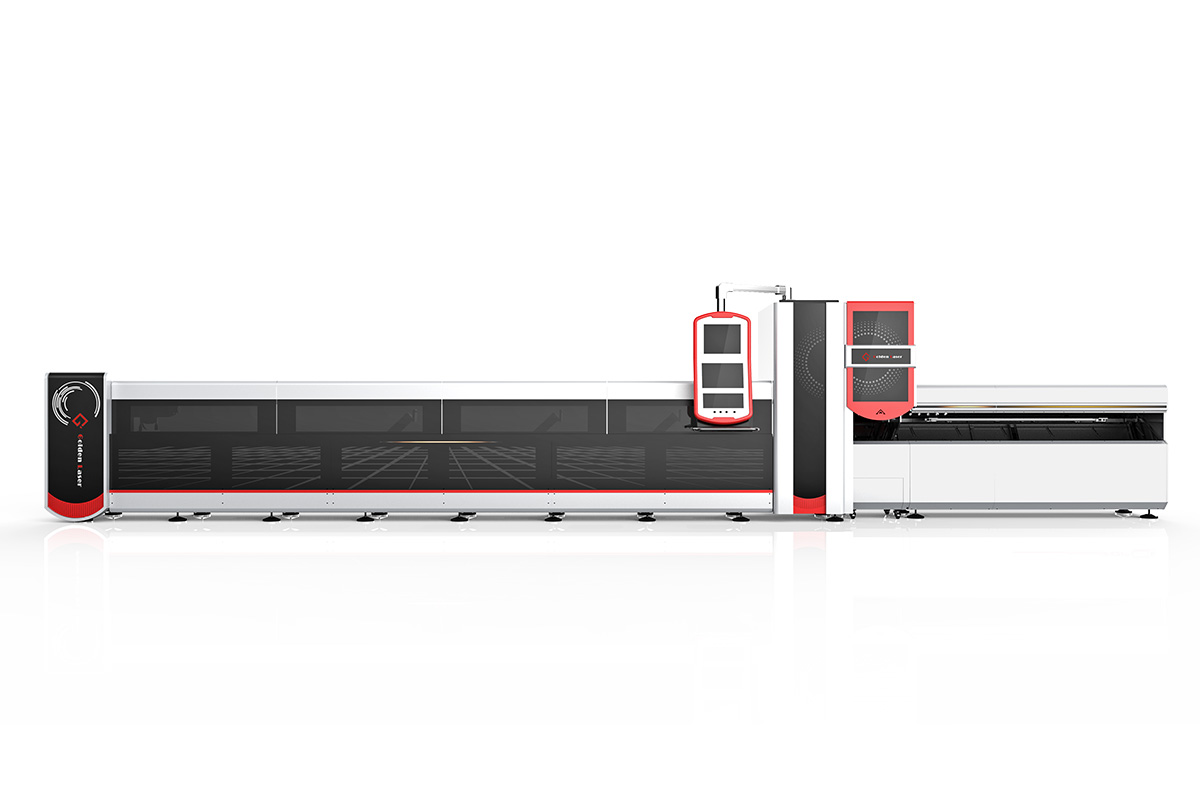

    • Heavy Duty Tube Laser Cutter 3+1 Twin Chuck
