Full Closed Pallet Changer Fiber Laser Pipe and Sheet Cutting Machine

  • Full Closed Pallet Changer Fiber Laser Pipe and Sheet Cutting Machine

The fiber laser cutting machine for both metal sheet and pipe cutting. the sheet cutting area is 1500mm*3000mm, tube cutting length 6m, tube diameter 20mm-200mm

  • Model number : GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

Full Closed Exchange Table Fiber Laser Tube and Metal Sheet Cutting Machine

Model Type: GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT

This fiber laser cutting machine has a fully enclosed protective cover, an exchange shuttle table, and a tube cutting rotary device attachment. Metal plates and metal tubes can be both cuts on the same machine. In addition, the high-performance CNC laser cutting system, world-class configuration, and strict assembly process ensure the operator safety, machine stability, cutting in high efficiency, and cut result in high precision of the metal laser cutting machine. In short words, not only is the operation safer, but it also improves cutting efficiency.

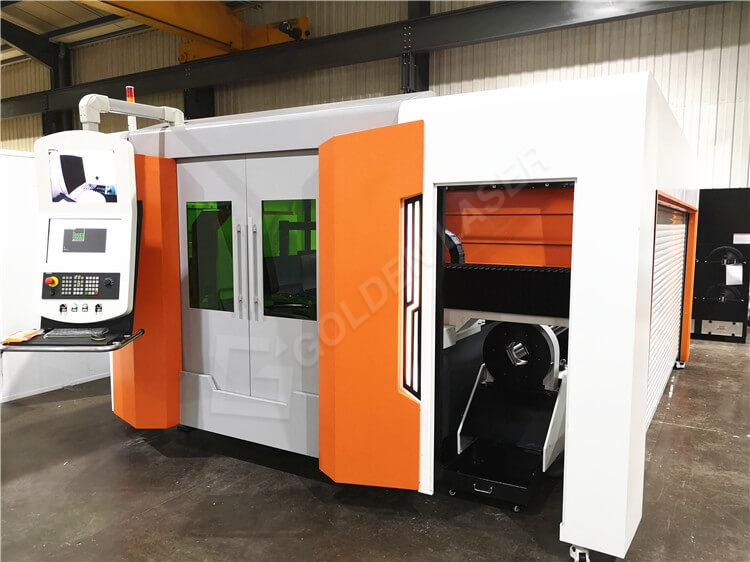

GF-1530JHT 02

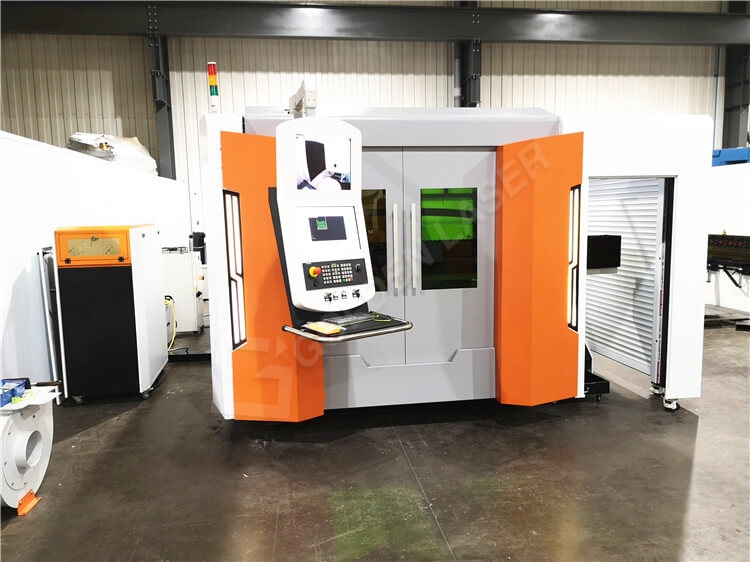

GF-1530JHT 03

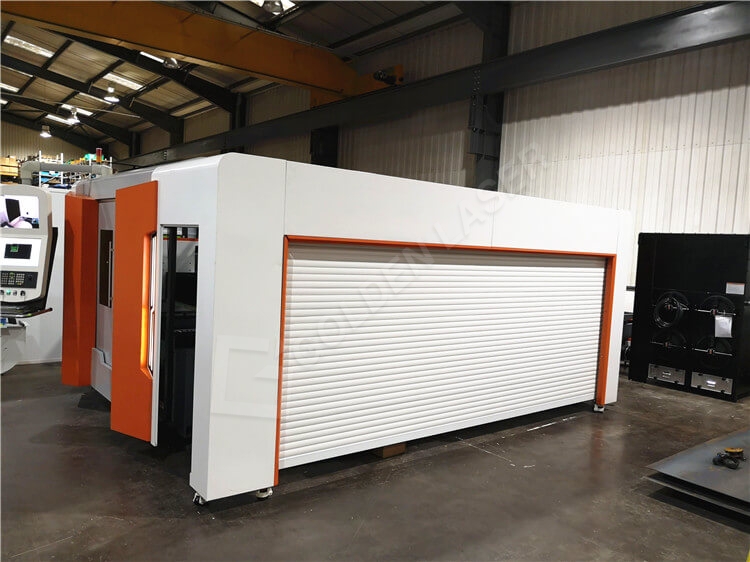

GF-1530JHT 01

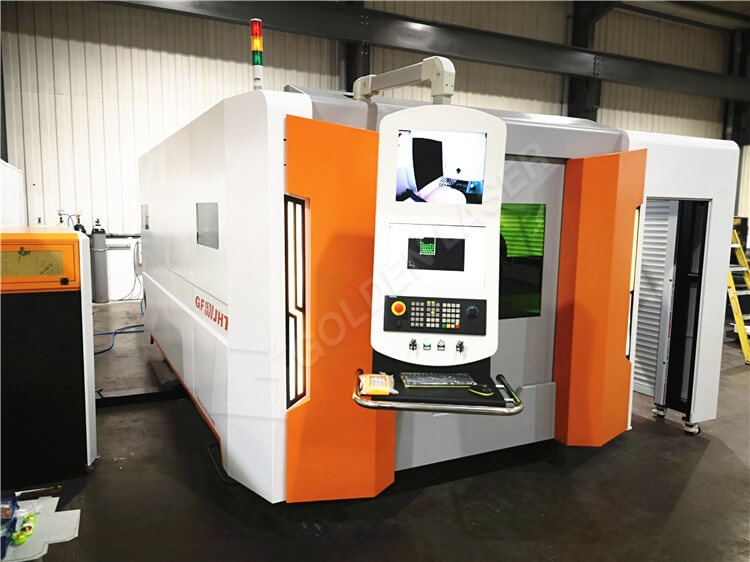

GF-1530JHT 04

Why Full Protection Design

Full Closed Pallet Changer design ensures good exhaust results and also ensure the operator's safe in the process!

Metal Sheet Area Full Closed

Metal Tube Cutting Area Full Closed

Double Safe in the Production

Fully meet CE demand.

Machine Details

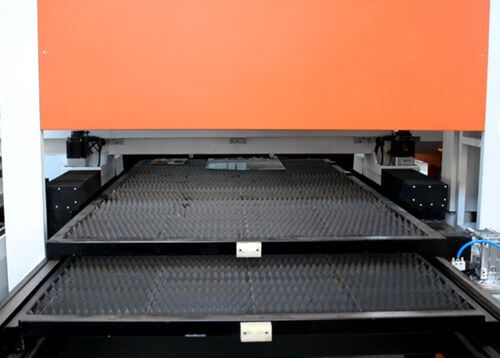

Dual Exchange Working Table

Inter-switching workbench, exchange fast in 19 second, saving loading time

Automatic up and down the back door to fully closed the dust come out into the workshop, ensure good environment.

dual-working-table

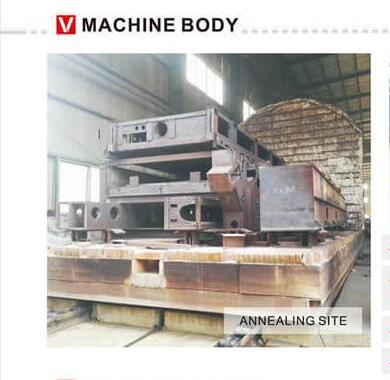

golden laser machine annealing

High Damping Bed

Granty double driving structure with high damping bed is of goodrigidy, ensure high cutting speed and high acceleration cutting result.

After annealing machine body more durable and no deformation.

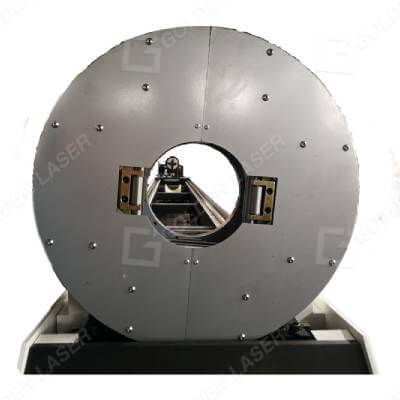

Automatic Shelf Center Chuck

Double row pneumatic chuck automatically clamping the different diameter (20-160mm, 20-200mm optional) and shape tube in a few seconds.

Clamping force adjustable according to the tube type, diameter, and wall thickness. The thin-walled tube does not deform and the large tube can be clamped tightly.

Automatically find the tube center to ensure the high precise cutting result.

Rotating speed 90R/min.

GF-1530T pipe cutting device

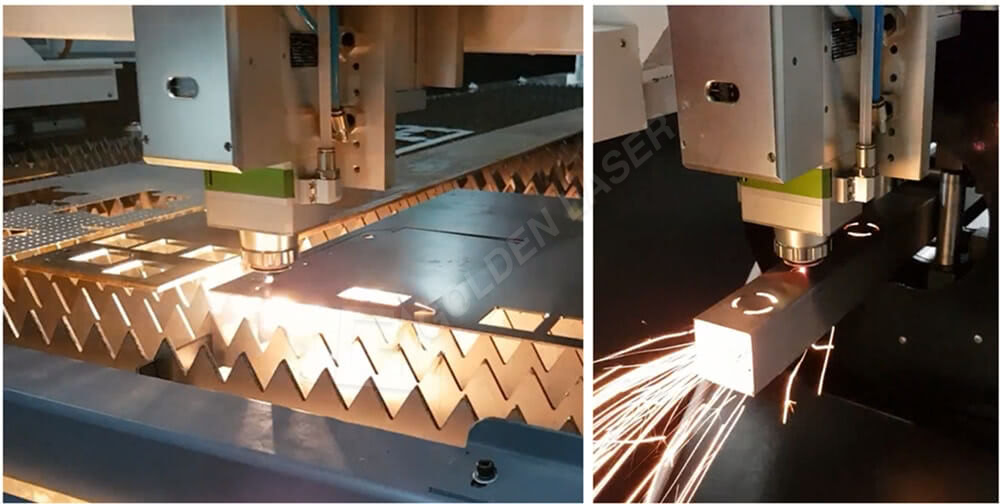

Laser Cut Both Metal Sheets and Tubes

Easy Change to cut sheets or pipes in software, one machine dual-use, Integrated machines is ideal for metalworking, lamps industry and so on..

sheet and tube laser cutting machine price

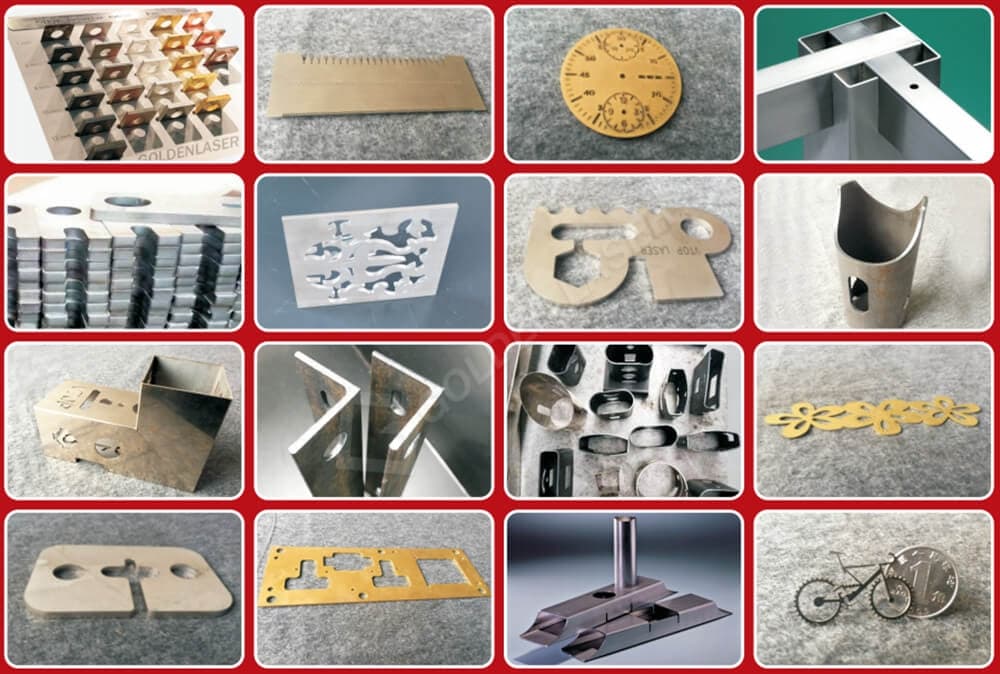

Laser Cutting Machine For Metal Sheets and Tubes Samples

More Samples
sheet-and-tube-laser-cutting-machine-samples1

Metal Sheet and Tube Laser Cutting Machine Working in UK

  • Previous:
  • Next:

    • Full Closed Exchange Table Fiber Laser Tube and Metal Sheet Cutting Machine

    Model Type: GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT

    This fiber laser cutting machine has a fully enclosed protective cover, an exchange shuttle table, and a tube cutting rotary device attachment. Metal plates and metal tubes can be both cuts on the same machine. In addition, the high-performance CNC laser cutting system, world-class configuration, and strict assembly process ensure the operator safety, machine stability, cutting in high efficiency, and cut result in high precision of the metal laser cutting machine. In short words, not only is the operation safer, but it also improves cutting efficiency.

    GF-1530JHT 02
    GF-1530JHT 03
    GF-1530JHT 01
    GF-1530JHT 04

    Why Full Protection Design

    Full Closed Pallet Changer design ensures good exhaust results and also ensure the operator's safe in the process!

    Metal Sheet Area Full Closed

    Metal Tube Cutting Area Full Closed

    Double Safe in the Production

    Fully meet CE demand.

    Machine Details

    Dual Exchange Working Table

    Inter-switching workbench, exchange fast in 19 second, saving loading time

    Automatic up and down the back door to fully closed the dust come out into the workshop, ensure good environment.

    dual-working-table
    golden laser machine annealing

    High Damping Bed

    Granty double driving structure with high damping bed is of goodrigidy, ensure high cutting speed and high acceleration cutting result.

    After annealing machine body more durable and no deformation.

    Automatic Shelf Center Chuck

    Double row pneumatic chuck automatically clamping the different diameter (20-160mm, 20-200mm optional) and shape tube in a few seconds.

    Clamping force adjustable according to the tube type, diameter, and wall thickness. The thin-walled tube does not deform and the large tube can be clamped tightly.

    Automatically find the tube center to ensure the high precise cutting result.

    Rotating speed 90R/min.

    GF-1530T pipe cutting device

    Laser Cut Both Metal Sheets and Tubes

    Easy Change to cut sheets or pipes in software, one machine dual-use, Integrated machines is ideal for metalworking, lamps industry and so on..

    sheet and tube laser cutting machine price

    Laser Cutting Machine For Metal Sheets and Tubes Samples

    More Samples
    sheet-and-tube-laser-cutting-machine-samples1

    Metal Sheet and Tube Laser Cutting Machine Working in UK

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Industry

    Furniture, Medical Device, Fitness Equipment, Oil Exploration, Display Shelf, Farm Machinery, Bridge, Boating, Structure Parts

    Applicable Materials

    Stainless steel, carbon steel, silicon steel, aluminum plate, brass,copper, galvanized steel sheet and tube

    Applicable Types Of Tubes

    Round, square, rectangular, oval, waist round tube and other metal pipes

    fiber laser sheet cutting machine

    Machine Technical Parameters

    Metal sheet and tube fiber laser cutting machine
    Model
    GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT
    Laser power
    1500w (1000w, 1200w, 2000w, 3000w, 4000w optional)
    Laser source
    IPG / nLIGHT / Raycus /Max laser generator
    Laser head
    Raytools
    Gas Proportional valve
    SMC
    Sheet processing
    1.5m X 3m, 2.0m X 4.0m, 2.0m X6.0m, 2.5m X6.0m
    Tube processing
    Tube length 3m, 6m. Tube diameter 20-160mm (20-220mm optional)
    Position accuracy
    ±0.03mm
    Repeat position accuracy
    ±0.03mm
    Maximum position speed
    65m/min
    Acceleration
    0.8g
    Format supported
    AI, BMP, PLT, DXF, DST, etc ,
    Flooring
    9.5m x 5.8m

    1500W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    14mm

    12mm

    Stainless steel

    6mm

    5mm

    Aluminum

    5mm

    4mm

    Brass

    5mm

    4mm

    Copper

    4mm

    3mm

    Galvanized steel

    5mm

    4mm
