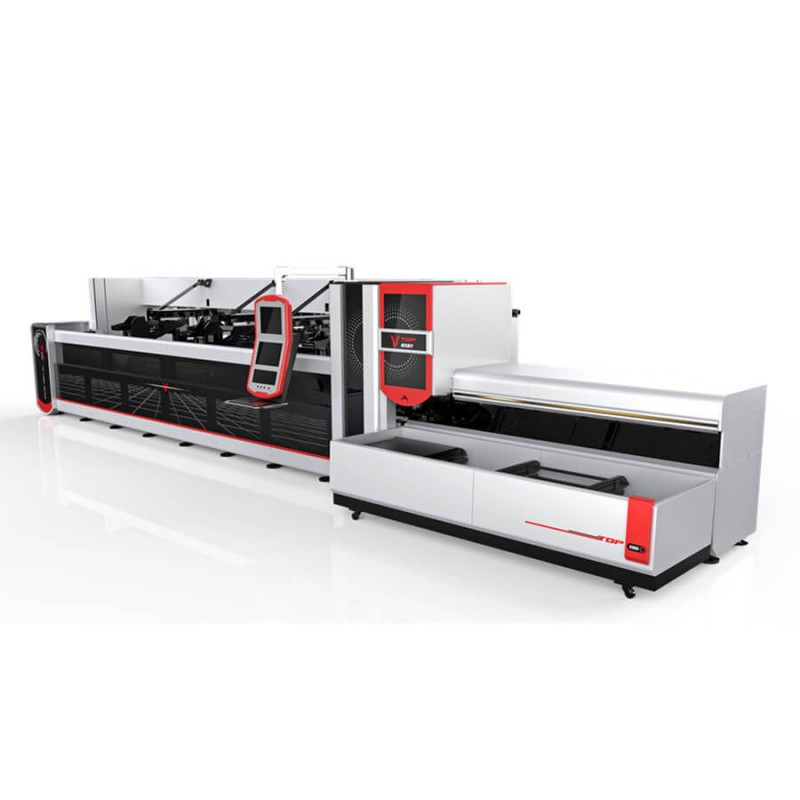

2500w 3000w Fiber Laser Metal Cutting Machine For Round,Square Tube / Pipe

Short Description:

Especially for laser cutting metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20-200mm, length 7m, 8m.

………………………………………………………………………………………………………………………………………………

Model number : P2070A / P2080A

Pipe length: 7000mm / 8000mm

Pipe diameter : 20mm-200mm

Loading size : 800mm*800mm*7000mm / 800mm*800mm*8000mm

Laser power : 2500w 3000w

Laser source: IPG / nLIGHT fiber laser generator

CNC controller : Germany PA HI8000

Nesting software: Spain Lantek

Max cutting wall thickness: 20mm CS, 10mm SS, 8mm aluminum, 8mm brass, 6mm copper and 6mm galvanized steel

Applicable tubes type : Round tube, square tube, rectangular tube, oval tube, D-type T-shaped H-shaped steel, channel steel, angle steel, etc.

Applicable Industry: Auto parts, motor parts, metal furniture, tubes processing industry etc.




Machine Details

Material & Industry Application

Machine Technical Parameters

Product Tag

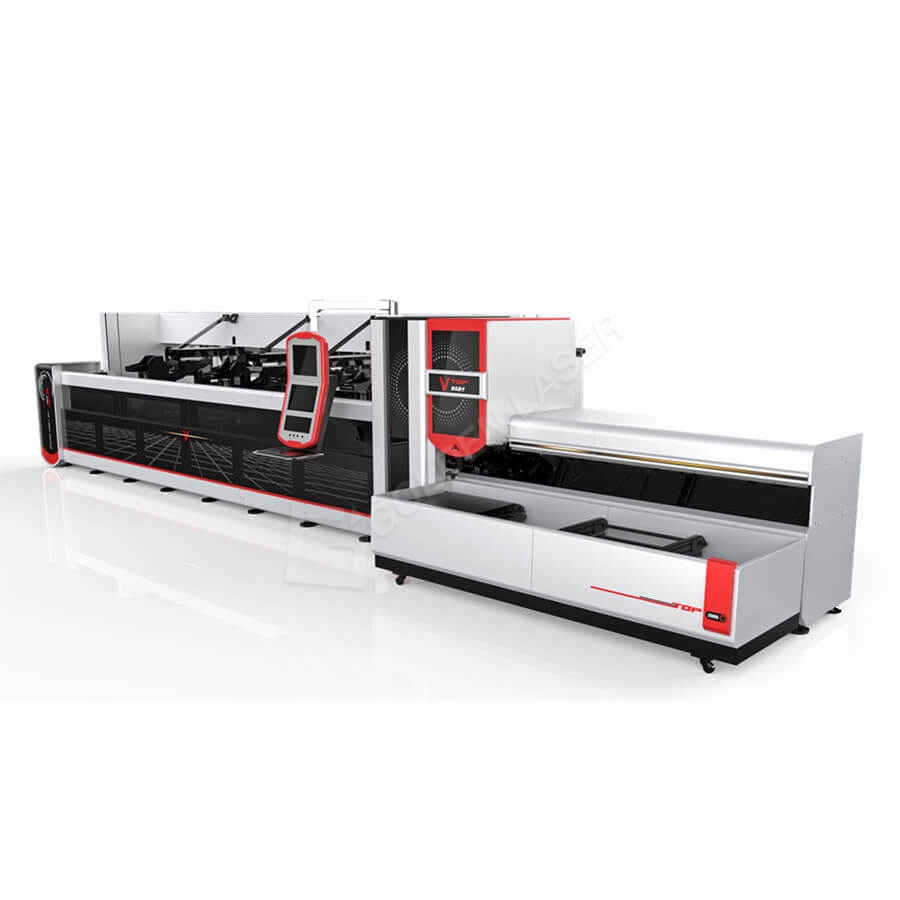

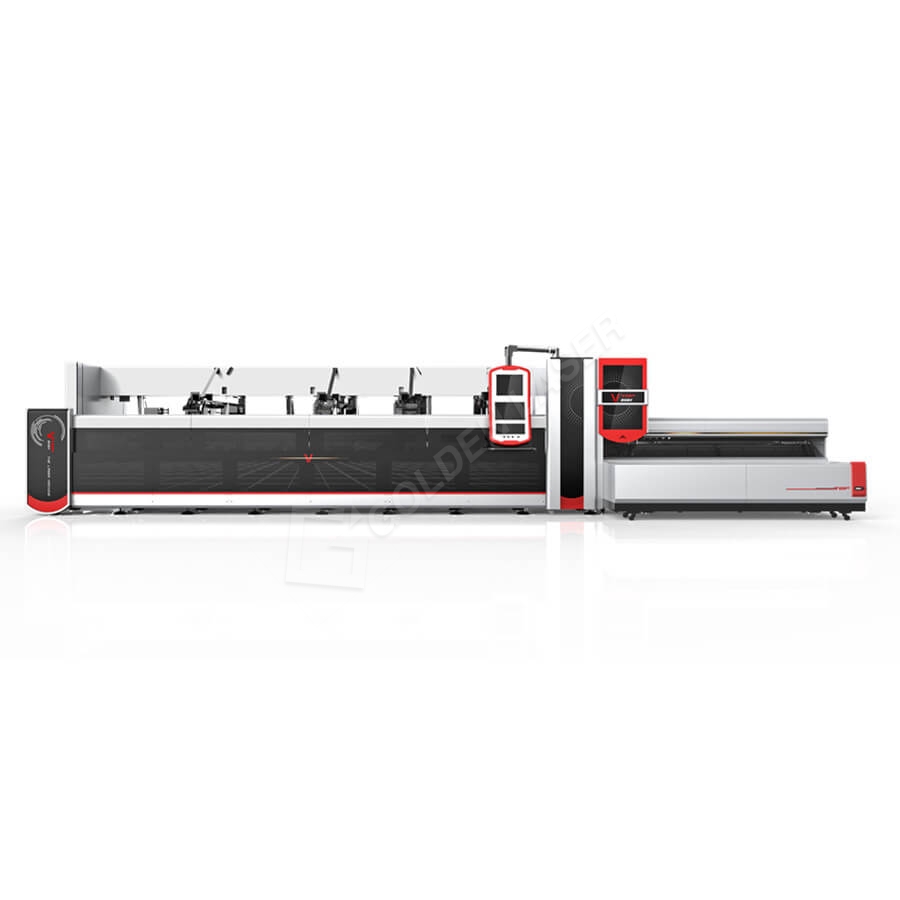

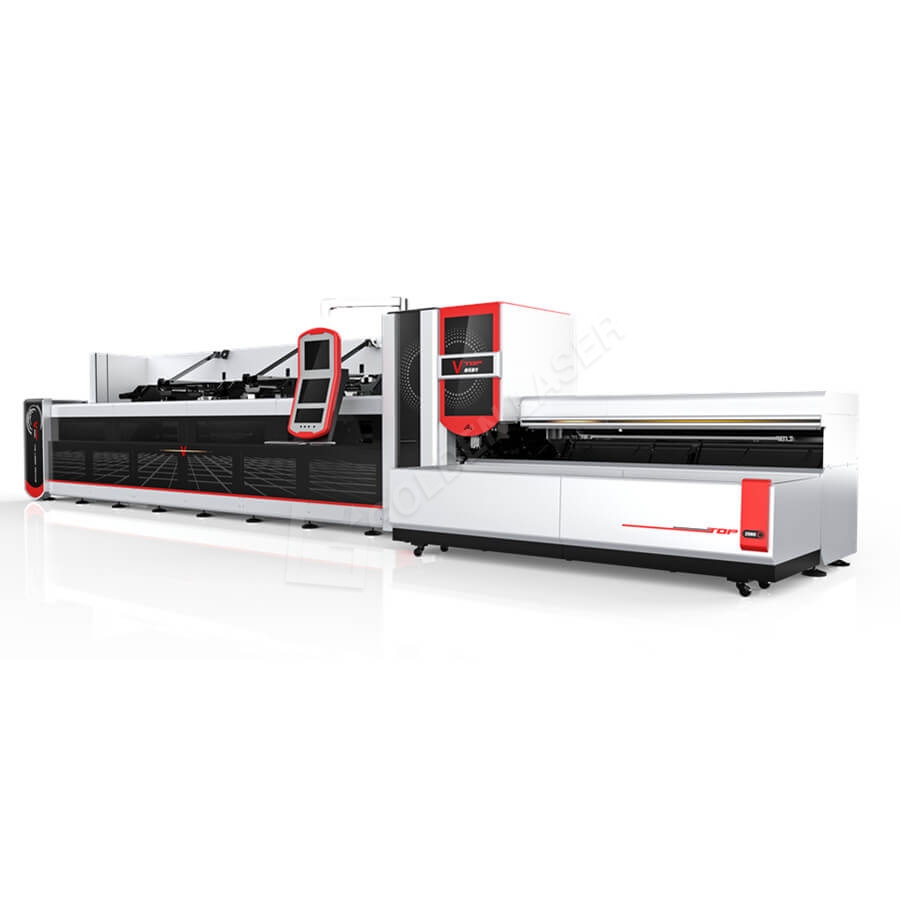

Full Enclosure Automatic Fiber Laser Tube & Pipe Cutter P2070A / P2080A

fiber-laser-tube-cutting-machine5

Golden Laser P-A series automatic pipe laser cutting machine can cut round, square, rectangle and other shaped pipes with high cutting speed and efficiency. Compared with the traditional cutting, laser cutting is more flexible, no need to build mold, so it saves the new products developing time greatly. Since its cutting speed and precision are very high, so it can save costs and improves efficiency.

2500W Fiber Laser Cutting Machine (Metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

20mm

18mm

Stainless steel

10mm

8mm

Aluminum

8mm

6mm

Brass

8mm

6mm

Copper

6mm

4mm

Galvanized steel

6mm

5mm

3000W Fiber Laser Cutting Machine (Metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

22mm

20mm

Stainless steel

12mm

10mm

Aluminum

10mm

8mm

Brass

8mm

8mm

Copper

6mm

5mm

Galvanized steel

8mm

6mm

Fiber Laser Cutting Tubes Samples Demonstration

tube laser cutting 01

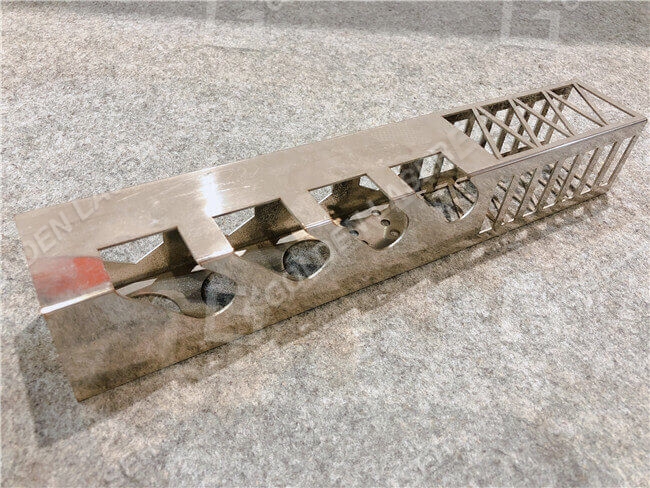

tube laser cutting 02
tube laser cutting 03

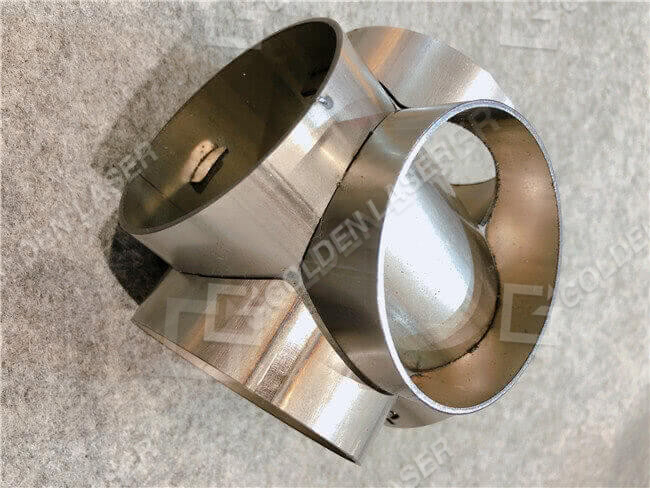

tube laser cutting 04

P2070A Machine Features

Automatic Bundle Loader

Round pipe, square pipe, rectangular pipe, etc. can be fully loaded without manual intervention. Shaped tubes can be manually assisted with semi-automatic feeding.

The bundle max. loading weight is 2500kgs. The loading belt and the supporter are easy for dismantle.

The integrated design of the feeding finger main body and the chain transport link is easy for debugging and transporting.

laser-tube-cutter-price

● Advanced chuck system: the chuck self-adjusting center automatically adjusts the clamping force according to the profile specifications, thus it can ensure the thin tube clamps without damaged.

● Corner rapid cutting system: the corners cutting respond speed is very quick and greatly improve cutting efficiency.

● Efficient cutting system: After cutting, the workpiece can be automatically fed to the feeding area.

● Professional pipe laser cutting control system Germany PA and nesting software Spain Lantek.

● Automatic collecting device: The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

laser-cutting-machine-for-metal-tubes

Customer Site - Laser Tube Cutting Machine P2070A In Taiwan

P2070A 01
P2070A 04
P2070A 02
P2070A 05
P2070A 03
P2070A 06

2000w IPG Fully Automatic Fiber Laser Pipe Cutting Machine P2080A In Korea

Watch The Video - 3000w Fully Automatic Fiber Laser Tube Cutter P2070A For German Customer


  • Previous:
  • Next:

  • Machine Applications

    It is widely used in metal products, metal furniture,fitness equipment,sports equipment,farm machinery,display shelf,fire control,medical device industry etc.

    Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel,carbon steel,alloy,brass,copper, titanium and other metal materials precision cutting.

    It is mainly for cutting tube under 20mm metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.

    Fiber Laser Cutting Metal Tube Samples Demonstration

    fiber laser cutting machine

    pipe laser cutting machine

      P2070A Fiber Laser Metal Cutting Machine For Round,Square Tube / Pipe

    Laser power 2500W / 3000W
    Laser source IPG / N-light fiber laser generator
    Laser generator / working mode Continuous / Modulation
    Beam mode Multimode
    Max tube processing diameter Φ=20-200mm, L=7m or 8m (can customize if need to process bigger or smaller tubes)
    Tube category Round, square, rectangular, oval, waist round, triangle(can customize if need to process other tubes)
    Rotate speed 60 turn/min
    CNC control Cypcut / Germany PA HI8000
    Nesting software Lantek
    Power supply AC380V±5% 50/60Hz (3 phase)
    Total electric power 17KW/20KW/23KW/28KW/35KW
    Position accuracy ±0.03mm
    Repeat position accuracy ±0.01mm
