Side-mounted Small Tube Laser Cutting Machine

  • Side-mounted Small Tube Laser Cutting Machine

L12MAX Side-Mount Small Auto Tube Laser Cutter

It is designed with a Multi-Profile & Flexible Loading method, you can select an automatic loading tube or a semi-automatic loading tube according to your tube shape and size.

  • 2 Chuck’s tube laser cutter also realizes “Zero” tailer scrape
  • Compact design
  • Automatic and flexible tube loading method.
  • 45-degree bevel cut the pipe (optional)



  • Model number : L12MAX

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X

    • Side-mounted Small Tube Automatic Laser Cutting Machine.



    L12MAX

    The supported tube has an outer diameter ranging from 8 mm to 120 mm and is 6 meters long

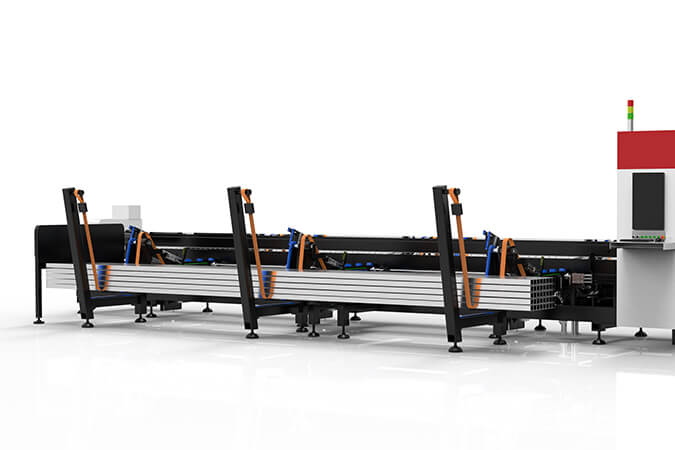

    With an automatic different shape tube bundle loading system for regular and irregular tube loading.

    Option 3D laser head for 45-degree cutting.

    Mainly Features

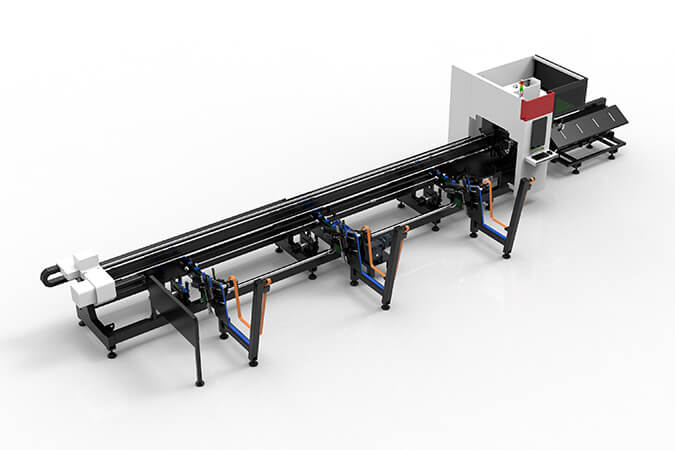

    L12MAX-tube-multiloading-method

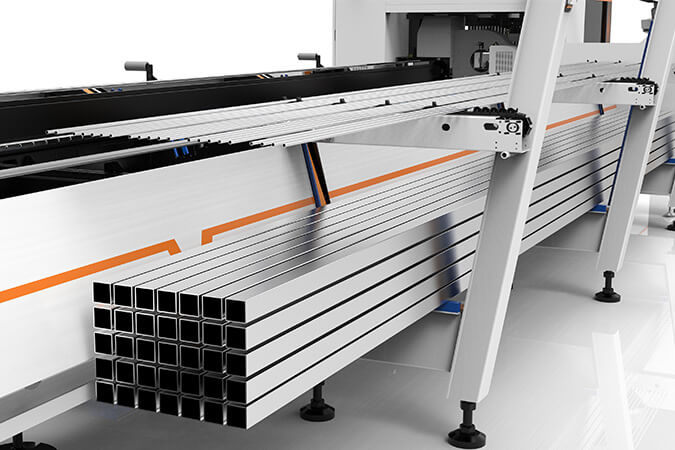

    Unique double-loading system tube loader



    The Compact design combines a fully automatic and semi-automatic loading system for tubes.



    Easy loading of large or small quantity tubes, regular and irregular shape tubes

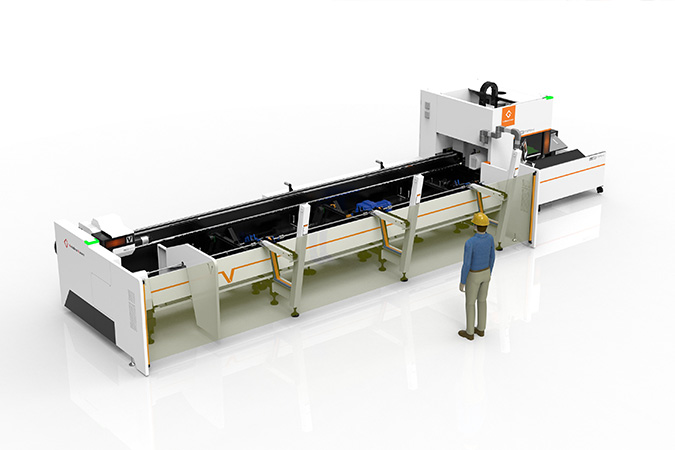

    Ultra-high speed with Grating protection



    Advanced Small tube collection ensures a high-quality and high-speed tube cutting machine



    Maximum Acceleration：2G

    Maximum Rotational Speed: 200 rpm.

    L12MAX-with-Grating-protection
    L12MAX tube laser clamping tube method

    Barrel Structure Rear Chuck

    Flexible pipe clamp, stable and reliable



    The unique serrated surface processing of the rear clamping claw supports two flexible pipe clamping modes:
    Small diameter pipes: the external clamping method is used to ensure uniform and stable clamping force;
    Large diameter pipes: the external support mode can be selected to make the clamping more stable and reliable

    Full Stroke Front Chuck



    √ Full-stroke automatic clamping, the tube can be quickly clamped with one click



    √ Together with the barrel structure rear chuck, ensure smaller tailer tube in the cutting

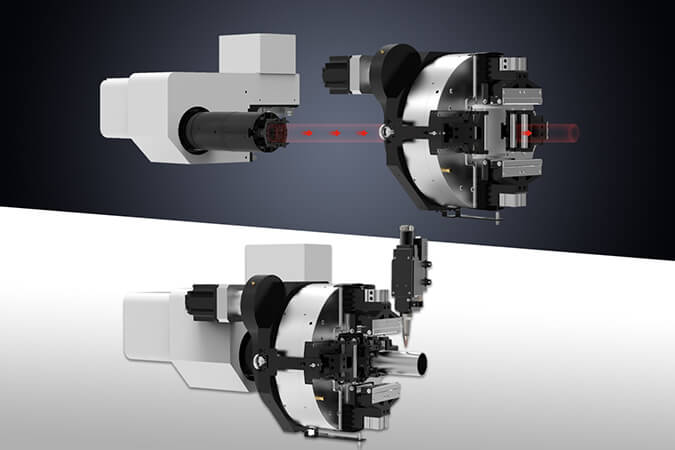

    rea chucks inside the mainly chuck
    Centering tube

    Unique Small Tube Centering Device

    Efficient and flexible for different diameter tubes

    Servo Tube Supportor system with unique small tube centering further ensures the centering of the tube before cutting.

    It ensures the accuracy of the small tube cutting result.

    Fully Pipe Support Capabilities:

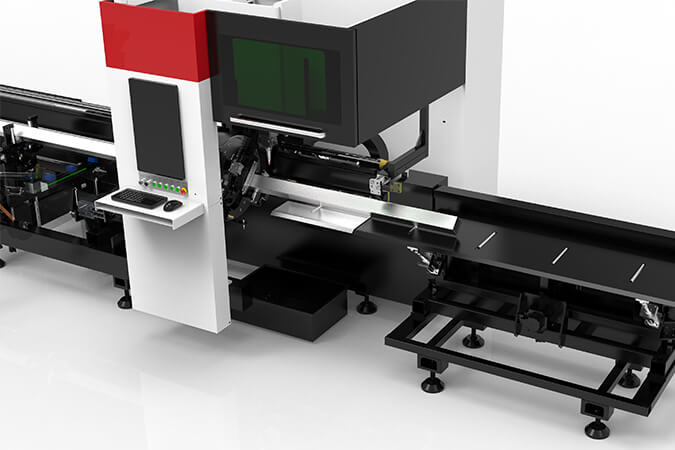

    Advanced tube floating supporter for the end tube, gives excellent support during cutting.



    This reduces cutting errors and stabilizes high-speed rotation, enhancing the quality of small, thin tubes and improving processing efficiency.

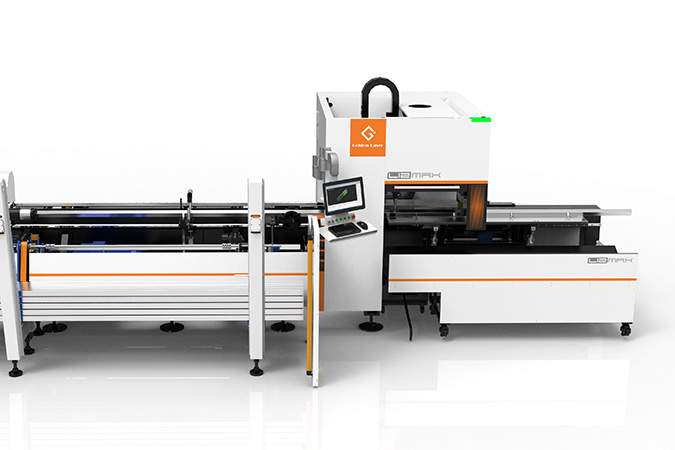

    L12MAX finished tube floating support system
    Free-Drawing

    Free Drawing Function Menu-based Modeling

    Tube Cutting So Easy



    Easily model 3D tube cuts using the nesting menu, generating complex V-shaped and D-shaped grooves with one click. This integration eliminates software constraints, enhancing design efficiency

    Chuck Avoid Function



    Reducing the tube trailer length greatly improves the usage rate of the raw materials.

    L12MAX-chucks-avoild
    L12MAX-0-tailer

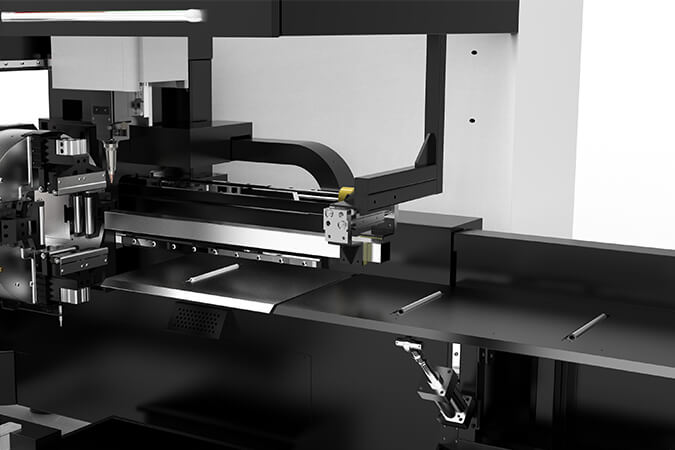

    0 Tailer Long Tube Unloading Device

    Humanized design

    A small tube holding device carefully holds the finished tube. It makes sure the tube is fully out of the main chucks. Then, the tube falls down into the collection box.

    Video

    L12Max Small tube laser cutting machine Side mount type

    Material & Industry Application

    Small Laser Tube Cutting Machine Application:

    Mainly for tube angle cutting, 45-degree angle cutting for steel square tubes, rectangle tubes, and round tubes.

    Small 3D laser tube cutting widely used in metal furniture, fence, fittness equipment, metalworking industry and so on.

    industry4

    Machine Technical Parameters

    Golden Laser’s L12MAX Tube Laser Cutting Machine Parameters

    Explore the full technical data sheet for the L12MAX series. This high-performance 3D tube laser system is optimized for precision cutting of small to medium tubes (8-120mm) with professional acceleration and automatic feeding.

    Model Number L12MAX / L12MAX-3D
    Tube Diameter Range 8mm – 120mm
    Tube Length 6000mm
    Laser Source Power 3000W / 4000W / 6000W Optional
    Laser Source Brand Raycus / Max / IPG for optional
    Acceleration 2.0G
    Rotating Speed 200 r/min
    Position Accuracy ±0.05mm
    Repeat Position Accuracy ±0.03mm
    Max Weight for Single Tube 70kg
    Laser Head Imported Germany BLT 3D Tube Laser Head (or Golden Laser Optional)
    Auto Tube Feeder Full-automatic Bundle Loader Included
    Electric Power Supply AC380V 50/60Hz
