| Model number | L12A-/L12A-3D |
| Tube length | 6000mm |
| Tube diameter | 15-120mm |
| Laser Head | Imported 3D Tube Laser Head BLT / Golden Laser 3D head for Choice |
| Laser source | Imported fiber laser resonator IPG / China Laser Source Raycus / Max |
| Servo Motor | Yaskawa Bus Motor |
| Laser source power | 3000w 4000w 6000w optional |
| Position accuracy | ±0.05mm |
| Repeat position accuracy | ±0.03mm |
| Rotating speed | 160r/min |
| Acceleration | 1.5G |
| Max Weight for Single Tube | 15kg/Meter |
| Cutting speed | depend on material, laser source power |
| Electric power supply | AC380V 50/60Hz |
| Auto tube Feeder | Including the auto tube feeder |
/
3D Cutting Head Series
-
Side-mounted Small Tube Automatic Cutting Machine-L12A
Cut a metal tube with an outer diameter of 10-120mm, and a length of 6 meters.
With an automatic tube bundle loading system for square tubes, round tubes, and rectangular tubes. Optional 3D laser head for 45-degree cutting.
Mainly Features
Side Mounting Design

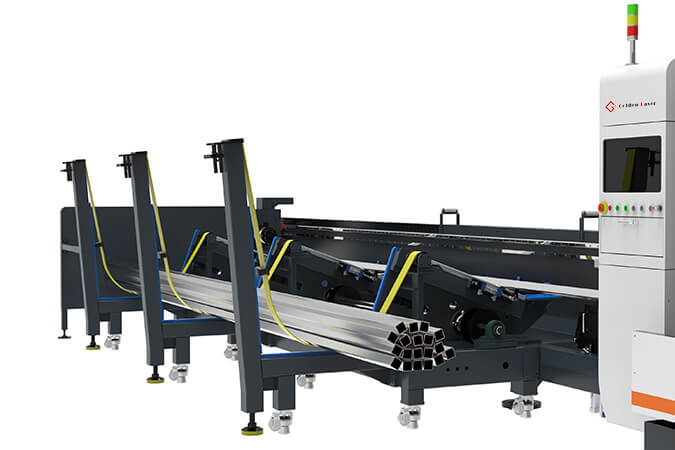

Compact design combines a small tube auto-loading system.
Easy loading regular shape tube
Small Size, Big Energy
The integrated concept integrates circuits, lasers and oil and gas systems into a compact layout, achieving high concentration and miniaturization, with flexible layout and convenient operation.
Maximum Acceleration：1.5G
Maximum Rotational Speed：160r/minute.
Barrel Structure Rear Chuck

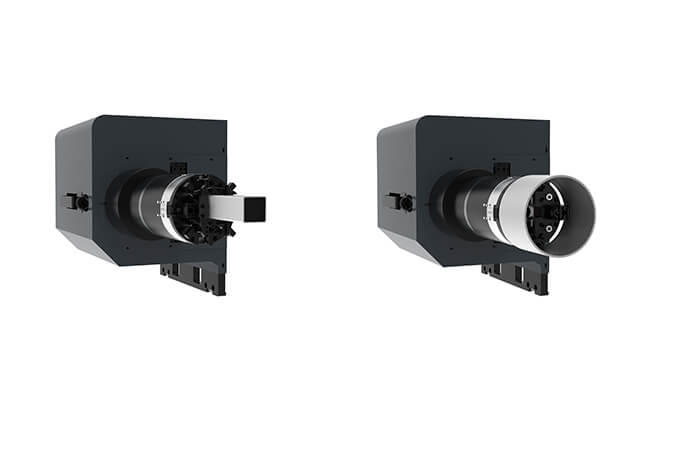

The unique serrated surface processing of the rear clamping claw supports two flexible pipe clamping modes:
Small diameter pipes: the external clamping method is used to ensure uniform and stable clamping force;
Large diameter pipes: the external support mode can be selected to make the clamping more stable and reliable
Full Stroke Front Chuck
√ The square hole chuck maximum clamping 120mm×120mm square tubes.
√ Full-stroke automatic clamping, the tube can be quickly clamped with one click
√ It can clamp tubes of various shapes at one time, greatly improving work efficiency
Variable Diameter Wheel Support
Integrated with multi-specification pipe support position markings, only simple manual operation is required to instantly adjust the pipe support height, which is both quick and labor-saving
Comprehensive Pipe Support Capabilities:
The front and rear variable diameter wheel support system adapts to various tube shapes, providing stable support to prevent sagging and deformation.
This reduces cutting errors and stabilizes high-speed rotation, enhancing the quality of small, thin tubes and improving processing efficiency.
Free Drawing Function Menu-based Modeling
Easily model 3D tube cuts using the nesting menu, generating complex V-shaped and D-shaped grooves with one click. This integration eliminates software constraints, enhancing design efficiency
Chuck Avoid Function
Reducing the tube trailer length greatly improves the usage rate of the raw materials.
Finished Tube Material Receiving Device
Equipped with an independent waste collection trolley, the convenient pull-out design makes manual processing easier and more efficient.
The finished product collection area has a certain efficient storage space and buffer function, aiming to reduce manual intervention and improve the automation level of the production process.
Video
L12A Small tube laser cutting machine Side mount type
Material & Industry Application
3D Laser Tube Cutting Application:
Mainly for tube angle cutting, 45-degree angle cutting for steel square tubes, rectangle tubes, and round tubes.
Small 3D laser tube cutting widely used in metal furniture, fence, fittness equipment, metalworking industry and so on.
Machine Technical Parameters
