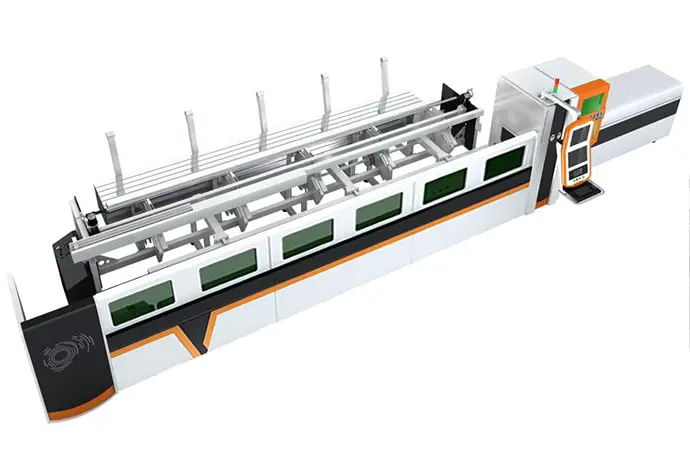

Small Tube Automatic Laser Cutting Machine

  • Small Tube Automatic Laser Cutting Machine
  • Small Tube Automatic Laser Cutting Machine

Compact size small tubes laser cutting machine (20-120mm/160mm outdiameter small tubes), with metal tubes auto feeder system together. Focus on Small size metal tube and pipes cutting.

  • Model number : S12plus / S16plus (P1260A)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

 Small Tube Laser Cutting Machine - Especially Design for Small and Middle Diameter Metal Tube and Light Pipes Laser Cutting

Suit Metal Tubes' Outer Diameter From
Φ16mm to Φ120mm,

  • Suit Various Shape Tube and Pipe CNC Laser Cutting Demands.
  • Pipes Length Reach 6 meters.
  • 7m to 8m for Optional

6-meter Automatic Tube Bundle Load System for Continuous Batch Cut.

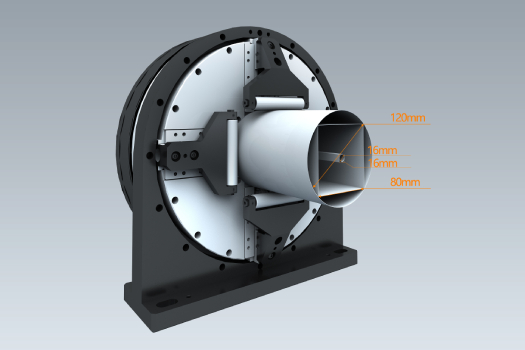

P12060A tube chuck

Φ20-Φ120mm OD Tube Main Chuck



Suitable Chuck Especially Design for Small Tube Laser Cutting Machine,



Round Metal Tube Diameter: Φ20mm-Φ120mm,  (Optional  Φ20mm-Φ160mm)



Square Tube Side length: 16*16mm-80*80mm.

Automatic Calibration Device for Light Weight and Small Metal Tubes Laser Cutting Machine



 Special Hardware Design to Ensure Accuracy During Cut Lightweight and Small Outdiameter Tube With Automatic Calibration Device.

Compensate This Deviation Value from The Internal Calculation in the Software

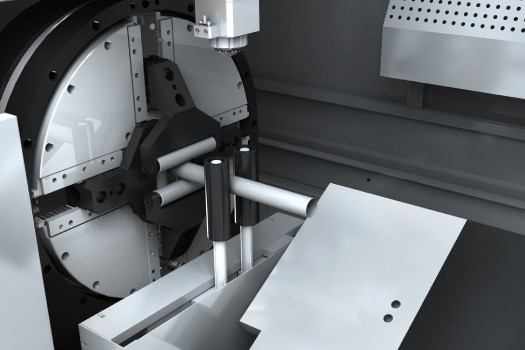

small-tube-laser-cut-chuck
Automatic calibration device during holding of the tube

Double Ensure Automatic Correction for Small Tube Cutting



Golden Laser's Special Design to Ensure accuracy during Cut Small and Light Tube, Extra Automatic Calibration Device When Holding the Tube Before Laser Cutting.



Suitable Adjust Power to Correct the Tube and Ensure Steady Before Laser Cutting Processing.

Germany CNC PA BUS Controller With High Compatibility



Advanced Algorithm in the Tube Laser Cutting Machine Controller



Visual Operation Interface Give your Good User Experiences During the Production.



Easy Operate with G-code and Double Your Production Efficiency Rate.

Golden laser P2060 Controller surface

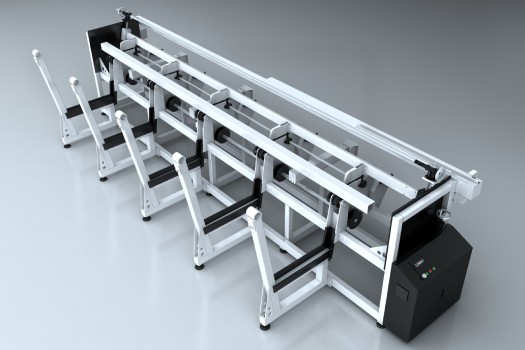

Auto-feeder-of-Tube-laser-cutting-machine

6 Meter Small Tube Automatic Bundle Loader

The Compact Design Automatic Pipe Loading System, Saves Your Workshop Space

Loading Different Shaped Metal Tube: Round Tubes, Square Tubes, Rectangle Tubes, Angle Tubes, I Beam, Channel Steel, and so on.

Max Loading Weight Ability: 2T.

V-type-floating-support-for-round-tube-laser-cutting-machine

Two Types Floating Support Especially For Round and Square Metal Tube Before Laser Cutting

Unique Tube Laser Cutting Machine designed by Golden Laser Tube Laser Cutting Machine Manufacturers.

One Fiber Laser Tube Cutting Machine with TWO types Floating Support System Ensures the Tube Feeding Steadily During the High-speed Laser Cutting, Ensuring the Excellent Accuracy of Laser Cutting Result.

"V" type for Round Metal Tube Holding

"I" type for Square and Rectangle Metal Tubes Holding.

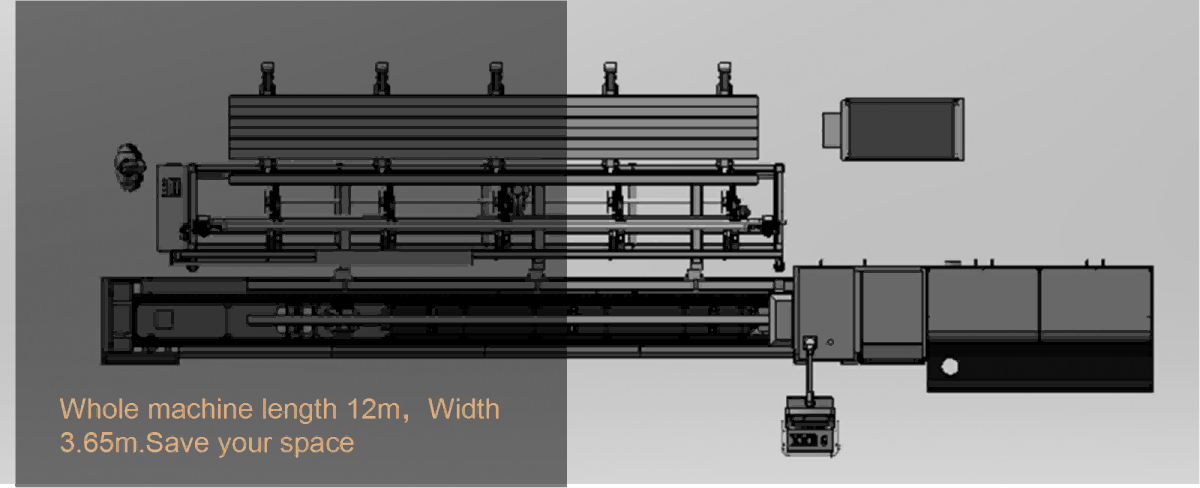

full-tube-laser-cutting-machine-size-1200x488

Tube Laser Cutting Machine Layout

Limited Floor Space to Cut Metal Tubes by Small Tube Laser Cutting Machine.

Maximum Degree to Save Your Working Space and Save Shipping Cost

Only 3.65*12m For the Tube Laser Cutting Machine Running

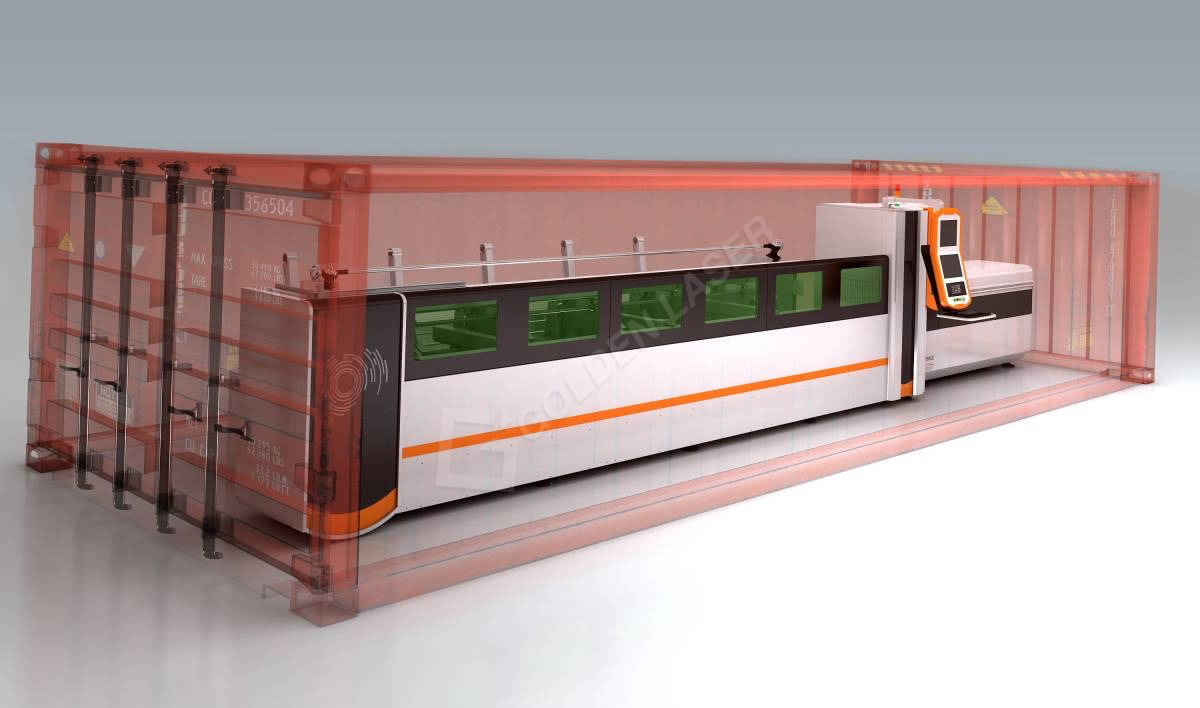

P12060A Small Tube Laser Cutting Machine Loading in 40HQ

1*40HQ Shipping for Small Tube Laser Cutting Machine

Compact Structure Design

Design for Your Small Metal Tube Cutting Demand also Considers Your Automatic Metal Tube Cutting Production Demand,

All the Tube Laser Cutting Machines and Tube Automatic Loading Systems with Water Chiller and Other Spare parts right Put into a 40HQ for Shipping From China, One Pluge turn On Design Save Your Installation Time and Saves Your Shipping Cost.

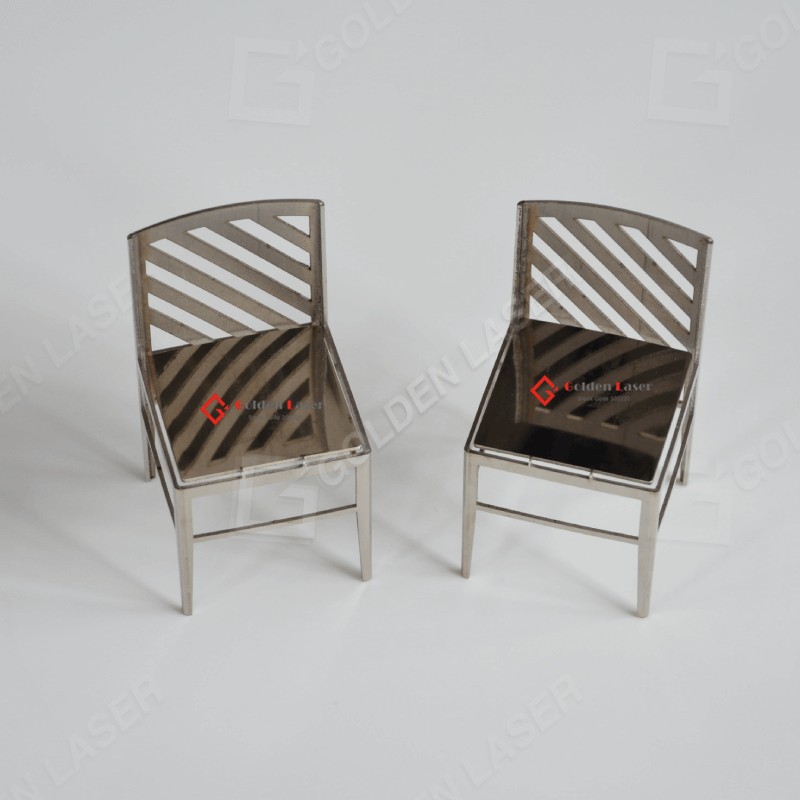

Tube Laser Cutting Machine - Cutting Samples for Stainless Steel Metal Tubes

More Pipe Laser Cut Samples

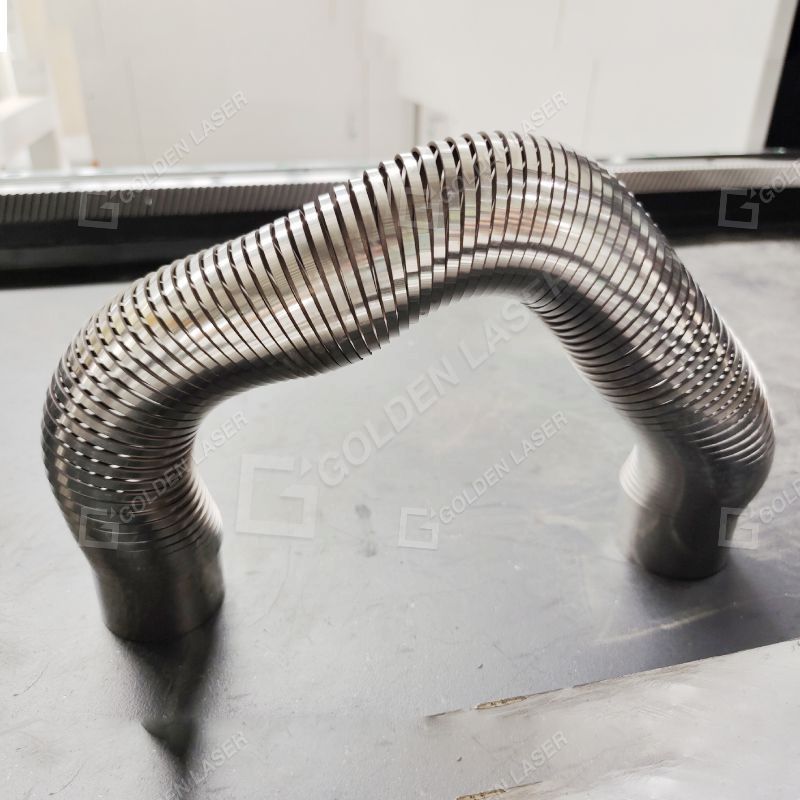

P2060B-tube-laser-Cutting-Result
P2060B-tube-laser-Cutting-Result

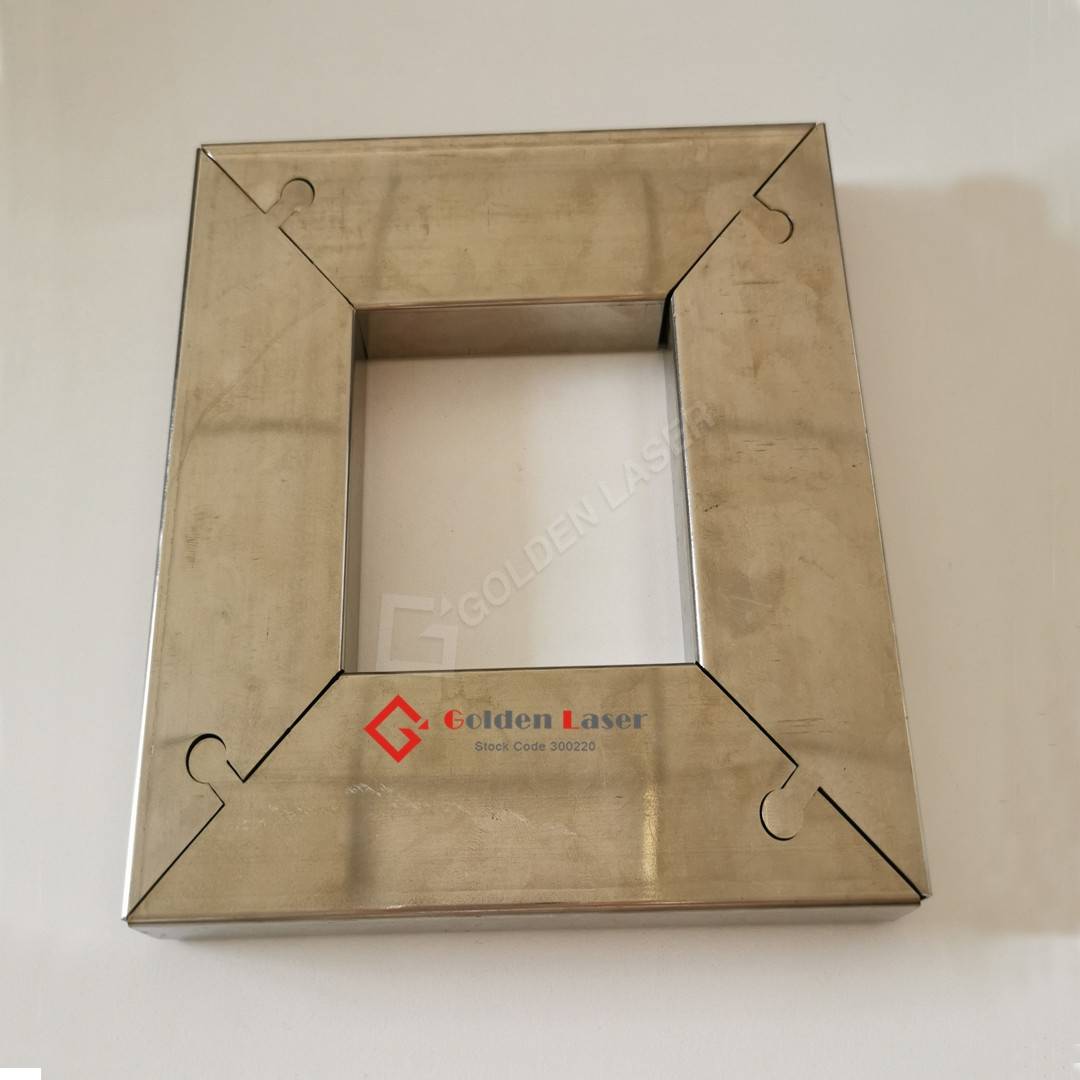

SS-tube-laser-cut-and-bending-pic

Small Tube Laser Cutting Machine Video

Customize Smart Tube Cutting Function For Your Industry Demand

welding-line-avoid2

Welding Line Recognize and Avoid Tube Broken in Cutting


slag-remove1

Slag Remove Function Ensure Clean Inside of the Tubes


6m-tube-supporter1

4-6 Meter Floating Tube Supporting Systime for Long Tube Hollowing

3 Chucks Design For Extremely Precision Tube Cutting Result.



Customer Testimonials of Golden Laser Small Tube Laser Cutter

This tube laser cutting machine is quite suited for my metal furniture manufacturer's production. Right cover our tubes range, help us save lots of cost than a standard tube laser cutter

Great Cutting Speed when cutting small tubes, high precise and good cutting result. Thanks.

FAQ- About Small Tube Laser Cutting Machine Manufacturers in China

What's the Price of Small Tube Laser Cutting Machine?

The Price of a laser tube cutting machine also depends on the laser power and type of laser source, welcome to contact our sales team for the detailed solution.

What's the Production Time for Small Tube Laser Cutting Machine?

Normally it needs about 45 working days for production.

How to Install the Small Tube Laser Cutting Machine

We afford door-to-door installation and training.

But the cause of COIVD -19, we also afford Zoom, Teamview, and other online guides for installation and training.

For More Local installation and training, pls contact us for more detail.

Do You Accept Urgent Order?

Yes, you can tell us your demand time, then we can count according to our production line schedule.

Ready to Get Newest Price?

Golden Laser is Your Professional Tube Laser Cutting Machine Manufacturers In China, There Are Many Types of Tube laser cutting machines to Meet your Different Cutting Demands.

Now, Let's get start to get the Newest price from your expert

Welcome to Contact Golden Laser
  • Previous:
  • Next:

    •  Small Tube Laser Cutting Machine - Especially Design for Small and Middle Diameter Metal Tube and Light Pipes Laser Cutting

    Suit Metal Tubes' Outer Diameter From
    Φ16mm to Φ120mm,

    • Suit Various Shape Tube and Pipe CNC Laser Cutting Demands.
    • Pipes Length Reach 6 meters.
    • 7m to 8m for Optional

    6-meter Automatic Tube Bundle Load System for Continuous Batch Cut.

    P12060A tube chuck

    Φ20-Φ120mm OD Tube Main Chuck



    Suitable Chuck Especially Design for Small Tube Laser Cutting Machine,



    Round Metal Tube Diameter: Φ20mm-Φ120mm,  (Optional  Φ20mm-Φ160mm)



    Square Tube Side length: 16*16mm-80*80mm.

    Automatic Calibration Device for Light Weight and Small Metal Tubes Laser Cutting Machine



     Special Hardware Design to Ensure Accuracy During Cut Lightweight and Small Outdiameter Tube With Automatic Calibration Device.

    Compensate This Deviation Value from The Internal Calculation in the Software

    small-tube-laser-cut-chuck
    Automatic calibration device during holding of the tube

    Double Ensure Automatic Correction for Small Tube Cutting



    Golden Laser's Special Design to Ensure accuracy during Cut Small and Light Tube, Extra Automatic Calibration Device When Holding the Tube Before Laser Cutting.



    Suitable Adjust Power to Correct the Tube and Ensure Steady Before Laser Cutting Processing.

    Germany CNC PA BUS Controller With High Compatibility



    Advanced Algorithm in the Tube Laser Cutting Machine Controller



    Visual Operation Interface Give your Good User Experiences During the Production.



    Easy Operate with G-code and Double Your Production Efficiency Rate.

    Golden laser P2060 Controller surface
    Auto-feeder-of-Tube-laser-cutting-machine

    6 Meter Small Tube Automatic Bundle Loader

    The Compact Design Automatic Pipe Loading System, Saves Your Workshop Space

    Loading Different Shaped Metal Tube: Round Tubes, Square Tubes, Rectangle Tubes, Angle Tubes, I Beam, Channel Steel, and so on.

    Max Loading Weight Ability: 2T.

    V-type-floating-support-for-round-tube-laser-cutting-machine

    Two Types Floating Support Especially For Round and Square Metal Tube Before Laser Cutting

    Unique Tube Laser Cutting Machine designed by Golden Laser Tube Laser Cutting Machine Manufacturers.

    One Fiber Laser Tube Cutting Machine with TWO types Floating Support System Ensures the Tube Feeding Steadily During the High-speed Laser Cutting, Ensuring the Excellent Accuracy of Laser Cutting Result.

    "V" type for Round Metal Tube Holding

    "I" type for Square and Rectangle Metal Tubes Holding.

    full-tube-laser-cutting-machine-size-1200x488

    Tube Laser Cutting Machine Layout

    Limited Floor Space to Cut Metal Tubes by Small Tube Laser Cutting Machine.

    Maximum Degree to Save Your Working Space and Save Shipping Cost

    Only 3.65*12m For the Tube Laser Cutting Machine Running

    P12060A Small Tube Laser Cutting Machine Loading in 40HQ

    1*40HQ Shipping for Small Tube Laser Cutting Machine

    Compact Structure Design

    Design for Your Small Metal Tube Cutting Demand also Considers Your Automatic Metal Tube Cutting Production Demand,

    All the Tube Laser Cutting Machines and Tube Automatic Loading Systems with Water Chiller and Other Spare parts right Put into a 40HQ for Shipping From China, One Pluge turn On Design Save Your Installation Time and Saves Your Shipping Cost.

    Tube Laser Cutting Machine - Cutting Samples for Stainless Steel Metal Tubes

    More Pipe Laser Cut Samples
    P2060B-tube-laser-Cutting-Result
    P2060B-tube-laser-Cutting-Result
    SS-tube-laser-cut-and-bending-pic

    Small Tube Laser Cutting Machine Video

    Customize Smart Tube Cutting Function For Your Industry Demand

    welding-line-avoid2

    Welding Line Recognize and Avoid Tube Broken in Cutting


    slag-remove1

    Slag Remove Function Ensure Clean Inside of the Tubes


    6m-tube-supporter1

    4-6 Meter Floating Tube Supporting Systime for Long Tube Hollowing

    3 Chucks Design For Extremely Precision Tube Cutting Result.



    Customer Testimonials of Golden Laser Small Tube Laser Cutter

    This tube laser cutting machine is quite suited for my metal furniture manufacturer's production. Right cover our tubes range, help us save lots of cost than a standard tube laser cutter

    Great Cutting Speed when cutting small tubes, high precise and good cutting result. Thanks.

    FAQ- About Small Tube Laser Cutting Machine Manufacturers in China

    What's the Price of Small Tube Laser Cutting Machine?

    The Price of a laser tube cutting machine also depends on the laser power and type of laser source, welcome to contact our sales team for the detailed solution.

    What's the Production Time for Small Tube Laser Cutting Machine?

    Normally it needs about 45 working days for production.

    How to Install the Small Tube Laser Cutting Machine

    We afford door-to-door installation and training.

    But the cause of COIVD -19, we also afford Zoom, Teamview, and other online guides for installation and training.

    For More Local installation and training, pls contact us for more detail.

    Do You Accept Urgent Order?

    Yes, you can tell us your demand time, then we can count according to our production line schedule.

    Ready to Get Newest Price?

    Golden Laser is Your Professional Tube Laser Cutting Machine Manufacturers In China, There Are Many Types of Tube laser cutting machines to Meet your Different Cutting Demands.

    Now, Let's get start to get the Newest price from your expert

    Welcome to Contact Golden Laser
  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Materials Stainless steel, carbon steel, aluminum, brass, copper, alloy steel and galvanized steel etc.



    Applicable Types Of Tubes and Industry This model is suit for  different shape small diameter tube truncating and holes drilling, in high precise and high speed.

    different-tube

    Machine Technical Parameters

    Model Name S12plus / S16plus (P1260A – Small Tube Laser Cutting Machine)
    Maximum processing length 6000mm (7000mm (22.965′) Option)
    Tube diameter range Round tube φ20-φ120mm （0.78″- 4.72″）, square tube □16×16- □80×80mm （0.62″- 3.14″)
    Single tube bearing weight 15kg/m
    Laser source IPG/ nLIGHT/ Raycus / Max fiber laser generator
    Laser power 1500W 2000W 3000W 4000W
    Cutting System PA Bus (Germany CNC Controller)
    Repeatability ±0.03mm (±0.001″)
    Positioning Accuracy ±0.05mm
    Rotational speed 150r/min
    Max Acceleration 1.5g
    Weld recognition function Optional
    Slag Remove Function Optional
    Auto feeder maximum size and weight 800mm×800mm×6500mm (2.6′×2.6′×21.3′) ; 2T
    Equipment dimensions (length × width) 12507mm×4109mm (41′×13.5′)
    Equipment weight 11 T



    Laser Power Cutting Capacities For Metal Tubes (mm)
    Material 1500W 2000W 2500W 3000W 4000W
    Carbon steel 10 12 14 16 20
    Stainless steel 6 8 10 10 12
    Galvanized steel 5 6 8 8 10
    Aluminum 4 5 6 6 10
    Brass 3 4 5 5 8
    Copper 2 2 3 3 4
