Normal Fiber Laser Tube Cutting Machine P2060B

  • Normal Fiber Laser Tube Cutting Machine P2060B

Golden Laser normal start off tube laser cutting machine is one of an enter type tube laser cutting machine, suit for different normal metal tube cutting, easy to get the investment back in a short time.

  • Model number : P2060B / P1660B
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

Normal CNC  fiber laser tube cutting machine

Enter type for metal tube and pipe cutting...  suit for different shape tube and pipe, such as round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20-200mm, length 6m.

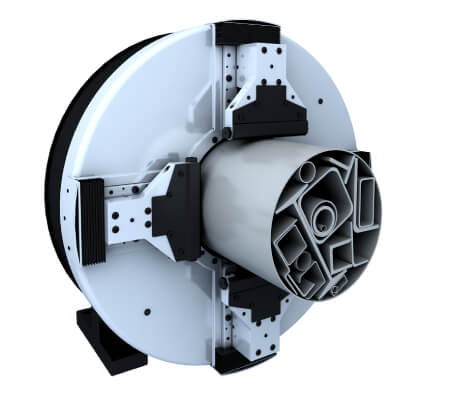

Full-Strock-Chuck-of laser tube cutting machine

Full-Stork Chuck...



Automatic suit for different Shape and Diameter Tube Size, Out Diameter: 20-200mm (Square, Rectangle, Channel Steel....)



 No need to adjust the claws for pipe diameters in the range of 20-200mm, swith the pipe type at will and clamp it in place at one time. Increase your production efficiency.

Advanced CNC Bus Controller System ...



Based on the China FSCUT Bus controller, high accuracy and high speed, working more steadily and easily for maintenance



3D view of the tube easy to operate



Including Tubest laser cutting system nesting software.

P1660B software of the pipe laser cutting machine

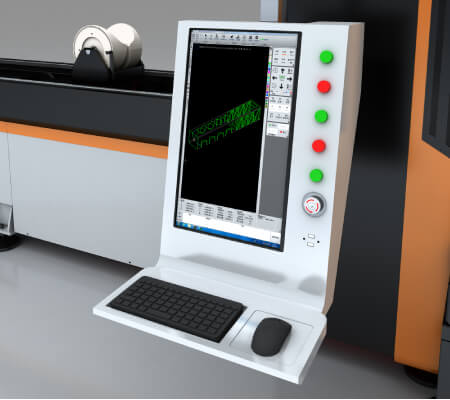

P2060B-screen of laser tube cutting machine golden laser

Big Screen...


19" Easy to operate,


Clear and Friendly using experience during the production.

High-Speed Motor ...



Rotary speed reaches 150r/min.



The bus motor cooperates with the Bus CNC controller to ensure high accuracy during the high-speed rotary, no single loss, and easy maintenance...

servo motor

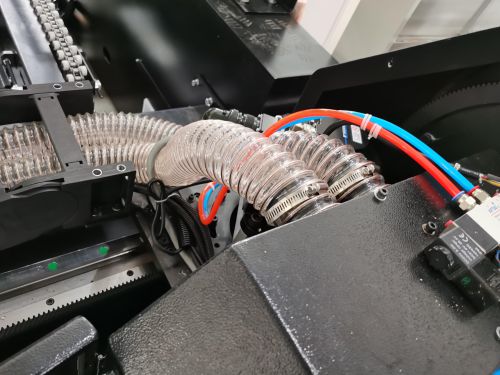

Double Tailer exhaust fan ensure clean cut

Dust-Free...



Double Tailer dust exhaust system ensure a good cutting  environment.



 Reduce dust pollution, be more environmentally friendly, and use more worry-free

Finished Tube Collect system...



Variable diameter wheel supporters ensure the tube has good support during the cutting,



avoid tubes too long to be sagging by the weight or too long to be thrown out.



No need to adjust the claws for pipe diameters in the range of 20-200mm, switch the pipe type at will and clamp it in place at one time.

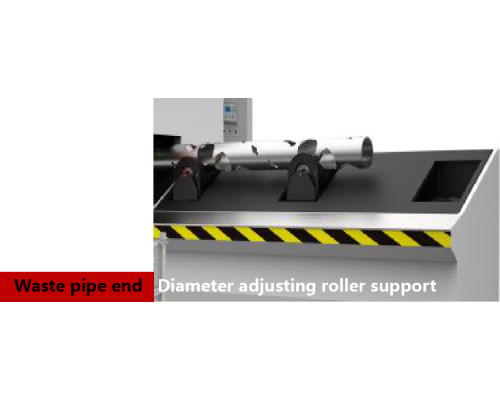

P2060B Tailer Support

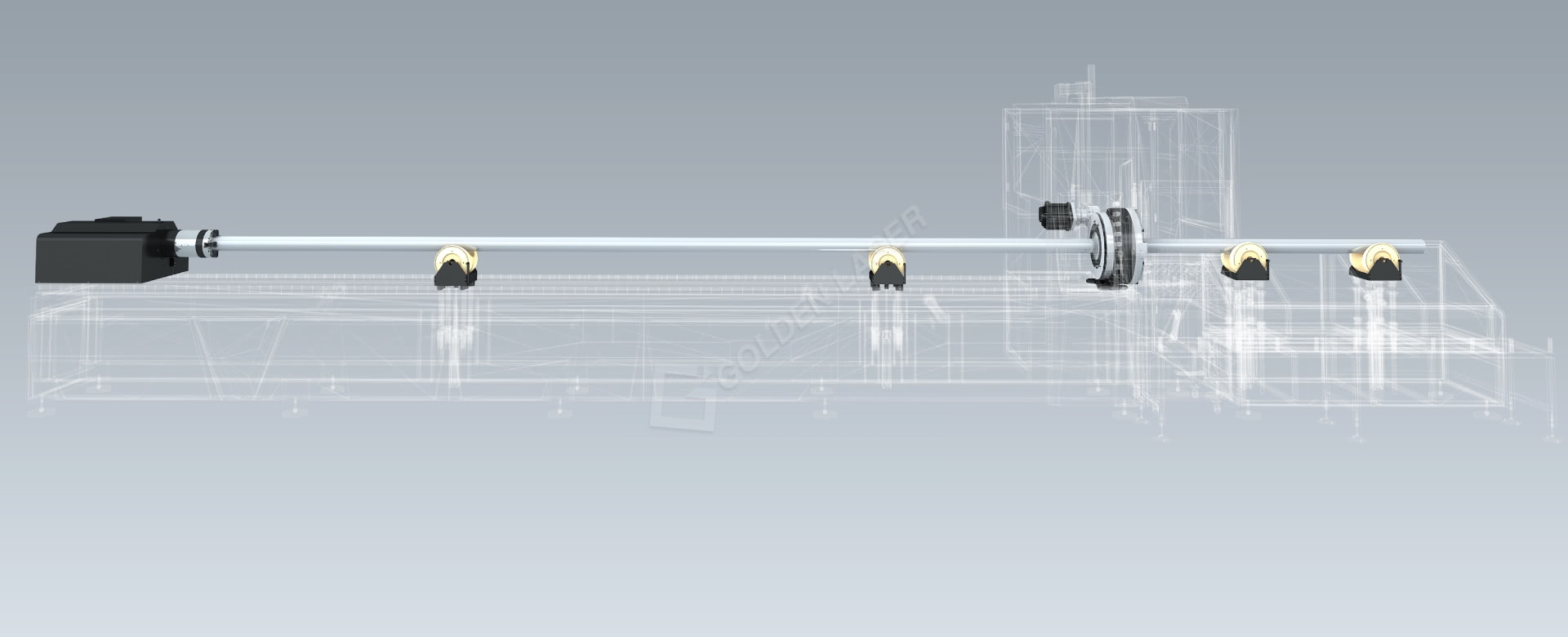

P2060B four holder of the metal tube during cutting

Steady Tube Holder ensure the tube cutting accuacy

There are four pieces of various diameter tube holders to support the tube before and during cutting, avoid declining the weight of the tube, and reduce the situation of being thrown out by inertia.

Double reducing wheel support system: the processing end adopts reducing wheel support to ensure the longer and thinner pipe-cutting process is more stable, avoiding the influence of tube bending deformation on the cutting accuracy; the tail end adopts reducing wheel support to avoid over processing In the process of long workpieces, the tailpipe is too heavy and inertially swings due to high-speed rotation, causing the jitter accuracy of the cutting process to shift.

Enter Type Laser Tube Cutting Machine Video

  • Previous:
  • Next:

    • Normal CNC  fiber laser tube cutting machine

    Enter type for metal tube and pipe cutting...  suit for different shape tube and pipe, such as round, square, rectangular, triangle, oval, waist tube and other shaped tube & pipe. The tube outer diameter can be 20-200mm, length 6m.

    Full-Strock-Chuck-of laser tube cutting machine

    Full-Stork Chuck...



    Automatic suit for different Shape and Diameter Tube Size, Out Diameter: 20-200mm (Square, Rectangle, Channel Steel....)



     No need to adjust the claws for pipe diameters in the range of 20-200mm, swith the pipe type at will and clamp it in place at one time. Increase your production efficiency.

    Advanced CNC Bus Controller System ...



    Based on the China FSCUT Bus controller, high accuracy and high speed, working more steadily and easily for maintenance



    3D view of the tube easy to operate



    Including Tubest laser cutting system nesting software.

    P1660B software of the pipe laser cutting machine
    P2060B-screen of laser tube cutting machine golden laser

    Big Screen...


    19" Easy to operate,


    Clear and Friendly using experience during the production.

    High-Speed Motor ...



    Rotary speed reaches 150r/min.



    The bus motor cooperates with the Bus CNC controller to ensure high accuracy during the high-speed rotary, no single loss, and easy maintenance...

    servo motor
    Double Tailer exhaust fan ensure clean cut

    Dust-Free...



    Double Tailer dust exhaust system ensure a good cutting  environment.



     Reduce dust pollution, be more environmentally friendly, and use more worry-free

    Finished Tube Collect system...



    Variable diameter wheel supporters ensure the tube has good support during the cutting,



    avoid tubes too long to be sagging by the weight or too long to be thrown out.



    No need to adjust the claws for pipe diameters in the range of 20-200mm, switch the pipe type at will and clamp it in place at one time.

    P2060B Tailer Support
    P2060B four holder of the metal tube during cutting

    Steady Tube Holder ensure the tube cutting accuacy

    There are four pieces of various diameter tube holders to support the tube before and during cutting, avoid declining the weight of the tube, and reduce the situation of being thrown out by inertia.

    Double reducing wheel support system: the processing end adopts reducing wheel support to ensure the longer and thinner pipe-cutting process is more stable, avoiding the influence of tube bending deformation on the cutting accuracy; the tail end adopts reducing wheel support to avoid over processing In the process of long workpieces, the tailpipe is too heavy and inertially swings due to high-speed rotation, causing the jitter accuracy of the cutting process to shift.

    Enter Type Laser Tube Cutting Machine Video

  • Previous:
  • Next:

    • Material & Industry Application

    ApApplicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, alloy steel and galvanized steel etc.



    ApApplicable Industry

    Metal furniture, medical device, fitness equipment, sports equipment, oil exploration, display shelf, agriculture machinery, bridge supporting, steel rail rack, steel structure, fire control, metal racks, agriculture machinery, automotive, motorcycles, pipes processing etc.



    ApApplicable Types Of Tubes Cutting

    Round tube, square tube, rectangular tube, oval tube, OB-type tube, C-type tube, D-type tube,triangle tube, etc (standard); Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)

    different-tube

    Fitness equipment industry: the advantage of seizing the first opportunity: the popular fitness boom has intensified the hot development of the fitness equipment industry. Faced with the practical and cost-effective general-purpose fiber laser tube cutting machine, manufacturers choose multiple equipment to invest simultaneously to increase production capacity , To seize market opportunities.

    Steel furniture industry: the seamless connection of 3D design software shortens the time from design to production: the designer uses 3D design software to design exquisite furniture drawings in the office, and the graphics can be directly imported into the equipment cutting system in the next step, immediately Show the design results.

    Medical device industry; the ability to adapt to a variety of processing objects: various specifications and types of medical devices are faced with complex tube processing techniques, and the comprehensive processing capabilities of this equipment can fully meet.

    Machine Technical Parameters

     CNC fiber laser tube cutting machine P2060B Technical Parameters

    Model number P2060B /P1660B
    Laser power 1500w, 2000w,3000w Fiber Laser
    Laser source IPG / nLight /Raycus / Max fiber laser resonator
    Laser Head Raytools
    Tube length 6000mm
    Tube diameter 20mm-200mm (Square 20*20mm -140*140mm) Channel steel 16#; I beam 16# / 20mm-160mm
    Controller FSCUT 5000B Bus Control system; FSCUT 3000 Laser Cutting System Optional
    Nesting Software TubesT 3D Laser Nesting software
    Repeat position accuracy ± 0.03mm
    Position accuracy ± 0.03mm
    Chuck rotate speed Max 130r/min
    Acceleration 0.7g
    Chuck  Pneumatic Chuck
    Graphic format Solidworks, Pro/e, UG, IGS
    Tube type Round, Square, Rectangular, Oval, OB-type, C-type, D-type, Triangle, Angle steel, Channel steel, H-shape steel, L-shape steel, etc.
    Loader  Optional simple Loader
