"Because laser welding result is smooth and no heat effect on the side, which ensure excellent welding result. Which is other TIG welding, Arc welding, Soldering couldn't match."
|
Item |
Traditional welding |
Handheld laser welding |
| Heat input to the workpiece |
Very high |
Low |
| Workpiece deformation, edge bite |
Big |
Small |
| Bonding strength with base metal |
Normal |
Good |
| Subsequent processing |
Polish |
No polish or few polish |
| Welding speed |
Normal |
2 times than Argon arc welding |
| Materials |
SS, CS, Galvanize |
SS, CS, Galvanize |
| Consumable items |
Large |
Few |
| Operate |
Complicated |
Easy |
| Operator safety |
Not safe |
Safe |
| Environmental protect |
No. |
Good |
| Welding fault tolerance |
Good |
Good |
| Weaving welding |
No |
Yes |
| Spot width is adjustable |
No |
Yes |
| Welding quality |
BAD |
VERY GOOD |

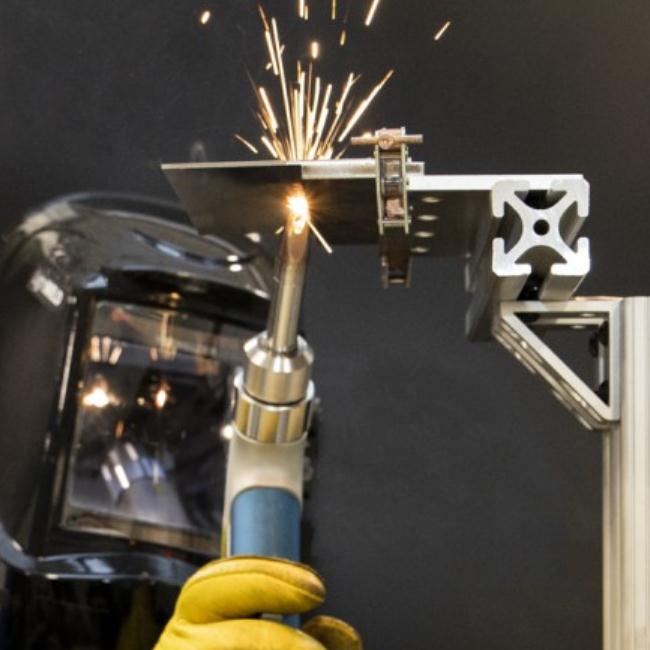

Choose handheld laser cutting nozzle to realize simple laser cutting function.

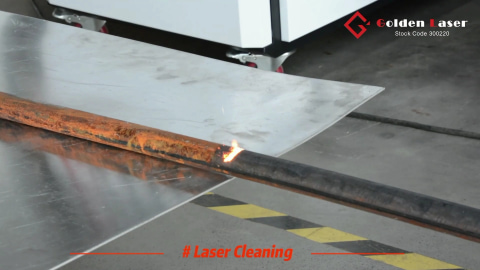

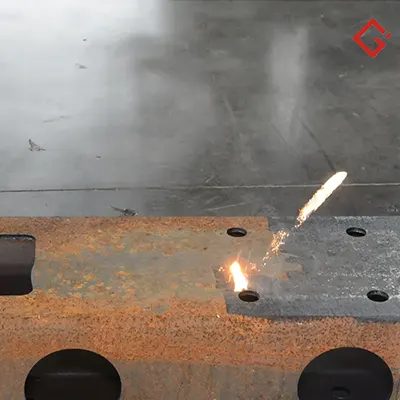

Rust removal function. Standard max cleaning width: 20mm; optional: 50mm to 150mm.

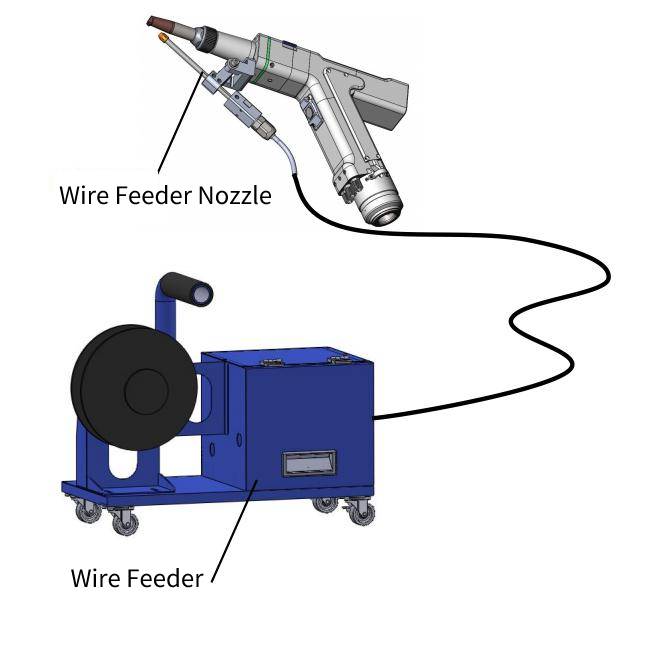

To weld the large gap of metal spare parts, an automatic wire feeder can help you save time and ensure a good welding result

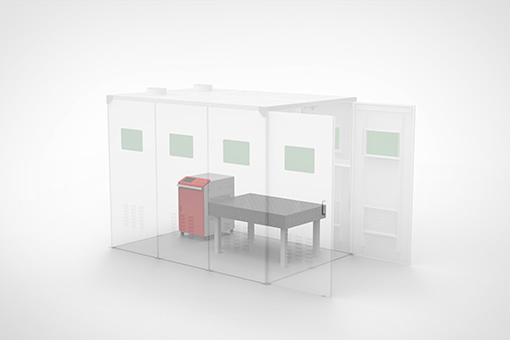

Movable and simple independent workspace, especially designed for a handheld laser welding machine. More safe in the production line
A portable, independent workspace that can be customized according to the number of handheld welding machines
Fiber Laser makes welding, cleaning, and cutting steel so easy.
Contact Golden Laser overseas service team for more laser welding and cutting machine solutions.
Welding in Sheet metalworking, hardware, kitchenware, bathroom, electronics, automobiles, sensors, elevators, sheet metal cabinets, elevator, advertising, stainless steel doors and windows, shelves, craft, lighting, Advertising decoration, etc industries.
Metal Welding is especially for carbon steel, stainless steel, alloy, aluminum, galvanized steel, titanium, brass, copper, and other metal sheets.
| Model number: | W15 / W20 / W30 |
| Laser source: | IPG / nLight /Raycus / Max fiber laser generator |
| Laser Source Power: | 1500w /2000w / 3000w |
| Cooling Method | Water Chiller |
| Beam Quality | M2<1.2 /M2<1.5 /M2<1.5 |
| Laser Swing Range | 0-5mm |
| Fiber length: | 10m |
| Auto Wire Feeder | Yes |
| Function | Welding, Cleaning, Cutting, Changeable |
| Electric Power Supply: | AC220V 50/60HZ ; AC380V 50/60HZ |
| Welding Seam Requirements | <0.2mm |
| Welding Speed | 0-120mm/s |
