3D Robotic Arm Laser Welding Machine

Short Description:

Golden Laser welding machine is widely applied in batteries, electronics, optical communications, automotive, micro electronics, hardware, household appliances, medical equipment, mold, bathroom, super capacitors, motors, instrumentation, aerospace, solar, glasses, jewelry, etc.

…………………………………………………………………………………………………………………………………..

Model number: GHJ-D300GX / GHJ-D600GX

Laser source: IPG / nLIGHT fiber laser generator

Laser source power: 1000w 1500w 2000w 2500w 3000w

Positioning accuracy: ±0.01mm


Machine Details

Material & Industry Application

Machine Technical Parameters

Product Tag

3D Robotic Arm Laser Welding Machine

Laser welding has the superiority of small welding spot diameter, narrow weld seam and excellent welding effect. After welding,there is no need further treatment or merely simple further treatment. Furthermore, laser welding is applicable to a large scale of materials and can weld various different materials. There advantages enable laser welding be widely used in varieties of precision welding processes.

laser welding machine

Machine Features

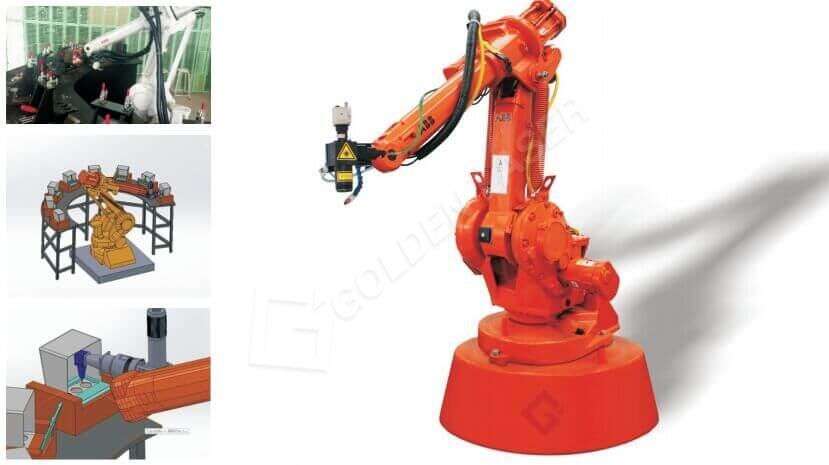

1.6-axis industrial robot arm with heavy load capacity and large processing area is able to achieve the mass production of various irregular workpiece after equipped with the vision system

2. Repeat positioning accuracy is up to 0.05mm and the maximum acceleration speed is 2.1m/s

3. The perfect combination of the world famous ABB robot arm and the fiber laser transmitted welding machine, which takes less floor space with higher economical efficiency and competitiveness, and realizes automatic and intelligent production in maximum degree.

4. The system reduces the operating costs, improves product quality and consistency, makes the working condition more better, expands the production capacity, enhances the manufacturing flexibility, reduces material waste and improve qualified product’s rate

5. Combined with the ABB offline programming simulation software and the friendly HMI Flexpendant, it makes the entire laser welding system easy to operate and manage under the condition that it meets the customer’s technical requirements

6. Whether it is put into production or line changing, the robot programming software can be prepared in advance, thus it greatly reduces the time of machine debugging and stopping, and greatly improves the production efficiency and increases return on investment

7. The Advanced Shape Tuning software developed by ABB compensates the robot axis friction, it makes accurate and timely compensation for tiny wobble and resonance when the robot is walking complex 3D cutting paths. The above functions are contained in the robot, the user only needs to choose the corresponding function module in application, then the robot will repeat to walk the generated path according to the command and automatically obtain all axes friction parameters.

Customer Site - Laser Welding Machine In Vietnam


  • Previous:
  • Next:

  • Applicable Industry

    Laser welding widely applied in batteries, electronics, optical communications, automotive, micro electronics, hardware, household appliances, medical equipment, mold, bathroom, super capacitors, motors, instrumentation, aerospace, solar, glasses, jewelry, etc.

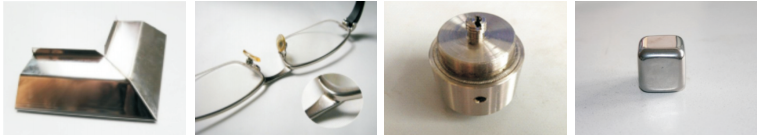

    Samples Demonstration

    laser welding machine for kitchenware

    Specially for kitchenware industry

    Korean kitchen table integrated automation welding system

    Optical fiber transmitted laser welding robot

    Dual light path laser system

    Laser welding is of fast processing speed and good welding appearance in the application of thin steel plate, and the advantage of welded sheet without thermal deformation is very obvious. According to the wide range of product types in thin steel plate processing industry and its simple welding seam, Golden laser has set up a special team for fixture design and manufacturing for its complex features and makes it widely used in thin metal processing.

    laser welding system











    3D Robotic Arm Laser Welding Machine Technical Parameters

    Maximum Power 1000w 1500w 2000w 2500w 3000w
    Single pulse maximum output power 150J
    Output stability ±5%
    Laser transmission mode Flexible fiber
    Power supply Triphase AC 380V
    Maximum input power 12kW / 18KW
    Size L750 x W1620 x H1340
    Working table(optional) Precision electrical slide working table; galvanometer working table; robot device
    Positioning accuracy ±0.01mm
    Cooling system Internal & external double circulation heat exchange
    Heat exchange power 12.5KW / 18KW
    Quantity of fiber transmission branches  1~4
    Storable laser type 32 types
    Video monitoring(optional) High-definition camera + 14 inch monitor
    Format supported DWG, DXF, PLT, AI, etc.
    Weight 450kg
