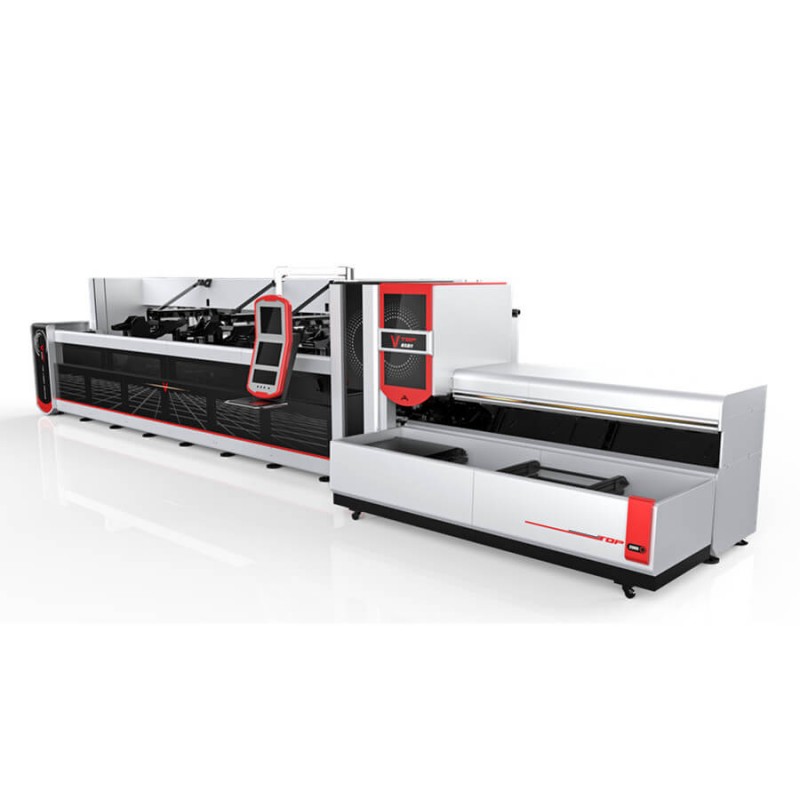

1000w 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine

  • 1000w 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine
  • 1000w 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine
  • 1000w 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine
  • 1000w 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine
  • 1000w 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine

Golden fber laser tube cutting machine is specially designed for pipe manufacturer industry, boiler and pressure vessel manufacturing, metal furniture, sports equipment, agricultural machinery, automotive industry etc. It is a high-efficiency and high-precision pipe automatic cutting equipment, which can not only cut round pipe square tube, rectangular tube,intersecing face. The utility model has the advantages of high production efficiency, stable cutting quality and high cutting precision.

………………………………………………………………………………………………………………………………………………………

Model number: P2060A / P3080A

Laser source: IPG / nLight fiber laser generator

Laser source power: 1000w 1500w  ( 2000w – 4000w optional )

Cnc controller: Cypcut / Germany PA HI8000

Nesting software: Spain Lantek

Tube length: 6m, 8m

Tube diameter: 20mm-200mm, 20mm-300mm

Applicable types of tubes: Round tube, square tube, rectangle tube, oval tube, triangle tube, and other irregular shaped tube etc.

Applicable Industry: Steel furniture, fitness equipment, metal tubes & pipes processing industry etc.

  • Model number : P2060A / P3080A

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine

1500W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Material

Cutting Limit

Clean Cut

Carbon steel

14mm

12mm

Stainless steel

6mm

5mm

Aluminum

5mm

4mm

Brass

5mm

4mm

Copper

4mm

3mm

Galvanized steel

5mm

4mm
fiber laser tube cutting machine

Machine Details

Advanced chuck clamping system

Chuck center self-adjustment, automatically adjust the size of the clamping force according to the tube profile specifications, to ensure non-destructive thin tube clamping.

Two linked right move claws, compatible with a variety of pipes without adjusting jaws.chuck

Corner fast cutting system

Automatic Floating Support and Collecting Device

laser cutting machine for pipe

The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

Automatic Tube Bundle Loader

Round pipe, rectangular pipe and other pipes can be fully automated loading. Other shapes pipe can be semi-automatic feeding manually.

Corner fast response, greatly improving cutting efficiency.

automatic bundle loader

General Details

◆ Maximum loading bundle tube size 800mm×800mm.

◆ The bundle tube max. loading weight is 2500kgs. The loading belt and the supporter are easy for dismantle.

◆ The integrated design of the feeding finger main body and the chain transport link is easy for debugging and transporting.

◆ Feeding robot body with a chain conveyor link structure integrated design, easy to debug transport.

P-A Series Pipe laser cutting Machine In the Customer Site

1500W Fully Automatic Fiber Laser Tube Cutting Machine Video

  • Previous:
  • Next:

    • 1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine

    1500W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    14mm

    12mm

    Stainless steel

    6mm

    5mm

    Aluminum

    5mm

    4mm

    Brass

    5mm

    4mm

    Copper

    4mm

    3mm

    Galvanized steel

    5mm

    4mm
    fiber laser tube cutting machine

    Machine Details

    Advanced chuck clamping system

    Chuck center self-adjustment, automatically adjust the size of the clamping force according to the tube profile specifications, to ensure non-destructive thin tube clamping.

    Two linked right move claws, compatible with a variety of pipes without adjusting jaws.chuck

    Corner fast cutting system

    Automatic Floating Support and Collecting Device

    laser cutting machine for pipe

    The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

    Automatic Tube Bundle Loader

    Round pipe, rectangular pipe and other pipes can be fully automated loading. Other shapes pipe can be semi-automatic feeding manually.

    Corner fast response, greatly improving cutting efficiency.

    automatic bundle loader

    General Details

    ◆ Maximum loading bundle tube size 800mm×800mm.

    ◆ The bundle tube max. loading weight is 2500kgs. The loading belt and the supporter are easy for dismantle.

    ◆ The integrated design of the feeding finger main body and the chain transport link is easy for debugging and transporting.

    ◆ Feeding robot body with a chain conveyor link structure integrated design, easy to debug transport.

    P-A Series Pipe laser cutting Machine In the Customer Site

    1500W Fully Automatic Fiber Laser Tube Cutting Machine Video

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Materials

    Stainless steel,carbon steel,aluminum,brass,copper,galvanized steel and other metal pipes.

    Applicable Industry

    P2060A pipe laser machine can cut 6m tube,and tube diameter from 20mm to 200mm,it is applied to metal furniture, medical device, fitness equipment, sports equipment, display shelf, agriculture machinery,steel structure,fire control, heavy machine,euqipment manufacturing and pipe processing industry etc

    laser cutting machine for furniture

    metal tube laser cutting machine

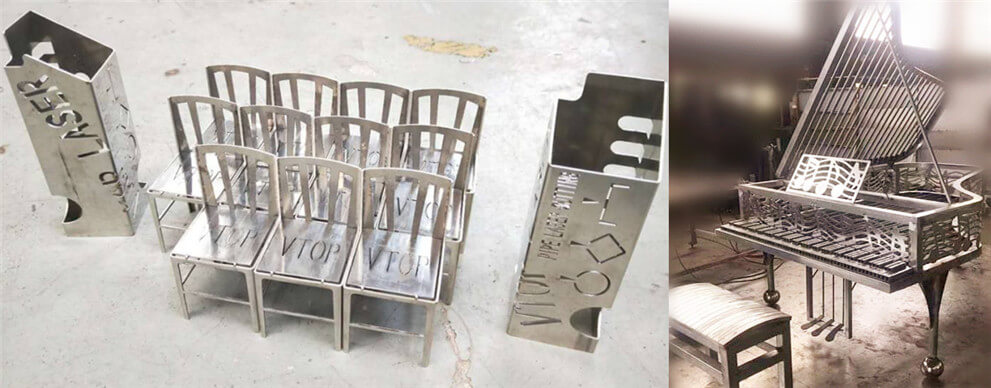

    Laser Cutting Machine For Metal Tubes Samples

    laser tube cutting samples



    Machine Technical Parameters

    1500w Stainless Steel Tube And Iron Pipe Fiber Laser Cutting Machine

    Model number P2060A / P3080A
    Laser power 1000w 1500w  ( 2000w – 4000w optional )
    Laser source IPG / nLight fiber laser resonator
    Tube length 6000mm, 8000mm
    Tube diameter 20mm-200mm / 20mm-300mm
    Tube type Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);
    Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Repeat position accuracy ± 0.03mm
    Position accuracy ± 0.05mm
    Position speed Max 90m/min
    Chuck rotate speed Max 105r/min
    Acceleration 1.2g
    Graphic format Solidworks, Pro/e, UG, IGS
    Bundle size 800mm*800mm*6000mm
    Bundle weight Max 2500kg
    Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader
    Model number P2060A P3080A P30120A
    Pipe processing length 6m 8m 12m
    Pipe processing diameter Φ20mm-200mm Φ20mm-300mm Φ20mm-300mm
    Applicable types of pipes Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);
    Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Laser source IPG/N-light fiber laser resonator
    Laser power 700W/1000W/1200W/2000W/2500W/3000W/4000W
