High-end Intelligent CNC Laser Pipe Cutting Machine P2060A

  • High-end Intelligent CNC Laser Pipe Cutting Machine P2060A

High-end intelligent CNC  Laser Pipe Cutting Machine, especially for metal tube and pipe cutting. With Auto bundle loading system for automatic continous production.

Fiber laser cutting machine HS code: 84561100

  • Model number : P2060A
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

High-end Intelligent CNC  Laser Pipe Cutting Machine



P2060A Especially for metal tubes and pipes with high precise cutting...  Suit for different shape metal tube and metal pipes laser cut, such as cutting round pipe, square pipe, rectangular pipe, triangle pipe, oval pipe, and other shaped tubes and pipe.

The Tube Outer Diameter Can Be 20-200mm, Tube Length 6m.

With Auto bundle loading system for automatic continuous pipe laser cut.

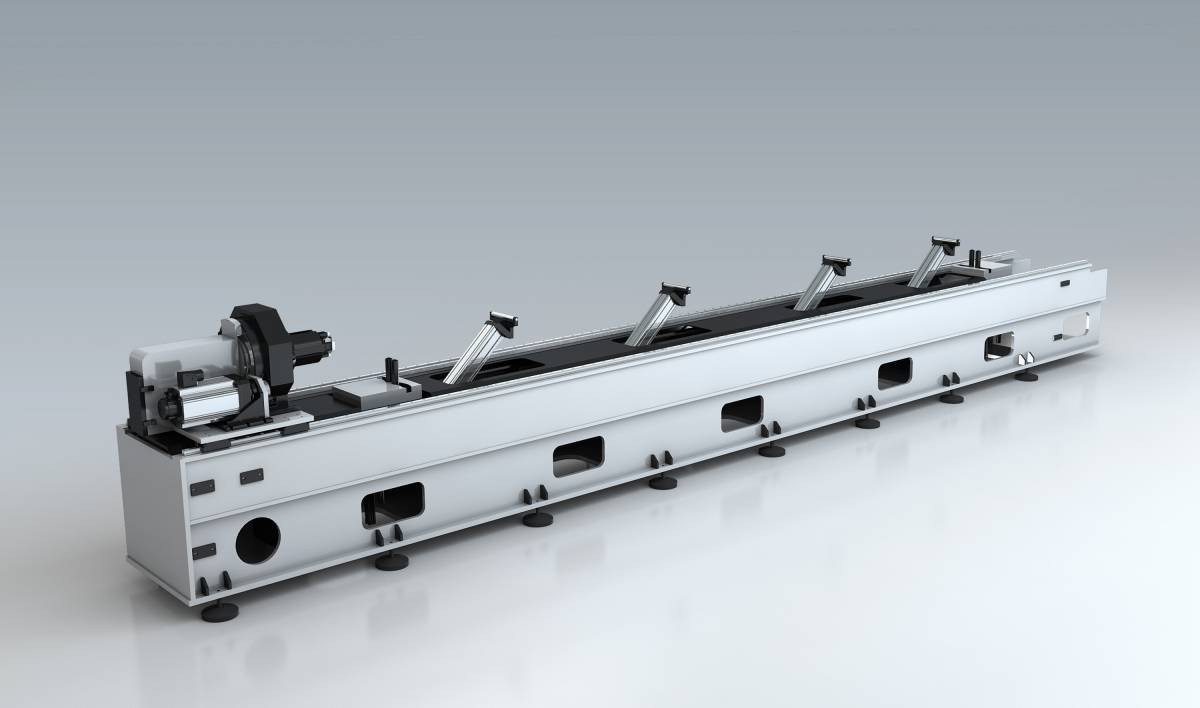

body of tube laser cutting machine

Heavey Plate Welding Laser Pipe Cutting Machine Body

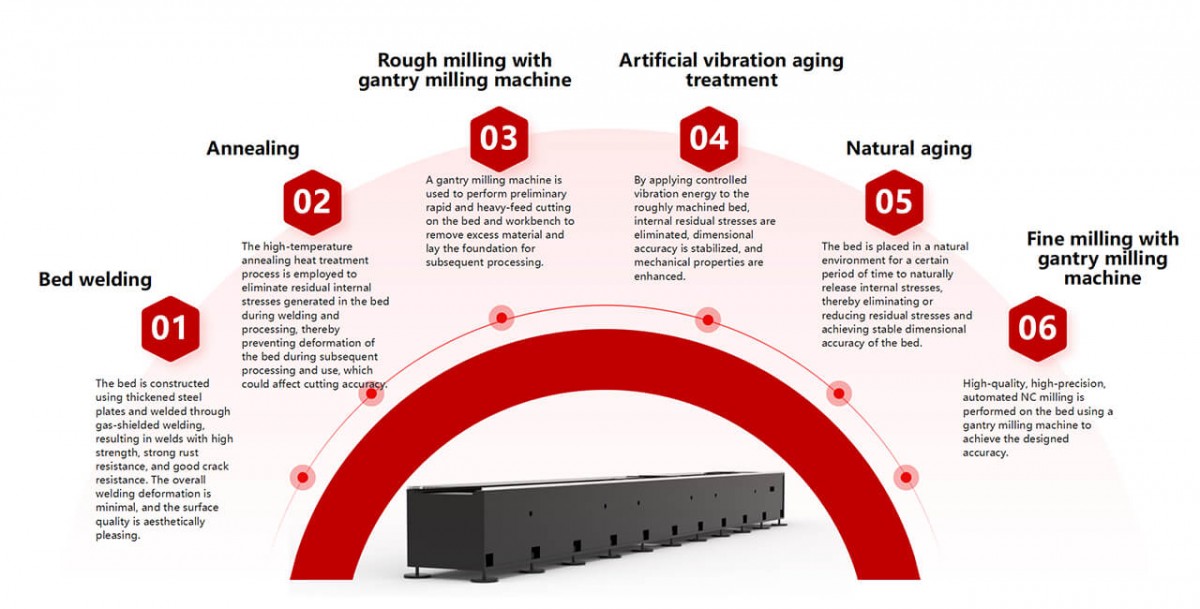

Ensure the steady of high-speed cutting for the long and heavy pipe cutting by laser. It is basic of the machine quality. Golden Laser Pipe laser cutting Machine body use more than 22mm thick iron plate welding,

Through 600-degree high-temperature annealing and natural cooling treatment, the stress of the equipment is removed, and the bed will not deform for 20 years.

Golden Laser PA controller

German PA  Bus Controller System for Laser Pipe Cutting Machine...

Based on New architecture PA controller, 7 Modules, MESS iCloud management,



The laser pipe cutting system uses a brand-new UI interface. After the system is upgraded, it includes 7 modules: planning, production, process, debugging, maintenance, diagnosis, and setting. The entire system is more intelligent and digital and can be seamlessly connected with the MESS intelligent cloud data management system of the intelligent manufacturing factory. It is a real pipe laser cutting machine CNC controller system, good performance in fiber laser tube cutting machine, support G-code transmission, realize the processing file can be used in other CNC processing machine. Connecting with other metal working machines is possible.

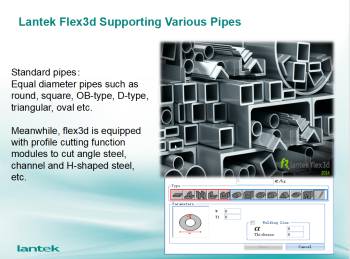

Spain Lanteck CAM Software ...

Professional Tube CAM nesting software with design and nesting together, solve 90% working before CNC laser cut,



Especially for metal tube and pipe cutting design and nesting, suit for different shape tube and pipe cutting, such as round, square, rectangular, triangle, oval, waist tube and other open shaped tubes and pipe, as I beam, Channel beam (for option).

lantek
touch screen

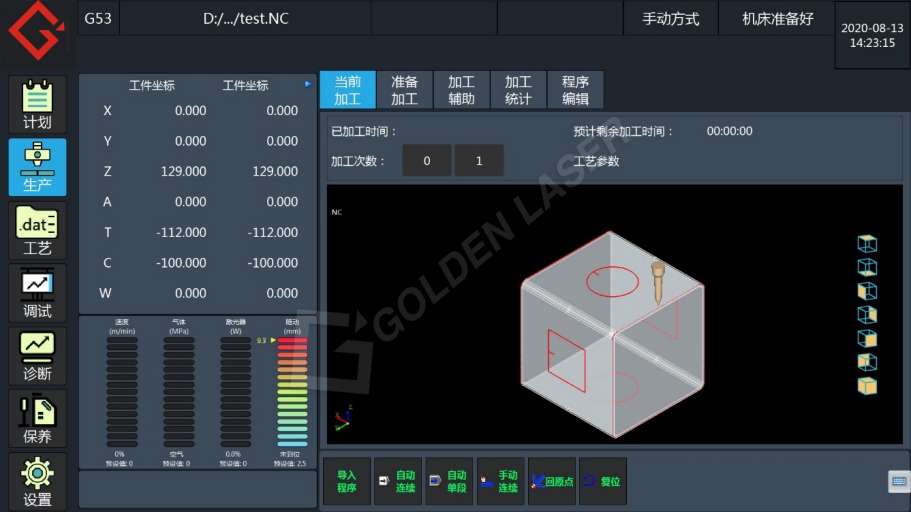

Golden Laser UI Touch Screen...

Touch screen with user interface design, give good using experience



 A large touch screen with UI design give excellent user experience to the operator. Visualization operates easy to understanding and avoid misoperation in the laser tube cutting.

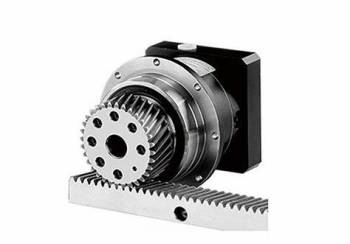

Full Gear & Rack Transmission System ...

Tubes laser cutting machine used full Gear and Rack transmission design. ensure more high-precision tube cutting results.



All the tube laser cutting machines update to the fully Gear and Rack design, increase 20% speed and 200% accuracy than old structure design. Ensure more excellent laser cutting results on the tube. Meet more high accuracy processing demand..

gear

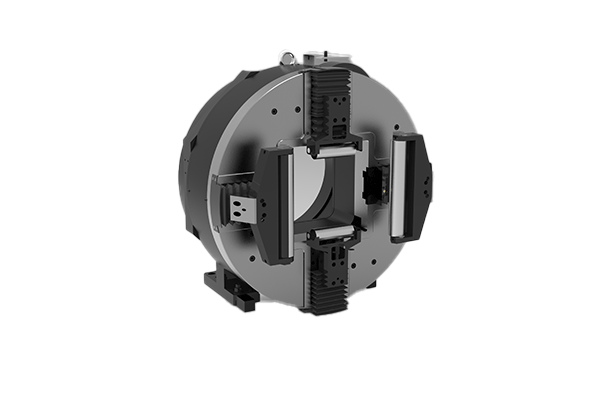

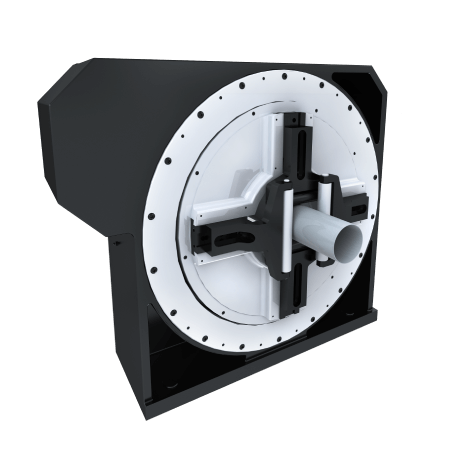

Main Chuck of P2060A

New Generation Main Chuck ...

Casting Frame for embedded installation. more high accuracy and long using life.



The main chuck innovatively uses a casting frame for embedded installation, which is integrated with the main body of the machine tool, and the ultra-high-speed cutting is as stable.



There is no need to adjust the jaw position for full-stroke clamping.

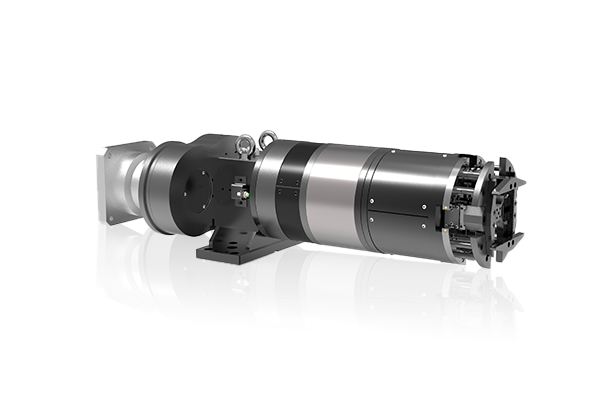

New Generation Tailer Chuck ...

Update Pneumatic Chuck with more high accuracy and long using life. Less failure rate and quieter in production.



Unique pneumatic chuck design is one of the most important parts in the tube laser cutting machine, through many year updates, accumulated lots of experience on structure design. Selfcenter easy to hold different shape tubes, different diameter, and thickness, Adjustable clamping force...

end chuck to hold the tube for laser cutting

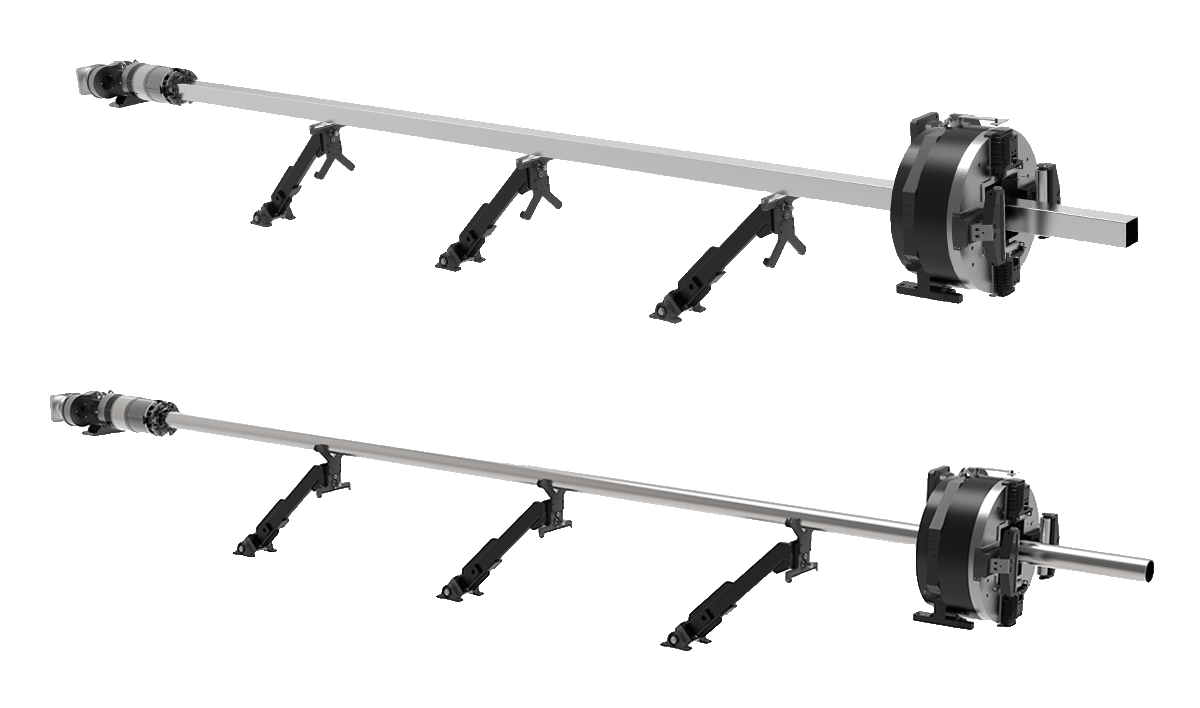

Floating Support The Tailer Tubes ...

Golden Laser unique design Floating supporter gives better support on the tailer tubes. Avoid the distortion of the long tailer tube after laser cut and punching.



Servo motor floating supporter design gives better support according to the pipe shape and length. No matter the short or long tailer tube both have good support. Avoid the tailer tube too heavy to hard to download and distortion during rotary....

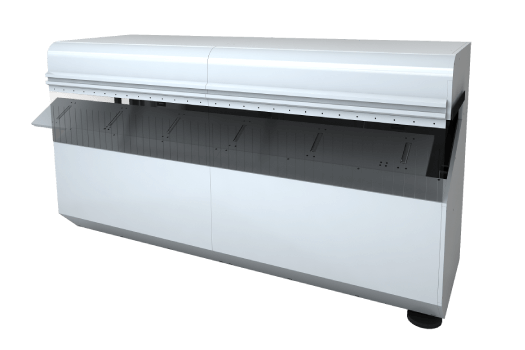

floating supporter of tube for P2060A Golden Laser

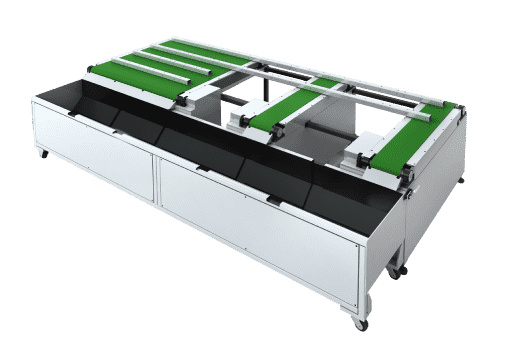

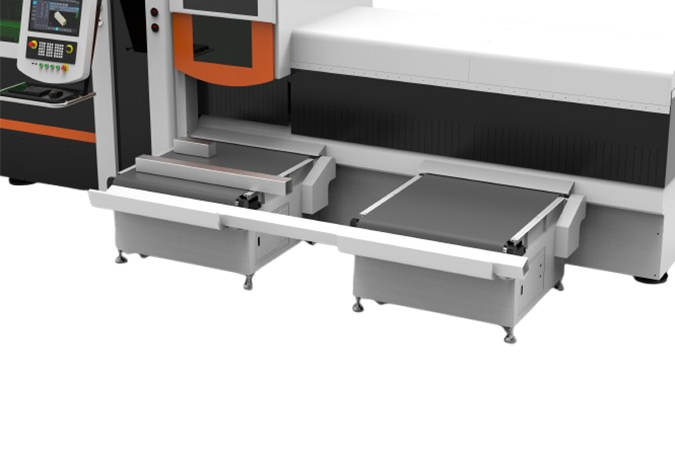

conveyor collection table for finished tube

Automatic Finished Tube Receiving Device ...

It can be equipped with a crawler receiving device to realize automatic sorting and storage of workpieces, saving labor energy.

tube laser cutting machine hardware wastage

Pipes diameter greater than 100 mm, the wastage is 180-200 mm.

After clamping the pipe, the overall size of the jaws opening exceeds the center hole of the chuck and cannot be passed through. The jaws will move to the closest position to the laser head for cutting...

Pipes diameter of less than 100 mm, the wastage is 50-80 mm.

When cutting to the last tail part, the front chuck jaws automatically open, and the rear chuck jaws can pass through the front chuck and move to the closest distance to the laser head for cutting...

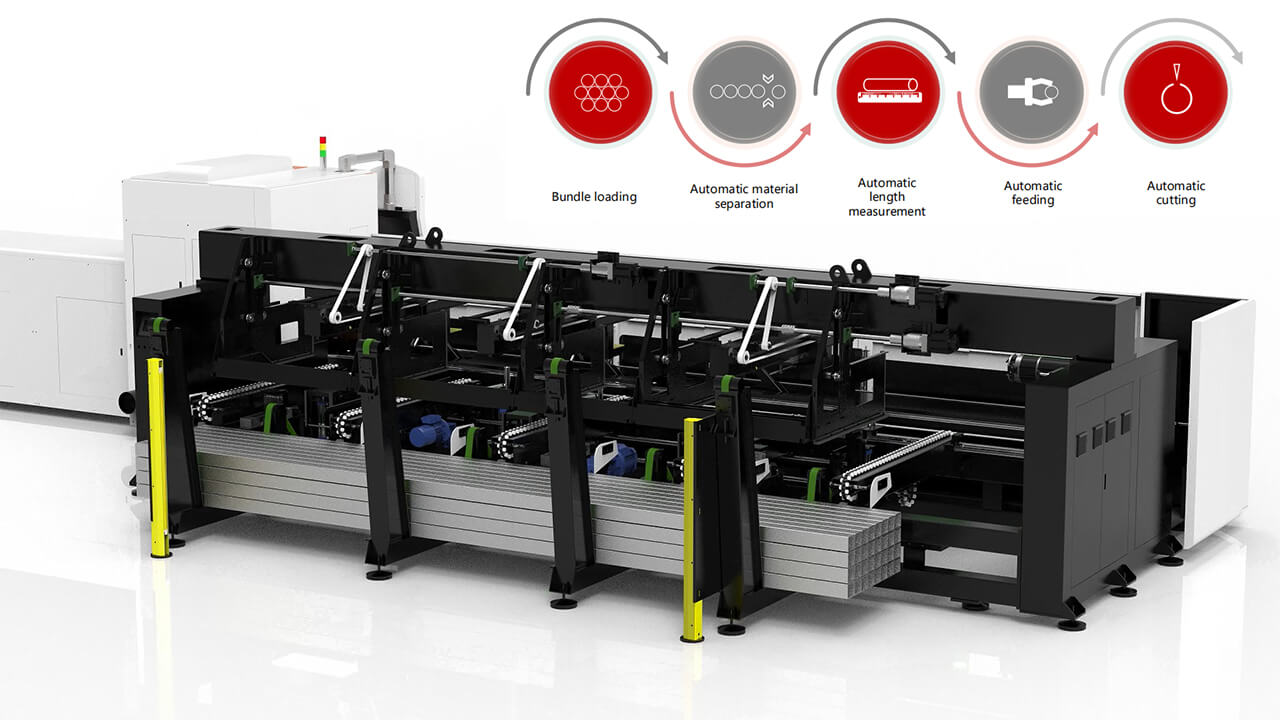

tube automatic loading for fiber laser cutting machine

The Auto Bundle Loading System for Laser Pipe Cutting Machine.

The automatic loading system realizes the automatic continuous production, is especially for mass production demand. Improve production efficiency. ..



Tubes auto feeding system suit for 800*800mm bundle pipe loading. With automatic measure function to ensure loading the right pipe without any mistake. The alarm warning system reminds the operator during the whole production, PLC controller of the automatic loading system easy to adjust according to the detail processing demand, Autoloading, Your best choice for mass tube laser cutting...

P2060A Laser Tube Cutting Machine Working Video

  • Previous:
  • Next:

    • High-end Intelligent CNC  Laser Pipe Cutting Machine



    P2060A Especially for metal tubes and pipes with high precise cutting...  Suit for different shape metal tube and metal pipes laser cut, such as cutting round pipe, square pipe, rectangular pipe, triangle pipe, oval pipe, and other shaped tubes and pipe.

    The Tube Outer Diameter Can Be 20-200mm, Tube Length 6m.

    With Auto bundle loading system for automatic continuous pipe laser cut.

    body of tube laser cutting machine

    Heavey Plate Welding Laser Pipe Cutting Machine Body



    Ensure the steady of high-speed cutting for the long and heavy pipe cutting by laser. It is basic of the machine quality. Golden Laser Pipe laser cutting Machine body use more than 22mm thick iron plate welding,

    Through 600-degree high-temperature annealing and natural cooling treatment, the stress of the equipment is removed, and the bed will not deform for 20 years.

    Golden Laser PA controller

    German PA  Bus Controller System for Laser Pipe Cutting Machine...

    Based on New architecture PA controller, 7 Modules, MESS iCloud management,



    The laser pipe cutting system uses a brand-new UI interface. After the system is upgraded, it includes 7 modules: planning, production, process, debugging, maintenance, diagnosis, and setting. The entire system is more intelligent and digital and can be seamlessly connected with the MESS intelligent cloud data management system of the intelligent manufacturing factory. It is a real pipe laser cutting machine CNC controller system, good performance in fiber laser tube cutting machine, support G-code transmission, realize the processing file can be used in other CNC processing machine. Connecting with other metal working machines is possible.

    Spain Lanteck CAM Software ...

    Professional Tube CAM nesting software with design and nesting together, solve 90% working before CNC laser cut,



    Especially for metal tube and pipe cutting design and nesting, suit for different shape tube and pipe cutting, such as round, square, rectangular, triangle, oval, waist tube and other open shaped tubes and pipe, as I beam, Channel beam (for option).

    lantek
    touch screen

    Golden Laser UI Touch Screen...

    Touch screen with user interface design, give good using experience



     A large touch screen with UI design give excellent user experience to the operator. Visualization operates easy to understanding and avoid misoperation in the laser tube cutting.

    Full Gear & Rack Transmission System ...

    Tubes laser cutting machine used full Gear and Rack transmission design. ensure more high-precision tube cutting results.



    All the tube laser cutting machines update to the fully Gear and Rack design, increase 20% speed and 200% accuracy than old structure design. Ensure more excellent laser cutting results on the tube. Meet more high accuracy processing demand..

    gear
    Main Chuck of P2060A

    New Generation Main Chuck ...

    Casting Frame for embedded installation. more high accuracy and long using life.



    The main chuck innovatively uses a casting frame for embedded installation, which is integrated with the main body of the machine tool, and the ultra-high-speed cutting is as stable.



    There is no need to adjust the jaw position for full-stroke clamping.

    New Generation Tailer Chuck ...

    Update Pneumatic Chuck with more high accuracy and long using life. Less failure rate and quieter in production.



    Unique pneumatic chuck design is one of the most important parts in the tube laser cutting machine, through many year updates, accumulated lots of experience on structure design. Selfcenter easy to hold different shape tubes, different diameter, and thickness, Adjustable clamping force...

    end chuck to hold the tube for laser cutting

    Floating Support The Tailer Tubes ...

    Golden Laser unique design Floating supporter gives better support on the tailer tubes. Avoid the distortion of the long tailer tube after laser cut and punching.



    Servo motor floating supporter design gives better support according to the pipe shape and length. No matter the short or long tailer tube both have good support. Avoid the tailer tube too heavy to hard to download and distortion during rotary....

    floating supporter of tube for P2060A Golden Laser
    conveyor collection table for finished tube

    Automatic Finished Tube Receiving Device ...

    It can be equipped with a crawler receiving device to realize automatic sorting and storage of workpieces, saving labor energy.

    tube laser cutting machine hardware wastage

    Pipes diameter greater than 100 mm, the wastage is 180-200 mm.

    After clamping the pipe, the overall size of the jaws opening exceeds the center hole of the chuck and cannot be passed through. The jaws will move to the closest position to the laser head for cutting...

    Pipes diameter of less than 100 mm, the wastage is 50-80 mm.

    When cutting to the last tail part, the front chuck jaws automatically open, and the rear chuck jaws can pass through the front chuck and move to the closest distance to the laser head for cutting...

    tube automatic loading for fiber laser cutting machine

    The Auto Bundle Loading System for Laser Pipe Cutting Machine.

    The automatic loading system realizes the automatic continuous production, is especially for mass production demand. Improve production efficiency. ..



    Tubes auto feeding system suit for 800*800mm bundle pipe loading. With automatic measure function to ensure loading the right pipe without any mistake. The alarm warning system reminds the operator during the whole production, PLC controller of the automatic loading system easy to adjust according to the detail processing demand, Autoloading, Your best choice for mass tube laser cutting...

    P2060A Laser Tube Cutting Machine Working Video

  • Previous:
  • Next:

    • Material & Industry Application

    Laser Pipe Cutting Machine Applicable Materials



    Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel and so on.



    Laser Pipe Cutting Machine Applicable Types of Tubes



    Round tube, Squre tube, Rectangle tube, I beam, Channel beam, Angle iron and so on



    Laser Pipe Cutting Machine Application Industry



    Mainly used in fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack and other industries for round pipe, square tube, rectangular

    fiber-laser-cutter5(1)



    Machine Technical Parameters

    High-end intelligent CNC  laser pipe cutting machine P Series Tube Laser Cutter Technical Parameters

    Model Number P2060A
    Laser Source IPG / nLight / Max / Raycus fiber laser resonator
    Laser Power 1000w,1500w, 2000w, 3000w, 4000w
    Tube Length 6000mm
    Tube Diameter 20mm-200mm
    Repeat Position Accuracy ± 0.02mm
    Position Accuracy ± 0.02mm
    Position Speed Max 120m/min
    Chuck Rotate Speed Max 160r/min
    Acceleration 1.5g
    Graphic Format Solidworks, Pro/e, UG, IGS
    Cutting System  PA BUS
    Nesting Software  Lantek
    Max Weight for Single Tube 225kg (Φ200mm*8mm*6000mm)
    Bundle Size 800mm*800mm*6000mm
    Bundle Weight Max 2500kg
    Tube Type Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)

    Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader

    Model Number P3060 P3080 P30120
    Pipe Processing Length 6m 8m 12m
    Pipe Processing Diameter Φ20mm-200mm Φ20mm-300mm Φ20mm-300mm
    Laser Source IPG/N-light fiber laser resonator
    Laser Power 1000W/1200W/2000W/2500W/3000W/4000W
    Applicable Types Of Pipes Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
