| Model number | i25 / i35 (P2060 / P3580) |
| Tube length | 6000mm, 8000mm |
| Tube diameter | 20mm-250mm, 20mm-350mm |
| Laser source | Imported fiber laser resonator IPG / N-Light / China Raycus and Max for Choice |
| Servo Motor | Servo motors for all axial movement |
| Laser source power | 1500w (2000w 3000w 4000w 6000w optional) |
| Controller | PA BUS Controller (Germany) |
| Nesting Software | Lantek (Spain) |
| Position accuracy | ±0.02mm |
| Repeat position accuracy | ±0.02mm |
| Rotating speed | 160r/min |
| Acceleration | 1.5G |
| Cutting speed | depend on material, laser source power |
| Electric power supply | AC380V 50/60Hz |
| Type of Tube | Round tube, Sqare Tube, Rectangle Tube, Channel Beam, I Beam and so on. |
| Optional | Automatic Tube Bundle Loading System (6meter or 8meter), Slage Remove Function, Slage Remove Function |
/
High-end Intelligent CNC Fiber Laser Pipe Cutting Machine Without Auto Feeder
CNC Tube laser cutting machine
Especially for high-efficiency metal tube and metal pipe cutting... The tube's outer diameter can be 20-250 (20-350mm), suited for various shapes of tubes and pipe (Round, Square, Rectangle, Triangle...L-bar, Channel beam, I beam for option) CNC laser cut. The pipe length reaches 6m (8 m).

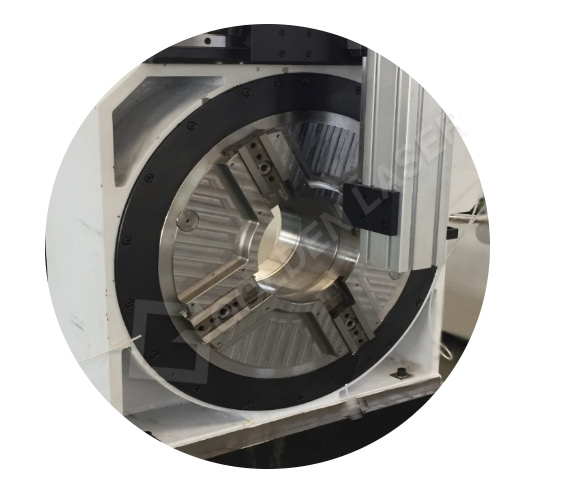

Full Stroke Chuck...
Suit for different diameter metal tube cut,
It uses the Golden Laser's advanced pneumatic Cast Full stroke chuck valid for tube diameter from 20-250(350mm). Without manual adjust the chuck diameter to hold the different diameter pipe in the production, save the time and improve the cutting efficiency.

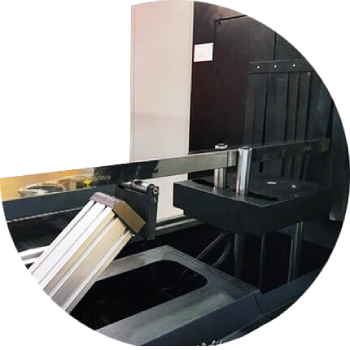

Floating Tube Supporter...
Especially suit for rectangle tube to ensure the same center height during the cutting,
Full Servo motor control ensures the fast floating according to pipe rotary...
Large Power Tube Tailer Chuck...
Adjust power to capture large and heavy tube,
End chuck also use pnumatic chuck valid for tube diameter from 20-300mm. Special mould support special shape pipe, like L tubes , I beam, Channel steel...

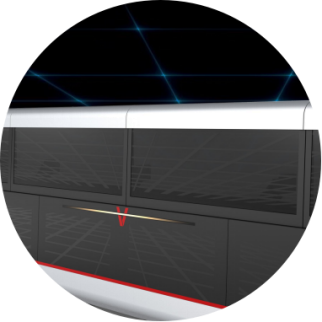

Up and down front protect door...
Especially design for CE demand good protects the operator. ,
Electric control avoids the pipe follow down by any problem to protect the operator in high-speed pipe cutting...
Germany PA CNC controller with Spain Lanteck CAM software .
Including the design and nesting of the tube, will finish more than 90% working before laser cut,,
Various shape metal tube can be cut like riangle, oval, waist tube and other open shaped tube & pipe, I beam, Channel beam process, pls contact with our sales...

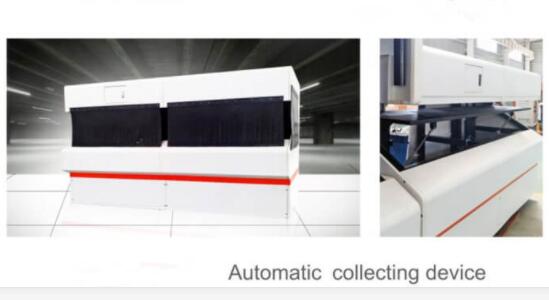

Floating Collecting Device
Floating support receives the pipes into the basket
Servo motor control the floating supporter, it can adjust the support point according to the pipe diameter quickly. ensures the concentricity, reduces pipe swinging during the laser cutting.

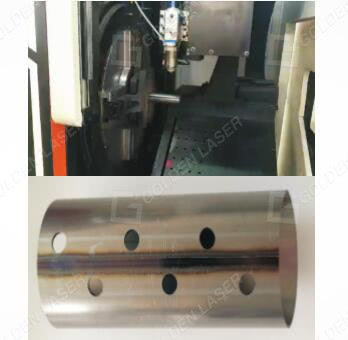

Welding Line Avoids Function (Option)
Real-time weld line recognition during the pipe cutting, avoid cut on the welding line and broken then the whole pipe.
.

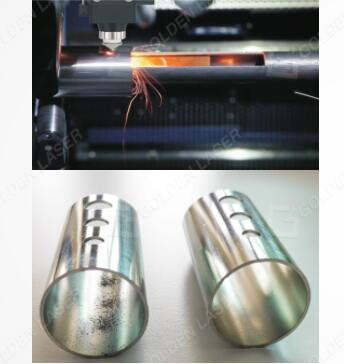

Dust Slage Removes Function ( Option)
Ensure the pipe inside is clean without the extra cleaning process.
In the food and medical industry, they have strick demand on the pipe cutting result, it needs a clean pipe for liquid flow.
Why Laser Cutting For Tubes
Laser cutting of tubes and pipes provides cost and part quality advantages than traditional plasma or oxygen cutting. High precise laser cutting meets the high tolerances demand in the production, without grinding or other re-work. The cut edges are ready for welding without any additional weld prep. Laser cutting consolidates multiple operations to reduce multiple setups, additional handling, and labor.
Samples Show - High-end intelligent CNC laser pipe cutting machine for different shape tube
Channel steel laser cut
Large Steel Pipe Laser Cut
Tube Laser Marking and Cutting
Watch Video - High-end intelligent CNC laser pipe cutting machine P3080A 4000W
High-end Intelligent CNC Fiber Laser Pipe Cutting Machine Without Auto Feeder
CNC Tube laser cutting machine
Especially for high-efficiency metal tube and metal pipe cutting... The tube's outer diameter can be 20-250 (20-350mm), suited for various shapes of tubes and pipe (Round, Square, Rectangle, Triangle...L-bar, Channel beam, I beam for option) CNC laser cut. The pipe length reaches 6m (8 m).
Full Stroke Chuck...
Suit for different diameter metal tube cut,
It uses the Golden Laser's advanced pneumatic Cast Full stroke chuck valid for tube diameter from 20-250(350mm). Without manual adjust the chuck diameter to hold the different diameter pipe in the production, save the time and improve the cutting efficiency.
Floating Tube Supporter...
Especially suit for rectangle tube to ensure the same center height during the cutting,
Full Servo motor control ensures the fast floating according to pipe rotary...
Large Power Tube Tailer Chuck...
Adjust power to capture large and heavy tube,
End chuck also use pnumatic chuck valid for tube diameter from 20-300mm. Special mould support special shape pipe, like L tubes , I beam, Channel steel...
Up and down front protect door...
Especially design for CE demand good protects the operator. ,
Electric control avoids the pipe follow down by any problem to protect the operator in high-speed pipe cutting...
Germany PA CNC controller with Spain Lanteck CAM software .
Including the design and nesting of the tube, will finish more than 90% working before laser cut,,
Various shape metal tube can be cut like riangle, oval, waist tube and other open shaped tube & pipe, I beam, Channel beam process, pls contact with our sales...
Floating Collecting Device
Floating support receives the pipes into the basket
Servo motor control the floating supporter, it can adjust the support point according to the pipe diameter quickly. ensures the concentricity, reduces pipe swinging during the laser cutting.
Welding Line Avoids Function (Option)
Real-time weld line recognition during the pipe cutting, avoid cut on the welding line and broken then the whole pipe.
.
Dust Slage Removes Function ( Option)
Ensure the pipe inside is clean without the extra cleaning process.
In the food and medical industry, they have strick demand on the pipe cutting result, it needs a clean pipe for liquid flow.
Why Laser Cutting For Tubes
Laser cutting of tubes and pipes provides cost and part quality advantages than traditional plasma or oxygen cutting. High precise laser cutting meets the high tolerances demand in the production, without grinding or other re-work. The cut edges are ready for welding without any additional weld prep. Laser cutting consolidates multiple operations to reduce multiple setups, additional handling, and labor.
Samples Show - High-end intelligent CNC laser pipe cutting machine for different shape tube
Channel steel laser cut
Large Steel Pipe Laser Cut
Tube Laser Marking and Cutting
Watch Video - High-end intelligent CNC laser pipe cutting machine P3080A 4000W
Material & Industry Application
Applicable Materials
Stainless steel, carbon steel, aluminum, brass, copper, alloy steel and galvanized steel etc.
Applicable Industry
Metal furniture, medical device, fitness equipment, sports equipment, oil exploration, display shelf, agriculture machinery, bridge supporting, steel rail rack, steel structure,fire control, metal racks, agriculture machinery,automotive, motorcycles, pipes processing etc.
Applicable Types Of Tubes Cutting
Round tube, square tube, rectangular tube, oval tube, OB-type tube, C-type tube, D-type tube,triangle tube, etc (standard); Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
Machine Technical Parameters
