Laser tube cutting automatic flexible production line and feeding system

Laser tube cutting automatic flexible production line and feeding system is a customize project according to customer’s production line. We will choose the suitable tube laser cutting equipment and feeding system, robot to combine a unmanned operation production line. The advanced CNC controller to realize production line ERP management. Realize Zero stock production line.

  • Model number : Laser tube cutting automatic flexible production line and feeding system
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

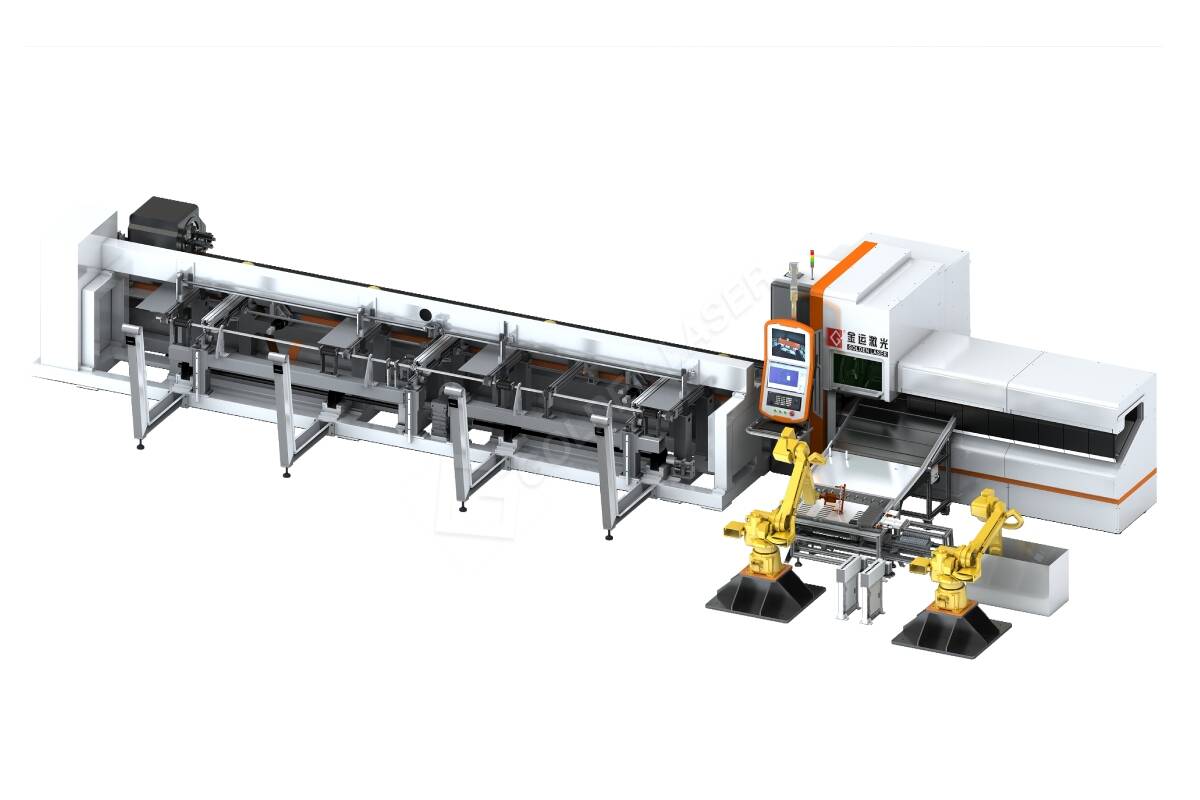

Laser Tube Cutting Automatic Flexible Production Line and Feeding System

Customize project according to customer's production line.

We will choose the suitable tube laser cutting machine and tubes feeding system, 3D Robot arm to combine a unmanned operation production line.

The advanced CNC controller with MES to realize production line ERP management.

Realize Zero stock production line.



Laser Tube Cutting Automatic Flexible Production Line and Feeding System in Different Industry

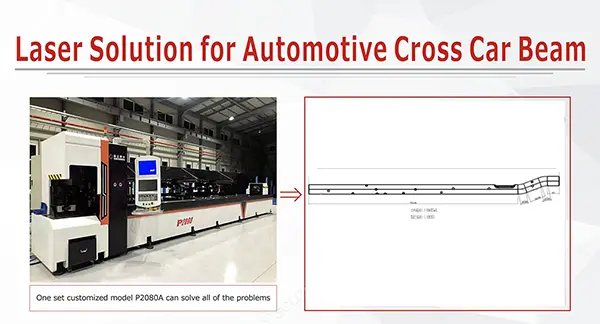

tube-laser-cutting-machine-in-cross-car-beam-application

Features.

Working with P2060A tube laser cutting machine, the 3D robot arm will automatic select the finish pipe during the cutting, and feed it for bending machine into ideal shape. The robot will transfer the bended pipe to other processing untill finish the whole production. In this process, you needn't to worry the heat of the tube and immediately stransfer it for next production.

Features.

Working with P2070A tube laser cutting machine,with flexiable down loading system, gether the finished pipe into a line, and use 3D robot arm select the finish pipe for inside cleaning. After cut and cleaning, the 3D robot arm will collect the pipe for stock. In this process, you needn't to clean the pipe and gether the pipe by hand. After finished one case of pipe, you only need to drive it away for the next production line.

Advanced Technology

Slag Remove Function

Customize Slag remove function ensure the clean of the inside of the tube.

Welding Line Avoid Fuction

Fossae permisit terris animalibus. Convexi vis terrarum cepit. Nulli caligine nec effigiem capacius membra.

Shape Scanner

Fossae permisit terris animalibus. Convexi vis terrarum cepit. Nulli caligine nec effigiem capacius membra.

cooperation-partner-logo KUKA
cooperation-partner-logo STAUBLI
cooperation-partner-logo ABB
cooperation-partner-logo FANUC

Material & Industry Application


Application Industry

Mainly used in fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack and other industries for round pipe, square tube, rectangular tube and shaped pipe and other profile processing.

Applicable Materials

Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel,alloy steel.

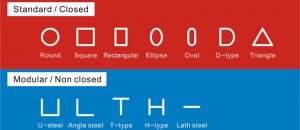

Applicable Types of Tubes

applicable-types-of-laser-cutting-tubeapplicable-types-of-laser-cutting-tube

Machine Technical Parameters


P Series Tube Laser Cutter Technical Parameters

Model number P2060A / P2080A / P3080A
Laser power 3000w / 4000w (1000w, 1500w, 2000w, 2500w optional)
Laser source IPG / nLight / Raycus / Max fiber laser resonator
Tube length 6000mm, 8000mm
Tube diameter 20mm-200mm / 20mm-300mm
Tube type Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);
Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
Repeat position accuracy ± 0.02mm
Position accuracy ± 0.02mm
Position speed Max 120m/min
Chuck rotate speed Max 160r/min
Acceleration 1.5g
Graphic format Solidworks, Pro/e, UG, IGS
Bundle size 800mm*800mm*6000mm
Bundle weight Max 2500kg
Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader
Model number P3060 P3080 P30120
Pipe processing length 6m 8m 12m
Pipe processing diameter Φ20mm-200mm Φ20mm-300mm Φ20mm-300mm
Applicable types of pipes Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);
Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
Laser source IPG/N-light fiber laser resonator
Laser power 700W/1000W/1200W/2000W/2500W/3000W/4000W
