Open Type Fiber Laser Cutting Machine

Open Type Fiber Laser Cutting Machine

Fiber laser cutting machine for metal sheet cut, using open design and single table, it is enter type of laser for metal cutting.  Easy to loading metal sheet and pick the finished metal pieces from any side, Integrated operator valid 270 degree move, easy to operate and save more space.

Fiber laser cutting machine HS code: 84561100

  • Model number : GF-1530 (GF-1540 / GF-1560 for option)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Open type fiber laser cutting machine for metal sheet

GF-1530 fiber laser cutting machine golden laser

Open type CNC  fiber laser cutting machine

Especially for metal plate laser cutting.. suit for cut different kinds of metal plate, such as carbon steel,  stainless steel, Aluminum, brass, copper and galvanized steel. The metal sheets size is 1500*3000mm, With four drawer type collection car to collect the finished metal parts easily.

China Popular Fiber Laser Cutter Controller...

FSCUT 2000 controller, support more than 3 levels piercing, NC code valid,

 It is a famous and popular laser cutting controller system widely used in China fiber laser cutting machine, support NC-code easy to cooperate with other kinds of metal processing machines. More than 3 levels of piercing function easy to cut the different thickness metal materials. Support capacitive edge detection, automatic nesting function, the memory of power off function and so on.

laser pericing and edge find

Welding Plate Machine Body ...

Though 800-degree annealing, machine body strong and durable

Use the thick welding plate machine body through the high temperate annealing which ensures the machine body steady and durable for more than 20 years. The machine base strong enough for more than 3000W fiber laser cutting. No shaking for high-speed laser cutting.

golden laser machine body

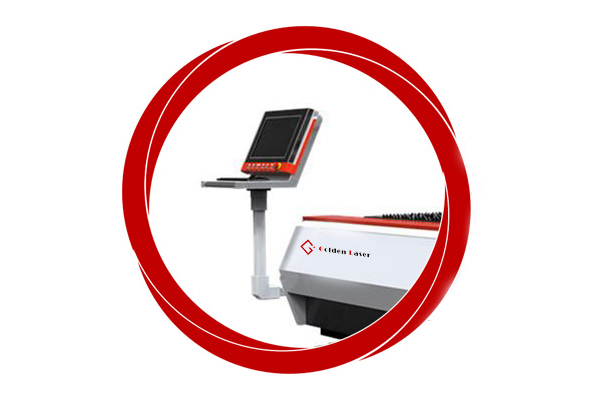

Integrated Rotary Operator Table...

We try to give the good user experience

270 degree rotary integrated working table easy to change the angle to meet the operator's demand. Save space and easy to maintenance. Large screen with Logitech keyboard and mouse use smooth in the production.

integrated operate table

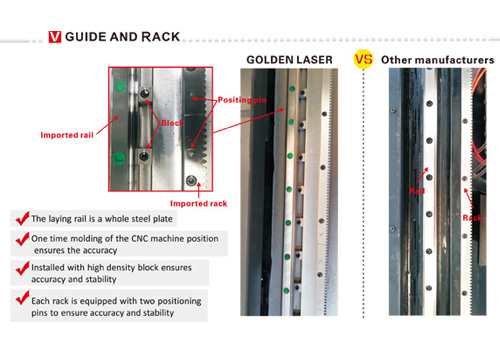

Gear & Rack Transmission System ...

laser cutting machine used Taiwan Gear and Rack transmission design. ensure more high precision cutting result

The helical tooth is more precise than Straight teeth. Taiwan HIWIN Linear guild with positioning pin ensures more steady in high-speed moving.

Gear and Rack imported

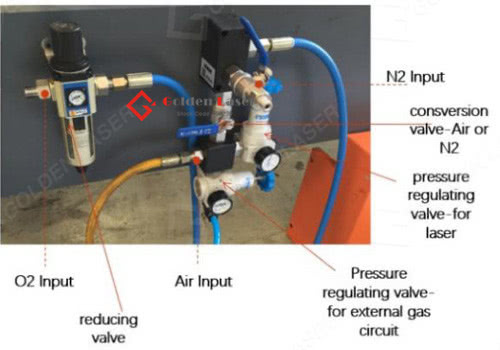

Golden Laser Unique 3 Gas Exchange System ...

Easy to change Oxgen, Nexgen, and Air  for different thickness metal plate cutting

In order to meet many customer's detail cutting demand, Goden laser design this system more easy and safe to change a different kind of gas during production.  Only one bottom can change the needed gas, the pressure is controllable, safe your processing time, and make it easy to see clearly.

golden laser 3 gas system for laser cutter

Samples Show - Open type laser cutter for different thickness metal sheets

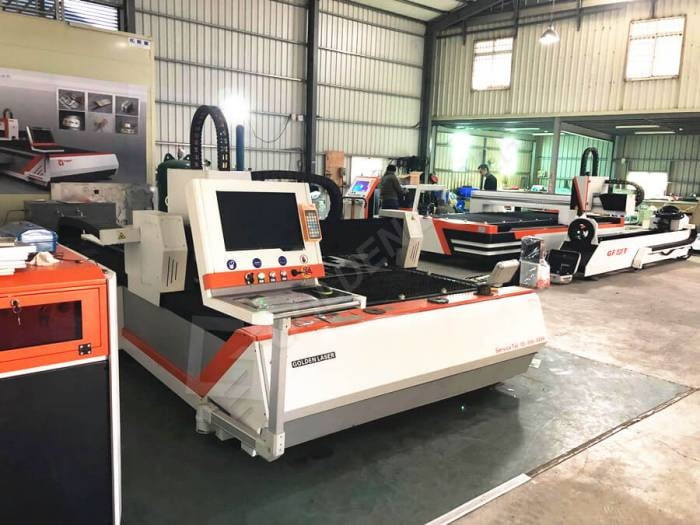

GF-1530 fiber laser cutting machine in Taiwan

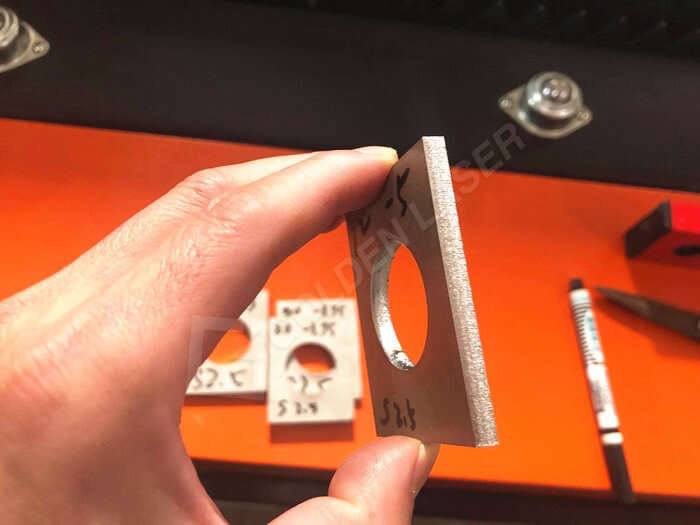

SS laser cutting by Golden Laser

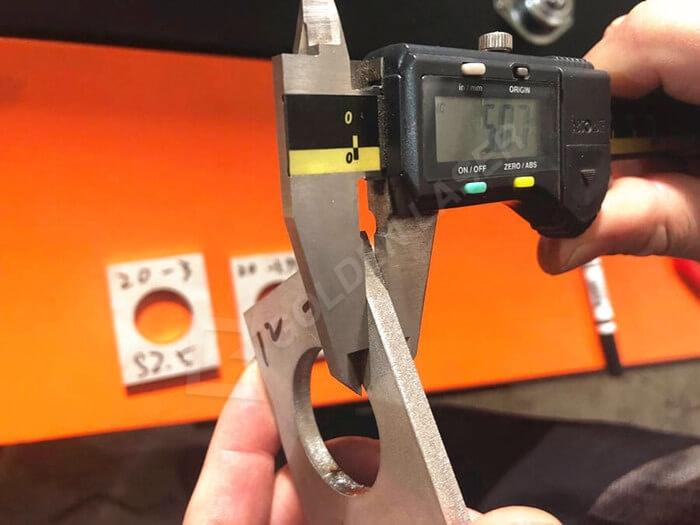

5mm SS fiber laser cutting

  • Previous:
  • Next:

  • Open type fiber laser cutting machine for metal sheet

    GF-1530 fiber laser cutting machine golden laser

    Open type CNC  fiber laser cutting machine

    Especially for metal plate laser cutting.. suit for cut different kinds of metal plate, such as carbon steel,  stainless steel, Aluminum, brass, copper and galvanized steel. The metal sheets size is 1500*3000mm, With four drawer type collection car to collect the finished metal parts easily.

    China Popular Fiber Laser Cutter Controller...

    FSCUT 2000 controller, support more than 3 levels piercing, NC code valid,

     It is a famous and popular laser cutting controller system widely used in China fiber laser cutting machine, support NC-code easy to cooperate with other kinds of metal processing machines. More than 3 levels of piercing function easy to cut the different thickness metal materials. Support capacitive edge detection, automatic nesting function, the memory of power off function and so on.

    laser pericing and edge find

    Welding Plate Machine Body ...

    Though 800-degree annealing, machine body strong and durable

    Use the thick welding plate machine body through the high temperate annealing which ensures the machine body steady and durable for more than 20 years. The machine base strong enough for more than 3000W fiber laser cutting. No shaking for high-speed laser cutting.

    golden laser machine body

    Integrated Rotary Operator Table...

    We try to give the good user experience

    270 degree rotary integrated working table easy to change the angle to meet the operator's demand. Save space and easy to maintenance. Large screen with Logitech keyboard and mouse use smooth in the production.

    integrated operate table

    Gear & Rack Transmission System ...

    laser cutting machine used Taiwan Gear and Rack transmission design. ensure more high precision cutting result

    The helical tooth is more precise than Straight teeth. Taiwan HIWIN Linear guild with positioning pin ensures more steady in high-speed moving.

    Gear and Rack imported

    Golden Laser Unique 3 Gas Exchange System ...

    Easy to change Oxgen, Nexgen, and Air  for different thickness metal plate cutting

    In order to meet many customer's detail cutting demand, Goden laser design this system more easy and safe to change a different kind of gas during production.  Only one bottom can change the needed gas, the pressure is controllable, safe your processing time, and make it easy to see clearly.

    golden laser 3 gas system for laser cutter

    Samples Show - Open type laser cutter for different thickness metal sheets

    GF-1530 fiber laser cutting machine in Taiwan
    SS laser cutting by Golden Laser
    5mm SS fiber laser cutting

  • Previous:
  • Next:

  • Material & Industry Application


    Applicable Industry

    It is mainly used for the cutting and marking of concrete, electric cabinet, cranes, road machines, loaders, port machinery, excavators, fire-fighting machines, and environmental sanitation machinery.

    Applicable Materials

    Fiber laser cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate etc.



    Machine Technical Parameters


    GF-1530 Open type Metal Sheet Fiber Laser Cutting Machine

    Cutting area L3000mm*W1500mm
    Laser source power 1000w (1500w-3000w optional)
    Repeat position accuracy ± 0.02mm
    Position accuracy ± 0.03mm
    Maximum position speed 72m/min
    Acceleration 1g
    Graphic format DXF, DWG, AI, supported AutoCAD, Coreldraw
    Electric power supply AC380V 50/60Hz 3P
