Open Type Metal Sheet and Tube Fiber Laser Cutting Machine

Integrated design provides dual cutting functions for metal sheet and tube.

  • Model number : GF-1530T / GF-1540T / GF-1560T/ GF-2040T/GF-2060T
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Open Type Metal Sheet and Tube Fiber Laser Cutting Machine GF-1530T / GF-1540T / GF-1560T

In order to meet the increasingly complex needs of customers, Golden Laser has independently developed the GF-1530T(JH), GF-1540T(JH), GF-1560T(JH), GF-2040T(JH) GF-2060T(JH) series of sheet metal and tube integrated fiber laser cutting machine for the market demand. It is a dual-purpose fiber laser machine that solves the dual cutting requirements of sheet and pipe at one time.

Integrated design provides dual cutting functions for sheet and tube

metal sheet and tube cutting machine

One Machine Dual Use

Sheet metal and pipe can be processed simultaneously on one machine.

Convenient to use

Increase efficiency by 5 to 10 times

Use-friendly

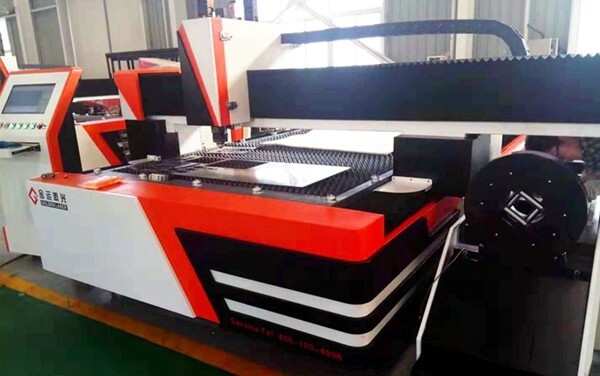

Open structure for easy loading and unloading.

One person can operate more than 2 devices at the same time.

easy operation
saving cost

Save Cost

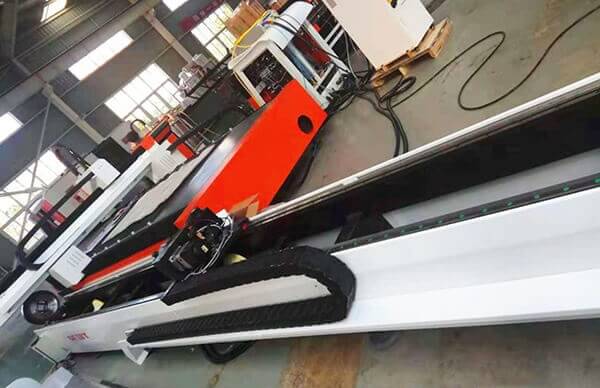

The integrated design provides double cutting function of sheet and pipe.

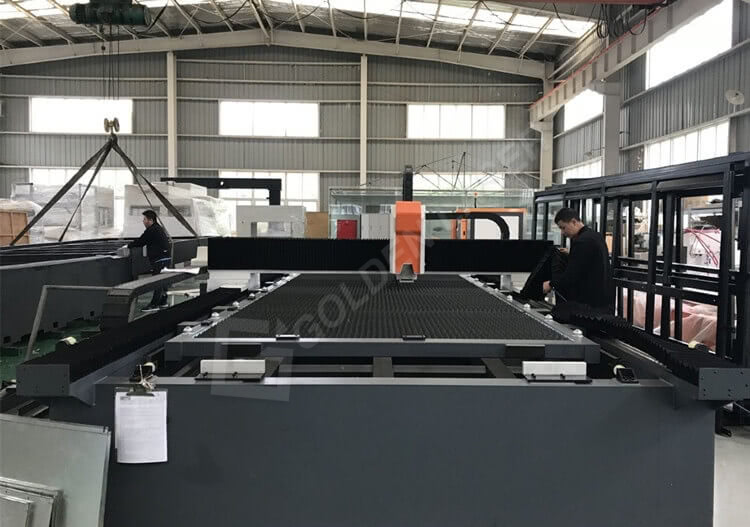

A multi-purpose machine can not only reduce the floor space, but also save investment costs.

Automatic chuck for tube clamping

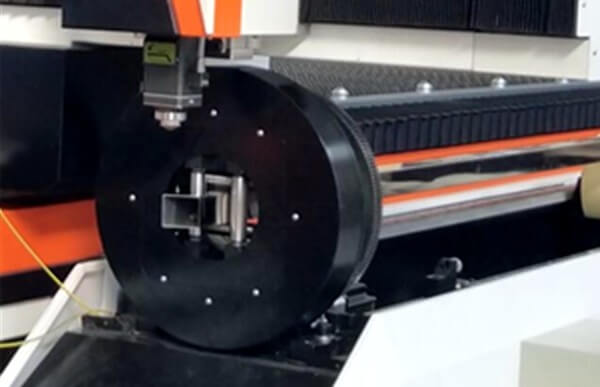

The chuck automatically adjusts the clamping force according to the tube type, diameter and wall thickness. The thin tube does not deform and the large tube can be clamped tightly.

electric chuck
Three axis linkage

Three axis linkage

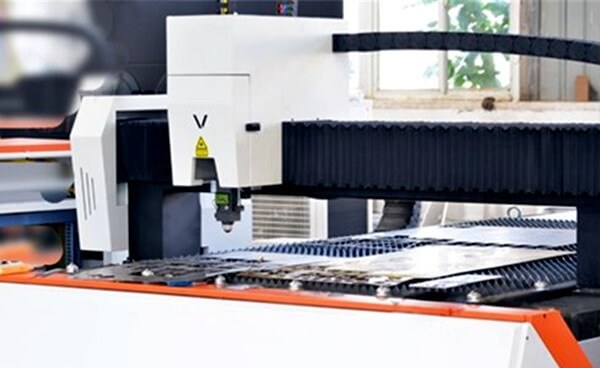

The X, Y, Z three axes are driven by a full servo motor. High precision, fast response, long-term maintenance-free.

The gantry double drive structure, high damping bed, good rigidity, high speed, precision and acceleration.

High damping bed

Secondary annealing, mechanical reinforcement of the bed, life expectancy of more than 12 years.

tube and sheet laser cutter

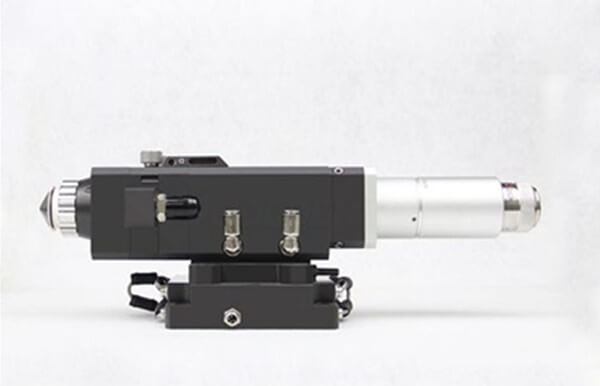

laser cutting head

Raytools laser head

Good stability and durability.

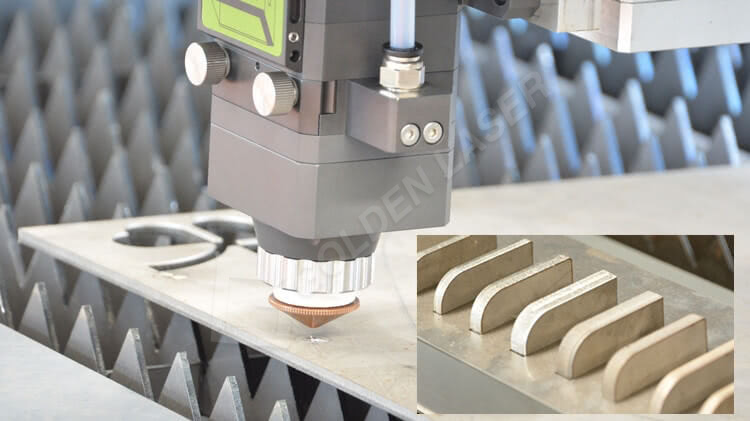

Following up and down laser head ensures that the distance from the laser focus to the metal surface to be machined is constant in the case of slight unevenness in the area to be cut, ensuring machining accuracy and enhancing the cutting ability of the fiber laser cutting machine.

Auto focus

Perforation efficiency and effect are greatly improved.

Not easy to blast holes. Great advantage for cutting small round holes and processing efficiency.

When changing metal materials of different thicknesses and different types, no manual focusing is required.

sheet laser cutter

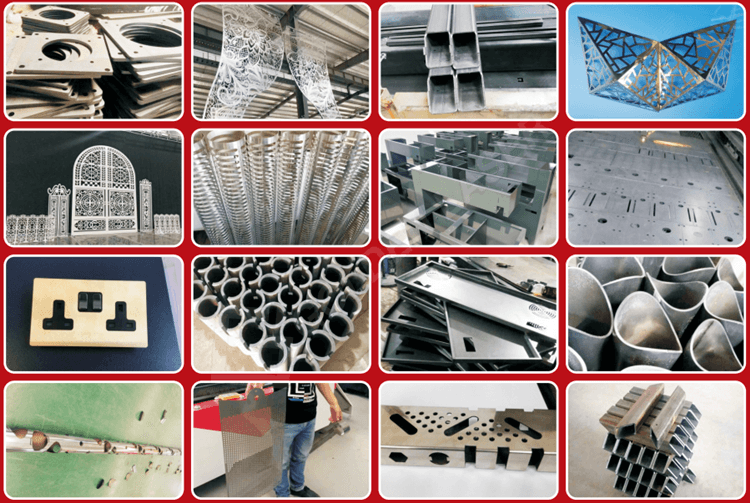

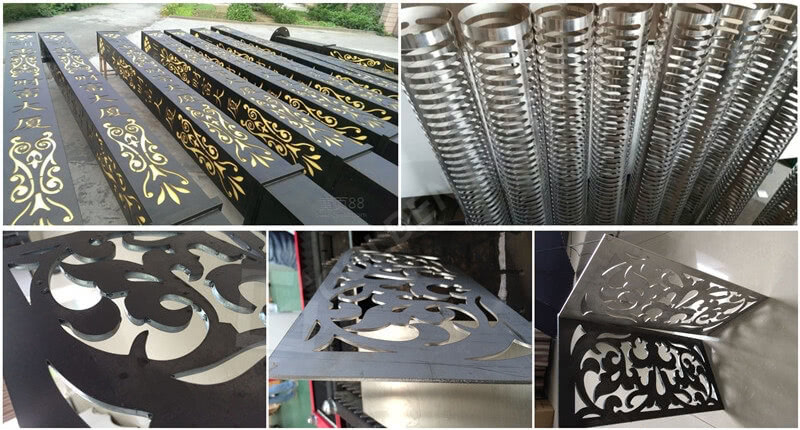

Cutting Samples

tube laser cutter price

1000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Material

Cutting Limit

Clean Cut

Carbon steel

12mm

10mm

Stainless steel

5mm

4mm

Aluminum

4mm

3mm

Brass

4mm

3mm

Copper

3mm

2mm

Galvanized steel

3mm

2mm

Open Type Metal Sheet and Tube Laser Cutting Machine Working Video


  • Previous:
  • Next:

  • Open Type Metal Sheet and Tube Fiber Laser Cutting Machine GF-1530T / GF-1540T / GF-1560T

    In order to meet the increasingly complex needs of customers, Golden Laser has independently developed the GF-1530T(JH), GF-1540T(JH), GF-1560T(JH), GF-2040T(JH) GF-2060T(JH) series of sheet metal and tube integrated fiber laser cutting machine for the market demand. It is a dual-purpose fiber laser machine that solves the dual cutting requirements of sheet and pipe at one time.

    Integrated design provides dual cutting functions for sheet and tube

    metal sheet and tube cutting machine

    One Machine Dual Use

    Sheet metal and pipe can be processed simultaneously on one machine.

    Convenient to use

    Increase efficiency by 5 to 10 times

    Use-friendly

    Open structure for easy loading and unloading.

    One person can operate more than 2 devices at the same time.

    easy operation
    saving cost

    Save Cost

    The integrated design provides double cutting function of sheet and pipe.

    A multi-purpose machine can not only reduce the floor space, but also save investment costs.

    Automatic chuck for tube clamping

    The chuck automatically adjusts the clamping force according to the tube type, diameter and wall thickness. The thin tube does not deform and the large tube can be clamped tightly.

    electric chuck
    Three axis linkage

    Three axis linkage

    The X, Y, Z three axes are driven by a full servo motor. High precision, fast response, long-term maintenance-free.

    The gantry double drive structure, high damping bed, good rigidity, high speed, precision and acceleration.

    High damping bed

    Secondary annealing, mechanical reinforcement of the bed, life expectancy of more than 12 years.

    tube and sheet laser cutter
    laser cutting head

    Raytools laser head

    Good stability and durability.

    Following up and down laser head ensures that the distance from the laser focus to the metal surface to be machined is constant in the case of slight unevenness in the area to be cut, ensuring machining accuracy and enhancing the cutting ability of the fiber laser cutting machine.

    Auto focus

    Perforation efficiency and effect are greatly improved.

    Not easy to blast holes. Great advantage for cutting small round holes and processing efficiency.

    When changing metal materials of different thicknesses and different types, no manual focusing is required.

    sheet laser cutter

    Cutting Samples

    tube laser cutter price

    1000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    12mm

    10mm

    Stainless steel

    5mm

    4mm

    Aluminum

    4mm

    3mm

    Brass

    4mm

    3mm

    Copper

    3mm

    2mm

    Galvanized steel

    3mm

    2mm

    Open Type Metal Sheet and Tube Laser Cutting Machine Working Video


  • Previous:
  • Next:

  • Material & Industry Application


    Applicable Industry: Sheet metal, hardware, kitchenware, electronic, automotive parts, glasses, advertising, craft, lighting, decoration, jewelry, etc. Furniture, medical device, fitness equipment, oil exploration, display shelf, farm machinery, bridge, boating, structure parts, etc.

    Applicable Materials: Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper, etc. Round, square, rectangular, oval, waist round and other shapes tube.

    Samples Demonstration:

    sheet-and-tube-laser-cutting-machine(1)



    Machine Technical Parameters


    Technical Parameters

    Model No. GF-1530T / GF-1540T / GF-1560T
    Cutting area 1500mm×3000mm / 1500mm×4000mm / 1500mm×6000mm
    Tube length 3m / 4m / 6m
    Tube diameter Φ20~200mm (Φ20~300mm for option)
    Laser source nLIGHT / IPG /Raycus / Max fiber laser resonator
    Laser power 1000w (1200w, 1500w, 2000w, 2500w, 3000w, 4000w optional)
    Laser head Raytools laser cutting head
    Positioning accuracy ±0.03mm/m
    Repeat positioning accuracy ±0.02mm
    Maximum positioning speed 72m/min
    Acceleration 1g
    Control system CYPCUT
    Power supply AC380V 50/60Hz
