integrated Control Panel Sheet and Tube Laser Cutting Machine

  • integrated Control Panel Sheet and Tube Laser Cutting Machine

Integrated control panel design sheet and tube laser cutting machine provides dual cutting functions in one machine

  • Model number : E3t / E6t (GF-1530T / GF-1540T / GF-1560T/ GF-2040T/GF-2060T）
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

Integrated Metal Sheet and Tube Fiber Laser Cutting Machine E3t & E6t

Golden Laser has independently developed the E3t, E6t series of sheet metal and tube integrated fiber laser cutting machine for the market demand. It is a dual-purpose fiber laser machine that solves the dual cutting requirements of sheet and pipe at one time.

Integrated design provides dual cutting functions for sheet and tube

sheet and tube laser cutting machine E3t

One Machine Dual Use

Sheet metal and pipe can be processed simultaneously on one machine.

A multi-purpose machine can not only reduce the floor space, but also save investment costs.

Use-Friendly

Open structure easy Load from any side of the machine.



One person can operate more than 2 devices at the same time.

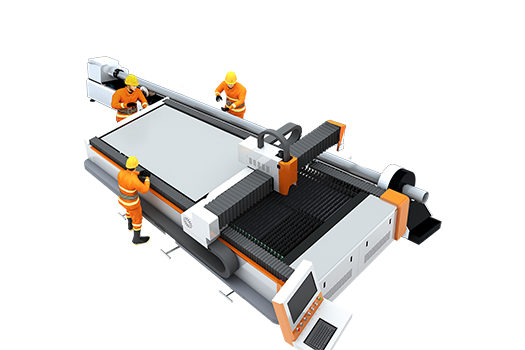

E3t sheet and tube laser cutting machine Loading method
E3t-Chucks-picture

Automatic Chuck for Tube Clamping

The chuck automatically adjusts the clamping force according to the tube type, diameter and wall thickness. The thin tube does not deform and the large tube can be clamped tightly.

Popular Laser Head

Good stability and durability.

Following up and down laser head ensures that the distance from the laser focus to the metal surface to be machined is constant in the case of slight unevenness in the area to be cut


Raytools-BM110-Laser-head

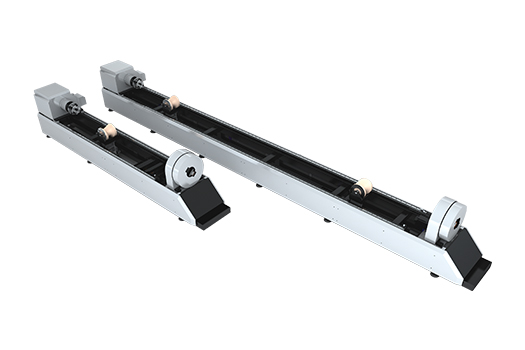

3-and-6-meter-tube-cutting-device

3 and 6meter Tube Cutting Device for Choice

Choose the suitable length of the tube cutting device according to the detail cutting demand.



3000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Material

Cutting Limit

Clean Cut

Carbon steel

22mm

20mm

Stainless steel

12mm

10mm

Aluminum

10mm

8mm

Brass

8mm

8mm

Copper

6mm

5mm

Galvanized steel

8mm

6mm

Laser Cutting Samples

tube laser cutter price

Open Type Metal Sheet and Tube Laser Cutting Machine Working Video

  • Previous:
  • Next:

    • Integrated Metal Sheet and Tube Fiber Laser Cutting Machine E3t & E6t

    Golden Laser has independently developed the E3t, E6t series of sheet metal and tube integrated fiber laser cutting machine for the market demand. It is a dual-purpose fiber laser machine that solves the dual cutting requirements of sheet and pipe at one time.

    Integrated design provides dual cutting functions for sheet and tube

    sheet and tube laser cutting machine E3t

    One Machine Dual Use

    Sheet metal and pipe can be processed simultaneously on one machine.

    A multi-purpose machine can not only reduce the floor space, but also save investment costs.

    Use-Friendly

    Open structure easy Load from any side of the machine.



    One person can operate more than 2 devices at the same time.

    E3t sheet and tube laser cutting machine Loading method
    E3t-Chucks-picture

    Automatic Chuck for Tube Clamping

    The chuck automatically adjusts the clamping force according to the tube type, diameter and wall thickness. The thin tube does not deform and the large tube can be clamped tightly.

    Popular Laser Head

    Good stability and durability.

    Following up and down laser head ensures that the distance from the laser focus to the metal surface to be machined is constant in the case of slight unevenness in the area to be cut


    Raytools-BM110-Laser-head
    3-and-6-meter-tube-cutting-device

    3 and 6meter Tube Cutting Device for Choice

    Choose the suitable length of the tube cutting device according to the detail cutting demand.



    3000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    22mm

    20mm

    Stainless steel

    12mm

    10mm

    Aluminum

    10mm

    8mm

    Brass

    8mm

    8mm

    Copper

    6mm

    5mm

    Galvanized steel

    8mm

    6mm

    Laser Cutting Samples

    tube laser cutter price

    Open Type Metal Sheet and Tube Laser Cutting Machine Working Video

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Industry: Sheet metal, hardware, kitchenware, electronic, automotive parts, glasses, advertising, craft, lighting, decoration, jewelry, etc. Furniture, medical device, fitness equipment, oil exploration, display shelf, farm machinery, bridge, boating, structure parts, etc.

    Applicable Materials: Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper, etc. Round, square, rectangular, oval, waist round and other shapes tube.

    Samples Demonstration:

    sheet-and-tube-laser-cutting-machine(1)



    Machine Technical Parameters

    Technical Parameters

    Model No.   E3t / E6t (GF-1530T  / GF-1560T)
    Cutting area 1500mm×3000mm / 1500mm×6000mm
    Tube length 6m (Option 3m)
    Tube diameter Φ20~200mm (Φ20~300mm for option)
    Laser source nLIGHT / IPG /Raycus / Max fiber laser resonator
    Laser power 1000w (1200w, 1500w, 2000w, 2500w, 3000w, 4000w optional)
    Laser head Raytools laser cutting head
    Positioning accuracy ±0.03mm/m
    Repeat positioning accuracy ±0.02mm
    Maximum positioning speed 72m/min
    Acceleration 1g
    Control system CYPCUT
    Power supply AC380V 50/60Hz
