Co2 Laser Cutting Machine for MDF Board / Acrylic / Stainless Steel /CS / Aluminum

GRF-1530 is one of metal and non-metal laser cutting machine. Adopts with Germany rofin CO2RF Laser generator and anti-reflecting device, with steel girder structure with stable and larger-scale working table. Gear and rack transmission with double driver synchronous,high load capability, high speed and accuracy.

  • Model number : GRF-1530
  • Laser type: CO2RF Laser Generator
  • Nominal power: 400W, 600W
  • Power range: 10-480W / 10-650W
  • Max cutting thickness: 2mm stainlesss steel, 20mm wood

Machine Details

Material & Industry Application

Machine Technical Parameters

Metal and Non Metal Laser Cutting Machine

GRF-1530 Adopts with high power Germany Rofin CO2RF Laser generator both cut metal and non-metal materials.

The anti-reflecting device, with steel girder structure with stable and larger-scale working table. Gear and rack transmission with double driver synchronous, high load capability, high speed, and accuracy.

laser cutter

Machine Technologies & Features

• Sealed CO2 RF laser tube with a good quality laser beam, stable power, and long service life, and low cost. It is maintenance-free and efficient.



• The knife strip working table reduces the contacting area between the working table and workpiece, which ensures high-quality cutting.



• Following exhaust system has good performance and saves energy.



• The smart laser cutting nesting function enhances the material utilization rate.



• Wide application fields, suitable for metal and non-metal laser cutting, engraving.



• Adopt Golden Laser (Weihong customized) motion control system, to ensure high speed moving and high accuracy.

Machine Advantages

• Full closed optical pathway consists of a deflection mirror and a focusing lens, easy adjustment, long lifetime, and low maintenance.



• Gear and rack transmission with double driver synchronous, high load capability, high speed, and accuracy.



• Extractor and smoke treatment system, prevent the optical pathway to pollution, Optimized the optical path performance.



• Automatic following & anti-collision system, protect the cutting surface and laser cutting head.



• Adjust the laser power to cut different thickness metal and non-metal with good cutting results and high speed.


  • Previous:
  • Next:

  • Metal and Non Metal Laser Cutting Machine

    GRF-1530 Adopts with high power Germany Rofin CO2RF Laser generator both cut metal and non-metal materials.

    The anti-reflecting device, with steel girder structure with stable and larger-scale working table. Gear and rack transmission with double driver synchronous, high load capability, high speed, and accuracy.

    laser cutter

    Machine Technologies & Features

    • Sealed CO2 RF laser tube with a good quality laser beam, stable power, and long service life, and low cost. It is maintenance-free and efficient.



    • The knife strip working table reduces the contacting area between the working table and workpiece, which ensures high-quality cutting.



    • Following exhaust system has good performance and saves energy.



    • The smart laser cutting nesting function enhances the material utilization rate.



    • Wide application fields, suitable for metal and non-metal laser cutting, engraving.



    • Adopt Golden Laser (Weihong customized) motion control system, to ensure high speed moving and high accuracy.

    Machine Advantages

    • Full closed optical pathway consists of a deflection mirror and a focusing lens, easy adjustment, long lifetime, and low maintenance.



    • Gear and rack transmission with double driver synchronous, high load capability, high speed, and accuracy.



    • Extractor and smoke treatment system, prevent the optical pathway to pollution, Optimized the optical path performance.



    • Automatic following & anti-collision system, protect the cutting surface and laser cutting head.



    • Adjust the laser power to cut different thickness metal and non-metal with good cutting results and high speed.


  • Previous:
  • Next:

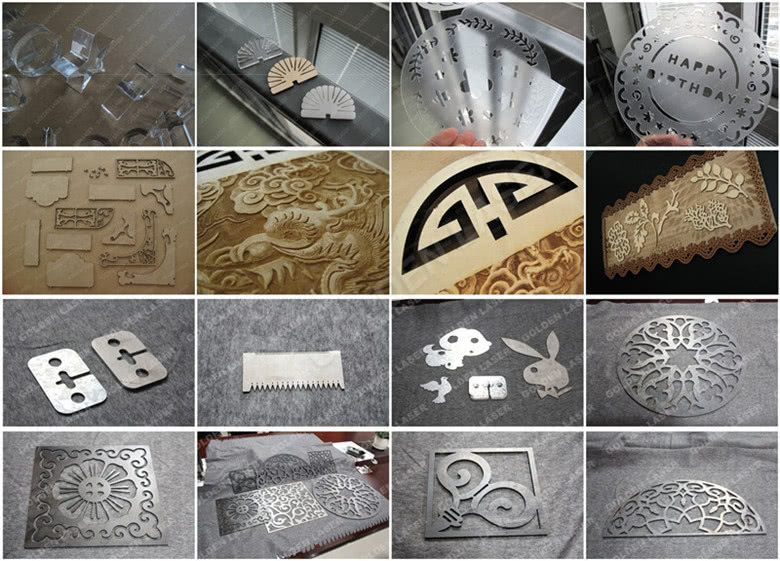

  • Material & Industry Application


    Applicable Industries

    Print and packingadvertising metal plate furnitureArt craftworks.

    Applicable Materials

    Stainless steel, carbon steel, acrylic, plastics, wood and other metal or non-metal sheet materials.

    03_副本

    Cutting Parameters

    Type

    Laser Resonator

    Carbon Steel

    Stainless Steel

    Aluminum

    MDF BOARD

    Acrylic

    GRF-1530

    ≤400W

    Rofin

    5.0/1600(O2

    3.0/1900(N2

    1.0(O2

    18/1500

    40/250

    1.0/2600(N2

    ≤600W

    Rofin

    6.0/1600(O2

    3.0/2800(O2

    2.0(O2

    18/2500

    40/300

    Machine Technical Parameters


    MODEL

    GRF-1530

    Laser type

    RF CO2 Laser Generator

    Cooling method

    No condensation water cooling

    Nominal power

    ≤400W

    ≤600W

    Power range

    10-480W

    10-650W

    Cutting speed

    9000mm/min

    9000mm/min

    Cutting precision

    ±0.20mm

    ±0.20mm

    Repeated positioning precision

    ±0.05mm

    ±0.05mm

    Z axis route

    0-100mm

    0-100mm

    Processing area(X、Y)

    1500*3000mm

    1500*3000mm

    Gross power

    14KW

    21KW

    Power supply

    3PH+1/380V/50HZ

    3PH+1/380V/50HZ

    Dimensions

    4050mm*2050mm*1600mm

    4050mm*2050mm*1600mm

    Weight

    4T

    4T

    System/compatible format

    Window 7/XP/DXF PLT ENG G codes

    Auxiliary System

    Dust Treatment System

    Software

    Weihong CNC System
