Small Size Mini Sheet Metal Fiber Laser Cutting Machine GF-6060

  • Small Size Mini Sheet Metal Fiber Laser Cutting Machine GF-6060

Small format fiber laser sheet cutting machine GF-6060, with the imported fiber laser generator, max cutting area 600mm X 600mm; It is specially for metal craft, jewellry industry etc.



  • Model number : GF-6060 (Cypcut controller)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

Mini Fiber Laser Cutting Machine GF-6060 Features

Enclosure design fiber laser cutting machine meets CE standard, processing is safe and reliable.

High precision ball screw driving system and laser head ensure cutting accuracy.

Drawer style tray makes easy collecting and cleaning for the scraps and small parts after laser cutting.

The world’s leading fiber laser reconator and electronic components to ensure fiber laser cutting machine superior stability.

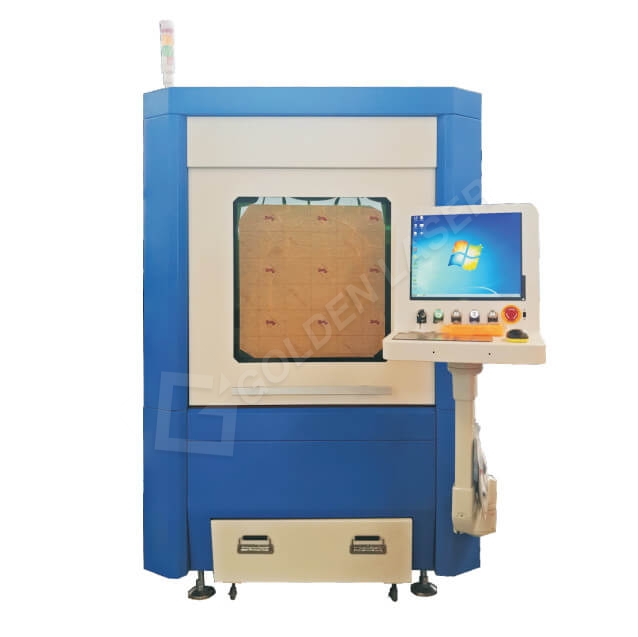

GF-6060

GF-6060 Laser Cut Jewellery Metal Sheets Samples Demonstration

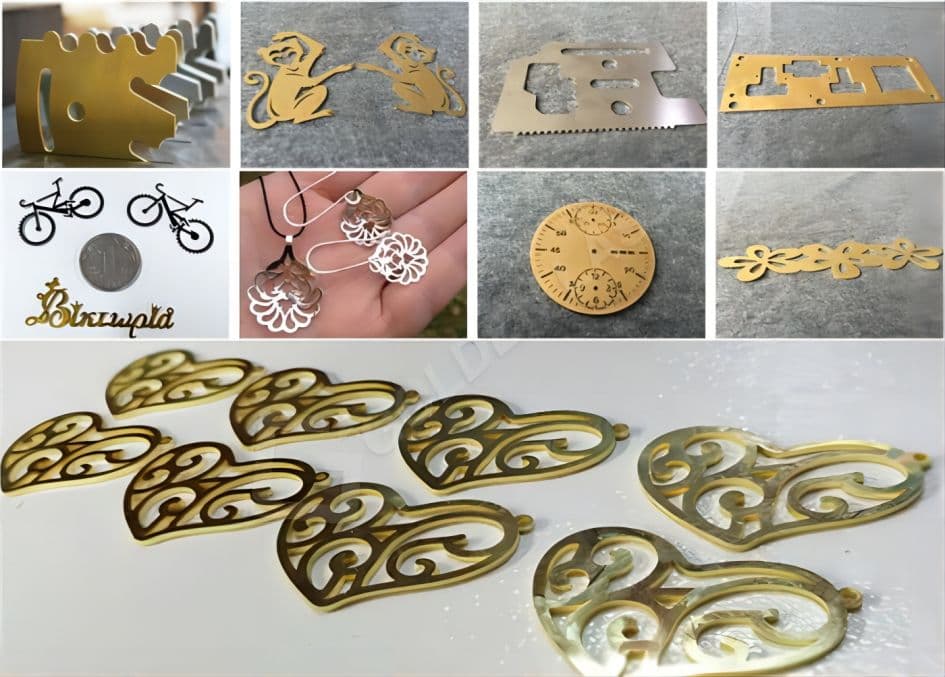

jewelry metal laser cutting result

Customer Site

 1200w Fiber Laser Machine GF-6060 In Lithuania

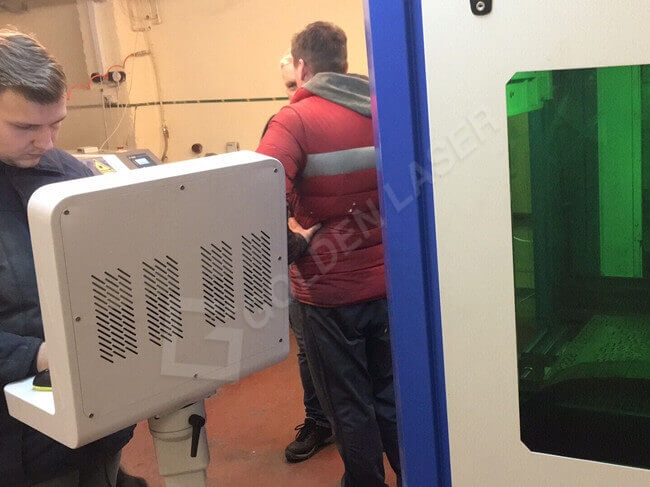

GF-6060 In Lithuania 03

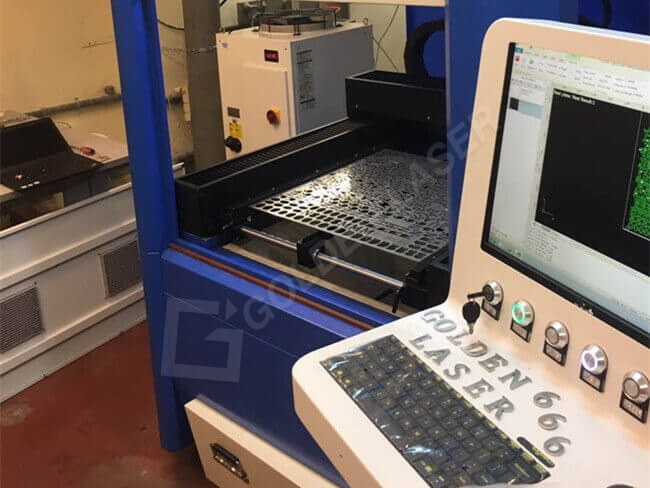

GF-6060 In Lithuania 04
GF-6060 In Lithuania 01
GF-6060 In Lithuania 02
GF-6060 In Lithuania 05

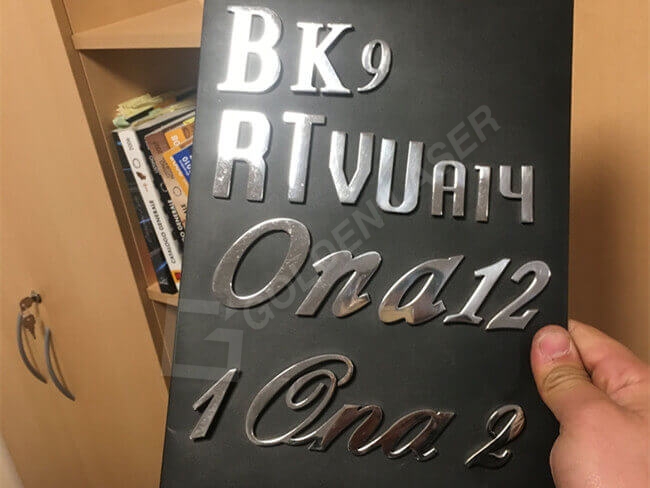

GF-6060 In Lithuania 06

700w Fiber Laser Cutting Machine (metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

10mm

8mm

Stainless steel

4mm

3mm

Aluminum

3mm

2mm

Brass

3mm

2mm

Copper

2mm

1mm

Galvanized steel

2mm

2mm

1000w Fiber Laser Cutting Machine (metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

12mm

10mm

Stainless steel

5mm

4mm

Aluminum

4mm

3mm

Brass

4mm

3mm

Copper

3mm

2mm

Galvanized steel

3mm

2mm

Small Metal Sheet Laser Cutting Machine Working Video

  • Previous:
  • Next:

    • Mini Fiber Laser Cutting Machine GF-6060 Features

    Enclosure design fiber laser cutting machine meets CE standard, processing is safe and reliable.

    High precision ball screw driving system and laser head ensure cutting accuracy.

    Drawer style tray makes easy collecting and cleaning for the scraps and small parts after laser cutting.

    The world’s leading fiber laser reconator and electronic components to ensure fiber laser cutting machine superior stability.

    GF-6060

    GF-6060 Laser Cut Jewellery Metal Sheets Samples Demonstration

    jewelry metal laser cutting result

    Customer Site

     1200w Fiber Laser Machine GF-6060 In Lithuania

    GF-6060 In Lithuania 03
    GF-6060 In Lithuania 04
    GF-6060 In Lithuania 01
    GF-6060 In Lithuania 02
    GF-6060 In Lithuania 05
    GF-6060 In Lithuania 06

    700w Fiber Laser Cutting Machine (metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    10mm

    8mm

    Stainless steel

    4mm

    3mm

    Aluminum

    3mm

    2mm

    Brass

    3mm

    2mm

    Copper

    2mm

    1mm

    Galvanized steel

    2mm

    2mm

    1000w Fiber Laser Cutting Machine (metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    12mm

    10mm

    Stainless steel

    5mm

    4mm

    Aluminum

    4mm

    3mm

    Brass

    4mm

    3mm

    Copper

    3mm

    2mm

    Galvanized steel

    3mm

    2mm

    Small Metal Sheet Laser Cutting Machine Working Video

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Industry

    Sheet metal, hardware, kitchenware, electronic, automotive parts, glass, advertising, craft, lighting, decoration, jewelry, etc.

    Applicable Materials

    Specially for carbon steel, stainless steel, alloy, aluminum, galvanized steel, titanium, brass, copper and other metal sheets.

    sheet-laser-cutter-price



    Machine Technical Parameters

    Machine Model GF-6060/GF-6040
    Laser Types Fiber Laser
    Laser Power 700W 1000W 1200W
    Working Area 600mm*600mm / 600mm*400mm / 1500mm*1000mm
    positioning accuracy ± 0.03mm
    Repeat positioning accuracy ± 0.02mm
    Maximum speed 12m/min
    Transmission Grinding precision screw drive
    Cutting speed Depend on material and laser source power
    Maximum Acceleration 0.5G
    Electric power supply AC380V 50/60Hz  / AC220V 50/60Hz
