Fully Enclosed Single Table Fiber Laser Cutting Machine manufacturers | GoldenLaser

Fully Enclosed Single Table Fiber Laser Cutting Machine

Metal Sheet Laser Cutting Machine

  • Model number : C30
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

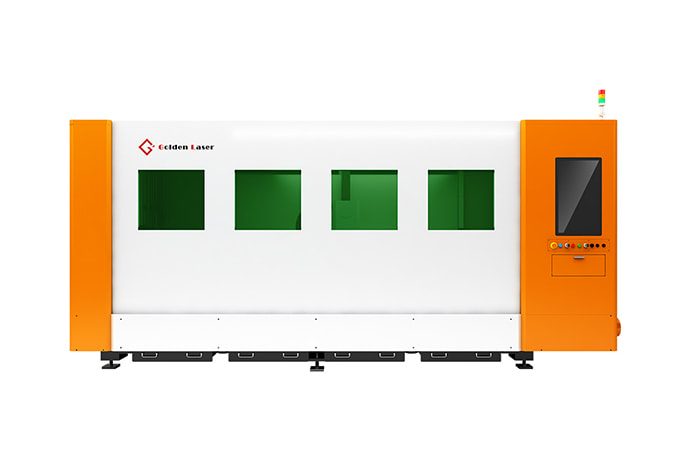

Fully Enclosed Fiber Laser Cutter

Fully enclosed standard area single table fiber laser cutting machine



building as CE demand ensure your safe production.

%

Safe Room Space

%

Excellent Exhaust Result

%

Safe in Production

Touch Screen

Win 10 System.

Friendly Operation System

Cypcut and Hypcut Beckhoff System for Choice.

MES Support

Small Size with Powerful Connection Ability.

Convenient

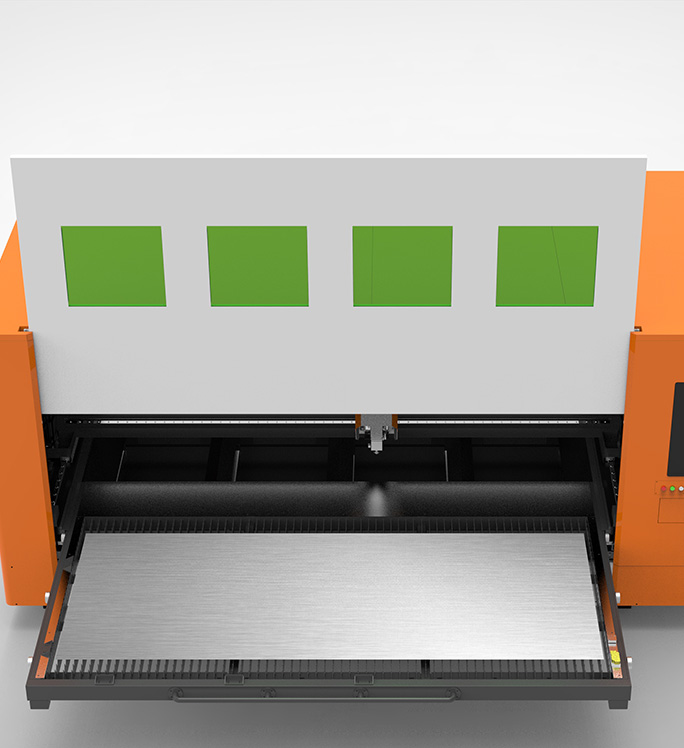

The pull-out design...  of the workbench maximizes the convenience of human-machine interaction during loading and unloading while ensuring processing safety.

The whole equipment is highly integrated and can be transported and installed as a whole.

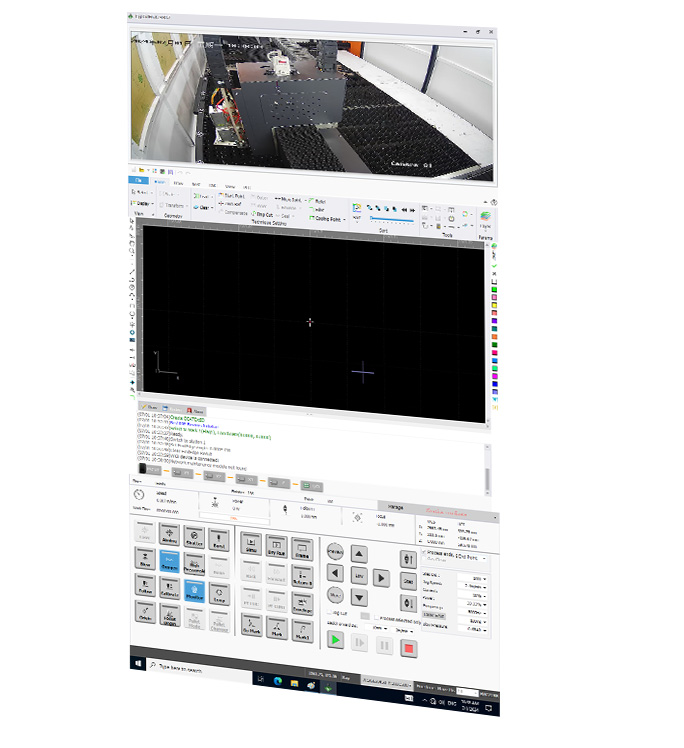

C30-Screen software

Intelligence



Based on the configuration of intelligent CNC...   control system and software, it can realize efficient transformation from drawing to cutting during processing.

It can handle different materials and different process requirements with ease.

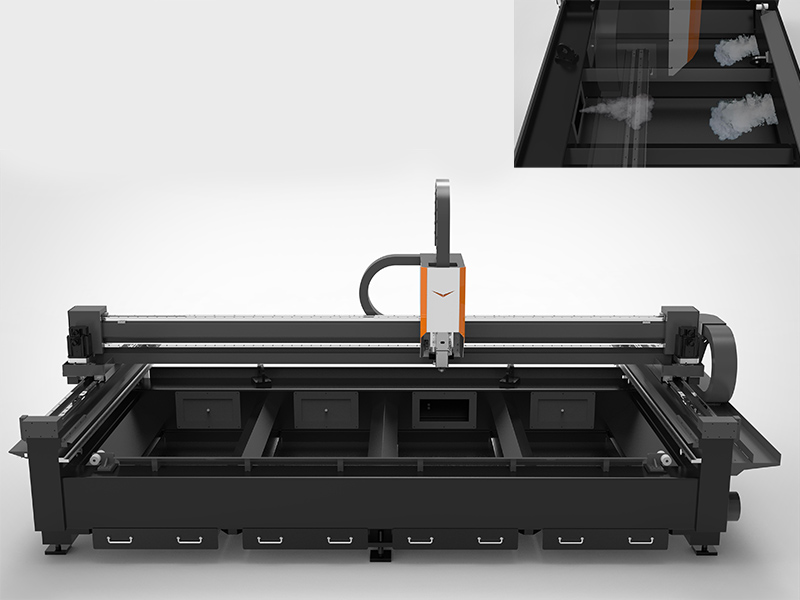

Dust Free



Blowing and suction type smoke removal...  limited the smoke during the cutting easy to check the cutting result from the window, reduce the broken of the protect lens.

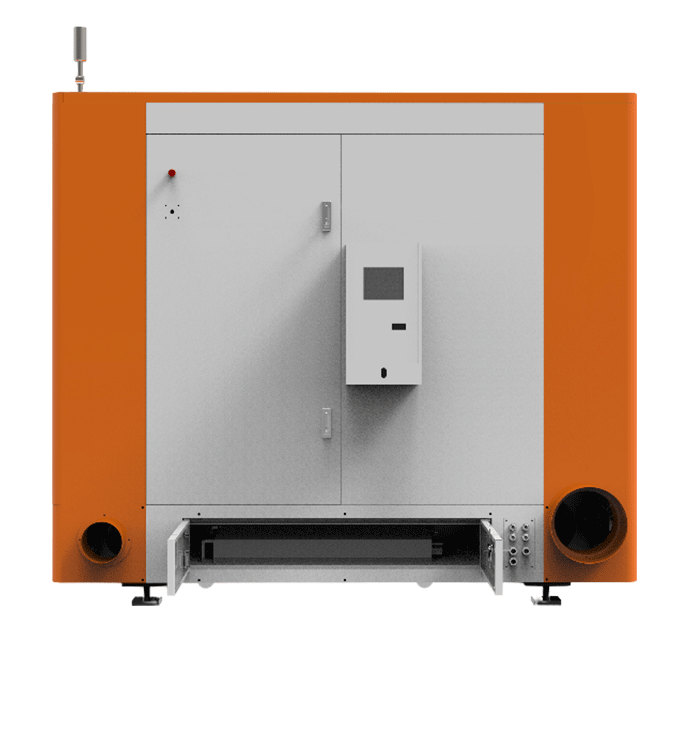

C30-laser-source-place

Integrated Design



Independent laser source storage design...   easy to maintenance.

The circuit and operating table are integrated into the laser cutting machine, and the industrial air conditioner stabilizes the processing temperature in production.

Watch C30 in Action!

controller-system

Different Controller For Choice

Cypcut, Hypcut and Beckhoff Controller for choice to meet your different cutting demand.

nozzle-clean-system

Nozzle Automatic Clean For Choice

Automatic nozzle clean function reduce the change of the nozzle time and ensure the good cutting result.

Ready to find out more? Contact us for a quote!

We'd like to supply the suitable and usefull metal cutting solution for your reference.


  • Previous:
  • Next:

  • Material & Industry Application


    Laser Cutting Metal Applicable Industry

    Sheet metalworking, hardware, kitchenware, electronic, automotive parts, advertising, craft, lighting, decoration, and small home business etc.

    Laser Cutting Metal Applicable Material

    Metal Welding Specially for carbon steel, stainless steel, alloy, aluminum, galvanized steel, titanium, brass, copper and other metal sheets.

    Different-metal-art

    Machine Technical Parameters


    Fully Enclosed Single Table Fiber Laser Cutting Machine Parameters

    Laser power  1500W to 6000W
    Laser source  IPG / Raycus / Max fiber laser generator
    Laser generator working mode  Continuous/Modulation
    Beam mode  Multimode
    Processing surface (L × W)  3m X 1.5m
    X axle stroke  3050mm
    Y axle stroke  1520mm
    Z axle stroke  200mm
    CNC system  FSCUT controller /Beckhoff
    Power supply  AC380V±5% 50/60Hz (3 phase)
    Total Power consumption  Depend on the laser source
    Position accuracy (X, Y and Z axle)  ±0.03mm
    Repeat position accuracy (X, Y and Z axle)  ±0.02mm
    Maximum position speed of X and Y axle  80m/min
    Max load of working table  900kg
    Auxiliary gas system  Dual-pressure gas route of 3 kinds of gas sources
    Format supported  AI, BMP, PLT, DXF, DST, etc.
    Floor space
