1500w Full Closed Pallet Changer Fiber Laser Pipe and Sheet Cutting Machine

Deskripsi Singkat:

The standard model GF-1530JHT with the sheet cutting format 1500mm*3000mm, tube cutting length 6m, tube diameter 20mm-200mm, fiber laser 1500w can cut  maximum thickness 14mm mild steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel.

………………………………………………………………………………………………………………………….

Nomor model: GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT

Cutting format : 1.5m×3m, 1.5m×4m, 1.5m×6m, 2m×4m, 2m×6m

panjang pipa : 6m

Pipe diameter : 20mm-200mm

bahan yang berlaku : Metal sheet and pipe

Applicable tube type : Round, square, rectangular, oval, waist round tube, etc.

daya laser : 1500w (1000w, 1200w, 2000w, 3000w, 4000w optional)

sumber laser : nLIGHT / IPG / Raycus Fiber Laser generator

Cnc controller: Cypcut controller

kepala Laser: Raytools laser cutting head


Detail mesin

Material & Industri Aplikasi

Mesin Parameter Teknis

Tag produk

Full Closed Dual Table Fiber Laser Pipe and Sheet Cutting Machine

GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT

This mesin laser cutting serat has a fully enclosed protective cover, an exchange table and a tube cutting device attachment. Metal plates and tubes can be cut on the same machine. In addition, the high-performance CNC laser cutting system, world-class configuration, and strict assembly process ensure the safety, stability, efficiency and precision of the metal laser cutting machine. Not only is the operation safer, but it also improves cutting efficiency.

1500W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Bahan

Cutting Limit

Clean Cut

Baja karbon

14mm

12mm

Besi tahan karat

6mm

5mm

Aluminium

5mm

4mm

Kuningan

5mm

4mm

Tembaga

4mm

3mm

baja galvanis

5mm

4mm

Full Protection Design

Full Closed Pallet Changer Fiber Laser Cutting Machine - Enclosed work space makes your cutting process safer!

GF-1530JHT 02
GF-1530JHT 03
GF-1530JHT 01
GF-1530JHT 04

Detail mesin

Ganda Bursa Kerja Tabel

Inter-switching meja kerja, pertukaran cepat, menghemat waktu pemuatan

dual-working-table
carbon steel pipe and sheet laser cutting machine

High Damping Bed

Granty double driving structure with high damping bed is of goodrigidy, high speed and high acceleration speed.

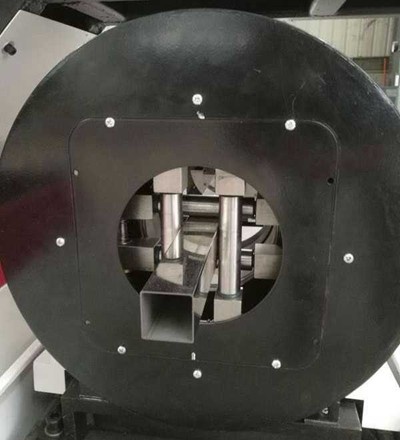

Automatic chuck for tube clamping

The chuck automatically adjusts the clamping force according to the tube type, diameter and wall thickness. The thin-walled tube does not deform and the large tube can be clamped tightly.

Fast speed, cutting speed 90m/min.

Rotating speed 180R/min.

automatic-chuck-for-tube-clamping-GFT

Can Cut Both Metal Sheets and Tubes

Hal ini dapat memotong lembaran dan pipa pada saat yang sama, satu mesin menggunakan dual; mesin terpadu yang ideal untuk perusahaan transisi.

sheet and tube laser cutting machine price

Laser Cutting Machine For Metal Sheets and Tubes Samples

tube and sheet samples

Watch The Video


  • Sebelumnya:
  • Berikutnya:

  • Industri berlaku

    Furniture, Alat Kesehatan, Peralatan Fitness, Eksplorasi Minyak, Tampilan Shelf, Mesin Pertanian, Bridge, Boating, Struktur Bagian

    lembaran logam pemotong laser

    Bahan yang berlaku

    stainless steel, baja karbon, baja silikon, plat aluminium, kuningan, tembaga, baja lembaran galvanis dan tabung

    Jenis yang berlaku Of Tabung

    Bulat, persegi, persegi panjang, oval, pinggang tabung bulat dan pipa logam lainnya

    serat laser mesin pemotong lembar

    lembaran logam dan serat tabung mesin laser cutting
    Model
    GF-1530JHT / GF-1540JHT / GF-1560JHT / GF-2040JHT / GF-2060JHT
    daya laser
    1500w (1000w, 1200w, 2000w, 3000w, 4000w optional)
    sumber laser
    IPG / nLIGHT / Raycus laser generator
    kepala Laser
    Raytools
    katup proporsional Gas
    SMC
    pengolahan lembaran
    1.5m X 3m, 2.0m X 4.0m, 2.0m X6.0m, 2.5m X6.0m
    tabung pengolahan
    tabung panjang 3m, 6m ,, diameter tabung 20-300mm
    akurasi posisi
    ± 0.05mm
    akurasi posisi ulangi
    ± 0.03mm
    kecepatan posisi maksimum
    120m / min
    Percepatan
    1.5g
    format yang didukung
    AI, BMP, PLT, DXF, DST, dll,
    Lantai
    9.5mx 5,8 juta
