Laser Tube Cutting Machine Three Chuck For Heavy Duty

  • Laser Tube Cutting Machine Three Chuck For Heavy Duty

Heavy Duty Fiber Laser Pipe Cutting Machine especially design for thick and large size tube cutting, with automatic loading and downloading increase the production efficiency very well.

  • Model number : Mega3 (P35120A)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

Heavy Duty Laser Tube Cutting Machine Mega3

Especially Design for Thick and Large Diameter Tubes cutting, With Automatic Uploading and Downloading

 System Increase the Production Efficiency Very Well.

Mainly Feature of 3 Chuck Heavy Duty  Laser Tube Cutting Machine

Three Chuck Design

Focus on heavy duty large pipe cutting,
Three Chuck design ensure long pipe
cutting, long tube output design demand.





Auto Tube Loaser for Heavy Tube



Servo variable diameter support,
adjustment-free for pipes of different sizes.

Chain Drive Loading

Chain drive loading and unloading,
convenient loading consistency and
stability





Visualization PA controller

German touch-screen PA industrial 4.0 CNC
system



Heavy-duty Chuck

Heavy-duty chuck can use 350MM
pneumatic chuck at most, load 1200KG
(round tube 350*10MM, square tube
220*220*10MM) 12M



Save Space Easy to Export

Side rail structure saves floor space.
Modular disassembly and installation,
convenient for export.

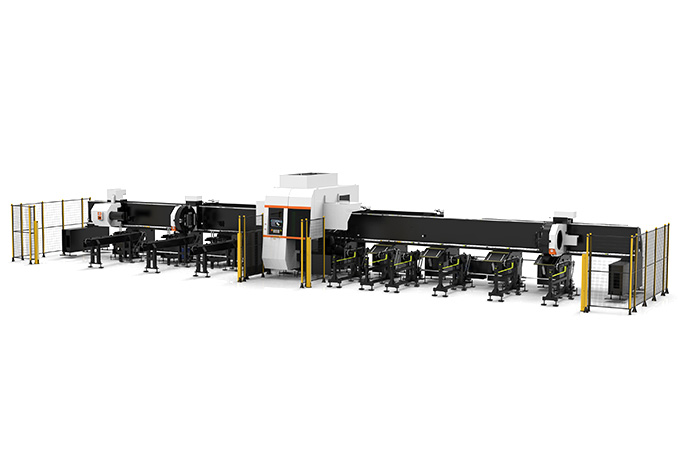

3 Chuck Heavy Duty Tube Laser Cutter

Laser Cutting Samples of Heavy Duty Laser Tube Cutting Machine

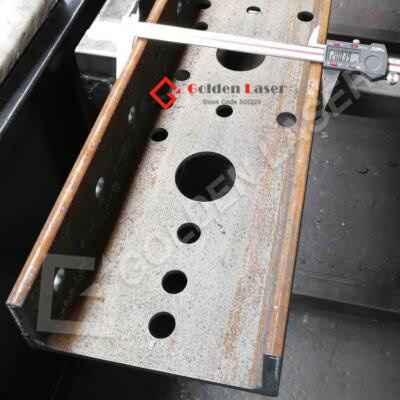

chanel pipe laser cut off

Channel Steel Cut

Large Size Channel Steel cutting more than 8mm thickness.

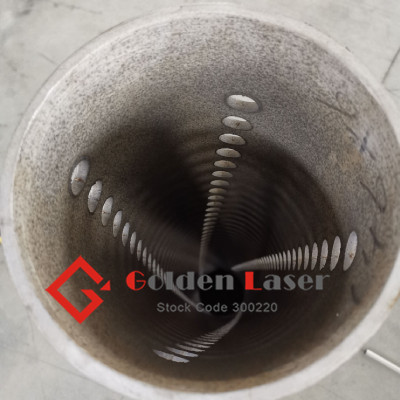

6MM SS. 150mm diameter tube cut

Round Tube Cut

Large round tube cutting

CS thick pipe cut

Thick Tube Cut

With Good CNC controller ensure the thick pipe also have excellent cutting result.

xin

Testimonials

We bought the tube laser cutting machine since 2014, the running of machine is very steady. Their service is very professional will guild us for the process parameters.

xin

Testimonials

We own Golden Laser more than 5 sets pipe laser cutting machine, every update is stand in our shoes and help update our production efficiency, we will have more cooperation in the future.

xin

Testimonials

I think they are professional and laser cutting machine, espcailly the tube R&D ability. It help us a lot to find a suitable tube laser cutting machine.

Call us today at 0086 15802739301 or email info@goldenfiberlaser.com

Professional fiber laser tube cutting machine manufactory, with strong R&D ability and Customize ability.
Email us for your personalized laser cut solution.

  • Previous:
  • Next:

    • Heavy Duty Laser Tube Cutting Machine Mega3

    Especially Design for Thick and Large Diameter Tubes cutting, With Automatic Uploading and Downloading

     System Increase the Production Efficiency Very Well.

    Mainly Feature of 3 Chuck Heavy Duty  Laser Tube Cutting Machine

    Three Chuck Design

    Focus on heavy duty large pipe cutting,
    Three Chuck design ensure long pipe
    cutting, long tube output design demand.





    Auto Tube Loaser for Heavy Tube



    Servo variable diameter support,
    adjustment-free for pipes of different sizes.

    Chain Drive Loading

    Chain drive loading and unloading,
    convenient loading consistency and
    stability





    Visualization PA controller

    German touch-screen PA industrial 4.0 CNC
    system



    Heavy-duty Chuck

    Heavy-duty chuck can use 350MM
    pneumatic chuck at most, load 1200KG
    (round tube 350*10MM, square tube
    220*220*10MM) 12M



    Save Space Easy to Export

    Side rail structure saves floor space.
    Modular disassembly and installation,
    convenient for export.

    3 Chuck Heavy Duty Tube Laser Cutter

    Laser Cutting Samples of Heavy Duty Laser Tube Cutting Machine

    chanel pipe laser cut off

    Channel Steel Cut

    Large Size Channel Steel cutting more than 8mm thickness.

    6MM SS. 150mm diameter tube cut

    Round Tube Cut

    Large round tube cutting

    CS thick pipe cut

    Thick Tube Cut

    With Good CNC controller ensure the thick pipe also have excellent cutting result.

    xin

    Testimonials

    We bought the tube laser cutting machine since 2014, the running of machine is very steady. Their service is very professional will guild us for the process parameters.

    xin

    Testimonials

    We own Golden Laser more than 5 sets pipe laser cutting machine, every update is stand in our shoes and help update our production efficiency, we will have more cooperation in the future.

    xin

    Testimonials

    I think they are professional and laser cutting machine, espcailly the tube R&D ability. It help us a lot to find a suitable tube laser cutting machine.

    Call us today at 0086 15802739301 or email info@goldenfiberlaser.com

    Professional fiber laser tube cutting machine manufactory, with strong R&D ability and Customize ability.
    Email us for your personalized laser cut solution.

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Materials Stainless steel, carbon steel, aluminum, brass, copper, alloy steel and galvanized steel etc.

    Applicable Industry Oil exploration, bridge supporting, steel rail rack, steel structure, fire control, metal racks, agriculture machinery, pipes processing etc.

    Applicable Types Of Tubes Cutting Round tube, square tube, rectangular tube, oval tube, OB-type tube, C-type tube, D-type tube,triangle tube, etc (standard); Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)





    applicable-types-of-laser-cutting-tube

    Machine Technical Parameters

    Machine Technical Parameters

    Model number  Mega3 (P35120 3chucks tube laser cutting machine)
    Tube length 12000mm,6000mm optional
    Tube diameter 20-350mm
    Laser source Imported fiber laser resonator IPG / N-Light
    Servo Motor servo motors for all axial movement
    Laser source power 3000w 4000w 6000w optional
    Position accuracy ±0.1mm/10m
    Repeat position accuracy ±0.08mm/10m
    Rotating speed 75r/min
    Acceleration 0.8G
    Cutting speed depend on material, laser source power
    Maximum Weight per Single Tube  1200kg (Ø350mm*10mm*1200mm)
    Maximum load of the feeder  4.5t
    Electric power supply AC380V 50/60Hz
