Large Fiber Laser Cutting Machine in Ground-Orbit Type

We get the idea from the plasma cutting machine and combine the advantage of fiber laser cutter together. Save Shipping cost and Easy for installation.

Modular Designs

Unlimited Expansion Metal Cutting Area

Easy for Installation

There is more

Advantage of Ground Rail Laser Cutting Machine

Save Your Overseas Shipping Cost

"Is it possible to ship my fiber laser cutting machine through a 40HQ? The shipping cost of frame containers is too high, even more than the value of the laser cutting machine now.

Same problem as yours? When you decide to import a fiber laser cutting machine from China.

Now, the ultimate solution is here!

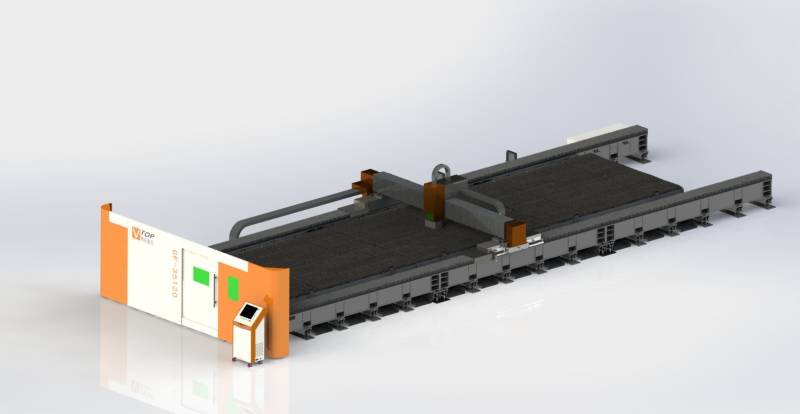

Floor Guide Design-absorbed the advantage of the plasma cutting machine, it takes no space and is easy to install.

Even cut over 6 meters metal sheet fiber laser cutter, easy to transport via a 40HQ.

Connect of ground orbit method-golden laser

Easy Install When You Get the Machine.

✔️ The extendable table design, easy to connect the large fiber laser cutting machine table by the positioning device.

✔️ Simple and modular installation can be done according to the manual to save time and effort.

Double Security Protection Solutions

Following Full Closed Cover with grating guardrail, double ensure the save of the operator in mass metal cutting production

Dust-free Processing

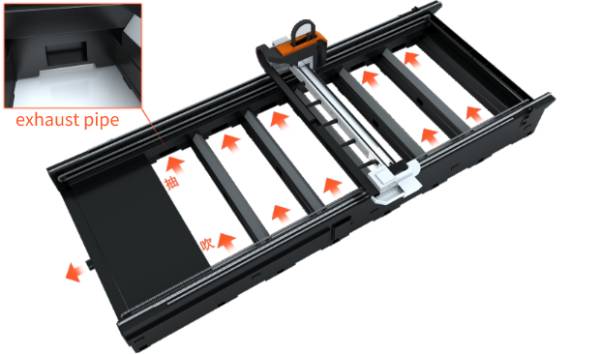

Dust-free processing environmentSegmented dust extraction allows fumes and dust from laser processing to be absorbed in a timely manner through air filters ensuring maximum environmental protection and 0 pollution.

Beveling Cutting Head

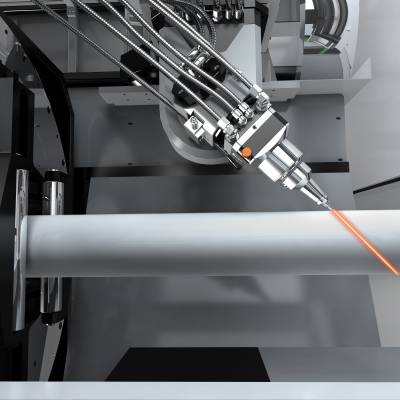

Equipped with BLT461 cutting head and AB swing set, it can achieve 0-45° bevel cutting and can process V-type, X-type, Y-type, K-type and other types of bevels.

Easy for welding on the thick metal materials.

Strong Structure

The Operator table and the machine bed are designed with independent structure, the bed is annealed and stress relieved as a whole, the machine frame is less than deformed by heat, which not affects the accuracy.

Modular splicing

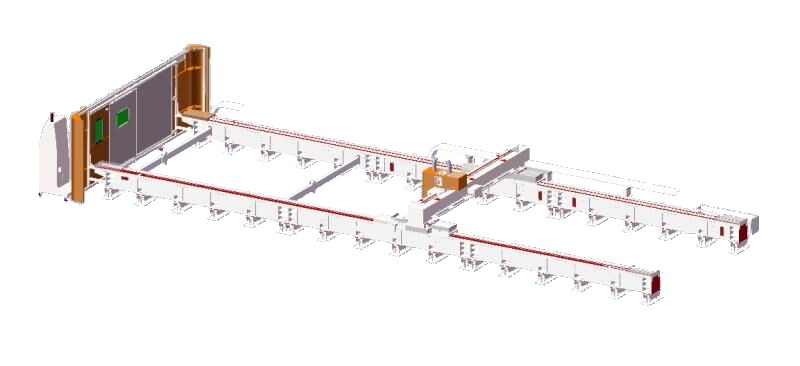

Fiber Laser Cutting machine length direction is three meters a module can be infinitely expanded. The standard width of the cutting machine is 3 meters, 4 meters wide is optional.

Bus CNC Laser Controller

Advanced CNC Fiber laser cutting machine controller, adopts Bus system, easy to maintain and multi-function of Anti-collision cutting and residue visual cutting.

Easy Change Cutting Table After Long Time Cutting.

✔️ Modular blade assembly makes slag cleaning more convenient and labor-saving.

✔️ √It is easy to disassemble and replace without hindering production.

Ground Rail Fiber Laser Cutting Machine Installation Video Show

H16 General View

H16 Real Cutting

Welcome to contact with Golden Laser Sales Team for the detail solution for the large fiber laser cutting machine.

Material & Industry Application

It is popular for large and heavy duty industry such as: automobile industry, machinery fabrcation industry, engineering vehicles, vessels, outside processing, and agricultural machinery industry.

Machine Technical Parameters

The H16 H24 Parameter

1. mechanical parameters

project	Parameter
X axis trip	2500 /3500mm
Y axis trip	16,000 /24,000mm (Customizable)
Z axis trip	150mm
Maximum positioning speed	80m/min
maximal acceleration	0.8G
Mechanical positioning accuracy	+-0.1mm per 10m
Repeat positioning accuracy	+-0.05mmper 10m
Fiber laser power	6000W-30000W
Fiber Laser Source	IPG / nLIGHT / Raycus / Max
Workbench load	350Kg/m^2
Space	19648mm*6034mm
