Imashini yohejuru Yubwenge CNC Laser Umuyoboro wo Gukata

  • Imashini yohejuru Yubwenge CNC Laser Umuyoboro wo Gukata

Imashini yo mu rwego rwohejuru ifite ubwenge CNC Laser Umuyoboro wo gukata, cyane cyane mubyuma no gukata imiyoboro.Hamwe na Auto bundle yipakurura sisitemu yo gukomeza gukora.

Imashini ikata fibre laser HS code: 84561100

  • Umubare w'icyitegererezo: i25A i35A (P2560A)
  • Min.Umubare w'Itegeko: 1 Shiraho
  • Ubushobozi bwo gutanga: Gushiraho 100 Kwezi
  • Icyambu: Wuhan / Shanghai cyangwa nkibisabwa
  • Amasezerano yo kwishyura: T / T, L / C.

Imashini Ibisobanuro

Ibikoresho & Inganda

Imashini Ibikoresho bya tekinike

Ibicuruzwa bifitanye isano

Imashini yohejuru Yubwenge CNC Laser Umuyoboro wo Gukata



Cyane cyane kumiyoboro yicyuma nu miyoboro hamwe no gukata neza neza ...Bikwiranye nuburyo butandukanye bwicyuma hamwe nicyuma cya laser gukata, nko guca umuyoboro uzengurutse, umuyoboro wa kare, umuyoboro urukiramende, umuyoboro wa mpandeshatu, umuyoboro wa oval, nizindi miyoboro imeze nkumuyoboro.

Imiyoboro ya Tube yo hanze irashobora kuba 20-250mm (20-350mm), Uburebure bwa Tube 6m.

Automatic edge patrol, automatique centrale, kumenyekanisha weld, no gukuraho slagike byikora byose birahari

Hamwe na Auto bundle yipakurura sisitemu yo guhita ikomeza imiyoboro ya laser.

Shigikira byimazeyo kwagura abakiriya ibyo bakeneye

umubiri wa mashini yo gukata laser

Heavey Isahani yo gusudira Laser Umuyoboro wo gutema Imashini



Menya neza ko guca umuvuduko mwinshi kugabanya umuyoboro muremure kandi uremereye ukoresheje laser.Nibanze byubwiza bwimashini.Zahabu ya Laser Umuyoboro wa laser ukata Imashini ikoresha imashini irenga 22mm yibyuma byo gusudira,

Binyuze kuri dogere 600 yubushyuhe bwo hejuru hamwe no gukonjesha bisanzwe, guhangayikishwa nibikoresho bikurwaho, kandi uburiri ntibuzahinduka mumyaka 20.

Zahabu ya Laser PA

Ubudage PA bugenzura bisi ya mashini yo gukata Laser Umuyoboro ...

Ukurikije imyubakire mishya PA umugenzuzi, Module 7, Ubuyobozi bwa MESS iCloud,



Sisitemu yo guca imiyoboro ya laser ikoresha ibishya-bishya bya UI.Sisitemu imaze kuzamurwa, irimoModule 7: igenamigambi, umusaruro, inzira, gukemura, kubungabunga, gusuzuma, no gushiraho.Sisitemu yose ifite ubwenge nububiko kandi irashobora guhuzwa hamwe naMESS ifite ubwenge bwo gucunga amakurusisitemu y'uruganda rukora ubwenge.Ni imashini nyayo yo gukata imashini ya sisitemu ya CNC igenzura, imikorere myiza mumashini ikata fibre laser, gushigikira G-code, kumenya ko dosiye yatunganijwe ishobora gukoreshwa mubindi bikoresho bitunganya CNC.Guhuza nizindi mashini zikora ibyuma birashoboka.

Espagne Lanteck CAM Software ...

Umwuga wa Tube CAM utanga software hamwe nigishushanyo hamwe nicyari hamwe, gukemura 90% ukora mbere yuko CNC laser ikata,



Cyane cyane kubijyanye nicyuma nogukata imiyoboro hamwe no guteramo ibyari, bikwiranye nuburyo butandukanye bwo gutema no gukata imiyoboro, nkizunguruka, kare, urukiramende, mpandeshatu, oval, umuyoboro wikibuno nizindi miyoboro ifunguye hamwe numuyoboro, nkuko ndumurika, umuyoboro wa umuyoboro (kuri amahitamo).

lantek
Mugukoraho

Zahabu Laser UI Gukoraho Mugaragaza ...

Gukoraho ecran hamwe nigishushanyo mbonera cyabakoresha, tanga ibyiza ukoresheje uburambe



Igice kinini cyo gukoraho hamwe na UI igishushanyo gitanga uburambe bwabakoresha kubakoresha.Visualisation ikora byoroshye kubyumva no kwirinda gukoreshwa nabi mugukata laser.

Sisitemu Yuzuye & Rack Sisitemu ...

Imashini ikata laser yakoresheje imashini yuzuye ya Gear na Rack.menya neza ibisubizo bihanitse byo gukata ibisubizo.



Imashini zose zo gukata za laser zivugurura muburyo bwuzuye bwa Gear na Rack, byongera umuvuduko wa 20% na 200% byukuri kuruta igishushanyo mbonera.Menya neza ibisubizo byiza byo gukata laser kuri tube.Kuzuza ibisabwa byinshi byo gutunganya neza ..

ibikoresho
Chuck Nkuru ya P2060A

Igisekuru gishya Chuck ...

Gutera Ikadiri yo gushiramo.byinshi byukuri kandi birebire ukoresheje ubuzima.



Chuck nyamukuru ihanga udushya ikoresha ikariso yo gushiramo yashyizwemo, ihujwe numubiri nyamukuru wigikoresho cyimashini, kandi gukata ultra-yihuta cyane birahagaze.



Ntibikenewe ko uhindura urwasaya kugirango rwuzuze.

Igisekuru gishya Umudozi Chuck ...

Kuvugurura Pneumatic Chuck hamwe nibisobanuro bihanitse kandi birebire ukoresheje ubuzima.Igipimo gito cyo gutsindwa no gutuza mubikorwa.



Igishushanyo cyihariye cya pneumatic chuck nikimwe mubice byingenzi mumashini yo gukata ya laser, binyuze mumyaka myinshi ivugururwa, yakusanyije uburambe bwinshi muburyo bwo gushushanya.Kwiyoroshya byoroshye gufata imiyoboro itandukanye, diameter zitandukanye, n'ubugari, Guhindura imbaraga zo guhuza ...

kurangiza chuck gufata umuyoboro wo gukata laser

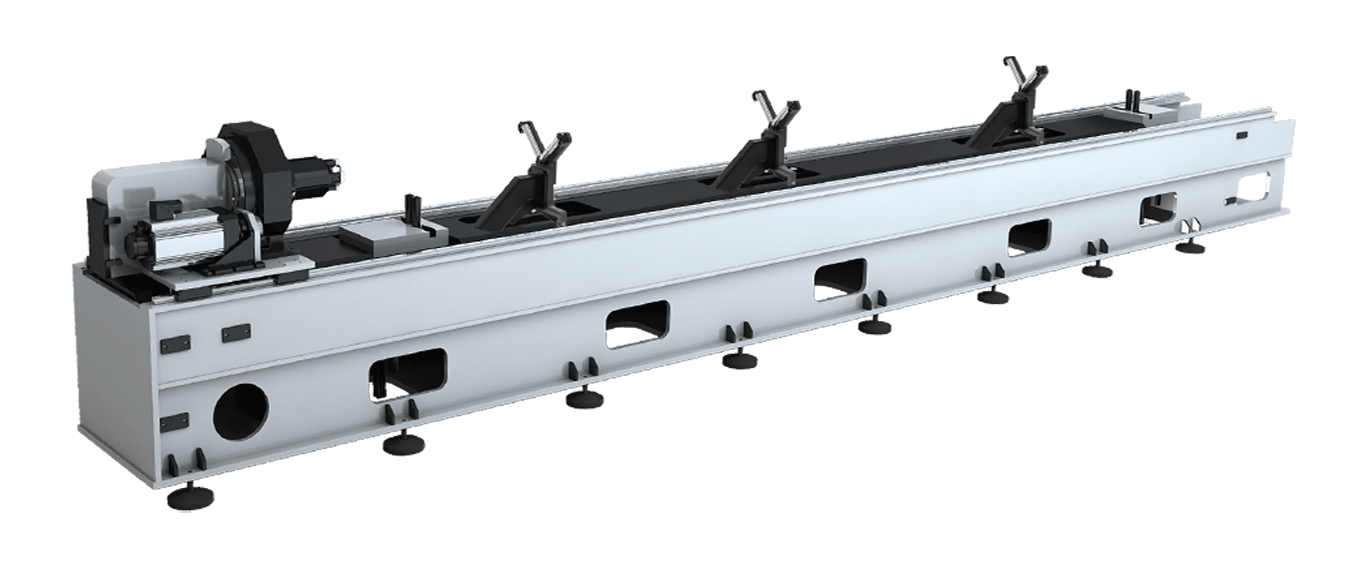

Inkunga ireremba Umuyoboro wubudozi ...

Laserigishushanyo cyihariye Abashyigikira Floating batanga inkunga nziza kumirongo idoda.Irinde kugoreka umuyoboro muremure nyuma yo gukata laser no gukubita.



Servo moteri ireremba ishigikira itanga inkunga nziza ukurikije imiterere ya pipe n'uburebure.Ntakibazo umuyoboro mugufi cyangwa muremure byombi bifite inkunga nziza.Irinde umuyoboro wumudozi uremereye cyane kuburyo bigoye gukuramo no kugoreka mugihe kizunguruka ....

umuterankunga ureremba wa tube ya P2060A Zahabu ya Laser
imbonerahamwe yo gukusanya imiyoboro ya tube yarangiye

Automatic Finished Tube yakira igikoresho ...

Irashobora kuba ifite ibikoresho byikurura byakira kugirango bamenye gutondeka no kubika ibihangano, bikiza ingufu zumurimo.

tube laser yo gukata imashini ibyuma bisesagura

Imiyoboro ya diameter irenga mm 100, imyanda ni mm 180-200.

Nyuma yo gufunga umuyoboro, ubunini rusange bwurwasaya rufungura burenze umwobo wo hagati wa chuck kandi ntibushobora kunyuramo.Urwasaya ruzimukira hafi yumutwe wa laser yo gukata ...

Imiyoboro ya diameter iri munsi ya mm 100, imyanda ni mm 50-80.

Iyo ukata igice cyanyuma cyumurizo, urwasaya rwimbere ruhita rufungura, kandi urwasaya rwinyuma rushobora kunyura mumbere yimbere hanyuma rukimukira mumwanya wegereye kugera kumutwe wa laser kugirango ukate ...

tube yikora yapakurura imashini ya fibre laser

Sisitemu yo Gutwara Imodoka ya Laser Umuyoboro wo Gukata.

Sisitemu yo gupakira yikora ibona umusaruro uhoraho, ni cyane cyane kubikenerwa cyane.Kunoza umusaruro...



Imiyoboro yo kugaburira ibinyabiziga bikwiranye na 800 * 800mm bundle imizigo.Hamwe nimikorere yo gupima byikora kugirango yizere gupakira umuyoboro wiburyo nta kosa.Sisitemu yo kuburira ibutsa yibutsa uyikoresha mugihe cyose cyakozwe, umugenzuzi wa PLC wa sisitemu yo gupakira byikora byoroshye guhinduka ukurikije ibisobanuro birambuye byo gutunganya,Autoloading, Guhitamo kwawe gukata mass tube laser gukata ...

P2060A Laser Tube Gukata Imashini Gukora Video

  • Mbere:
  • Ibikurikira:

    • Imashini yohejuru Yubwenge CNC Laser Umuyoboro wo Gukata



    Cyane cyane kumiyoboro yicyuma nu miyoboro hamwe no gukata neza neza ...Bikwiranye nuburyo butandukanye bwicyuma hamwe nicyuma cya laser gukata, nko guca umuyoboro uzengurutse, umuyoboro wa kare, umuyoboro urukiramende, umuyoboro wa mpandeshatu, umuyoboro wa oval, nizindi miyoboro imeze nkumuyoboro.

    Imiyoboro ya Tube yo hanze irashobora kuba 20-250mm (20-350mm), Uburebure bwa Tube 6m.

    Automatic edge patrol, automatique centrale, kumenyekanisha weld, no gukuraho slagike byikora byose birahari

    Hamwe na Auto bundle yipakurura sisitemu yo guhita ikomeza imiyoboro ya laser.

    Shigikira byimazeyo kwagura abakiriya ibyo bakeneye

    umubiri wa mashini yo gukata laser

    Heavey Isahani yo gusudira Laser Umuyoboro wo gutema Imashini



    Menya neza ko guca umuvuduko mwinshi kugabanya umuyoboro muremure kandi uremereye ukoresheje laser.Nibanze byubwiza bwimashini.Zahabu ya Laser Umuyoboro wa laser ukata Imashini ikoresha imashini irenga 22mm yibyuma byo gusudira,

    Binyuze kuri dogere 600 yubushyuhe bwo hejuru hamwe no gukonjesha bisanzwe, guhangayikishwa nibikoresho bikurwaho, kandi uburiri ntibuzahinduka mumyaka 20.

    Zahabu ya Laser PA

    Ubudage PA bugenzura bisi ya mashini yo gukata Laser Umuyoboro ...

    Ukurikije imyubakire mishya PA umugenzuzi, Module 7, Ubuyobozi bwa MESS iCloud,



    Sisitemu yo guca imiyoboro ya laser ikoresha ibishya-bishya bya UI.Sisitemu imaze kuzamurwa, irimoModule 7: igenamigambi, umusaruro, inzira, gukemura, kubungabunga, gusuzuma, no gushiraho.Sisitemu yose ifite ubwenge nububiko kandi irashobora guhuzwa hamwe naMESS ifite ubwenge bwo gucunga amakurusisitemu y'uruganda rukora ubwenge.Ni imashini nyayo yo gukata imashini ya sisitemu ya CNC igenzura, imikorere myiza mumashini ikata fibre laser, gushigikira G-code, kumenya ko dosiye yatunganijwe ishobora gukoreshwa mubindi bikoresho bitunganya CNC.Guhuza nizindi mashini zikora ibyuma birashoboka.

    Espagne Lanteck CAM Software ...

    Umwuga wa Tube CAM utanga software hamwe nigishushanyo hamwe nicyari hamwe, gukemura 90% ukora mbere yuko CNC laser ikata,



    Cyane cyane kubijyanye nicyuma nogukata imiyoboro hamwe no guteramo ibyari, bikwiranye nuburyo butandukanye bwo gutema no gukata imiyoboro, nkizunguruka, kare, urukiramende, mpandeshatu, oval, umuyoboro wikibuno nizindi miyoboro ifunguye hamwe numuyoboro, nkuko ndumurika, umuyoboro wa umuyoboro (kuri amahitamo).

    lantek
    Mugukoraho

    Zahabu Laser UI Gukoraho Mugaragaza ...

    Gukoraho ecran hamwe nigishushanyo mbonera cyabakoresha, tanga ibyiza ukoresheje uburambe



    Igice kinini cyo gukoraho hamwe na UI igishushanyo gitanga uburambe bwabakoresha kubakoresha.Visualisation ikora byoroshye kubyumva no kwirinda gukoreshwa nabi mugukata laser.

    Sisitemu Yuzuye & Rack Sisitemu ...

    Imashini ikata laser yakoresheje imashini yuzuye ya Gear na Rack.menya neza ibisubizo bihanitse byo gukata ibisubizo.



    Imashini zose zo gukata za laser zivugurura muburyo bwuzuye bwa Gear na Rack, byongera umuvuduko wa 20% na 200% byukuri kuruta igishushanyo mbonera.Menya neza ibisubizo byiza byo gukata laser kuri tube.Kuzuza ibisabwa byinshi byo gutunganya neza ..

    ibikoresho
    Chuck Nkuru ya P2060A

    Igisekuru gishya Chuck ...

    Gutera Ikadiri yo gushiramo.byinshi byukuri kandi birebire ukoresheje ubuzima.



    Chuck nyamukuru ihanga udushya ikoresha ikariso yo gushiramo yashyizwemo, ihujwe numubiri nyamukuru wigikoresho cyimashini, kandi gukata ultra-yihuta cyane birahagaze.



    Ntibikenewe ko uhindura urwasaya kugirango rwuzuze.

    Igisekuru gishya Umudozi Chuck ...

    Kuvugurura Pneumatic Chuck hamwe nibisobanuro bihanitse kandi birebire ukoresheje ubuzima.Igipimo gito cyo gutsindwa no gutuza mubikorwa.



    Igishushanyo cyihariye cya pneumatic chuck nikimwe mubice byingenzi mumashini yo gukata ya laser, binyuze mumyaka myinshi ivugururwa, yakusanyije uburambe bwinshi muburyo bwo gushushanya.Kwiyoroshya byoroshye gufata imiyoboro itandukanye, diameter zitandukanye, n'ubugari, Guhindura imbaraga zo guhuza ...

    kurangiza chuck gufata umuyoboro wo gukata laser

    Inkunga ireremba Umuyoboro wubudozi ...

    Laserigishushanyo cyihariye Abashyigikira Floating batanga inkunga nziza kumirongo idoda.Irinde kugoreka umuyoboro muremure nyuma yo gukata laser no gukubita.



    Servo moteri ireremba ishigikira itanga inkunga nziza ukurikije imiterere ya pipe n'uburebure.Ntakibazo umuyoboro mugufi cyangwa muremure byombi bifite inkunga nziza.Irinde umuyoboro wumudozi uremereye cyane kuburyo bigoye gukuramo no kugoreka mugihe kizunguruka ....

    umuterankunga ureremba wa tube ya P2060A Zahabu ya Laser
    imbonerahamwe yo gukusanya imiyoboro ya tube yarangiye

    Automatic Finished Tube yakira igikoresho ...

    Irashobora kuba ifite ibikoresho byikurura byakira kugirango bamenye gutondeka no kubika ibihangano, bikiza ingufu zumurimo.

    tube laser yo gukata imashini ibyuma bisesagura

    Imiyoboro ya diameter irenga mm 100, imyanda ni mm 180-200.

    Nyuma yo gufunga umuyoboro, ubunini rusange bwurwasaya rufungura burenze umwobo wo hagati wa chuck kandi ntibushobora kunyuramo.Urwasaya ruzimukira hafi yumutwe wa laser yo gukata ...

    Imiyoboro ya diameter iri munsi ya mm 100, imyanda ni mm 50-80.

    Iyo ukata igice cyanyuma cyumurizo, urwasaya rwimbere ruhita rufungura, kandi urwasaya rwinyuma rushobora kunyura mumbere yimbere hanyuma rukimukira mumwanya wegereye kugera kumutwe wa laser kugirango ukate ...

    tube yikora yapakurura imashini ya fibre laser

    Sisitemu yo Gutwara Imodoka ya Laser Umuyoboro wo Gukata.

    Sisitemu yo gupakira yikora ibona umusaruro uhoraho, ni cyane cyane kubikenerwa cyane.Kunoza umusaruro...



    Imiyoboro yo kugaburira ibinyabiziga bikwiranye na 800 * 800mm bundle imizigo.Hamwe nimikorere yo gupima byikora kugirango yizere gupakira umuyoboro wiburyo nta kosa.Sisitemu yo kuburira ibutsa yibutsa uyikoresha mugihe cyose cyakozwe, umugenzuzi wa PLC wa sisitemu yo gupakira byikora byoroshye guhinduka ukurikije ibisobanuro birambuye byo gutunganya,Autoloading, Guhitamo kwawe gukata mass tube laser gukata ...

    P2060A Laser Tube Gukata Imashini Gukora Video

  • Mbere:
  • Ibikurikira:

    • Ibikoresho & Inganda

    Imashini yo gutema Laser Imashini ikoreshwa



    Ibyuma bitagira umwanda, ibyuma bya karubone, aluminium, umuringa, umuringa, ibyuma bya galvanis, ibyuma bivanze nibindi.



    Imashini yo gutema Laser Imashini ikoreshwa muburyo bwigituba



    Umuyoboro uzunguruka, Umuyoboro wa Squre, Umuyoboro w'Urukiramende, Ndumurika, Umuyoboro wa umuyoboro, Icyuma cya Angle n'ibindi



    Imashini yo gukata imashini ikoreshwa



    Ahanini ikoreshwa mubikoresho byimyororokere, ibikoresho byo mu biro, amasahani, imiterere yicyuma, inganda zubuvuzi, gari ya moshi nizindi nganda zikoresha imiyoboro izenguruka, umuyoboro wa kare, urukiramende

    fibre-laser-cutter5 (1)



    Imashini Ibikoresho bya tekinike

    Imashini yo mu rwego rwo hejuru ifite ubwenge bwa CNC laser yo gukata imashini P Urutonde Tube Laser Cutter Tekinike ya tekinike

    Umubare w'icyitegererezo i25A (P2560A) / i35A
    Inkomoko IPG / nUmucyo / Max / Raycus fibre laser resonator
    Imbaraga 1000w, 1500w, 2000w, 3000w, 4000w
    Uburebure bwa Tube 6000mm
    Tube Diameter 20mm-250mm / 20mm-350mm
    Subiramo Umwanya Ukwiye ± 0.02mm
    Umwanya Ukwiye ± 0.02mm
    Umuvuduko Umwanya Max 120m / min
    Chuck Kuzenguruka Umuvuduko Max 160r / min
    Kwihuta 1.5g
    Igishushanyo Ibikorwa bikomeye, Pro / e, UG, IGS
    Sisitemu yo gukata PA BUS
    Porogaramu yo guturamo Lantek
    Uburemere bwa Tube imwe 225kg (Φ200mm * 8mm * 6000mm)
    Ingano 800mm * 800mm * 6000mm
    Uburemere Maks 2500kg
    Ubwoko bwa Tube Uruziga, kare, urukiramende, oval, OB-ubwoko, C-ubwoko, D-ubwoko, mpandeshatu, nibindi (bisanzwe);Inguni y'icyuma, umuyoboro w'icyuma, icyuma cya H, icyuma cya L, n'ibindi (amahitamo)
