1000w 1500w Semi Automatic Stainless Steel Tube Pipe Fiber Laser Cutting Machine

This semi automatic laser tube cutting machine is equipped with a manual loader and a full enclosure to produce high quality parts in a variety of shapes and sizes, tube processing length 6m, 8m, tube diameter 20mm-200mm (20mm-300mm optional)

  • Tube length : 6m / 8m
  • Tube diameter : 20mm~200mm / 20mm~300mm
  • Laser power : 1000w 1500w ( 2000w 2500w 3000w 4000w optional )
  • Laser source : IPG / nLight fiber laser generator
  • CNC controller : Cypcut / Germany PA HI8000
  • Nesting software: Spain Lantek
  • Applicable materials : Metal tube
  • Max cutting thicknees: 14mm carbon steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel etc.
  • Model number : P2060 / P3060 / P3080

Machine Details

Material & Industry Application

Machine Technical Parameters

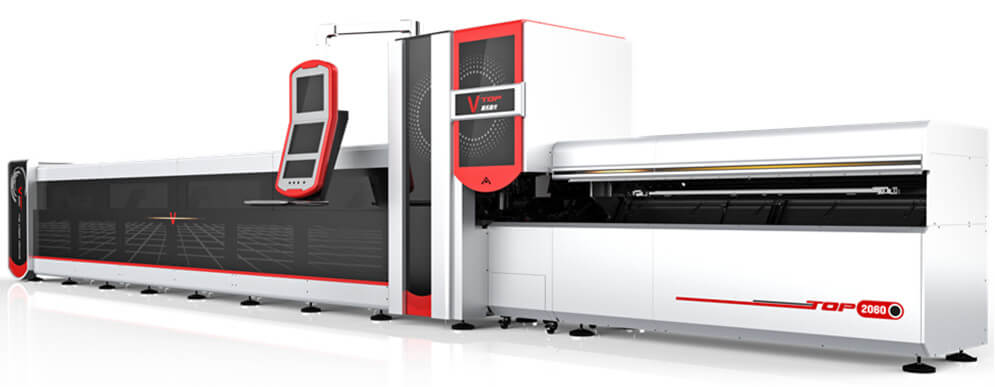

Semi Automatic Stainless Steel Tube Pipe Fiber Laser Cutting Machine P2060 / P3060 / P3080

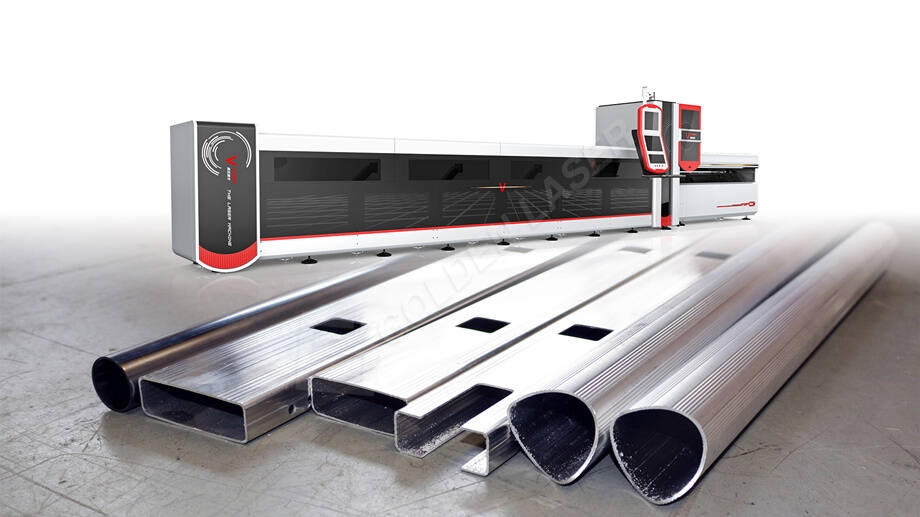

pipe laser cutter

1000w Fiber Laser Cutting Ability (metal cutting thickness )

Material

Cutting Limit

Clean Cut

Carbon steel

12mm

10mm

Stainless steel

5mm

4mm

Aluminum

4mm

3mm

Brass

4mm

3mm

Copper

3mm

2mm

Galvanized steel

3mm

2mm

1500w Fiber Laser Cutting Ability (metal cutting thickness )

Material

Cutting Limit

Clean Cut

Carbon steel

14mm

12mm

Stainless steel

6mm

5mm

Aluminum

5mm

4mm

Brass

5mm

4mm

Copper

4mm

3mm

Galvanized steel

5mm

4mm

Golden Laser tube cutting machine P2060 is equipped with a manual loader that presents the tube to the operator who must then place the tube into the machine and manually tighten the chuck.Combining all these processes into one machine saves time and cost when processing tubes in large batches yet the machines versatility allows the user to easily make prototypes or small batch production. This machine also utilizes high speed servos for quick and precise positioning which decreases the time for non value added movements. These High speed servos in conjunction with the powerful fiber laser can decrease part cutting times and increase production allowing for a higher return on investment for the end user. This machine is also equipped with a full enclosure and a safety interlock system to ensure the operator is safe while the machine is active. Golden Laser will provide full service and support for our laser machines, including a full stock of spare parts and components to ensure our customers receive replacement parts quickly and effectively.

Machine Features

IPG, nLIGHT fiber laser generator. (1KW, 1.5KW, 2KW, 2.5KW, 3KW, 4KW)

Raytools, Precitec ProCutter laser head.

Advanced chuck clamping system: Chuck center self-adjustment, automatically adjusts clamping force according to the profile specifications and ensures no damage to thin pipe.

Dual motive chucks are compatible with a variety of pipe without adjusting jaws.

Corner fast cutting system: corner fast response, improves cutting efficiency greatly.

Multi-axis linkage: Multi-axis (feeding axis, chuck rotation axis and the laser cutting head) linkage when the laser cutting head is moving.

laser cutting machine for tubes

Automatic collecting device: The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

Semi Automatic Tube Laser Cutting Machine Customer Site

Tube Laser Cutting Machine Demo Video


  • Previous:
  • Next:

  • Semi Automatic Stainless Steel Tube Pipe Fiber Laser Cutting Machine P2060 / P3060 / P3080

    pipe laser cutter

    1000w Fiber Laser Cutting Ability (metal cutting thickness )

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    12mm

    10mm

    Stainless steel

    5mm

    4mm

    Aluminum

    4mm

    3mm

    Brass

    4mm

    3mm

    Copper

    3mm

    2mm

    Galvanized steel

    3mm

    2mm

    1500w Fiber Laser Cutting Ability (metal cutting thickness )

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    14mm

    12mm

    Stainless steel

    6mm

    5mm

    Aluminum

    5mm

    4mm

    Brass

    5mm

    4mm

    Copper

    4mm

    3mm

    Galvanized steel

    5mm

    4mm

    Golden Laser tube cutting machine P2060 is equipped with a manual loader that presents the tube to the operator who must then place the tube into the machine and manually tighten the chuck.Combining all these processes into one machine saves time and cost when processing tubes in large batches yet the machines versatility allows the user to easily make prototypes or small batch production. This machine also utilizes high speed servos for quick and precise positioning which decreases the time for non value added movements. These High speed servos in conjunction with the powerful fiber laser can decrease part cutting times and increase production allowing for a higher return on investment for the end user. This machine is also equipped with a full enclosure and a safety interlock system to ensure the operator is safe while the machine is active. Golden Laser will provide full service and support for our laser machines, including a full stock of spare parts and components to ensure our customers receive replacement parts quickly and effectively.

    Machine Features

    IPG, nLIGHT fiber laser generator. (1KW, 1.5KW, 2KW, 2.5KW, 3KW, 4KW)

    Raytools, Precitec ProCutter laser head.

    Advanced chuck clamping system: Chuck center self-adjustment, automatically adjusts clamping force according to the profile specifications and ensures no damage to thin pipe.

    Dual motive chucks are compatible with a variety of pipe without adjusting jaws.

    Corner fast cutting system: corner fast response, improves cutting efficiency greatly.

    Multi-axis linkage: Multi-axis (feeding axis, chuck rotation axis and the laser cutting head) linkage when the laser cutting head is moving.

    laser cutting machine for tubes

    Automatic collecting device: The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

    Semi Automatic Tube Laser Cutting Machine Customer Site

    Tube Laser Cutting Machine Demo Video


  • Previous:
  • Next:

  • Material & Industry Application


    Applicable Materials

    Stainless steel,carbon steel,aluminum,brass,copper,galvanized steel and other metal pipes

    Applicable Industry

    Tube Laser Cutter is variantly applicable for wide market segment in automobiles,fan industry,furniture,heavy engineering industry etc

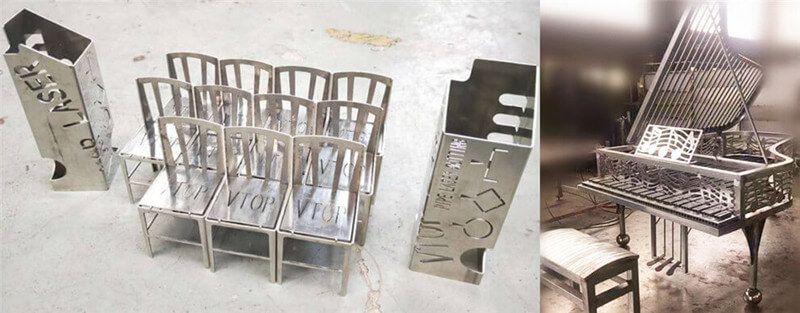

    ®Furniture

    Chairs, Tables, Cots, Cabinet, TV Stands, TV Antennas

    ®Automobile

    Handle Bar,Steering Column,Main Beam,Bottom Chassis

    ®Transformer

    Elliptical and Round Cooling Tubes

    ®Construction

    Scaffoldings & Supporting pipes

    ®Bicycle

    Handle Bar, Top Tube, Bottom Tube, Down Tube, Chain Stay, Back Stay, Stem Tube, Pedail Tube, Seat Pillar, Fork Blade.

    ®General Engineering

    Bus body structures, main beam for pedestal lfans,textile,Frames…

    laser tube cutting

    Applicable Types Of Tubes

    tube laser cutter

    Machine Technical Parameters


    Semi Automatic Stainless Steel Metal Tube Pipe CNC Fiber Laser Cutter P2060

    Model number P2060 / P3060 / P3080
    Laser power 1000w 1500w ( 2000w 2500w 3000w 4000w optional )
    Laser source IPG / nLight fiber laser resonator
    Tube length 6000mm / 8000mm
    Tube diameter 20mm-200mm / 20mm-300mm
    Applicable materials Stainless steel,carbon steel,mild steel,aluminum,brass,copper,galvanized steel
    Applicable types of tubes Round tube,square tube,triangle tube,rectangular tube,oval tube and other irregular-shaped tubes etc.
    Position accuracy ±0.03mm
    Repeat position accuracy ±0.01mm
    Maximum position speed 90m/min
    Acceleration 1.2g
    Cutting speed depend on material, laser source power
    Electric power supply AC380V 50/60Hz



    Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader
    Model number P2060A P3080A P30120A
    Pipe processing length 6m 8m 12m
    Pipe processing diameter Φ20mm-200mm Φ20mm-300mm Φ20mm-300mm
    Applicable types of pipes Round pipe,square pipe,triangle pipe,rectangular pipe,oval pipe and other irregular-shaped pipes etc.
    Laser source IPG/N-light fiber laser resonator
    Laser power 700W/1000W/2000W/3000W
