1000w Fiber Laser Cutting Machine For Metal GF-1510

Short Description:

The model GF-1510 machine with the cutting area 1500mm*1000mm ; equipped with 1000w fiber laser generator,which can cut  maximum metal sheet of 12mm carbon steel, 5mm stainless steel, 4mm aluminum, 4mm brass, 3mm copper,3mm galvanized steel,

………………………………………………………………………………………………………………………………………………………

Model number: GF-1510

Laser source: IPG / nLIGHT fiber laser generator

Laser power: 1000w (700w, 1200w, 1500w, 2500w, 3000w for option)

Cnc controller: Cypcut controller

Laser head: Raytools laser cutting head

Cutting area: 1500mm X 1000mm

Max cutting thickness: 12mm carbon steel, 5mm stainless steel, 4mm aluminum,4mm brass, 3mm copper,3mm galvanized steel,


Machine Details

Material & Industry Application

Machine Technical Parameters

Product Tag

GF-1510 1000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Material

Cutting Limit

Clean Cut

Carbon steel

12mm

10mm

Stainless steel

5mm

4mm

Aluminum

4mm

3mm

Brass

4mm

3mm

Copper

3mm

2mm

Galvanized steel

3mm

2mm



1000W Cutting Speed chart

Materials

Thickness

(mm)

The Maximum Cutting Speed

(mm/s)

Gas

Mild steel

1

210

O2

2

110

3

60

4

40

5

30

6

25

8

17

10

14

12

13

Stainless steel

1

300

AIR

2

95

3

36

4

18

5

10

AL

1

240

AIR

2

65

3

13

4

8

GF-1510 Cutting Metal Sheets Samples Demonstration

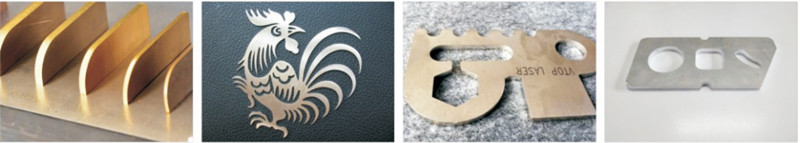

GF-1510 cutting samples

Machine Main Features

Full enclosed structure is safe and environmental protection.

Single working table saves floor space.

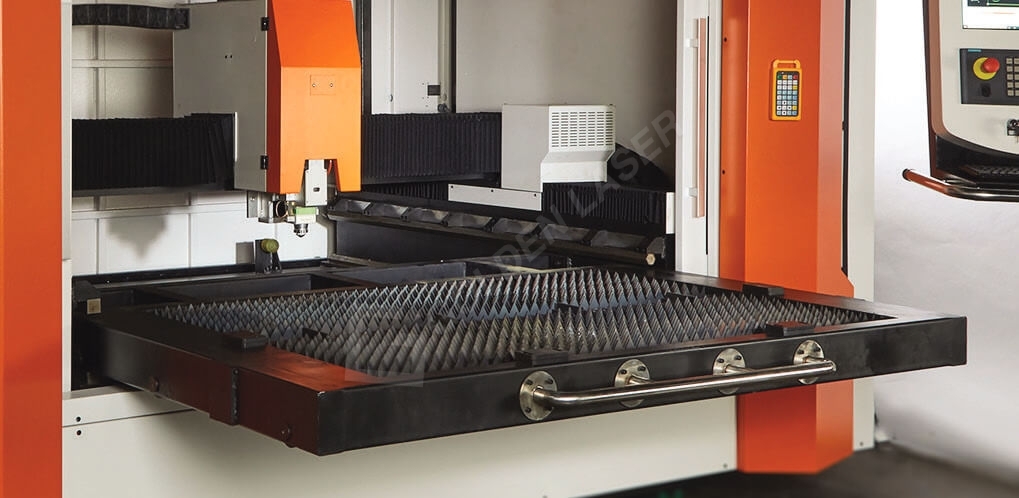

Drawer style tray makes scraps and small parts collecting and cleaning easily.

Gantry double driving structure with high damping bed is of good rigidity,high speed and high acceleration speed.

The imported fiber laser resonator and electronic components ensure the machine superior stability.

Customer Site - 800w GF-1510 Fiber Laser Sheet Cutting Machine In Belgium

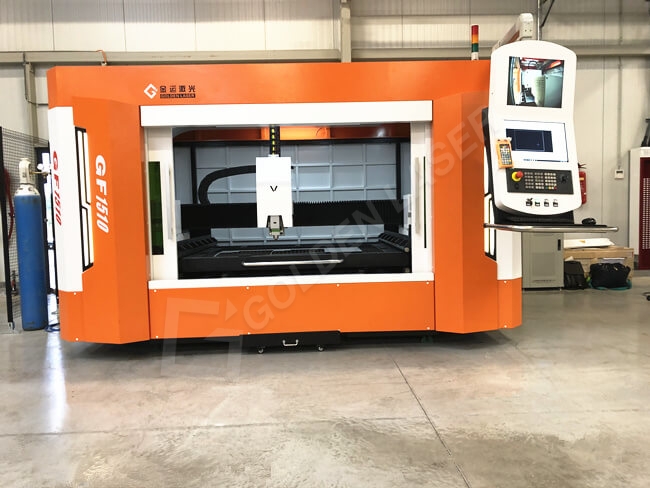

GF-1530JH 01

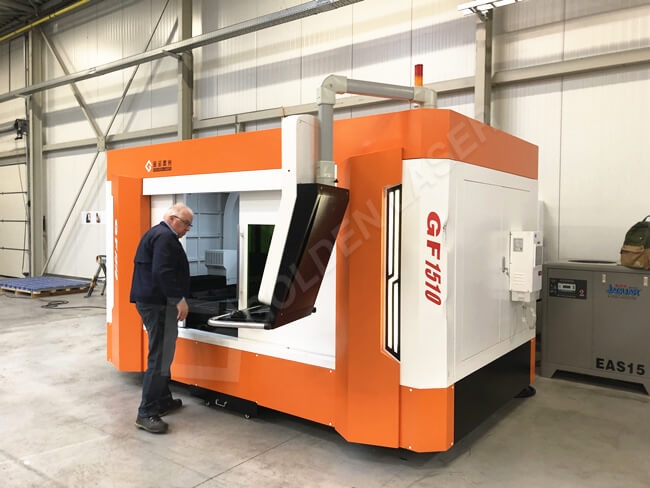

GF-1530JH 02

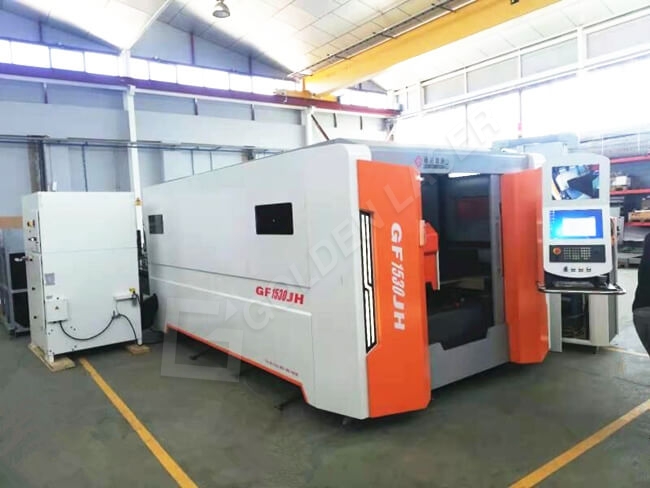

GF-1530JH 03

Watch The Video - 800w GF-1510 Fiber Laser Sheet Cutter In Belgium


  • Previous:
  • Next:

  • Applicable Materials

    The machine is used to cut various sheet metal, mainly for stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, all kinds of alloy plates, rare metals and other materials.

    Applicable Industry

    Sheet metal, jewelry, glasses, machinery and equipment, lighting, kitchen ware, mobile, digital products, electronic components, watches and clocks, computer components, instrumentation, precision instruments, metal molds, car parts, craft gifts and other industries.

    GF-1510 Cutting Samples Demonstration

    fiber laser cutter machine





    Machine Main Technical Parameters
    Model number GF-1510
    Laser resonator 1000w fiber laser generator (700w, 1500w, 2500w, 3000w for option)
    Cutting area 1500mm X 1000mm
    Cutting head Raytools auto-focus (Swiss)
    Servo motor Yaskawa (Japan)
    Position system Gear rack (Germany Atlanta )    linear(Roxroth)
    Moving system & Nesting software Cypcut control system
    Cooling system Water chiller
    Lubrication system Automatic lubrication system
    Electrical components SMC,Schenider
    Assist Gas Choosing Control 3 types of gases can be used
    Repeat position accuracy ±0.03mm
    Position accuracy ±0.05mm
    Max processing speed 110m/min
    Floor space 2.0m X 3.2m
    Max steel cutting thickness 12mm carbon steel and 5mm stainless steel
