3000W Stainless Carbon Steel Sheet Fiber Laser Cutting Machine

3000W Stainless Carbon Steel Sheet Fiber Laser Cutting Machine

Full enclosed exchange tabel fiber laser cutting machine suit for middle and high power, safty design give good protect to the operator, with CE, SGS certificate.



  • Model number : GF-1530JH/ GF-1540JH /GF-1560JH /GF-2040JH /GF-2060JH

Machine Details

Material & Industry Application

Machine Technical Parameters

Stainless Carbon Steel Sheet Fiber Laser Cutting Machine GF-1530JH 3000W

Golden Laser GF-1530JH fiber laser cutting machine is the new generation product with updated new appearance and different configuration based on original model. It’s mainly used in sheet metal cutting, hardware, electronics, advertising&sign, furniture, automotive and related industries cutting, hollowing and puching.

automatic fiber laser cutting machine

Machine Features

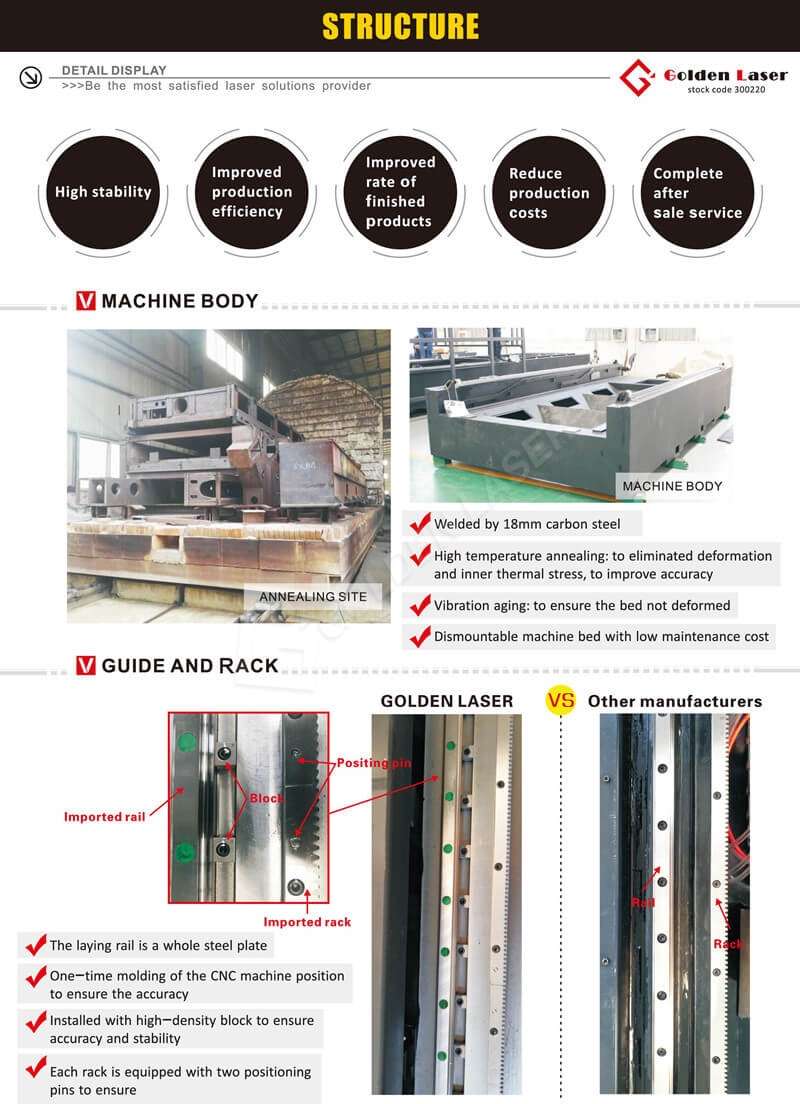

strong laser cutting machine body

Safety and No Pollution: Full protective enclosure provides safety protection from unseen laser radiation and mechanical movement.

Pallet working table saves feeding time: Drawer style tray makes easy collecting and cleaning for the scraps and small parts after fiber laser cutting.

Gantry double driving structure, high damping bed, good rigidity, ensure fiber laser cutting machine in high speed and high acceleration cutting result.

Reduce smoking ensure good workshop situation: smoking produced during laser cutting can be filtrated inside, it’s non-polluting and environmentally friendly.

Automatic shuttle table: Integarted shutttle tables maximize the productivity and minimize the material handing times.The shuttle table changing system allows covenient loading of new sheets after unloading; The shuttle tables is fully electric and maintenance free , The table changes take place fast, smooth and energy-efficient.

3000W Fiber Laser Cutting Sheets Samples

3000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Material

Cutting Limit

Clean Cut

Carbon steel

22mm

20mm

Stainless steel

12mm

10mm

Aluminum

10mm

8mm

Brass

8mm

8mm

Copper

6mm

5mm

Galvanized steel

8mm

6mm



GF-1530JH Fiber Laser Sheet Cutting Machine Customer Site

2500w Fiber Laser Cutting machine GF-1530JH cut 12mm Carbon Steel Sheet


  • Previous:
  • Next:

  • Stainless Carbon Steel Sheet Fiber Laser Cutting Machine GF-1530JH 3000W

    Golden Laser GF-1530JH fiber laser cutting machine is the new generation product with updated new appearance and different configuration based on original model. It’s mainly used in sheet metal cutting, hardware, electronics, advertising&sign, furniture, automotive and related industries cutting, hollowing and puching.

    automatic fiber laser cutting machine

    Machine Features

    strong laser cutting machine body

    Safety and No Pollution: Full protective enclosure provides safety protection from unseen laser radiation and mechanical movement.

    Pallet working table saves feeding time: Drawer style tray makes easy collecting and cleaning for the scraps and small parts after fiber laser cutting.

    Gantry double driving structure, high damping bed, good rigidity, ensure fiber laser cutting machine in high speed and high acceleration cutting result.

    Reduce smoking ensure good workshop situation: smoking produced during laser cutting can be filtrated inside, it’s non-polluting and environmentally friendly.

    Automatic shuttle table: Integarted shutttle tables maximize the productivity and minimize the material handing times.The shuttle table changing system allows covenient loading of new sheets after unloading; The shuttle tables is fully electric and maintenance free , The table changes take place fast, smooth and energy-efficient.

    3000W Fiber Laser Cutting Sheets Samples

    3000W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    22mm

    20mm

    Stainless steel

    12mm

    10mm

    Aluminum

    10mm

    8mm

    Brass

    8mm

    8mm

    Copper

    6mm

    5mm

    Galvanized steel

    8mm

    6mm



    GF-1530JH Fiber Laser Sheet Cutting Machine Customer Site

    2500w Fiber Laser Cutting machine GF-1530JH cut 12mm Carbon Steel Sheet


  • Previous:
  • Next:

  • Material & Industry Application


    Applicable material

    Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium plates, aluminum, brass, copper and other metal sheets etc.

    Applicable Industry

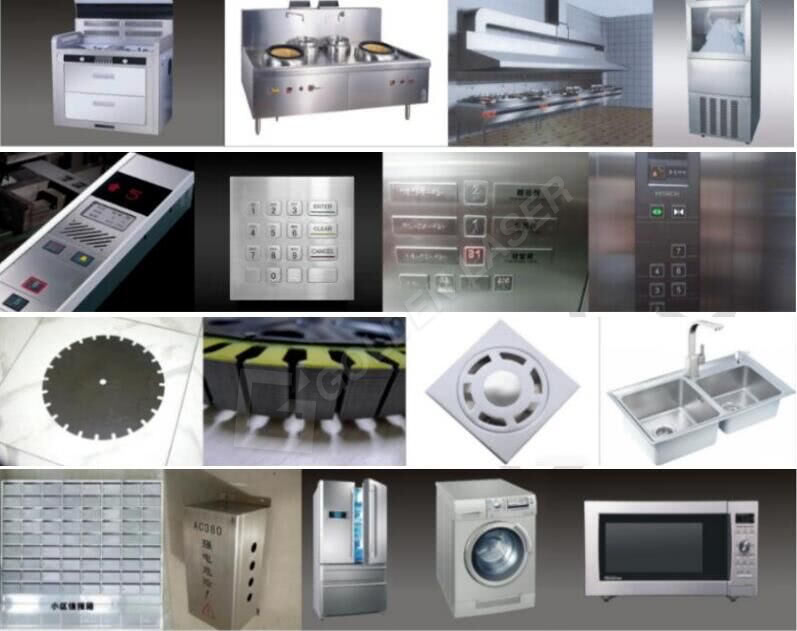

    Sheet metal, hardware, kitchenware, electronic, automotive parts, glasses, advertising, craft, lighting, decoration, jewelry, etc.

    fiber laser sheet cutting machine

    Machine Technical Parameters


    3000w Fiber Laser Sheet Cutting Machine GF-1530JH

    Laser power 3000w (1000w-15000w optional)
    Laser source IPG / nLIGHT fiber laser generator
    Laser generator working mode Continuous/Modulation
    Beam mode Multimode
    Processing surface (L × W)  1.5m X 3m,(1.5m X 4m, 1.5m X 6m, 2.0m X 4.0m, 2.0m X 6m optional)
    X axle stroke 3050mm
    Y axle stroke 1550mm
    Z axle stroke 100mm/120mm
    CNC system Beckhoff controller (FSCUT option)
    Power supply AC380V±5% 50/60Hz (3 phase)
    Total Power consumption 16KW
    Position accuracy (X, Y and Z axle) ±0.03mm
    Repeat position accuracy (X, Y and Z axle) ±0.02mm
    Maximum position speed of X and Y axle 120m/min
    Max load of working table 900kg
    Auxiliary gas system Dual-pressure gas route of 3 kinds of gas sources
    Format supported AI, BMP, PLT, DXF, DST, etc.
    Floor space 9m x 4m
    Weight 14T
