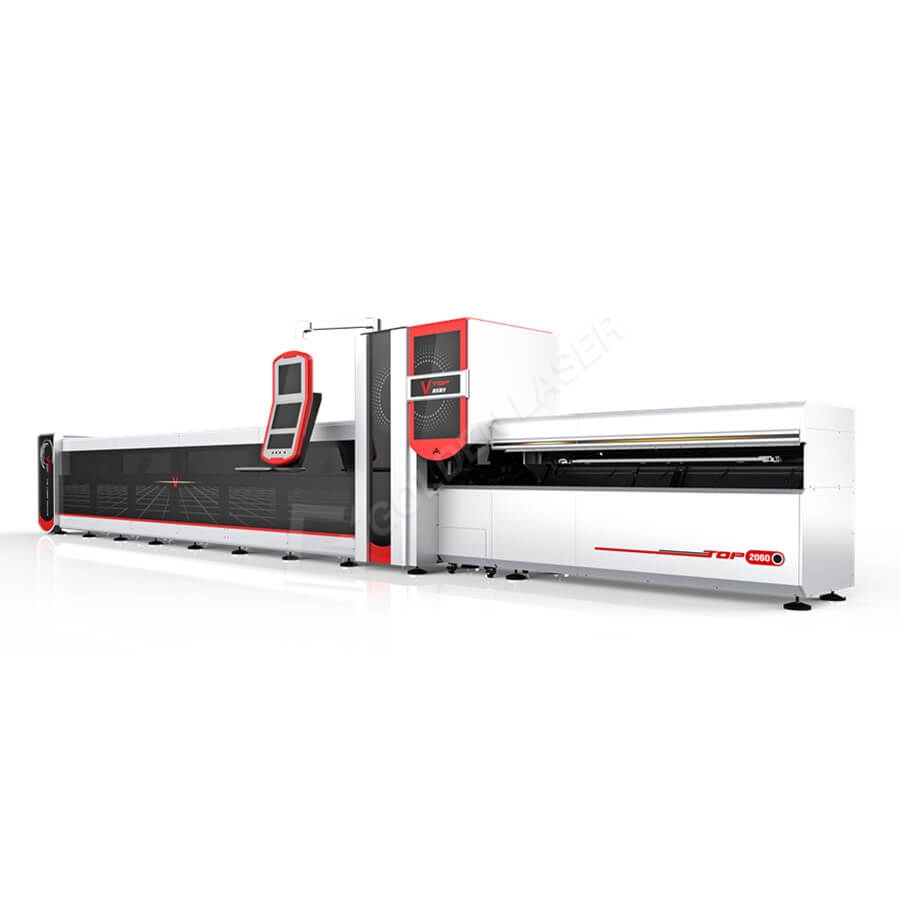

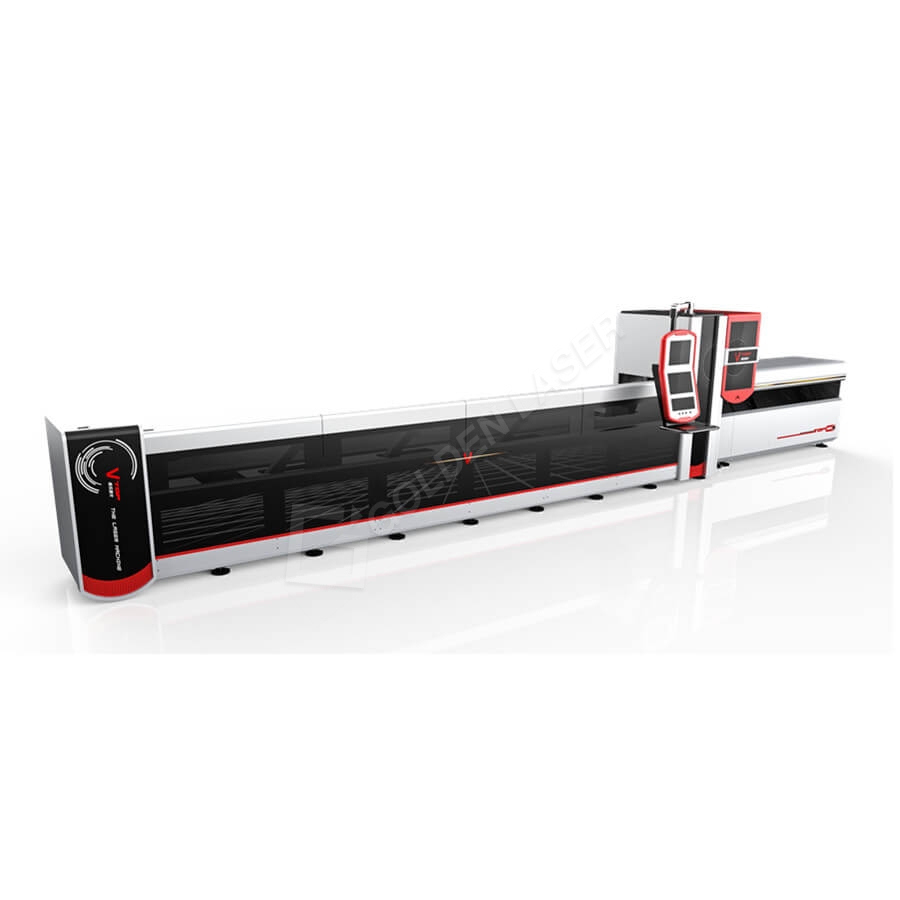

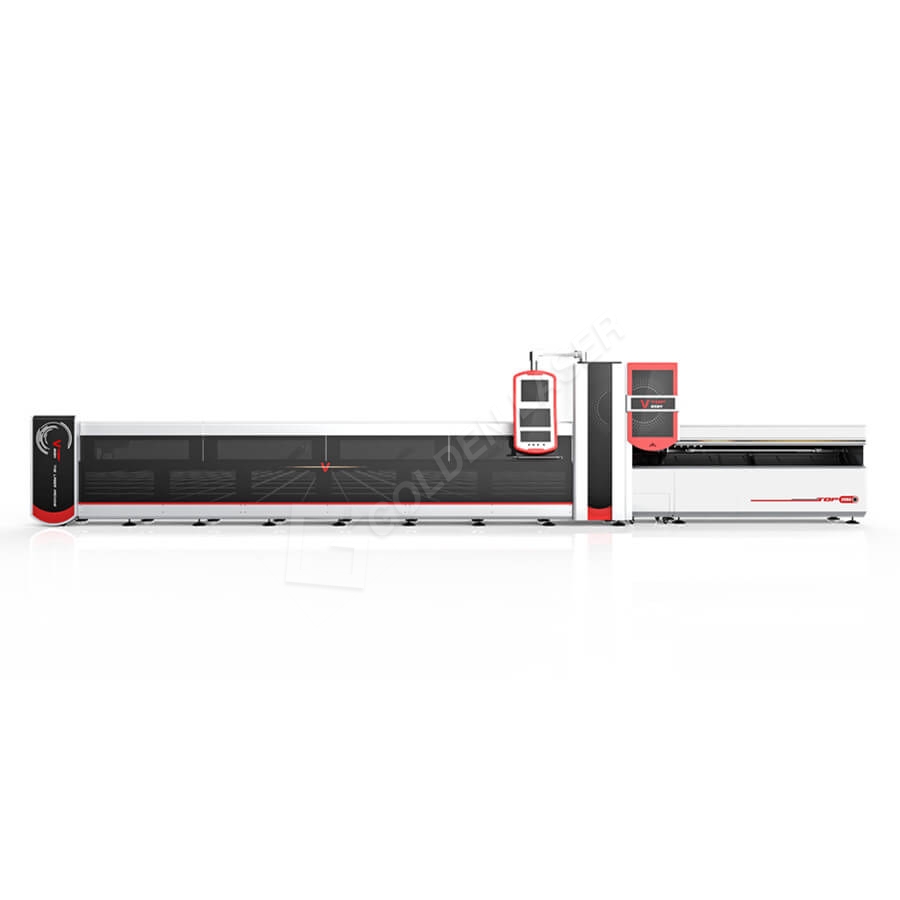

1500w Fully Automatic Fiber Laser Pipe Cutting Machine P2060A

This semi automatic laser tube cutting machine is equipped with a manual loader and a full enclosure to produce high quality parts in a variety of shapes and sizes, tube processing length 6m, 8m, tube diameter 20mm-200mm (20mm-300mm optional)

…………………………………………………………………………………………………………………………………………

Model number : P2060 / P3080
Tube length : 6m / 8m
Tube diameter : 20mm~200mm / 20mm~300mm
Laser power : 1000w 1500w ( 2000w 2500w 3000w 4000w optional )
Laser source : IPG / nLight fiber laser generator
CNC controller : Cypcut / Germany PA HI8000
Nesting software: Spain Lantek
Applicable materials : Metal tube
Max cutting thicknees: 14mm carbon steel, 6mm stainless steel, 5mm aluminum, 5mm brass, 4mm copper, 5mm galvanized steel etc.
Applicable tube types : Round tube, square tube, rectangular tube, oval tube, D-shaped steel etc.
Applicable Industry: Steel furniture, display shelf, medical device,fitness equipment, tubes processing industry etc.

Model number : P2060 / P3060 / P3080

Send Inqury

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

1500w Fully Automatic Fiber Laser Pipe Cutting Machine P2060A,
stainless steel round tube fiber laser cutting machine,

Previous: Cnc Fiber Laser Cutting Machine For Metal Tube Pipe P2060 / P3080

Next: Mini pipe fiber laser cutting machine

stainless steel round tube fiber laser cutting machine

1500w Fully Automatic Fiber Laser Pipe Cutting Machine P2060A,
stainless steel round tube fiber laser cutting machine,

Previous: Cnc Fiber Laser Cutting Machine For Metal Tube Pipe P2060 / P3080

Next: Mini pipe fiber laser cutting machine

Material & Industry Application

Applicable Materials

Stainless steel,carbon steel,aluminum,brass,copper,galvanized steel and other metal pipes.

Applicable Industry

Tube Laser Cutter is variantly applicable for wide market segment in automobiles,fan industry,furniture,heavy engineering industry etc.

®Furniture

Chairs, Tables, Cots, Cabinet, TV Stands, TV Antennas.

®Automobile

Handle Bar,Steering Column,Main Beam,Bottom Chassis…

®Transformer

Elliptical and Round Cooling Tubes

®Construction

Scaffoldings & Supporting pipes

®Bicycle

Handle Bar, Top Tube, Bottom Tube, Down Tube, Chain Stay, Back Stay, Stem Tube, Pedail Tube, Seat Pillar, Fork Blade.

®General Engineering

Bus body structures, main beam for pedestal lfans,textile,Frames…

Applicable Types Of Tubes

Fiber Laser Cutting Machine For Metal Tubes

Machine Technical Parameters

Semi Automatic Stainless Steel Metal Tube Pipe CNC Fiber Laser Cutter P2060

Model number	P2060 / P3060 / P3080
Laser power	1000w 1500w ( 2000w 2500w 3000w 4000w optional )
Laser source	IPG / nLight fiber laser resonator
Tube length	6000mm / 8000mm
Tube diameter	20mm-200mm / 20mm-300mm
Applicable materials	Stainless steel,carbon steel,mild steel,aluminum,brass,copper,galvanized steel
Applicable types of tubes	Round tube,square tube,triangle tube,rectangular tube,oval tube and other irregular-shaped tubes etc.
Position accuracy	±0.03mm
Repeat position accuracy	±0.01mm
Maximum position speed	70m/min
Acceleration	1g
Cutting speed	depend on material, laser source power
Electric power supply	AC380V 50/60Hz

Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader
Model number	P2060A	P3080A	P30120A
Pipe processing length	6m	8m	12m
Pipe processing diameter	Φ20mm-200mm	Φ20mm-300mm	Φ20mm-300mm
Applicable types of pipes	Round pipe,square pipe,triangle pipe,rectangular pipe,oval pipe and other irregular-shaped pipes etc.
Laser source	IPG/N-light fiber laser resonator
Laser power	700W/1000W/2000W/3000W
