Tube and Sheet Metal Laser Cutting Machine

  • Tube and Sheet Metal Laser Cutting Machine
  • Model number : GF-1530T / GF-2040T / GF-2060T
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

Tube and Sheet Metal Laser Cutter

One Machine with two functions for both metal sheet and tube cutting.

%

Tube laser cutting is a part of metalworking, Mainly for metal sheet cutting.

%

Pneumatic Chuck save 60% time to load and change the different tube before cutting.

%

Metal sheet and tube cutting by one machine save your cost.

Self-control Pneumatic Chuck

Save 60% tube loading time... Compare with old chuck, self-control pneumatic chuck will easy to load the different diameter tube and different shape of the tube.

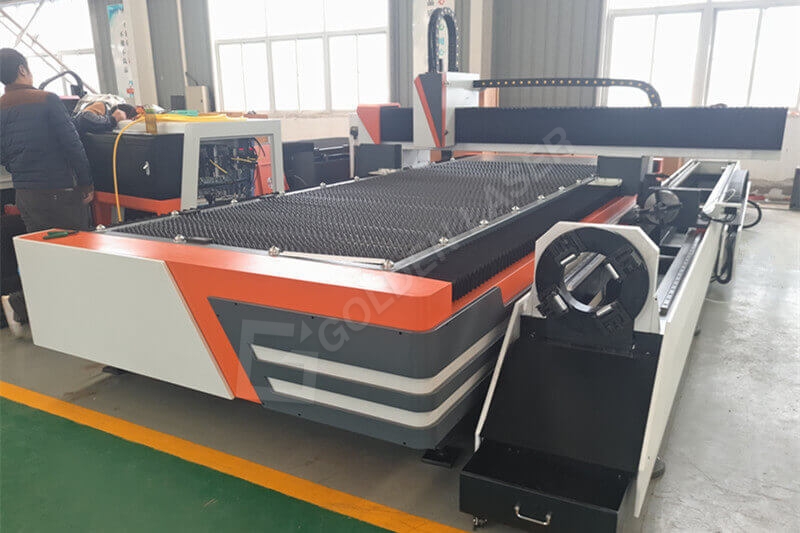

sheet and tube laser cutter price

Durable Metal Sheet Cutting Table...

We have as promised, collected a strong machine body to ensure the steady cutting of metal sheet.

Working area 1500*3000mm,

Pipe Diameter:20-160mm, 3 meters long, 6 meters long.

  • Previous:
  • Next:

    • Tube and Sheet Metal Laser Cutter

    One Machine with two functions for both metal sheet and tube cutting.

    %

    Tube laser cutting is a part of metalworking, Mainly for metal sheet cutting.

    %

    Pneumatic Chuck save 60% time to load and change the different tube before cutting.

    %

    Metal sheet and tube cutting by one machine save your cost.

    Self-control Pneumatic Chuck

    Save 60% tube loading time... Compare with old chuck, self-control pneumatic chuck will easy to load the different diameter tube and different shape of the tube.

    sheet and tube laser cutter price

    Durable Metal Sheet Cutting Table...

    We have as promised, collected a strong machine body to ensure the steady cutting of metal sheet.

    Working area 1500*3000mm,

    Pipe Diameter:20-160mm, 3 meters long, 6 meters long.

  • Previous:
  • Next:

    • Material & Industry Application

    Machine Technical Parameters

    Technical Parameters

    Model No. GF-1530T / GF-1540T / GF-1560T
    Cutting area 1500mm×3000mm / 1500mm×4000mm / 1500mm×6000mm
    Tube length 3m / 6m
    Tube diameter Φ20~160mm (Φ20~300mm for option)
    Laser source nLIGHT / IPG / Raycus fiber laser resonator
    Laser power 1500w, (2000w, 2500w, 3000w, 4000w optional)
    Laser head Raytools laser cutting head
    Positioning accuracy ±0.03mm/m
    Repeat positioning accuracy ±0.02mm
    Maximum positioning speed 72m/min
    Acceleration 1g
    Control system CYPCUT
    Power supply AC380V 50/60Hz
