1500w 2500w Fully Automatic Bundle Loader Fiber Laser Tube Cutting Machine

1500w 2500w Fully Automatic Bundle Loader Fiber Laser Tube Cutting Machine

High performance tube laser cutting machine P-A Series with tubes automatic loading and unloading. Cutting round, rectangular, square and other tube profiles to satisfy a range of tube cutting needs; Processing tubes length 6m, 8m, tube diameter 20mm-300mm

………………………………………………………………………………………………………………………………………………………………………………………………………………..

  • Model number : P2060A / P2080A / P3080A
  • Pipe length: 6000mm / 8000mm
  • Pipe diameter : 20mm-200mm / 30mm-300mm
  • Loading size : 800mm*800mm*6000mm / 800mm*800mm*8000mm
  • Laser power : 1500w 2500w
  • Laser source: IPG / nLIGHT fiber laser generator
  • CNC controller : Germany PA HI8000
  • Nesting software: Spain Lantek
  • Max cutting wall thickness: 20mm CS, 10mm SS, 8mm aluminum, 8mm brass, 6mm copper and 6mm galvanized steel
  • Applicable tube type : Round tube, square tube, rectangular tube, oval tube, D-type T-shaped H-shaped steel, channel steel, angle steel, etc.
  • Applicable Industry: Auto parts, motor parts, fitness equipment, medical equipment, furniture, pipes processing industry etc.
  • Model number : P2060A / P2080A / P3080A

Machine Details

Material & Industry Application

Machine Technical Parameters

Fully Automatic Laser Tube Cutting Machine P2060A / P2080A / P3080A

Golden Laser P-A series automatic pipe laser cutting machine can cut round, square, rectangle and other shaped pipes with high cutting speed and efficiency. Compared with the traditional cnc cutter, laser cutter is more flexible, no need to build mold, so it saves the new products developing time greatly. Since laser cutting speed and precision are very high, so it can save costs and improves efficiency.

1000W Fiber Laser Cutting Machine (Metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

12mm

10mm

Stainless steel

5mm

4mm

Aluminum

4mm

3mm

Brass

4mm

3mm

Copper

3mm

2mm

Galvanized steel

3mm

2mm

1500W Fiber Laser Cutting Machine (Metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

14mm

12mm

Stainless steel

6mm

5mm

Aluminum

5mm

4mm

Brass

5mm

4mm

Copper

4mm

3mm

Galvanized steel

5mm

4mm

Laser Pipe Cutting Samples

laser pipe cutter
metal pipe laser cutting
tube laser cutting
laser tube cutter price

Laser Machine Features

laser tube cutter price

Automatic Bundle Loader

Round pipe, square pipe, rectangular pipe, etc. can be fully loaded without manual intervention. Special shape tubes can be manually assisted with semi-automatic feeding.

The bundle max. loading weight is 2500kgs. The loading belt and the supporter are easy for dismantle.

Integrated design of the feeding system, main body and the chain transport link is easy for debugging and transporting.

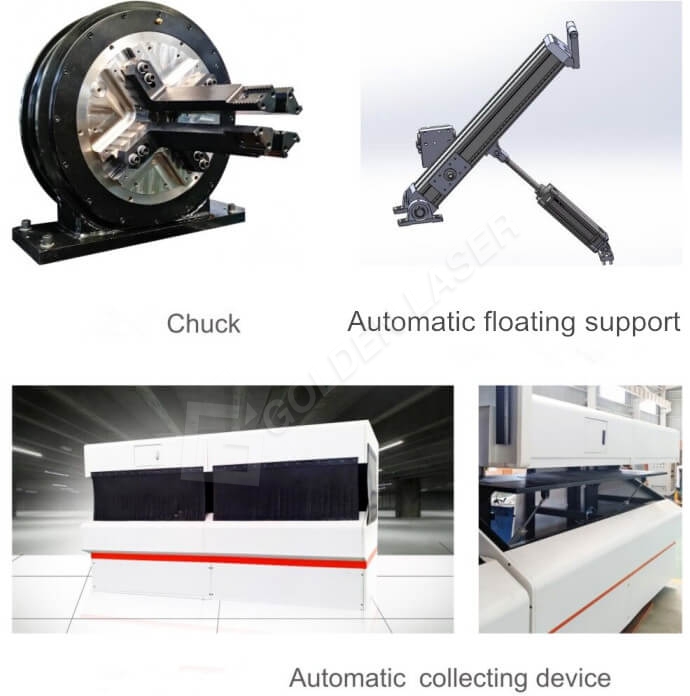

laser cutting machine for metal tubes

● Advanced chuck system: the chuck self-adjusting center automatically adjusts the clamping force according to the profile specifications, thus it can ensure the thin tube clamps without damaged.

● Corner rapid cutting system: the corners cutting respond speed is very quick and greatly improve cutting efficiency.

● Efficient cutting system: After laser cutting, the workpiece can be automatically feed to the feeding area.

● Professional pipe laser cutting CNC control system Germany PA and CAM nesting software Spain Lantek.

● Automatic collecting device: The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

Fully Automatic Laser Pipe Cutting Machine in Customer Site

Automatic Cnc Laser Tube Cutting Machine Video


  • Previous:
  • Next:

  • Fully Automatic Laser Tube Cutting Machine P2060A / P2080A / P3080A

    Golden Laser P-A series automatic pipe laser cutting machine can cut round, square, rectangle and other shaped pipes with high cutting speed and efficiency. Compared with the traditional cnc cutter, laser cutter is more flexible, no need to build mold, so it saves the new products developing time greatly. Since laser cutting speed and precision are very high, so it can save costs and improves efficiency.

    1000W Fiber Laser Cutting Machine (Metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    12mm

    10mm

    Stainless steel

    5mm

    4mm

    Aluminum

    4mm

    3mm

    Brass

    4mm

    3mm

    Copper

    3mm

    2mm

    Galvanized steel

    3mm

    2mm

    1500W Fiber Laser Cutting Machine (Metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    14mm

    12mm

    Stainless steel

    6mm

    5mm

    Aluminum

    5mm

    4mm

    Brass

    5mm

    4mm

    Copper

    4mm

    3mm

    Galvanized steel

    5mm

    4mm

    Laser Pipe Cutting Samples

    laser pipe cutter
    metal pipe laser cutting
    tube laser cutting
    laser tube cutter price

    Laser Machine Features

    laser tube cutter price

    Automatic Bundle Loader

    Round pipe, square pipe, rectangular pipe, etc. can be fully loaded without manual intervention. Special shape tubes can be manually assisted with semi-automatic feeding.

    The bundle max. loading weight is 2500kgs. The loading belt and the supporter are easy for dismantle.

    Integrated design of the feeding system, main body and the chain transport link is easy for debugging and transporting.

    laser cutting machine for metal tubes

    ● Advanced chuck system: the chuck self-adjusting center automatically adjusts the clamping force according to the profile specifications, thus it can ensure the thin tube clamps without damaged.

    ● Corner rapid cutting system: the corners cutting respond speed is very quick and greatly improve cutting efficiency.

    ● Efficient cutting system: After laser cutting, the workpiece can be automatically feed to the feeding area.

    ● Professional pipe laser cutting CNC control system Germany PA and CAM nesting software Spain Lantek.

    ● Automatic collecting device: The floating support device collects the finished pipes automatically; The floating support is controlled by the servo motor and it can adjust the support point according to the pipe diameter quickly; The floating panel support will hold the large diameter pipe tightly.

    Fully Automatic Laser Pipe Cutting Machine in Customer Site

    Automatic Cnc Laser Tube Cutting Machine Video


  • Previous:
  • Next:

  • Material & Industry Application


    Application industry

    Mainly used in fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack and other industries for round pipe, square tube, rectangular tube and shaped pipe and other profile processing.

    laser cutting machine for metal furniture

    Applicable Types of Tubes

    metal tube laser cutting machine

    Fiber Laser Cutting Tube Samples

    1200w tube laser cutting machine

    Machine Technical Parameters


    Machine Technical Parameters
    Model number
    P2060A / P3080A
    Laser power
    1500w / 2500w (1000w 2000w 3000w 4000w optional)
    Laser source
    IPG / nLight fiber laser resonator
    Tube processing area
    tube length 6m ,8m; tube diameter 20mm-300mm
    Tube type
    Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Repeat position accuracy
    ±0.03mm
    Position accuracy
    ±0.05mm
    Position speed
    Max 90m/min
    Chuck rotate speed
    Max 105r/min
    Acceleration
    1.2g
    Graphic format
    Solidworks, Pro/e, UG, IGS
    Bundle size
    800mm*800mm*6000mm
    Bundle weight
    Max 2500kg

     High-end configuration

    Article Name

    Brand

    Fiber optic laser source

    IPG (America)

    CNC controller

    Higerman Power Automation (China + Germany)

    Software

    Lantek Flex3D (Spain)

    Servo motor and driver

    Yaskawa (Japan)

    Gear rack

    Atlanta (Germany)

    Liner guide

    Rexroth (Germany)

    Laser head

    Raytools (Switzerland)

    Gas proportional valve

    SMC (Japan)

    Main electric components

    Schneider (France)

    Reduction gear box

    Apex (Taiwan)

    Chiller

    Tong Fei

    Rotate chuck system

    Golden Laser

    Automatic unloading system

    Golden Laser

    Transformer & Stabilizer AIO

    Jun Wen
