                            Stainless Steel Round Pipe Fiber Laser Tube cutting Machine P30120

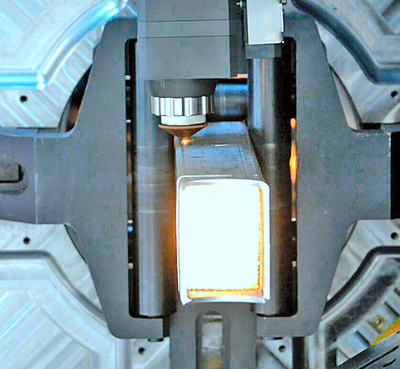

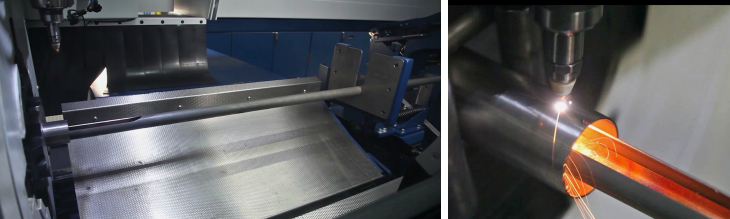

Golden Laser tube/pipe laser cutting machine P30120 adopts most sophisticated fiber laser resonator N-light / IPG from USA, and imported fiber laser cutting head Raytools, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision spare parts, like linear guide drive, high-speed servo motor. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.

Machine Features

Integrated main body makes the whole machine with good concentricity, verticality and precision

Dual motive chucks are compatible with a variety of pipe without adjusting jaws

Optimized claw holding pressure makes tube wall thickness within 1mm without deformation

Innovative one-way air control claw tightness helps extend cylinder life

Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging

Integrated circuits, streamline laying provides easy maintenance and low failure rate

Automatic boundary, automatically find center, automatic compensation

Adjustable frequency perforation

High damping bed, good rigidity, high speed and acceleration

Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose

The world’s leading fiber laser resonator and electronic components to ensure machine superior stability

Professional pipe laser cutting control system Germany PA and nesting software Spain Lantek

Machine Core Parts

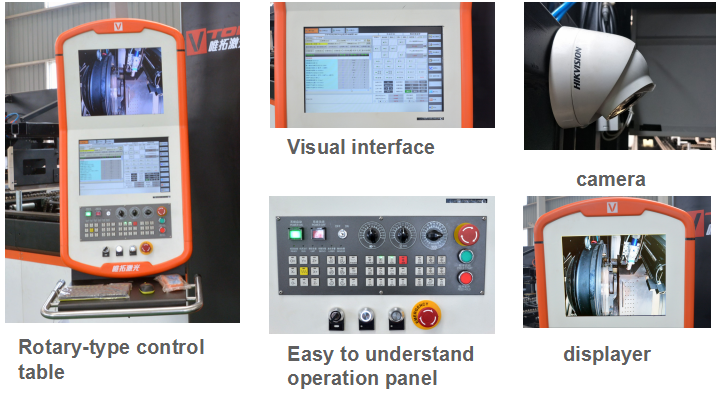

                                                                                                 Convenient operation



Advanced chuck mounting system

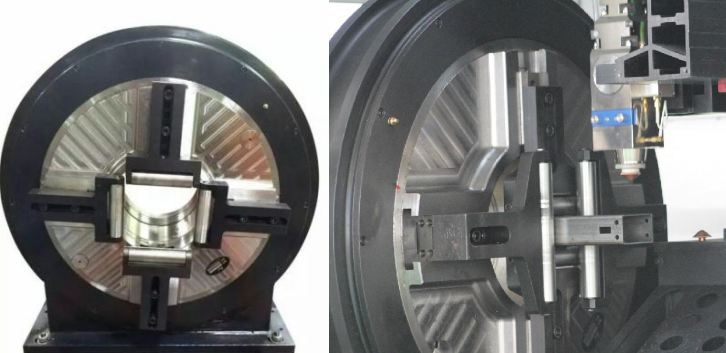

* Double Synchronous Rotation Powerful Chucks: Through the change of gas path, in the place of common-used four-jaws linkage chuck, we optimize into dual claw  coordination chuck. Within the scope of the stroke, when cutting tubes in different diameters or shapes,  It can be fixed and  centered successfully at once, no need to adjust the jaws, easy to switch for different diameters of tube  materials , and greatly save installation time.* Large stroke: Increase the retracting stroke of pneumatic chucks and optimize it to be double-sides moving range of 100mm (50mm on each side); saving loading and fixting time greatly.



Lifting type diameter adjustable support system

*  Diameter Adjustable support: to support pipe material, to prevent the pipe from sagging and shaking, which can be used for feeding and collecting;It is easy to change the shape of tubes.* Automatic Penumatic lifting: During the cutting process, the supports raise to support the pipe or grade down automatically;Easy to feed with out interruption during the running of the equipment.

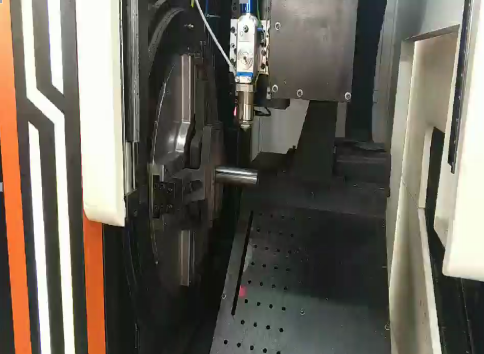

Three-axis linkage	Welding seam recognition	Automatic correction
During the cutting head movement.，feeding axis（X axis）、chuck rotation axis（Y axis）、cutting head（Z axis ）three-axis linkage	Identify welding Seam,to aviod welding seam during cutting process automatically, and prevent holes from popping	For the bent and deformed pipe,the automatic correction function can realize the segmented edge search,automatic correction find the center point of the curved tube to cut, and ensure the cutting precision.



Hardware——Floating support

*Automatic collecting device*Real-time support* Prevent pipe whipping* Guaranteed accuracy and cutting effect



Hardware——wastage

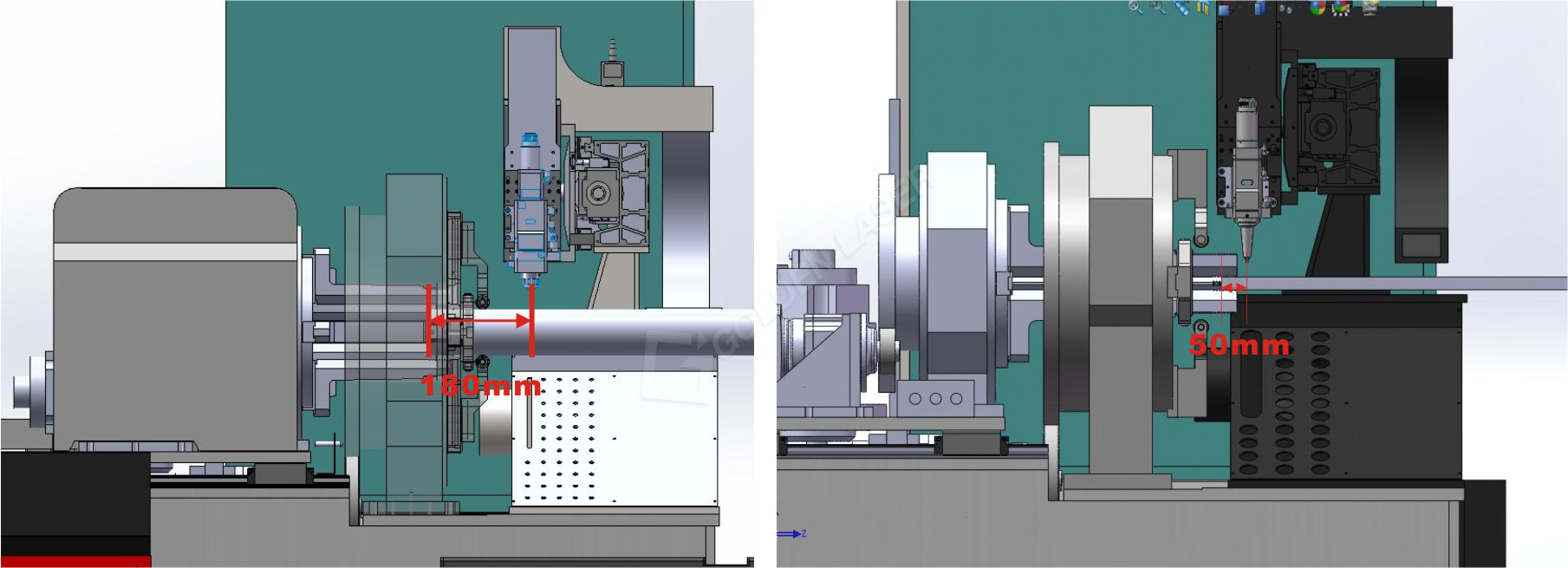

When cutting to the last part of the material, the front chuck is automatically open, and the back chuck jaw passes through the front chuck to reduce the cutting blind area.Tubes with diameters less than 100 mm and wastage materials at 50-80 mm;Tubes with diameters more than 100 mm and wastage  materials at 180-200 mm



Optional – the third axis cleaning inner wall device

Due to the laser cutting process, the slag will inevitably adhere to the inner wall of the opposite pipe. In particular, some pipes with smaller diameters will have more slag. For some of high applications demands, the third shaft pick-up device can be added to prevent slag from adhering to the inner wall.

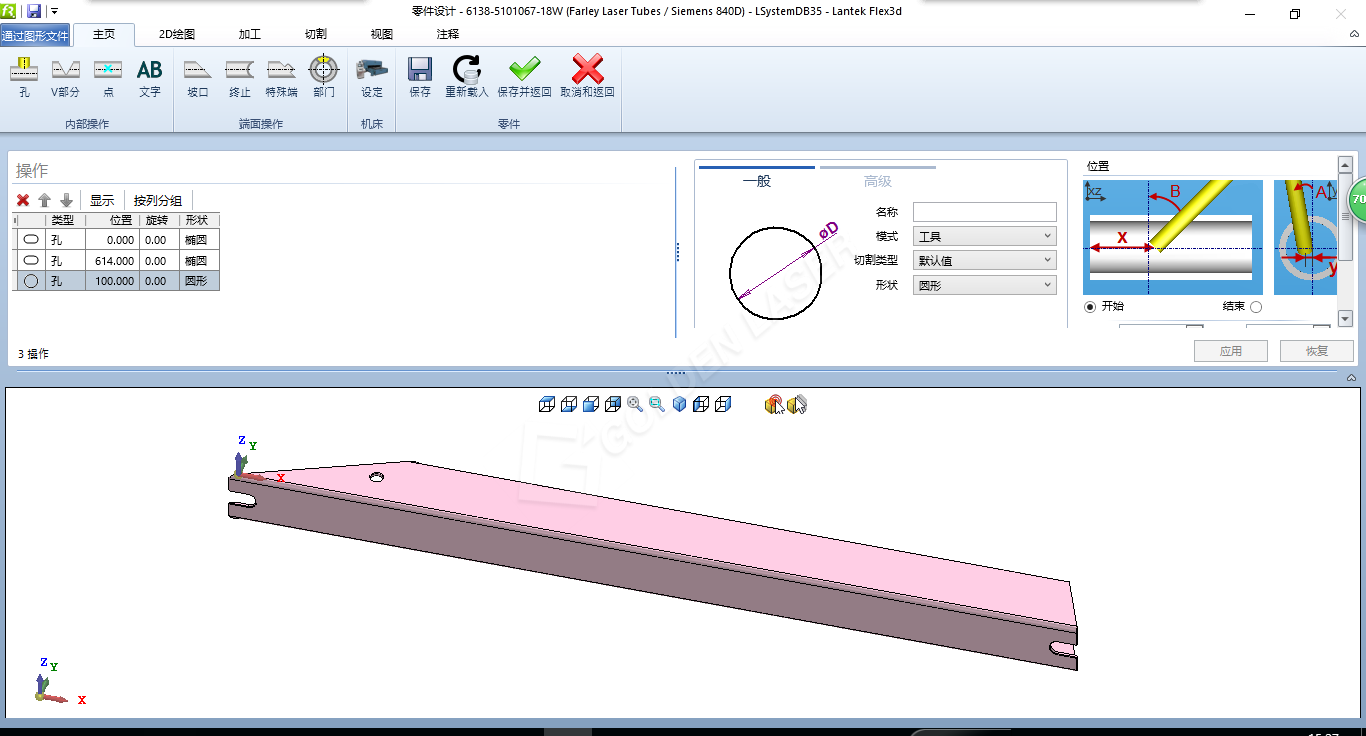

                                            Spanish Lantek software - Focus on tube parts design module

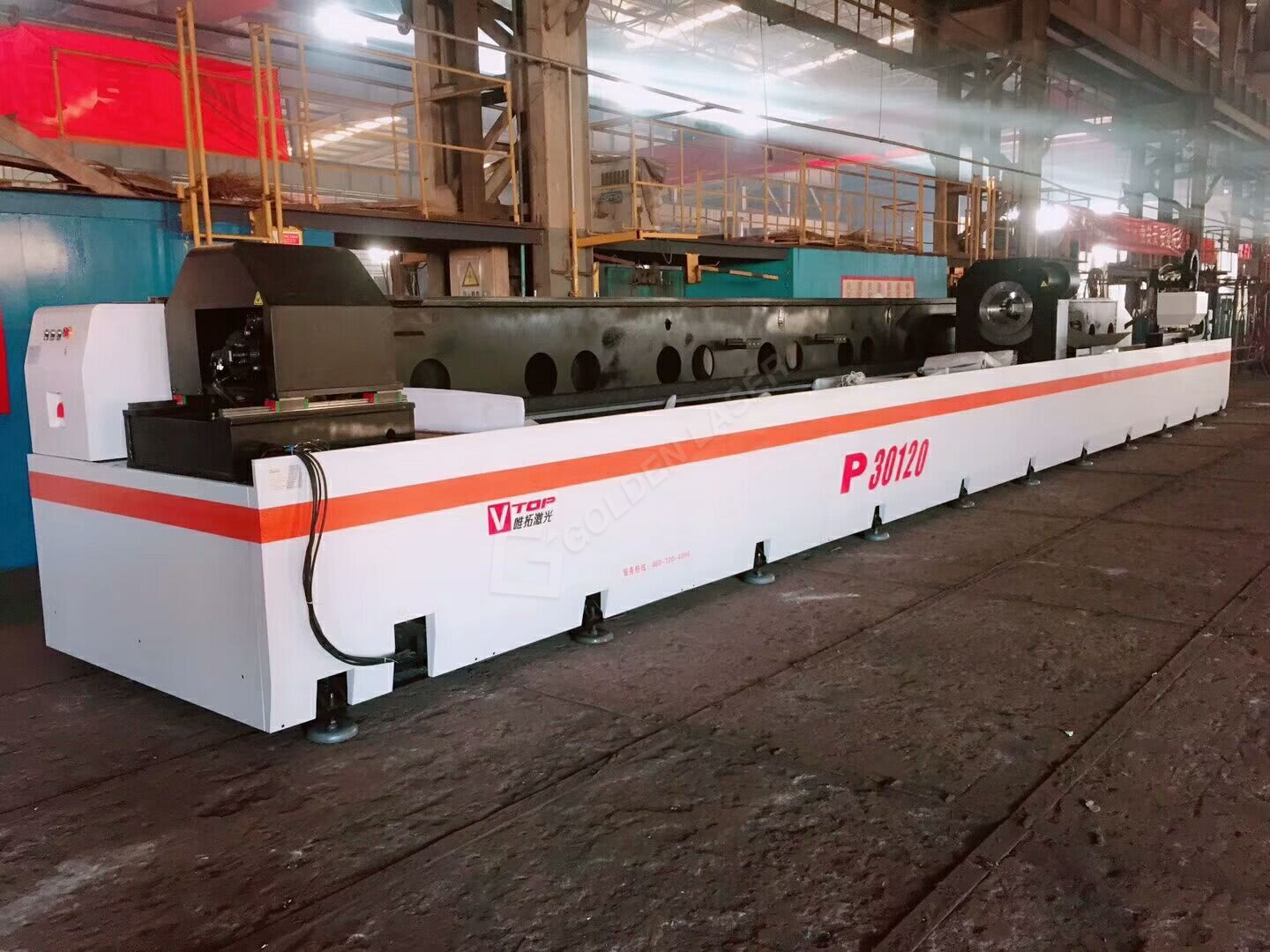

P30120 Machine In Our Customer Site



---
