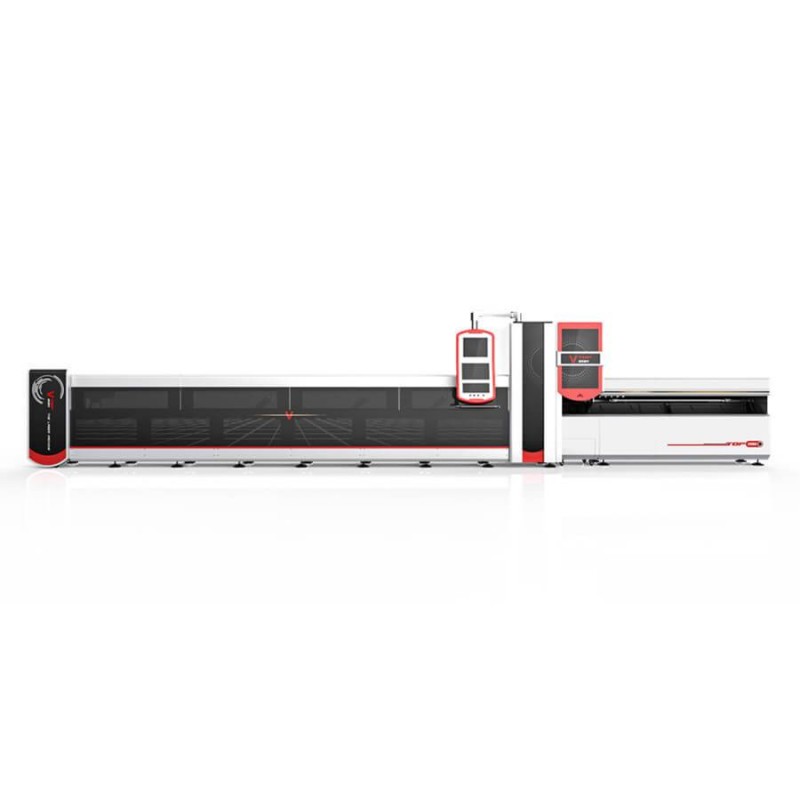

Semi Automatic Stainless Steel Metal Tube Pipe CNC Fiber Laser Cutter P2060
| Model number | P2060 |
| Laser power | 1000w 1500w 2000w 2500w 3000w 4000w |
| Laser source | IPG/nLight fiber laser resonator |
| Tube length | 6000mm |
| Tube diameter | 20mm-200mm |
| Applicable materials | Stainless steel,carbon steel,mild steel,aluminum,brass,copper,galvanized steel |
| Applicable types of tubes | Round tube,square tube,triangle tube,rectangular tube,oval tube and other irregular-shaped tubes etc. |
| Position accuracy | ±0.03mm |
| Repeat position accuracy | ±0.01mm |
| Maximum position speed | 70m/min |
| Acceleration | 1g |
| Cutting speed | depend on material, laser source power |
| Electric power supply | AC380V 50/60Hz |
| Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader | |||
| Model number | P2060A | P3080A | P30120A |
| Pipe processing length | 6m | 8m | 12m |
| Pipe processing diameter | Φ20mm-200mm | Φ20mm-300mm | Φ20mm-300mm |
| Applicable types of pipes | Round pipe,square pipe,triangle pipe,rectangular pipe,oval pipe and other irregular-shaped pipes etc. | ||
| Laser source | IPG/N-light fiber laser resonator | ||
| Laser power | 700W/1000W/2000W/3000W | ||
1000W Max Cutting Thickness Ability
| Stainless steel | 5mm |
| Carbon steel | 10mm |
| Aluminum | 4mm |
| Brass | 4mm |
| Copper | 3mm |
| Galvanized steel | 4mm |
