| Model number | E3plus |
| Cutting Area | 1500*3000mm |
| Laser source Power | 1500w / 2000w / 3000w /4000w / 6000w |
| Laser Head | BOCI |
| Laser source | Imported fiber laser resonator IPG / China Laser Source Raycus / Max |
| Servo Motor | Yaskawa Bus Motor |
| Position accuracy | ±0.05mm |
| Repeat position accuracy | ±0.03mm |
| Acceleration | 1.2G |
| Cutting speed | depend on the material, laser source power |
| Electric power supply | Three-phase AC380V 50/60Hz |
| Sheet Metal Loader | Optional |
/
Reliable Single-table Sheet Metal Fiber Laser Cutting Machine.
E3plus
cutting area 1500*3000mm
Mainly Features

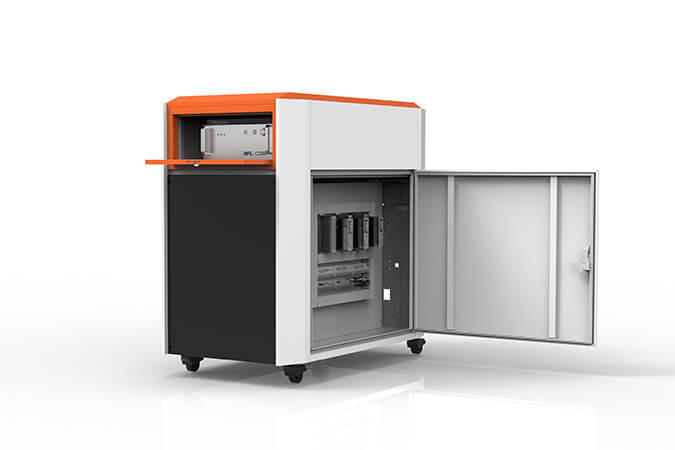

Independent Electric Control Cabinet
- Unafraid of high temperatures and high humidity, it's the ideal choice for harsh working environments.
The core laser component is housed separately, and dedicated cooling air conditioning maintains a constant temperature throughout the electrical control cabinet, ensuring stable operation of the electrical components.
The centralized layout of the electrical control system, with functional compartments, is sealed and dust-proof, minimizing potential circuit hazards and ensuring faster and more convenient maintenance.
Ultra-high speed with Grating protection

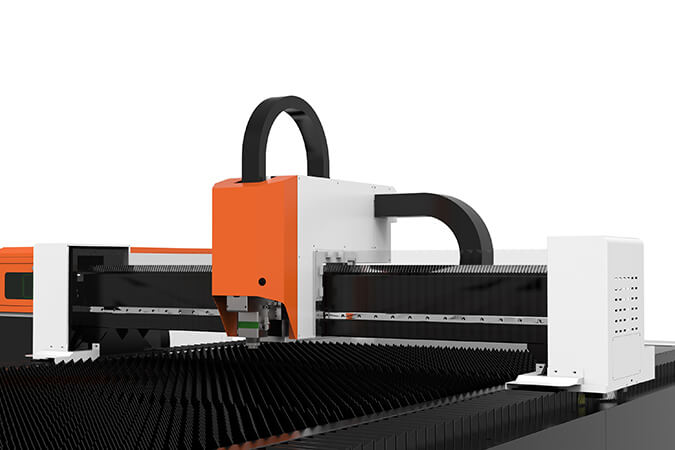

High-rigidity Beam
Made of high-quality steel, the beam offers high rigidity and stability, capable of withstanding varying loads and cutting heat.
It is also wear- and corrosion-resistant, ensuring long-term, stable cutting performance.

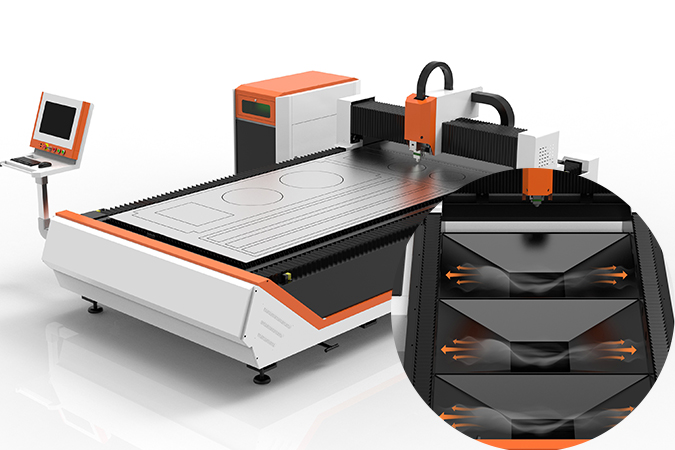

Faster Dust Removal
A fully covered dust extraction window is designed under the workbench to ensure that smoke and dust can be quickly and fully extracted no matter where the laser cutting head is cutting, thereby greatly improving the dust removal efficiency, extending the service life of the protective lens, and maintaining a good working environment.

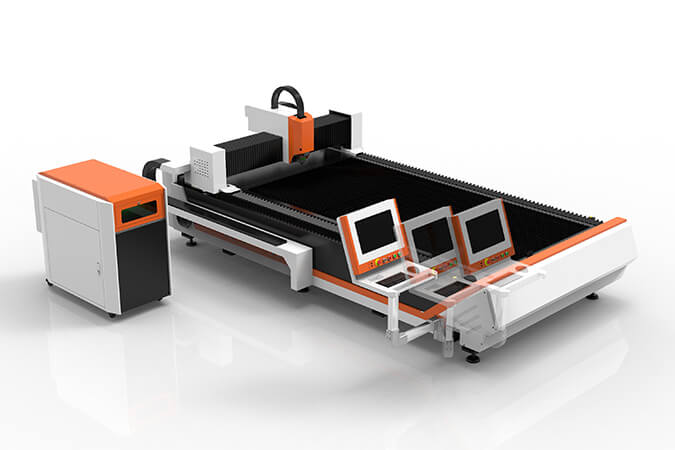

Multi-dimensional Operating Space
The rotating operating table design supports multi-directional rotation, providing the operator with a flexible viewing angle.
This facilitates equipment commissioning and switching cutting observation angles, making fine-tuning process adjustments more intuitive and efficient.

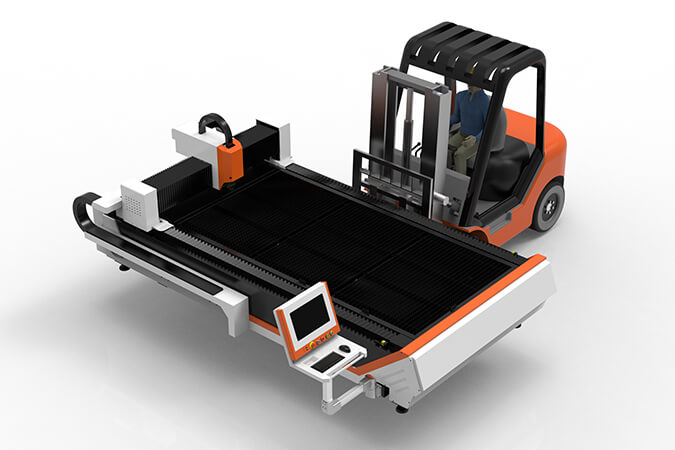

Convenient Mobility
The E3plus's highly optimized, integrated design significantly enhances ease of transportation, handling, and installation.
The machine tool supports complete mobility, and external circuit connections utilize a convenient, quick-connect design.
This allows for flexible deployment based on demand, eliminating the need for complex disassembly and reassembly, enabling rapid adaptation to diverse production scenarios.

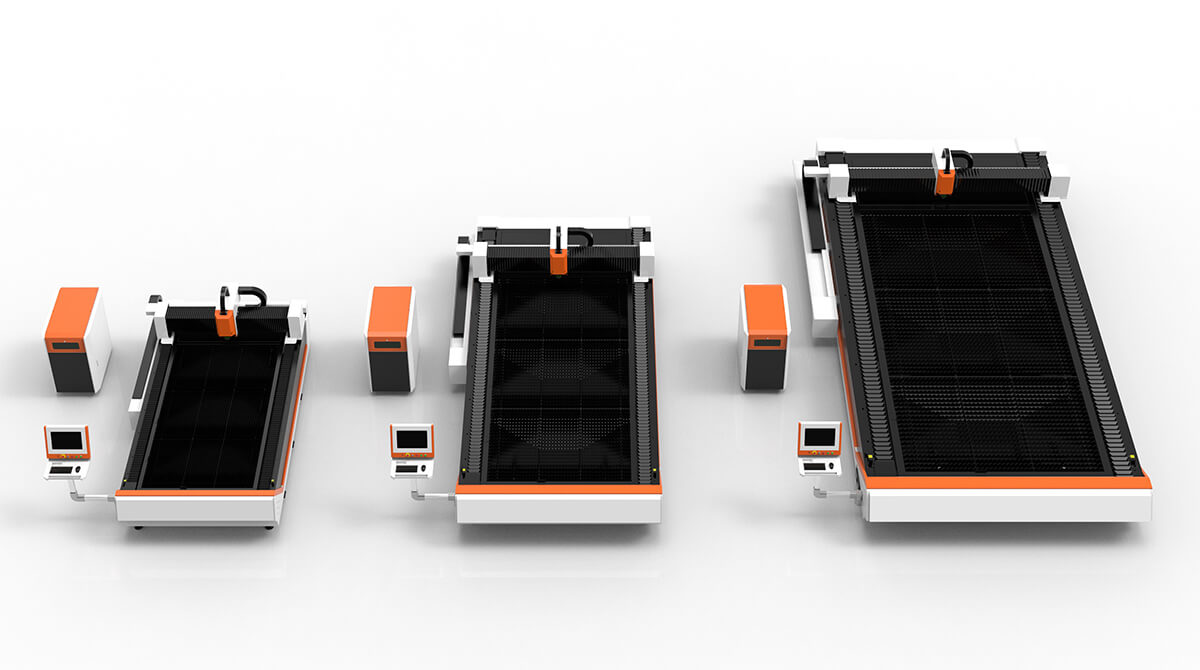

Adaptable to Multiple Size Requirements
The E3plus machine boasts exceptional expandability. Its base format is 1500mm x 3000mm.
It can be expanded to various sizes, from 2000mm x 4000mm (E4) to 2500mm x 6000mm (E6plus), fully meeting the diverse needs of various application scenarios and expanding the machine's processing range and capabilities.
Video
Single Table Laser Cutting Machine - E3plus
Material & Industry Application
Entry-level single table fiber laser cutting machine application:
Advertisement Sign, display stand, metalworking service, metal frame, and so on
Machine Technical Parameters
