12m Length Stainless Steel Metal Pipe Tube Laser Cutting Machine P30120
12m Length Metal Tube Pipe Fiber Laser Cutting Machine P30120
Golden Laser tube/pipe laser cutting machine P30120 adopts most sophisticated fiber laser resonator N-light / IPG from USA, and imported fiber laser cutting head Raytools, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision spare parts, like linear guide drive, high-speed servo motor. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.
Machine Features
Integrated main body makes the whole machine with good concentricity, verticality and precision.
Dual motive chucks are compatible with a variety of pipe without adjusting jaws.
Optimized claw holding pressure makes tube wall thickness within 1mm without deformation.
Innovative one-way air control claw tightness helps extend cylinder life.
Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging.
Integrated circuits, streamline laying provides easy maintenance and low failure rate.
Adjustable frequency perforation.
High damping bed, good rigidity, high speed and acceleration.
The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.
Professional pipe laser cutting control system Germany PA and nesting software Spain Lantek.

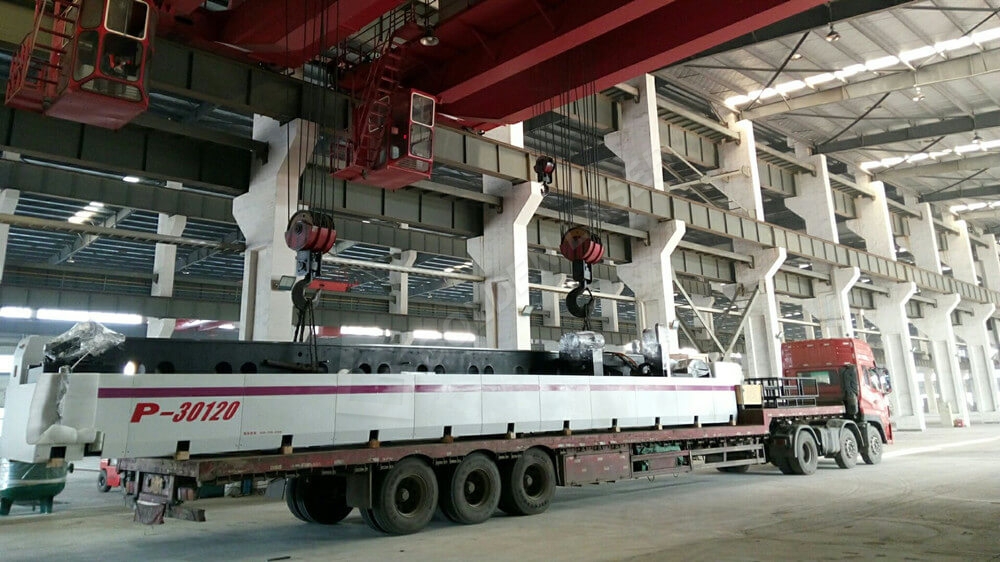

P30120 In Customer Site
P30120 Machine Demo Video
Applicable Industry
P30120 pipe laser machine can cut 12m tube,and tube diameter from 20mm to 300mm,it is applied to metal furniture, medical device, fitness equipment, sports equipment, display shelf, agriculture machinery,steel structure,fire control, heavy machine,euqipment manufacturing and pipe processing industry etc.

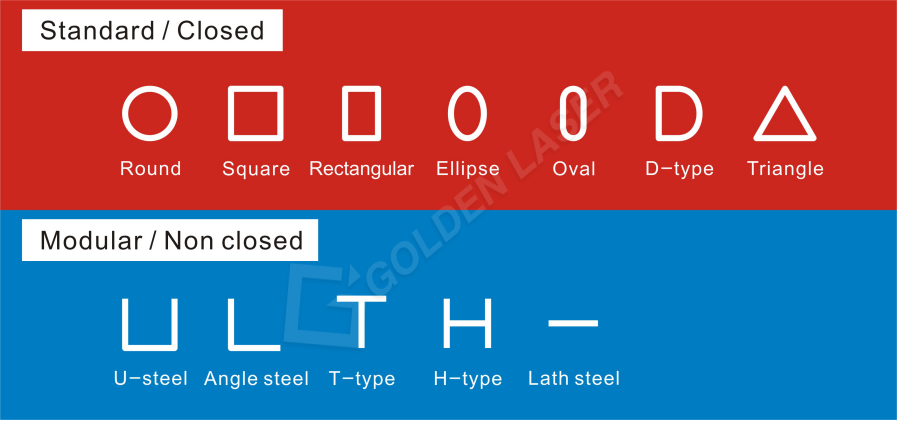

Applicable Types of Pipes

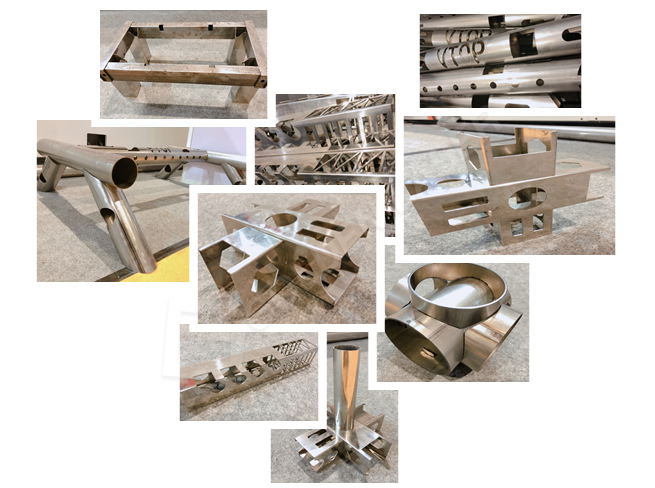

Pipe Laser Cutting Machine Samples
Tube Fiber Laser Cutting Machine P30120 Technical Parameters
| Model number | P30120 | ||
| Laser power | 1000w / 1500w / 2000w / 2500w / 3000w / 4000w | ||
| Laser source | IPG / nLight fiber laser resonator | ||
| Tube length | 12000mm | ||
| Tube diameter | 20mm-300mm | ||
| Tube type | Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard); Angle steel, channel steel, H-shape steel, L-shape steel, etc (option) |
||
| Repeat position accuracy | ± 0.03mm | ||
| Position accuracy | ± 0.05mm | ||
| Position speed | Max 90m/min | ||
| Chuck rotate speed | Max 105r/min | ||
| Acceleration | 1.2g | ||
| Graphic format | Solidworks, Pro/e, UG, IGS | ||
| Bundle size | 800mm*800mm*6000mm | ||
| Bundle weight | Max 2500kg | ||
| Other Related Professional Pipe Laser Cutting Machine With Automatic Bundle Loader | |||
| Model number | P2060A | P3080A | P30120A |
| Pipe processing length | 6m | 8m | 12m |
| Pipe processing diameter | Φ20mm-200mm | Φ20mm-300mm | Φ20mm-300mm |
| Applicable types of pipes | Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard); Angle steel, channel steel, H-shape steel, L-shape steel, etc (option) |
||
| Laser source | IPG/N-light fiber laser resonator | ||
| Laser power | 700W/1000W/1200W/2000W/2500W/3000W/4000W | ||
P30120 Machine Collocation
| Article Name | Brand |
| Fiber laser source | IPG (America) |
| CNC controller | HIGERMAN POWER AUTOMATION (China + Germany) |
| Software | LANTEK FLEX3D (Spain) |
| Servo motor and driver | YASKAWA (Japan) |
| Gear rack | ATLANTA (Germany) |
| Liner guide | REXROTH (Germany) |
| Laser head | RAYTOOLS (Switzerland) |
| Gas proportional valve | SMC (Japan) |
| Main electric components | SCHNEIDER (France) |
| Reduction gear box | APEX (Taiwan) |
| Chiller | TONG FEI (China) |
| Rotate chuck system | GOLDEN LASER |
| Automatic bundle loading system | GOLDEN LASER |
| Automatic unloading system | GOLDEN LASER |
| Stabilizer | JUN WEN (China) |
