Laser Cutting Of Formed Laser Tubes-GF-T2000

Customized solutions for forming pipe cutting: Compared with the cutting needs of forming pipe fittings, different products have different processing techniques and requirements. Only the customize solution can meet their production demand perfectly.

  • Model number : GF-T2000
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

GF-T2000 Laser Cutting Of Formed Laser Tubes

Customized  CNC fiber laser cutting machine for formed Tubes

the use of a general-purpose pipe cutting machine will not only require a greater investment but also result in the small use of large materials. The use of customized cutting equipment solves customer needs and saves customers unnecessary costs. ..

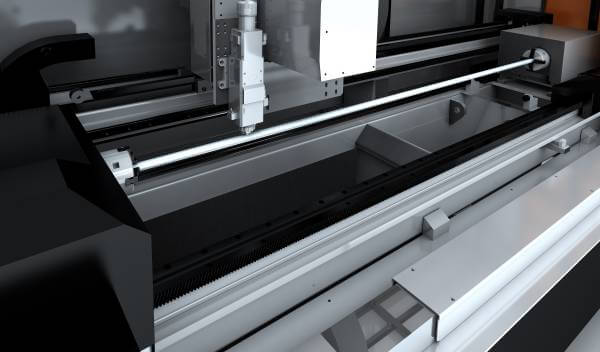

laser hollowing on the tube

Suitable size Chuck according to the size of the tube...



Selfcenter chuck easy to hold the tube automatically,

 It uses the Golden Laser's advanced pneumatic chuck valid for tube diameter from 20-200mm. Compare with electric chuck, pneumatic chuck more precise and long using life, limited failure rate than electric chuck.

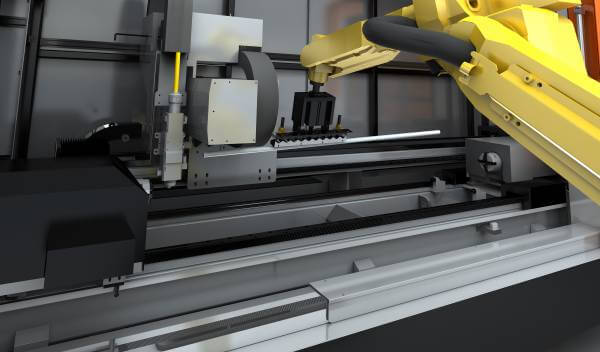

The robot automatically collected the finished tubes...



Customized the fixture to hold the different sizes and shapes of the tube after cutting.

ABB, Fanuc...different brand robot for choice to realize automatic production line, save the labor cost, and ensure the safety of the production...

robot collect the finished tubes

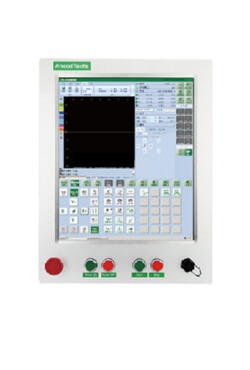

GF-T2000 screen

Touch-screen CNC cutting system...



Matching professional CNC cutting system, with good system expandability, supporting function development and expansion...

The touch-screen operation mode simultaneously supports two processing methods of 3D graphics import and program input, which is convenient and simple to operate...

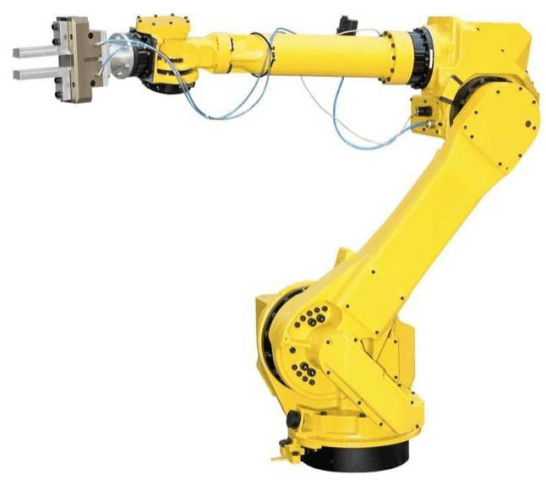

Three-dimensional Robot Arm...



the equipment can be seamlessly connected with the three-dimensional manipulator to realize a variety of auxiliary functions, such as automatic feeding, automatic unloading, automatic palletizing, and automatic cleaning.

robot collection system

Formed Laser Tube Cutting Machine Working Video


  • Previous:
  • Next:

  • GF-T2000 Laser Cutting Of Formed Laser Tubes

    Customized  CNC fiber laser cutting machine for formed Tubes

    the use of a general-purpose pipe cutting machine will not only require a greater investment but also result in the small use of large materials. The use of customized cutting equipment solves customer needs and saves customers unnecessary costs. ..

    laser hollowing on the tube

    Suitable size Chuck according to the size of the tube...



    Selfcenter chuck easy to hold the tube automatically,

     It uses the Golden Laser's advanced pneumatic chuck valid for tube diameter from 20-200mm. Compare with electric chuck, pneumatic chuck more precise and long using life, limited failure rate than electric chuck.

    The robot automatically collected the finished tubes...



    Customized the fixture to hold the different sizes and shapes of the tube after cutting.

    ABB, Fanuc...different brand robot for choice to realize automatic production line, save the labor cost, and ensure the safety of the production...

    robot collect the finished tubes
    GF-T2000 screen

    Touch-screen CNC cutting system...



    Matching professional CNC cutting system, with good system expandability, supporting function development and expansion...

    The touch-screen operation mode simultaneously supports two processing methods of 3D graphics import and program input, which is convenient and simple to operate...

    Three-dimensional Robot Arm...



    the equipment can be seamlessly connected with the three-dimensional manipulator to realize a variety of auxiliary functions, such as automatic feeding, automatic unloading, automatic palletizing, and automatic cleaning.

    robot collection system

    Formed Laser Tube Cutting Machine Working Video


  • Previous:
  • Next:

  • Material & Industry Application


    Metal trolley industry: The tube components of metal trolleys only need to be feature-cut on the surface of the formed length of the tube. It has the characteristics of uniform specifications and batches. It is very suitable to use the formed tube cutting equipment for batch processing.



    Automobile bending pipe industry: General-purpose pipe cutting machines are often prohibitive for cutting pipe bending, and the processing space is extremely limited, while the formed pipe cutting machine can make the pipe fittings show more in the space through customized clamping methods In this way, the processing feature surface is fully exposed and the possibility of fiber laser cutting is realized.



    Outdoor tent industry: Tent skeletons generally use square pipe fittings of similar sizes for casing splicing. The fixed hole position of the pipe butt joint position is relatively uniform, so the bulk fixed station of the forming tube is clamped at the end The hole-cutting processing method can produce products with qualified quality more efficiently.

    Machine Technical Parameters


    Model number  T2000
    Tube length  2000mm
    Tube diameter  20-100mm
    Laser Head  Raytools
    Laser source  Imported fiber laser resonator IPG / N-Light / China Laser Source Raycus / Max
    Servo Motor  Yaskwa / Panasonic
    Laser source power  1500w, 2000w, 3000w 4000w fiber laser optional
    Cutting System  FSCUT / AheadTechs
    Position accuracy  ±0.03mm
    Repeat position accuracy  ±0.05mm
    Rotating speed  120r/min
    Acceleration  0.8G
    Cutting speed  depend on material, laser source power
    Electric power supply  AC380V 50/60Hz
