Dual-Beam Large-Format Flatbed Laser Cutting Machine

  • Dual-Beam Large-Format Flatbed Laser Cutting Machine

Dual-Beam Large-Format Flatbed fiber laser cutting machines

Two Laser Cutting Systems use a modular design, easy-to-expand metal cutting regions, and reduce transportation costs.

  • Model number : H16 / H24 (GF-35120)
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C
Download as PDF

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X

    • Double Beam Large Format Fiber Laser Cutting Machine

    The Ground Orbital Laser Cutting Machine type ensures a super large metal sheet cutting area. 3.5m*16m and 3.5m*24m laser cutting area for choice.

    Combine the advantages of the plasma cutting machine and the fiber laser cutter together. Save your shipping cost and make it easy for installation in the factory.

    Dual Laser Head

    Modular Designs

    Unlimited Expansion Metal Cutting Area

    Easy for Installation

    There is more

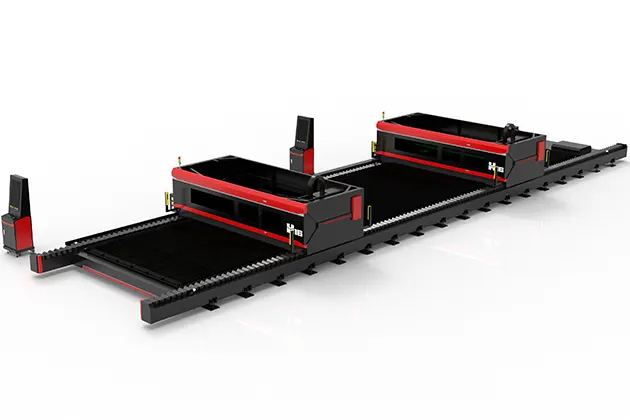

    Dual beam large format fiber laser cutting machine H16 right view white back ground

    Advantage of Ground Rail Laser Cutting Machine

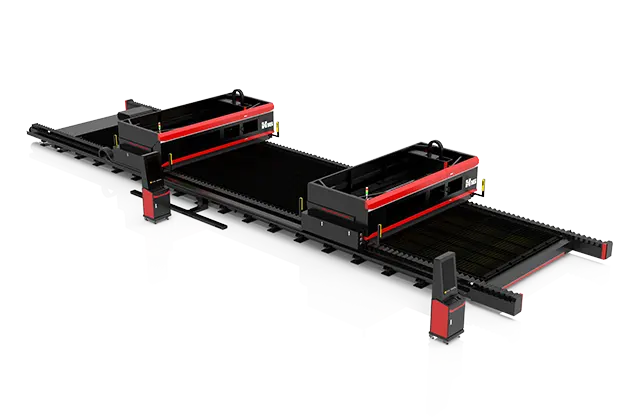

    Golden Laser Dual beam large format fiber laser cutting machine H16 left view

    Save Your Overseas Shipping Cost

    "Is it possible to ship my fiber laser cutting machine through a 40HQ? The shipping cost of frame containers is too high, even more than the value of the laser cutting machine now."



    Same problem as yours? When you decide to import a fiber laser cutting machine from China.



    Now, the ultimate solution is here!

    Floor Guide Design-absorbed the advantage of the plasma cutting machine, it takes no space and is easy to install.

    Even cut over 6 meters metal sheet fiber laser cutter, easy to transport via a 40HQ.

    Easy Install When You Get the H Series Laser Machine.

    Connect of ground orbit method-golden laser

    ✔️ The extendable table design, easy to connect the large fiber laser cutting machine table by the positioning device.

    ✔️ Simple and modular installation can be done according to the manual to save time and effort.

    Double Security Protection Solutions

    grating protection

    Following Full Closed Cover with grating guardrail, double ensure the save of the operator in mass metal cutting production

    Dust-free Processing

    exhaust design of GF201200

    Dust-free processing environment. Segmented dust extraction allows fumes and dust from laser processing to be absorbed in a timely manner through air filters ensuring maximum environmental protection and 0 pollution.

    Beveling Cutting Head

    4series-laser beveling head

    Equipped with BLT461 cutting head and AB swing set, it can achieve 0-45° bevel cutting and can process V-type, X-type, Y-type, K-type and other types of bevels.

     Easy for welding on the thick metal materials.

    Strong Structure

    golden laser machine body

    The Operator table and the machine bed are designed with independent structure, the bed is annealed and stress relieved as a whole, the machine frame is less than deformed by heat, which not affects the accuracy.

    Modular splicing

    customize size Modular splicing

    Fiber Laser Cutting machine length direction is three meters a module can be infinitely expanded. The standard width of the cutting machine is 3 meters, 4 meters wide is optional.

    Bus CNC Laser Controller

    hypcut8000

    Advanced CNC Fiber laser cutting machine controller, adopts Bus system, easy to maintain and multi-function of  Anti-collision cutting and residue visual cutting.

    Easy Change Cutting Table After Long Time Cutting.

    The modular blade assembly workbench

    ✔️ Modular blade assembly makes slag cleaning more convenient and labor-saving.

    ✔️ √It is easy to disassemble and replace without hindering production.

    Ground Rail Fiber Laser Cutting Machine Installation Video Show

    H16 General View

    H16 Real Cutting

    Welcome to contact with Golden Laser Sales Team for the detail solution for the large fiber laser cutting machine.

    Material & Industry Application

    It is popular for large and heavy duty industry such as the automotive industry, machinery fabrication industry, engineering vehicles, vessels, outside processing, and agricultural machinery industry.

    Easy to cut the thickness of a plate over 20 mm

    Machine Technical Parameters

    The Double Beam Large Format Plate Laser Cutting Machine H16 H24 Parameter

    project

    Parameter

    X axis trip

    2500mm to 3500mm for choice

    Y axis trip

    16,000 to 24,000mm (Customizable)

    Z axis trip

    150mm

    Maximum positioning speed

    80m/min

    maximal acceleration

    0.8G

    Mechanical positioning accuracy

    +-0.1mm per 10m

    Repeat positioning accuracy

    +-0.05mmper 10m

    Fiber laser power

    (6000W-30000W )*2

    Fiber Laser Source

    IPG / nLIGHT / Raycus / Max

    Laser Head

    BLT Series *2

    Workbench load

    350Kg/m^2

    Space

    19648mm*6034mm
