U3 Dual-Platform Fiber Laser Cutting Machine — The Flagship of Automated Sheet Metal Processing
U3 Series: Defining New Standards for Sheet Metal Automation
Integrating an electric servo-driven dual-metal cutting table, an intelligent cutting head, and end-to-end automation, it sets a new benchmark for efficiency, flexibility, and intelligence
Main Feature of U3 Sheet Metal Laser Cutting Machine

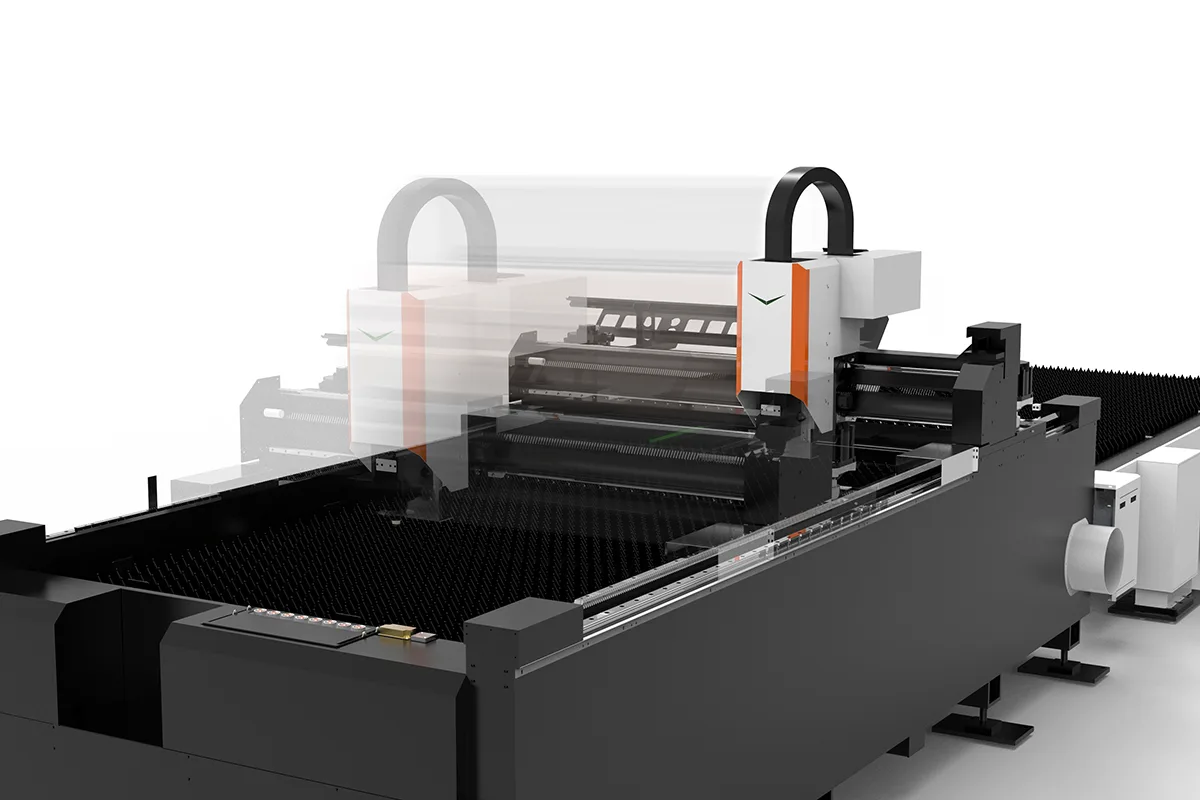

Ultimate Dynamic Performance
One Step Ahead:
Equipped with a maximum acceleration of 2.0G and a rapid traverse speed of 160 m/min.
Doubled Efficiency:
Powered by high-output capabilities, processing efficiency is significantly enhanced—whether handling thin or thick sheets—thereby shortening delivery times.

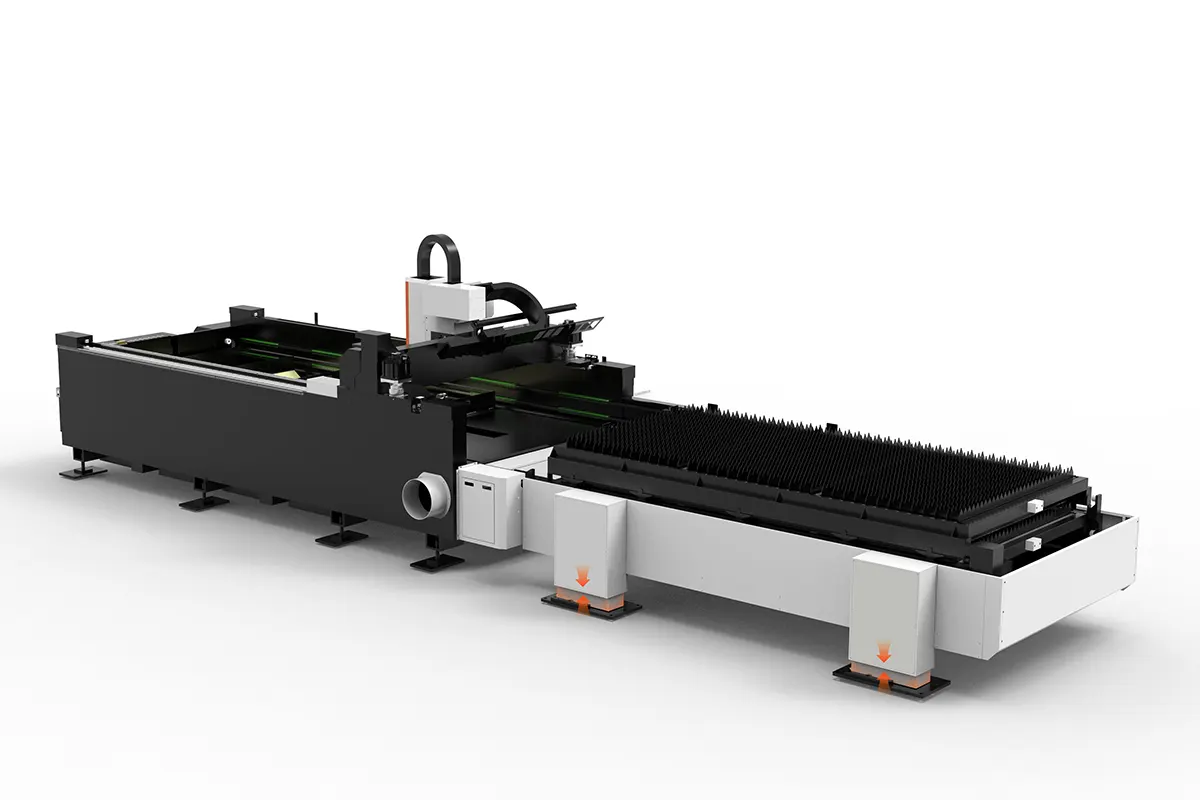

Electric Servo Lift Table
Consistent Precision:
Ensures both worktables remain at the same height within the cutting zone, maintaining a constant cutting height and exceptional precision.
Seamless Integration:
Digital controls enable seamless integration with automated material storage systems.

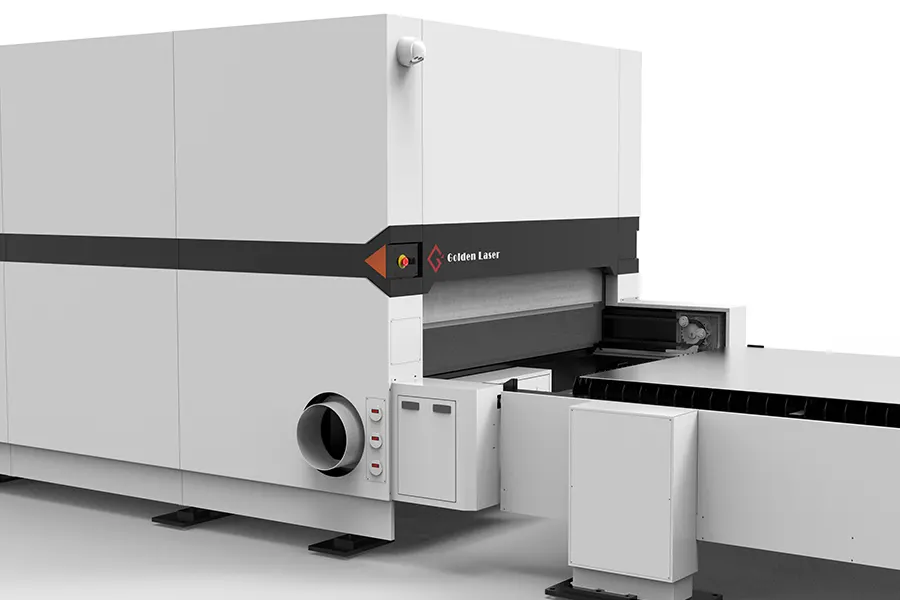

Ultra-Compact Design
Minimal Footprint:
Through structural optimization, the equipment's footprint has been significantly reduced, thereby lowering site costs.
Integrated Transport:
Supports transport of the complete unit—without disassembly—within standard shipping containers, saving on logistics costs.
Zero-Gap Safety Protection System

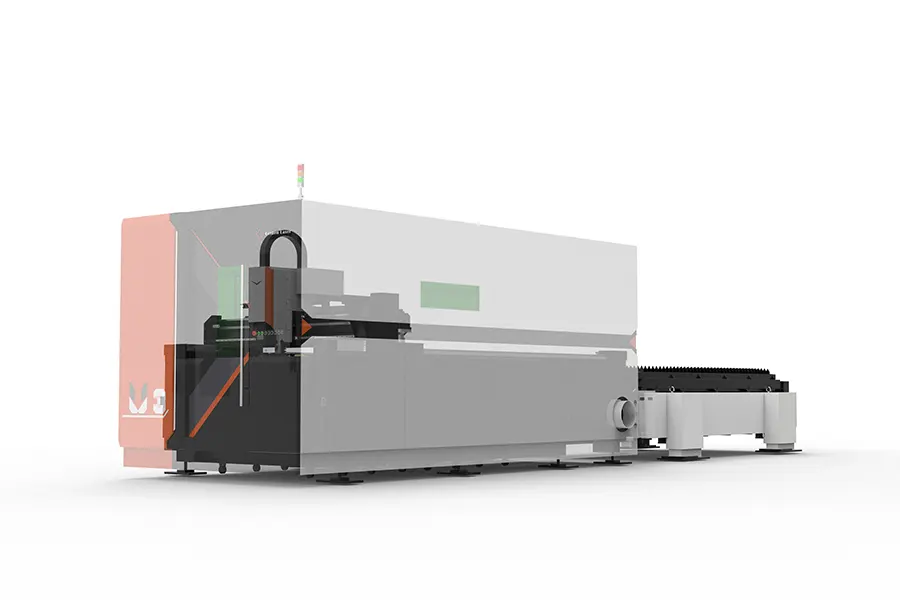

Fully Enclosed Structure
Features a complete sheet metal enclosure design that effectively blocks laser radiation, seals in dust and fumes, and ensures personnel safety.
Automatic Worktable Partition
Automatically opens during table exchange and closes upon completion, preventing the escape of heat and dust.

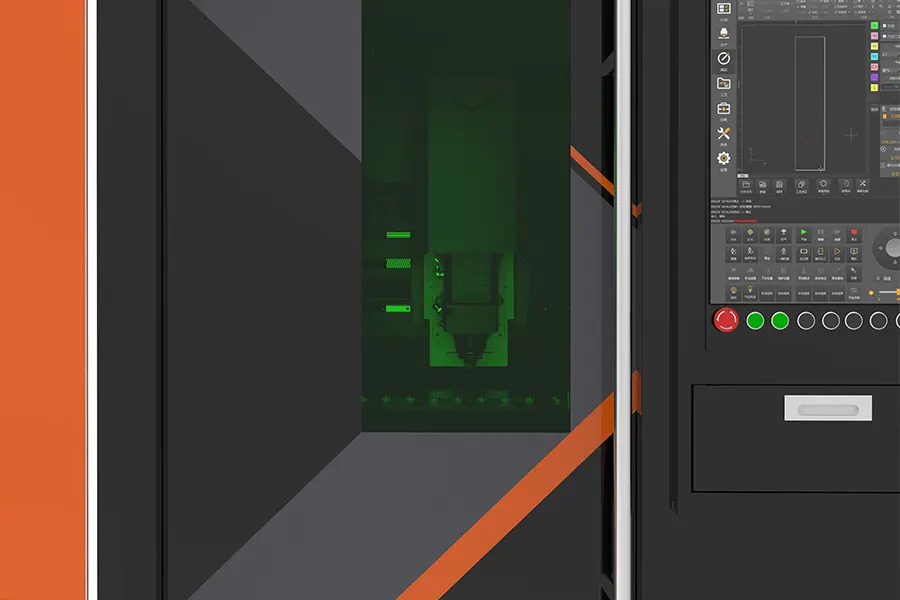

Radiation-Shielding Observation Window
Equipped with a large-view window featuring standard radiation-shielding green glass, allowing for safe monitoring of the processing status.
Fire Protection
For 12,000W models, the interior is lined with high-performance refractory bricks to absorb intense heat and prevent deformation of the machine bed.
U3 Loader Automation Solutions
U3 Flex Loader
Enables automated loading, cutting, unloading, and finished-product stacking for single-batch material processing; compatible with sheet thicknesses ranging from 1 to 12 mm.
U3 Compact Loader
Features an ultra-compact structure with a built-in 8-tier material library (comprising 5 tiers for raw materials, 2 tiers for finished products, and 1 buffer tier), facilitating the batch processing of multiple material types.

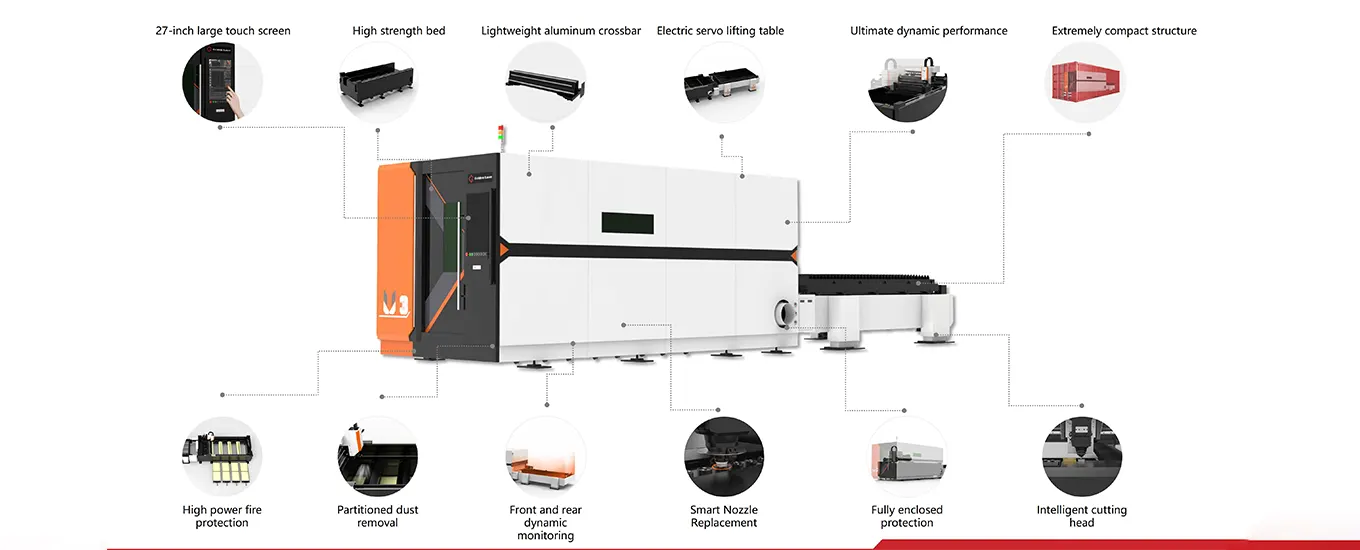

Machine composition details
Strong R&D Ability, Contact us for your idea sheet metal cutting solution
Over 20+ years of development, strong supply chain, and after-sales service ability
Samples Show
Fiber Laser Cutting Machine For Different Thickness Sheet Metal Cutting Results

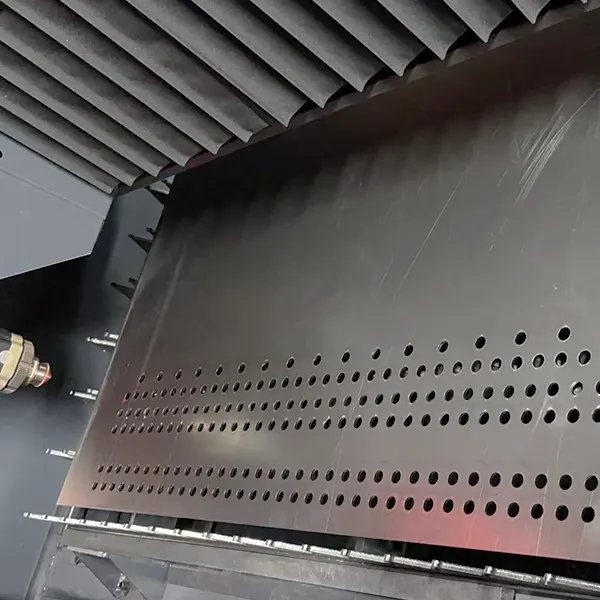

Hole Cutting

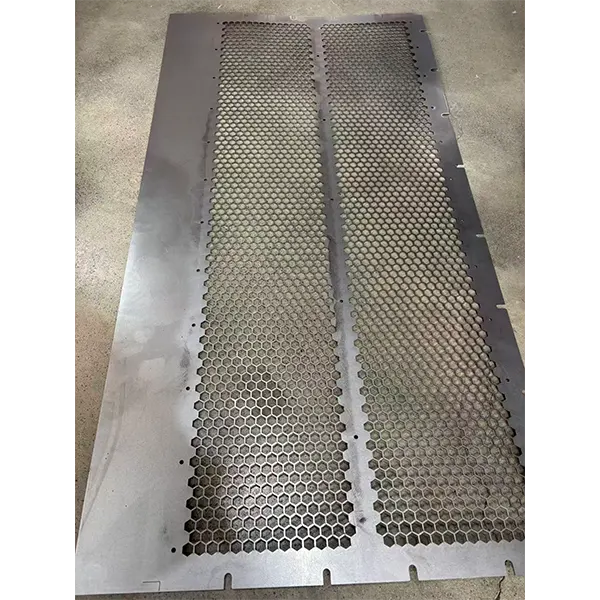

Frame Cutting
12KW Laser Cut Result
U3 Fiber Laser Cutting Machine Video
Testimonial
We used two sets of Golden Laser sheet metal laser cutting machines, U3 with 2G improve our whole production efficiency.
-Serbian Client
Contact Golden Laser experts today to get pricing on our U3 Dual-Platform laser cutting machine for your sheet metal cutting solution
Frequently Asked Questions
Need help? Be sure to visit our support forums for answers to your questions!
The U3 series is designed to cut various metals with high precision, including carbon steel, stainless steel, aluminum alloys, brass, and copper.
Yes, Golden Laser provides comprehensive global support. Our engineers can travel to your factory for machine installation, commissioning, and operator training.
You can click the 'Get a quote' button on our page or email us directly. Please provide your material type, thickness, and required laser power, and our sales team will send a customized quote within 24 hours.
Ready to get started?
Material & Industry Application
Applicable Materials
Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel, and so on.
Applicable Thickness
3KW to 30KW Fiber Laser Power Cutting Thickness Limit range for Production
|
Material |
3000W |
4000W |
6000W |
8000W |
12000W |
20000W |
|
Carbon steel O2 |
22mm |
25mm |
25mm |
30mm |
40mm |
60mm |
|
Stainless steel N2/Air |
12mm |
12mm |
16mm |
20mm |
30mm |
35mm |
|
Aluminum N2/Air |
8mm |
12mm |
16mm |
18mm |
20mm |
25mm |
|
Brass N2/Air |
8mm |
12mm |
16mm |
18mm |
20mm |
22mm |
Application Industry
Mainly used in the metalworking industry, etc, building structure, bridge, fitness equipment, office furniture, shelves, steel structure, medical industry and so on
Machine Technical Parameters
U3 Dual Platform Laser Cutter Technical Parameters
| Model number | U3 | ||
| Laser power | 3000watt; 4000watt; 6000watt; 8000watt; 12000watt;20000watt;30000watt;40000watt | ||
| Laser source | Raycus / Max fiber laser resonator | ||
| Working Area | 1500*3000mm | ||
| Position accuracy | ± 0.05mm/m | ||
| Repeat Position accuracy | ± 0.03mm/m | ||
| Position speed | 160m/min | ||
| Acceleration | 2g | ||
| Controller | FSCUT | ||
| Graphic format | Solidworks, Pro/e, UG, IGS |
