U3-3D Sheet Metal Groove Fiber Laser Cutting Machine

U3-3D: Sheet Metal Groove Fiber Laser Cutting Machine

One machine does the work of two: handling both flat and bevel cutting in a single unit to double production capacity.

1.2G Acceleration,
3D Laser Cutting Head
Lifting Exchange Working Table,
Safety Protection.
Smart System & Technology

Model number : U3-3D
Min.Order Quantity: 1 Set
Supply Ability: 100 Sets Per Month
Port: Wuhan / Shanghai or as your requirement
Payment Terms: T/T, L/C

Request a Quote Download as PDF

Machine Details

Material & Industry Application

Machine Technical Parameters

U3-3D: One machine does the work of two

Achieve one-step processing with instant, fluid switching between metal plate vertical and bevel cuts—eliminating the need for secondary bevel grinding. | Delivering an ultimate power output of 30,000 watts.

Main Feature of U3-3D Exchange Table Sheet Metal Laser Cutting Machine

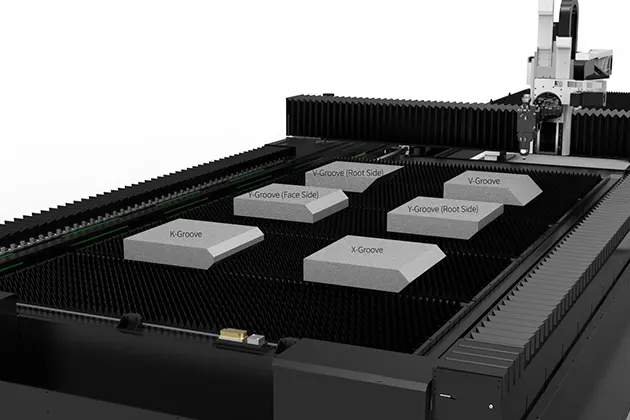

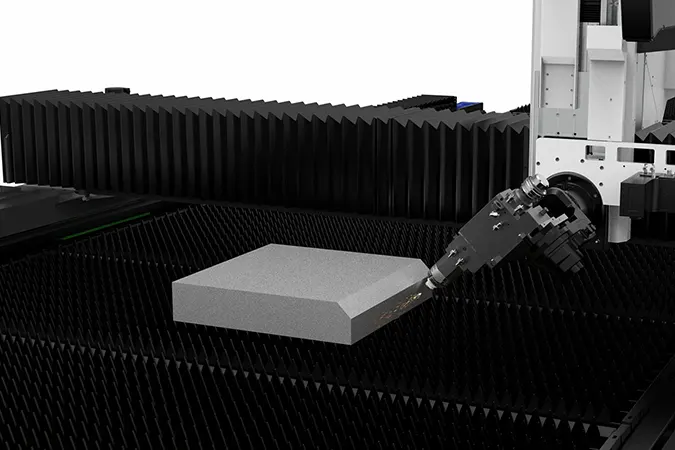

3D Groove Cutting Head

Ensure Sheet Metal Groove in one machine on a step, and increase the production efficiency.

Range of Beveling:

±45°

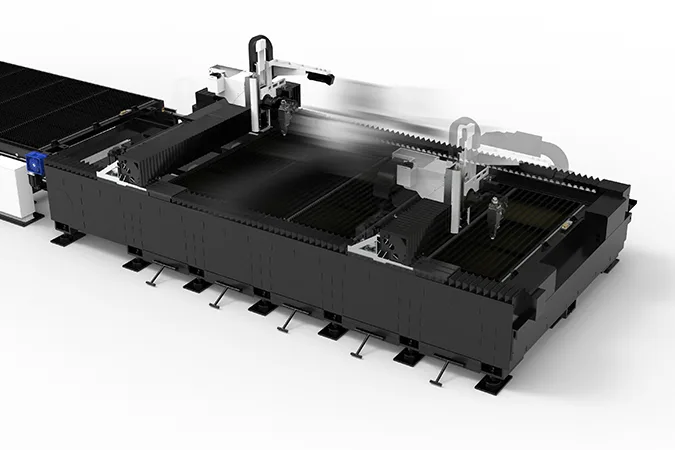

Ultimate Dynamic Performance

One Step Ahead:

Equipped with a maximum acceleration of 1.2G and a rapid traverse speed of 120 m/min.

Doubled Efficiency:

Powered by high-output capabilities, processing efficiency is significantly enhanced—whether handling thin or thick sheets—thereby shortening delivery times.

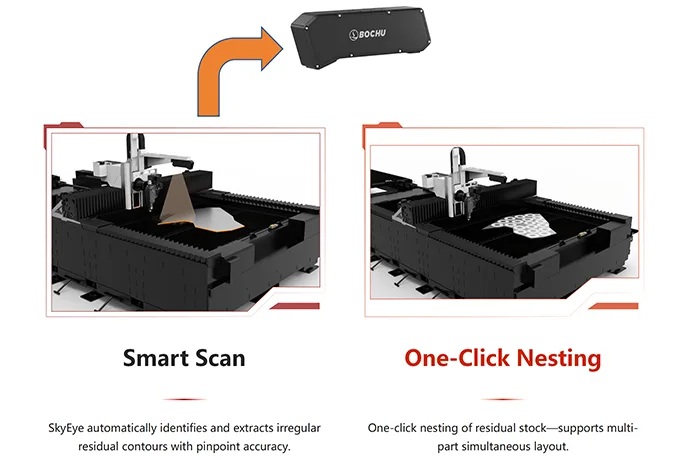

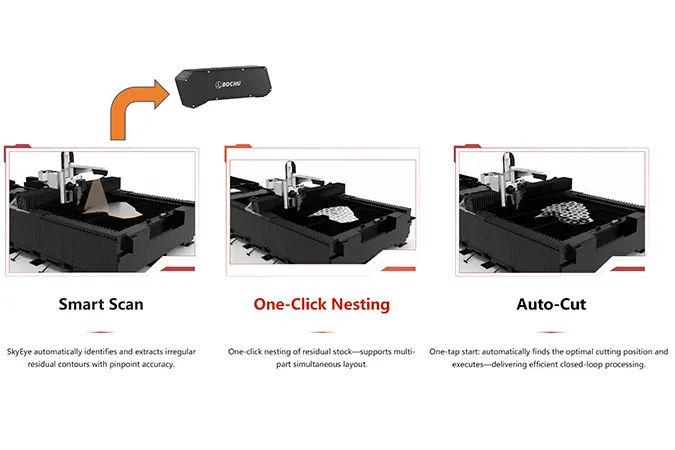

Remnant Contour Scanner

Equipped with the intelligent "Sky-Eye" scanning system, this feature automatically identifies and extracts the contours of irregular scrap materials, enabling automatic avoidance of complex internal cutouts and one-click nesting optimization.

This functionality significantly boosts scrap utilization rates and sheet metal throughput, supports simultaneous nesting for multiple parts, and combines high efficiency with exceptional ease of use and safety.

SkyEye identifies and nesting metal materials

Electric Servo Lift Shuttle Table

Consistent Precision:

Different from the Chain-Type Exchange Worktable, we use an electric servo lift to raise the table to the same height as the inside cutting table, then exchange it for a new metal sheet cutting. This ensures both worktables remain at the same height within the cutting zone, maintaining a constant cutting height and exceptional precision.

Seamless Integration:

Digital controls enable seamless integration with automated material storage systems.

Lifting exchange tabel of U3 fiber laser

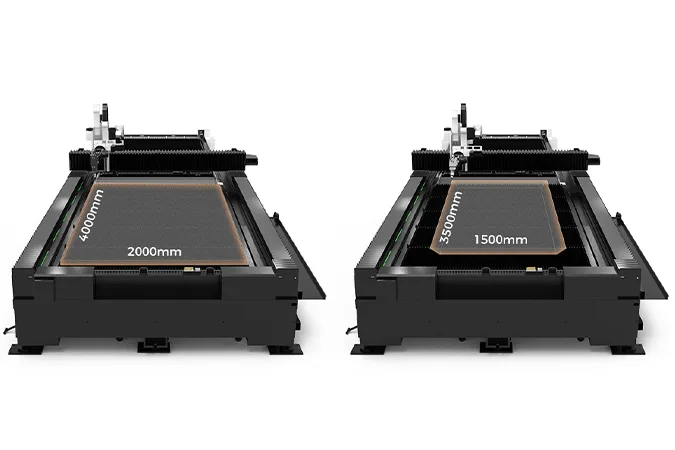

2D and 3D Cutting Area

2D Cutting Method:

The 2D working area is expandable up to 4000mm × 2000mm, allowing large sheet metal parts to be processed in a single setup without splicing—delivering both efficiency and precision in one run.

3D Cutting Method:

The 3D working area still reaches up to 3500mm × 1500mm, fully covering the largest bevel cutting requirements and supporting multiple bevel types.

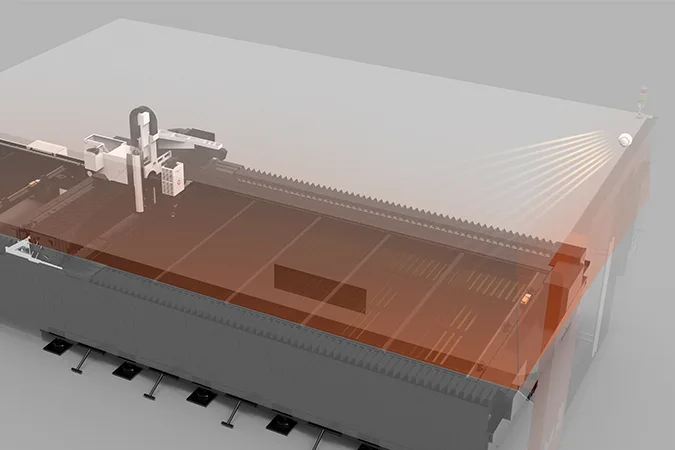

Zero-Gap Safety Protection System

Fully Enclosed Structure with Interal Monitors

complete sheet metal enclosure design that effectively blocks laser radiation, seals in dust and fumes, and ensures personnel safety.

Internal monitors keep the production process under constant control.

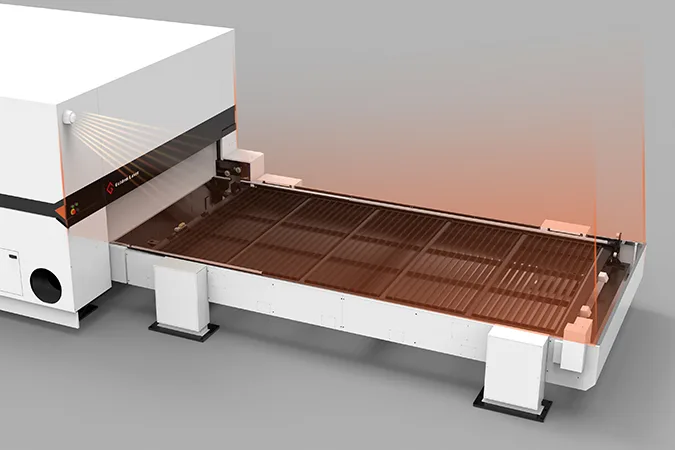

U3-3D is fully enclosed on the back table with a monitor

Automatic Worktable Partition

Automatically opens during table exchange and closes upon completion, preventing the escape of heat and dust.

Back table monitors ensure safety during loading and exchanging new metal.

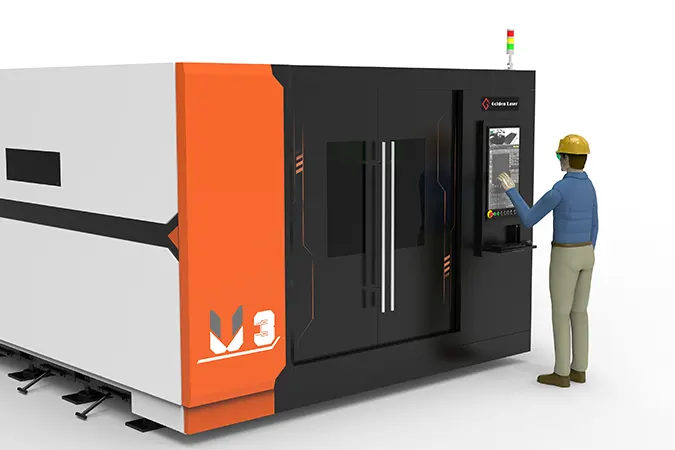

Radiation-Shielding Observation Window

Equipped with a large-view window featuring standard radiation-shielding green glass, allowing for safe monitoring of the processing status.

Touch Screen operation available

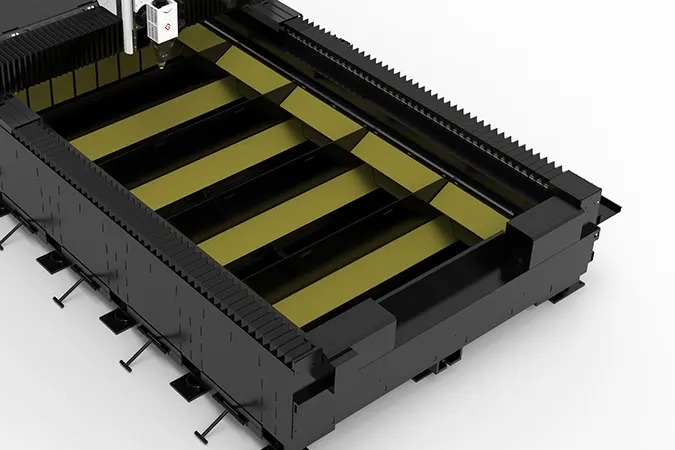

Fire Protection

For 12,000W models, the interior is lined with high-performance refractory bricks to absorb intense heat and prevent deformation of the machine bed.

U3 Loader Sheet Metal Laser Automation Solutions

U3 Flex Loader

Enables automated loading, cutting, unloading, and finished-product stacking for single-batch material processing; compatible with sheet thicknesses ranging from 1 to 12 mm.

U3 Compact Loader

Features an ultra-compact structure with a built-in 8-tier material library (comprising 5 tiers for raw materials, 2 tiers for finished products, and 1 buffer tier), facilitating the batch processing of multiple material types.

U3 Tower Loader

Supports the integration of multiple material towers to construct a highly efficient, fully automated sheet metal production line.

Get Customized Solution

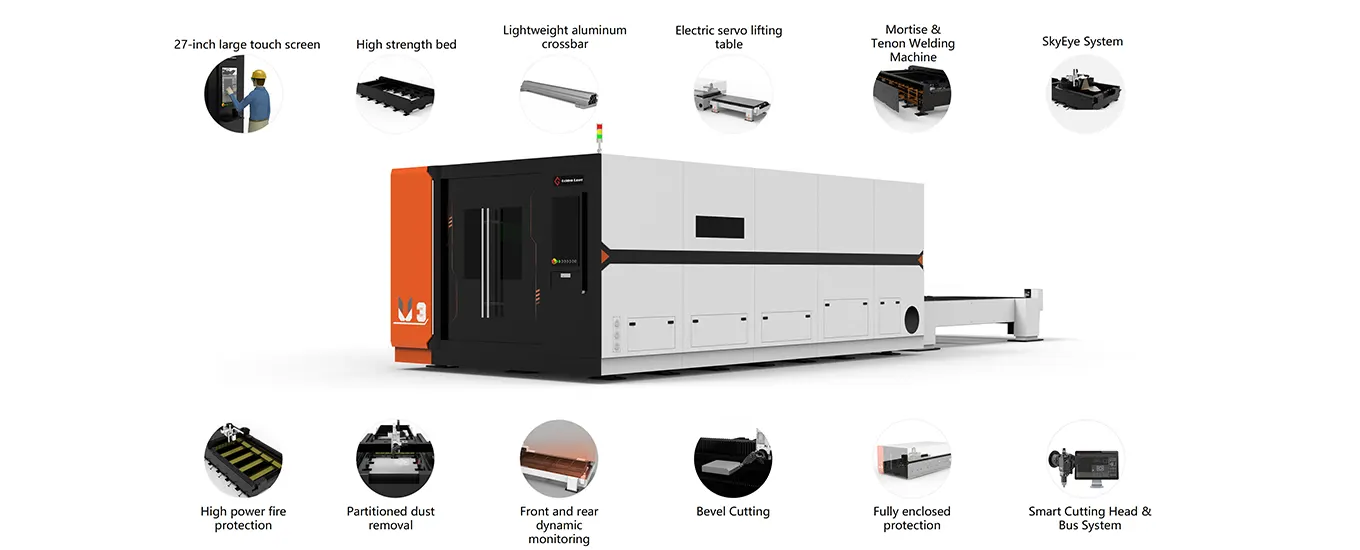

U3-3D Machine Composition Details

Strong R&D Ability, Contact us for your idea sheet metal cutting solution

Over 20+ years of development, strong supply chain, and after-sales service ability

Get a Free Quote

Samples Show

Fiber Laser Cutting Machine For Different Thickness Sheet Metal Cutting Results

Square shape groove samples

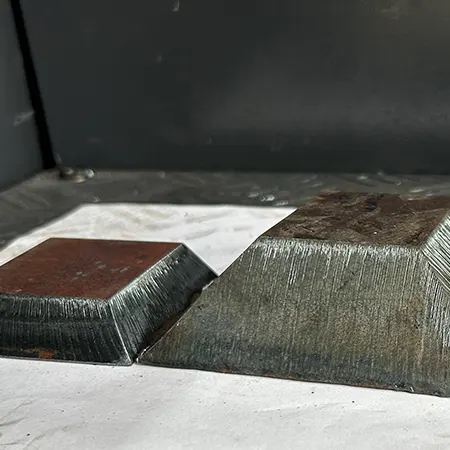

Golden laser Sheet Metal laser groove Sample

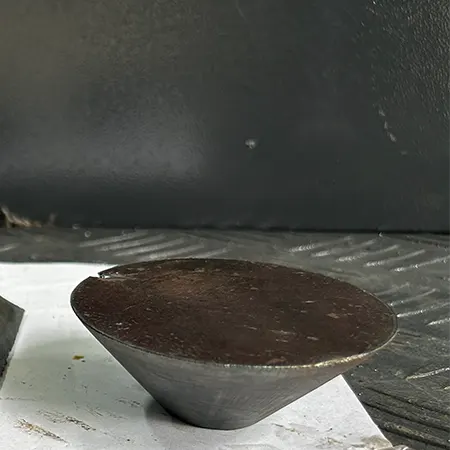

Sheet metal round shape beveling

12KW Laser Cut Result

Ask Free Samples Test

View More Plate Samples

U3-3D Fiber Laser Cutting Machine Video

Testimonial

We used two sets of Golden Laser sheet metal laser cutting machines; the U3 series sheet metal cutter is really faster than other sheet metal cutters. improve our whole production efficiency.

-Serbian Client

The lift exchange table ensures the quality of different metal plates. The same cutting result ensures the quality consistency of our parts

-Taiwan Client

Contact Golden Laser experts today to get pricing on our U3-3D sheet metal Groove exchange table metal laser cutting machine

Get a Quote

Frequently Asked Questions

Need help? Be sure to visit our support forums for answers to your questions!

What materials can the U3-3D fiber laser cutting machine process?

The U3-3D series is designed to cut various metals with high precision, including carbon steel, stainless steel, aluminum alloys, brass, and copper.

What is the exchange time of U3-3D exchange table laser cutter?

In automatic mass production, the lifting table will raise the new materials to the same level as the working table during cutting, so you don't need to spend extra time waiting for the newly raised materials. So, the exchange time won't be longer than Chain-Type Exchange Worktable

How about the production time of U3-3D laser cutting machine?

Normally, it takes 35 working days after we get the payment. If you need urgent, welcome to check with our sales manager.

Do you provide overseas installation and training?

Yes, Golden Laser provides comprehensive global support. Our engineers can travel to your factory for machine installation, commissioning, and operator training.

How can I get a quote from your agent for this machine?

You can click the 'Get a quote' button on our page or email us directly. Please provide your material type, thickness, and required laser power, and our sales team will send a customized quote within 24 hours.

Ready to get started?

Get a Quote

Material & Industry Application

Applicable Materials

Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel, and so on.

Applicable Thickness

3KW to 30KW Fiber Laser Power Cutting Thickness Limit range for Production

Material	3000W	4000W	6000W	8000W	12000W	20000W
Carbon steel O2	22mm	25mm	25mm	30mm	40mm	60mm
Stainless steel N2/Air	12mm	12mm	16mm	20mm	30mm	35mm
Aluminum N2/Air	8mm	12mm	16mm	18mm	20mm	25mm
Brass N2/Air	8mm	12mm	16mm	18mm	20mm	22mm

Application Industry

Mainly used in the metalworking industry, Decoration Industry, building structure, bridge, fitness equipment, office furniture, shelves, steel structure, medical industry and so on

Machine Technical Parameters

U3-3D Dual Platform Laser Cutter Technical Parameters

Model number		U3-3D
Laser power		3000watt; 4000watt; 6000watt; 8000watt; 12000watt;20000watt;30000watt;40000watt
Laser source		Raycus / Max fiber laser resonator
Working Area		15003000mm for 3D cutting method, 20004000 for 2D cutting method
Working table		Dual Working Platform
Exchange Method		Lifting raise then Exchange
Position accuracy		± 0.05mm/m
Repeat Position accuracy		± 0.03mm/m
Position speed		120m/min
Acceleration		1.2g
Controller		FSCUT
Graphic format		Solidworks, Pro/e, UG, IGS
