Tube Laser Cutting Machine L16MAX for Different Metel Profile

  • Tube Laser Cutting Machine L16MAX for Different Metel Profile

L16MAX Side-Mount Small Auto Tube Laser Cutter

It is designed with a Multi-Profile & Flexible Loading method, you can select an automatic loading tube or a semi-automatic loading tube according to your tube shape and size.

  • 2 Chuck’s tube laser cutter also realizes “Zero” tailer scrape
  • Compact design
  • Automatic and flexible tube loading method.
  • Tube Diameter Range: 10mm-160mm
  • 45-degree bevel cut the pipe (optional) X & K-type bevel cutting



  • Model number : L16MAX / L16MAX-3D
Download as PDF

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X

    • Side-mounted Steel Tube Automatic Laser Cutting Machine.



    L16MAX

    The supported tube has an outer diameter ranging from 10 mm to 160 mm and a standard length of 6 meters

    With an automatic, multi-shape tube bundle loading system for regular and irregular tubes.

    Option 3D laser head for 45-degree beveling cutting. X-type, K-type beveling

    Mainly Features

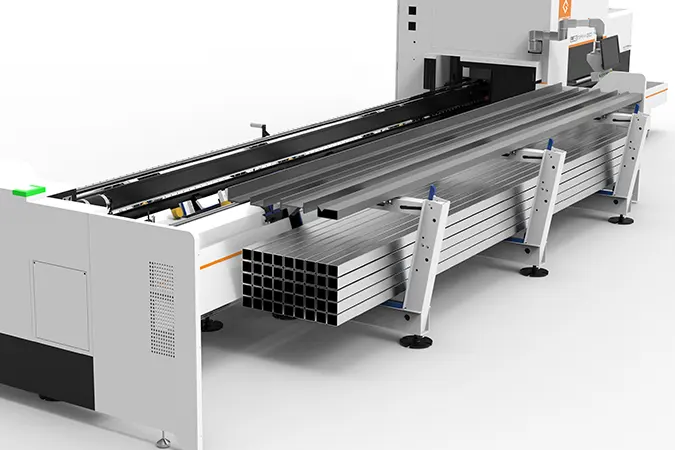

    Golden Laser L16MAX automatic and semi-automatic tube loading method

    Unique double-loading system tube loader



    The Compact design combines a fully automatic and semi-automatic loading system for steel tubes.



    Easy loading of large or small quantity tubes, regular and irregular shape tubes

    Ultra-high speed with Grating protection



    An advanced tube laser machine collection ensures a high-quality and high-speed tube cutting machine

    Maximum Acceleration：1.5G

    Maximum Rotational Speed: 150 rpm.

    grating protection ensures high speed cutting and safe for the operator

    L16MAX grating protection
    Goldenlaser L16MAX tube clamping method from 10-160mm

    Barrel Structure Rear Chuck

    Flexible pipe clamp, stable and reliable



    The unique serrated surface processing of the rear clamping claw supports two flexible pipe clamping modes:
    Small diameter pipes: the external clamping method is used to ensure uniform and stable clamping force;
    Large diameter pipes: the external support mode can be selected to make the clamping more stable and reliable

    Full Stroke Front Chuck



    √ Full-stroke automatic clamping, the tube can be quickly clamped with one click



    √ Together with the barrel structure rear chuck, ensure smaller tailer tube in the cutting

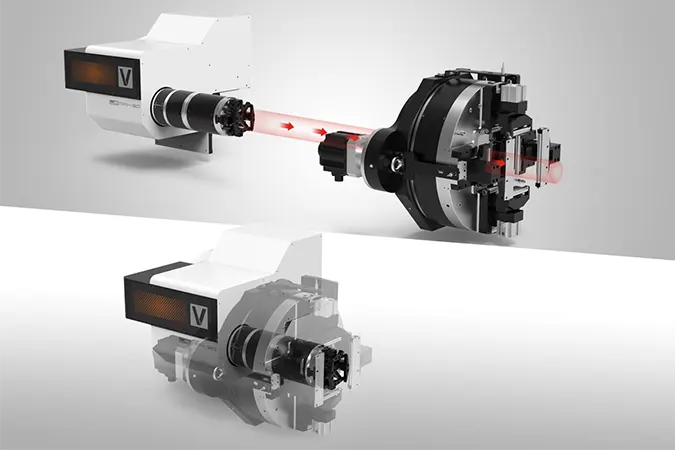

    Golden Laser L16MAX tube cutter's chuck working method

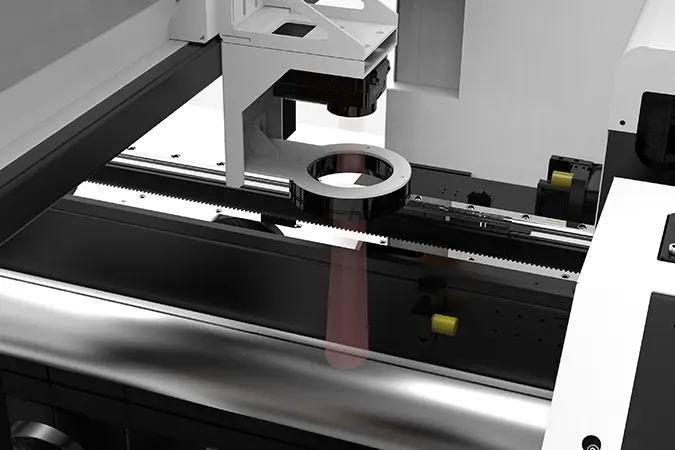

    tube weling line recogniaze

    Tube welding line recognizes Device

    Automatic avoidance to cut hollowing on the welding line

    Fully Pipe Support Capabilities:



    Advanced tube floating supporter for the end tube, gives excellent support during cutting.



    This reduces cutting errors and stabilizes high-speed rotation, enhancing the quality of small, thin tubes and improving processing efficiency.

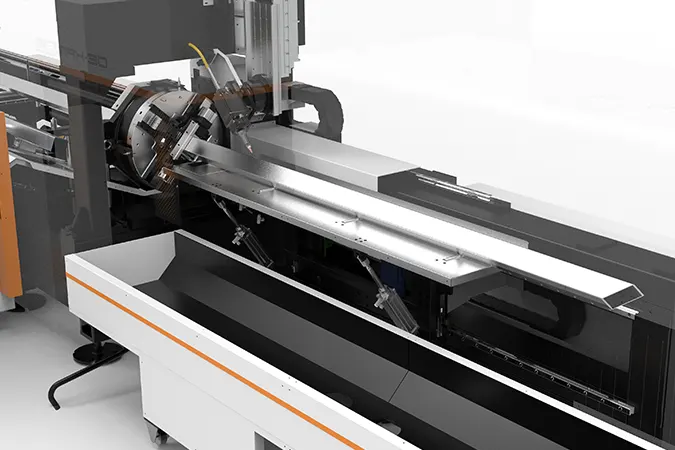

    Fully floating supports the metal tube during laser cutting
    Free-Drawing

    Free Drawing Function Menu-based Modeling

    Tube Cutting So Easy



    Easily model 3D tube cuts using the nesting menu, generating complex V-shaped and D-shaped grooves with one click. This integration eliminates software constraints, enhancing design efficiency

    Chuck Avoid Function



    Reducing the tube trailer length greatly improves the usage rate of the raw materials.

    L12MAX-chucks-avoild
    L12MAX-0-tailer

    0 Tailer Long Tube Unloading Device

    Humanized design

    A small tube holding device carefully holds the finished tube. It makes sure the tube is fully out of the main chucks. Then, the tube falls down into the collection box.

    Video

    L16Max tube laser cutting machine Side mount type

    Material & Industry Application

    Small Laser Tube Cutting Machine Application:

    Mainly for tube angle cutting, 45-degree angle cutting for steel square tubes, rectangle tubes, and round tubes.

    Small 3D laser tube cutting widely used in metal furniture, fence, fittness equipment, metalworking industry and so on.

    fiber laser cutting machine popular in these industry

    Machine Technical Parameters

    Golden Laser’s L16MAX Tube Laser Cutting Machine Parameters

    Explore the full technical data sheet for the L16MAX series. This high-performance 3D tube laser system is optimized for precision cutting of small to medium tubes (10-160mm) with professional acceleration and automatic feeding.

    Model Number L16MAX / L16MAX-3D
    Tube Diameter Range round tube: Ø10mm-160mmsquare tube: 10mm*10mm-160mm*160mm
    Tube Length 6000mm
    Laser Source Power 3000W / 4000W / 6000W Optional
    Laser Source Brand Raycus / Max / IPG for optional
    Acceleration 1.5G
    Rotating Speed 150 r/min
    Position Accuracy ±0.05mm
    Repeat Position Accuracy ±0.03mm
    Max Weight for Single Tube 110kg
    Laser Head BOCU 2D laser head / Imported Germany BLT 3D Tube Laser Head (or Golden Laser Optional)
    Tube Feeder System Full-automatic Bundle Loader and semi-automatic bundle tube loader included
    Tube Loading range Automatic loading:  round tube Ø12mm-150mm / square tube 12mm*12mm-150mm*150mmSemi-automatic:  round tube Ø10mm-160mm / square tube 10mm*10mm-160mm*160mm
    Electric Power Supply AC380V 50/60Hz

    * Product specifications are subject to confirmation. Please contact sales for detailed configuration.
