Mega3-3D Heavy Duty Tube Laser Cutting Machine | ±45° Bevel Cutting

  • Mega3-3D Heavy Duty Tube Laser Cutting Machine | ±45° Bevel Cutting

Mega 3-3D: Three Chucks tube laser cutting machine | Automatic High-end intelligent CNC

Newest design in 2026

  • suit for a 6-meter-long tube,
  • automatically upload and download the metal tube,
  • 360mm to 650mm diameter large tube and profile cutting.
  • Single Tube weight 1 ton
  • Model number : New Mega3-3D
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

X

    • 2026 New Mega3-3D Three Chucks Heavy Duty Laser Tube Cutter



      It is a Large Diameter Tube Laser Cutting Machine that supports a maximum single tube weight of 1 ton and diameters from 20mm to 360mm (optional 20mm to 650mm). Structural Steel, H-Beam, Channel Steel,  and so on. 3D Bevel and ensure Zero Tailing Tube laser cutting machine

    Main Feature of 2026 Mega 3

    Three Precision Chucks

    Three Precision Chucks for new Mega 3 heavy duty tube laser cutter

    Three precision pneumatic chucks

    All of which ensures the Mega3-3D can move freely, providing exceptional flexibility in pipe processing.



    This innovative design enables it to easily handle complex pipe cutting methods that are impossible with many conventional pipe cutting machines, thereby significantly enhancing its capabilities for processing entire pipes and expanding the equipment's application range and processing capabilities.



    • Zero scrap cutting
    • Reversing cutting
    • Full-length pipe cutting
    • Two-chuck cutting mode
    • Three-chuck cutting mode ...



    ±45° 3D Bevel Cutting

    Unique reversing cutting function and powerful bevel cutting capabilities

    The Mega3-3D can easily perform processes such as double Y-bevel and double-angle cutting on pipe ends.



    This unique advantage enables the Mega3-3D to fully meet the requirements in pipe welding applications, providing more efficient and intelligent cutting solutions for industries such as oil and gas pipelines, fire protection systems, and steel construction.

    45 degree beaving with moving chuck

    Side-Mounted Stability

    Side Mounted method for Mega3 ensure more Stability

    Unique chuck side-mounting structure

    The design significantly lowers the pipe clamping and cutting height, specifically designed for processing heavy and large-diameter pipes, enabling an unobstructed automated loading and unloading process while guaranteeing efficient and stable cutting performance.
    This design breaks with tradition, utilizing a more scientific force distribution principle and a multi-dimensional triangular right-angle reinforcement structure, which not only provides stable support for the three heavy-duty chucks but also gives them quick response flexibility

    Suit Different Shape Tube Cutting

    High Clamping Adaptability

    The self-centering pneumatic chuck can easily achieve precise clamping of various pipe shapes in a single operation. Notably, the chuck is configured with two pairs of long and short clamping jaws, allowing it to quickly clamp non-closed channel steel, I-beams, and even complex irregularly shaped pipes without tedious adjustments or additional fixtures.



    Flexible Pipe Clamping, Stable and Reliable

    The chuck jaws have undergone carefully designed hardness treatment to ensure their durability and stability under high-intensity working conditions. Two flexible pipe clamping modes are supported. For small-diameter pipes, the external clamping method is used to ensure uniform and stable clamping force; for large-diameter pipes, the external support mode can be selected for more secure and reliable clamping.

    Mega3 chuck clamp method and tube type

    Cannon barrel structure for shorter tail ends

    Cannon barrel structure for shorter tail ends

    The front and rear chucks adopt a cannon barrel structure design, significantly shortening the length of the jaws.

    This design allows the rear chuck to easily penetrate the C2 chuck, getting as close as possible to the laser cutting head, thus achieving precise cutting of shorter tail ends and improving material utilization.

    BUS CNC Controller with Professional Tube Nesting Software

    FSCUT5000A Controller system & TubesT Nesting software

    Including the design and nesting of the tube, will finish more than 90% working before laser cutting

    Various shape metal tubes can be cut, such as triangle, oval, waist tube, and other open shaped tube & pipe, I beam, Channel beam process, pls contact with our sales...

    Monitoring window: "Visible" safety

    Safe operation area of New mega 3 with Monitoring window

    Safety Prevention

    The monitoring window displays the pipe cutting process inside the equipment in real time, providing operators with a wider observation range and a more flexible perspective. In case of emergencies, operators can detect and take emergency measures immediately, protecting personnel and equipment safety.

    Data Saving

    The monitoring system collects and saves monitoring images in real time. If the equipment malfunctions, the saved data can be used for analysis and troubleshooting, shortening troubleshooting time and improving equipment utilization efficiency.

    Comprehensive Safety Protection Design

    Comprehensive safety protection design for new mega3 tube laser cutter

    Not only designed to improve efficiency in cutting heavy-duty pipes, but it also incorporates meticulous safety features.

    A semi-enclosed area of the Mega3-3D heavy-duty fiber laser pipe cutting machine is created by safety barriers and the machine bed, while an independent safe working area is established for the operator.

    Safety light curtains are added to the loading and unloading areas, creating a flexible yet fully enclosed space. If personnel enter the protected area, the safety light curtain will be triggered, causing the equipment to immediately alarm and stop processing.

    Samples Show

    Heavy-duty Pipe Cutting Machine For Different Shape Tubes

    H Beam Laser Cut Sample

    H steel laser cutting edge

    4mm Stainless Steel Pipe Laser Beveling

    Round Tube laser Cutting 4MM

    Thick Carbon Steel Tube Laser Cut Sample

    CS thick pipe cut
    View More Pipe Samples

    3 Chucks Laser Tube Cutting Machine Video

    Contact Golden Laser experts today to get pricing on our New Mega3-3d 3-chuck laser tube cutting machine for your desired tube diameter and length.

    Get a Quote

    Material & Industry Application

    Applicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel and so on.



    Applicable Types of Tubes

    Large diameter Round tube, Square tube, Rectangle tube, I beam, Channel beam, Angle iron and so on

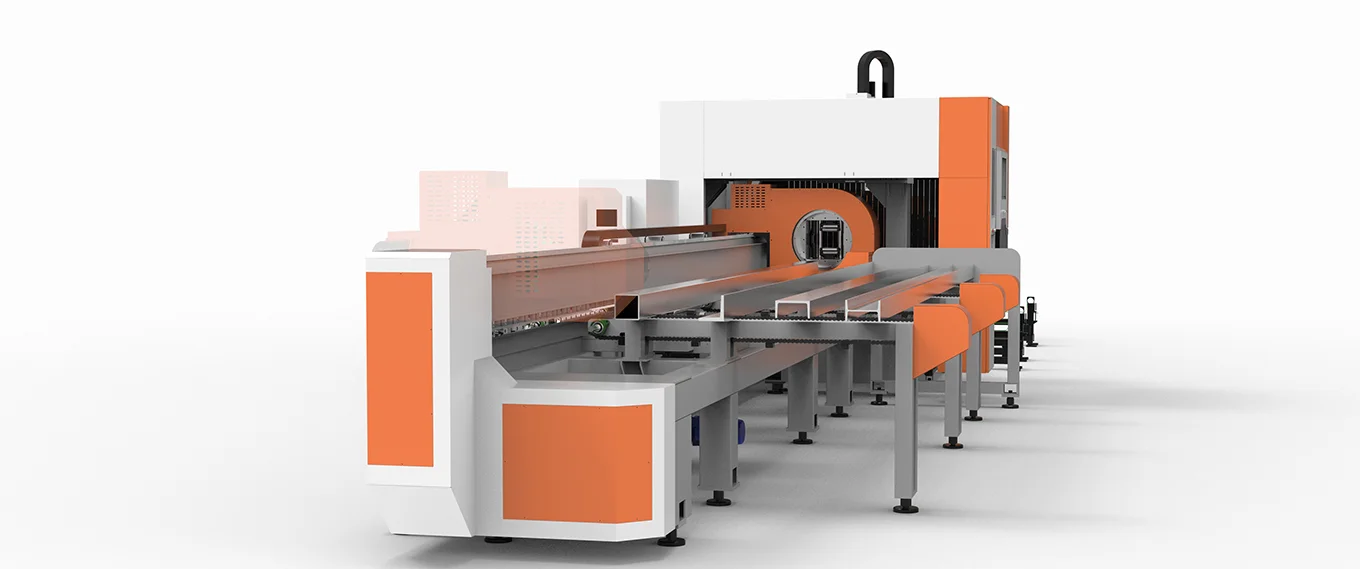

     New mega3 loading different type tubes

    Application Industry

    Mega Series heavy-duty tube laser cutting machine. Mainly used in the tubes processing industry, etc, building structure, bridge  fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack, and other industries, tube and shaped pipe, and other profile processing.

     Heavy-duty vehicles Shipbuilding and heavy industry Steel bridge industry

    Machine Technical Parameters

    New Mega3-D Tube Laser Cutter Technical Parameters

    Model number Meag3-3D (2026)
    Laser power 4000watt; 6000watt; 8000watt; 12000watt;
    Laser source IPG / Raycus / Max fiber laser resonator
    Tube length 6000mm
    Single Tube Weight 1ton
    Tube diameter Round Tube: Ø20mm-Ø360mm /Ø20mm-Ø450mm /Ø20mm-Ø520mm Ø20mm-Ø650mmSquare Tube:200*20mm -360*360mm/
    Tube type Round, square, rectangular, oval, OB-type, C-type, D-type, triangle, etc (standard);
    Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Position accuracy  ± 0.05mm/m
    Position speed Max 60m/min
    Chuck rotation speed Max 60r/min
    Acceleration 0.5g
    Controller FSCUT with TubesT
    Graphic format Solidworks, Pro/e, UG, IGS
    Bundle size Length: 3500mm to 6000mm,
    Bundle weight Max 3 Tons
