    • S09 Fully Enclosed (CE Standard) Fiber Laser Tube Cutting Machine For Small Tubes



     The S09 Tiny Tube Fiber Laser Cutter for high-value manufacturing. Unlock unparalleled efficiency and flawless results in small tube processing (ø10-90mm).  Fully automated, from loading to collection.

    Why Choose S09 Small tube laser cutter

    Fully Enclosed Protection



    Golden Laser S09 not only includes the chuck movement area and cutting and unloading stations, but also has the top of the equipment fully enclosed and protected with sheet metal.

    No dust and fumes during cutting operations design, ensuring a clean working environment.

    The sheet metal protection also effectively isolates laser radiation, preventing accidental injury to operators from moving mechanical parts, thus comprehensively protecting personnel safety.

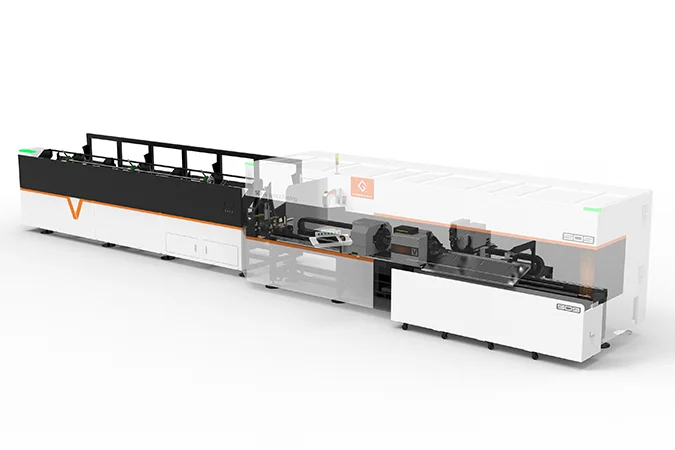

    S09 small tube laser cutting machine fully enclosed design

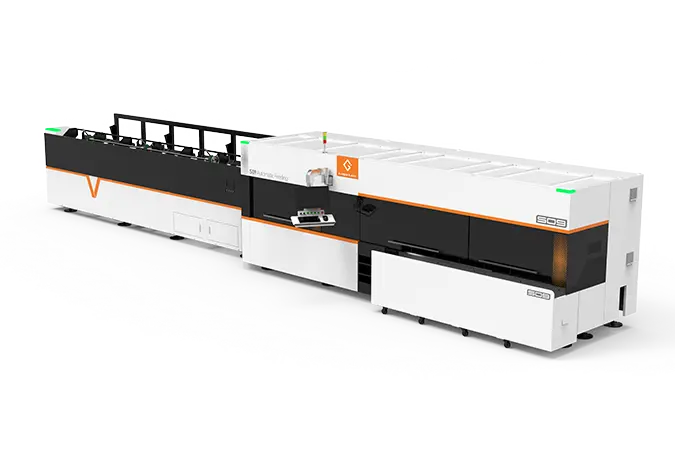

    S09 small tube laser cutting machine high performance

    Superior Dynamic Performance



    Maximum Acceleration: 1.5g
    Maximum Positioning Speed: 120m/min
    Maximum Rotation Speed: 200r/min



    Significantly improves overall cutting speed and reduces idle travel time, enhancing processing efficiency.

    Minimizes laser energy redundancy caused by low efficiency, preventing ablation of surface materials when cutting small tubes.

    Extremely rapid positioning and path switching significantly shorten non-cutting times such as feeding and idle travel, improving overall processing efficiency.

    Achieve Automated Processing of ø10-80mm small tubes



    The S09 is equipped with a fully automated small tube feeding system independently designed by Goldenlaser.



    It is specifically designed for batch processing of round and square tubes, realizing a one-stop closed-loop processing from automatic feeding, precise delivery, efficient cutting to orderly collection, significantly improving production efficiency and process flexibility.

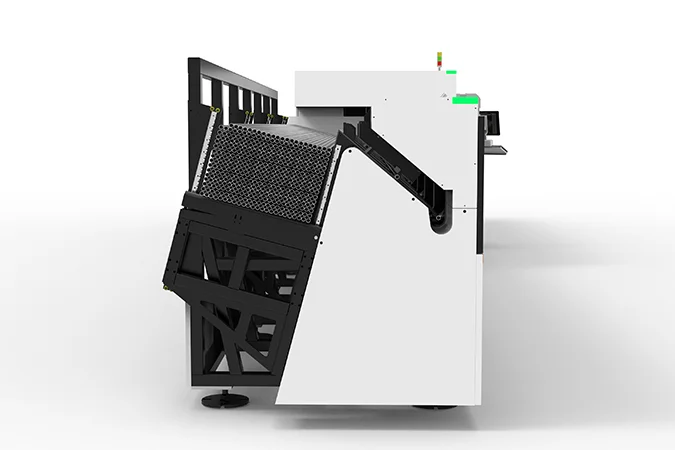

    S09 tube laser cutting machine loading small tubes

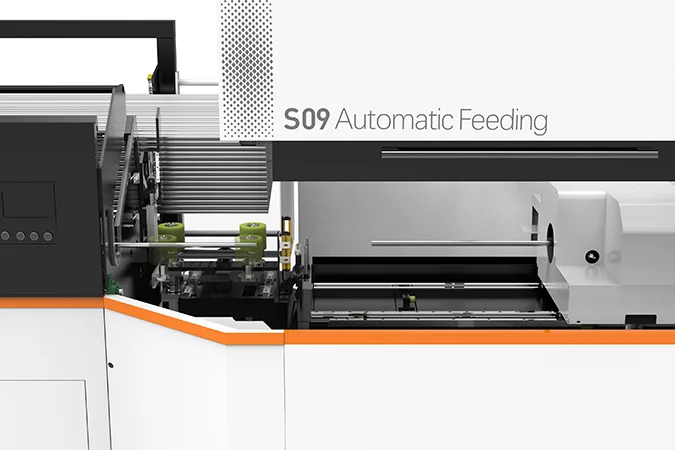

    S09 small tube laser cutting machine continous cutting design

    Continuous Cutting with "Zero Waiting Time"



    This innovation achieves highly efficient, seamless integration of cutting and material feeding, completely revolutionizing the traditional pipe-cutting process.



    Through a dual-station collaborative control system and intelligent path planning algorithms, the equipment can seamlessly connect the clamping and positioning of new pipes, significantly improving overall processing efficiency.

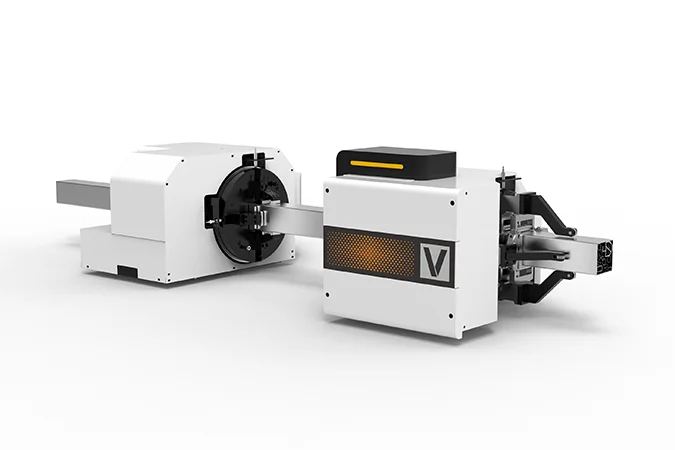

    Precision Pneumatic Chuck



    Ensures that thin-walled tubes are held firmly without deformation during clamping, making daily maintenance extremely simple, greatly reducing downtime and maintenance costs, and improving overall work efficiency.

    • High sealing performance
    • Clamping force
    • Wear-resistant and durable



    S09 small tube laser cutting machine chucks

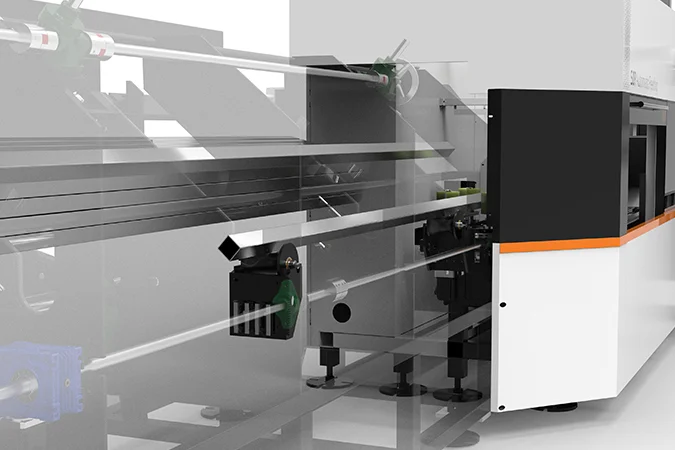

    S09 small tube laser cutting machine Floating Idler Support System at the Feeding End

    Floating Idler Support System at the Feeding Parts



    Leveraging the high degree of coordination between servo control technology and system control, it achieves rapid and precise dynamic response, ensuring that the idler rollers are always in close contact with the bottom of the pipe.



    • This solves the problem caused by the varying heights of square and rectangular pipes and their centers of rotation,
    • eliminating concerns about poorly cut long or small pipes with insufficient rigidity.

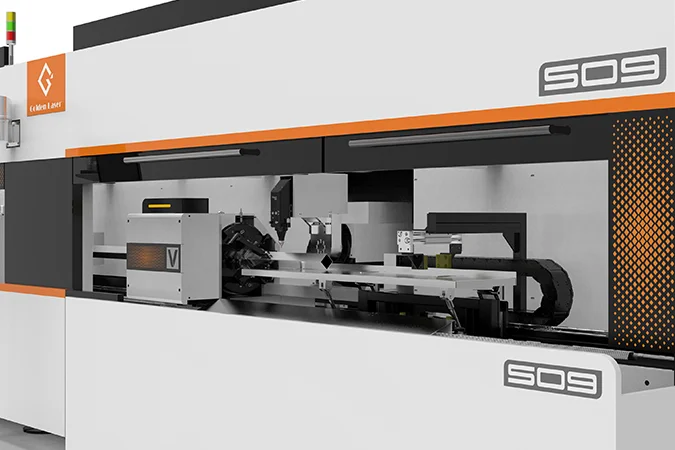

    Floating Flap Support at the Unloading Parts



    This effectively ensures the stability of long workpieces during rotary cutting, thereby improving cutting accuracy.



    • Dynamic support for various tube types
    • Floating support ensures accuracy for long workpieces
    • Ensuring the support wheels maintain close contact with the bottom of the tube for stable support.



    S09 tube cutter Floating flap support at the unloading end

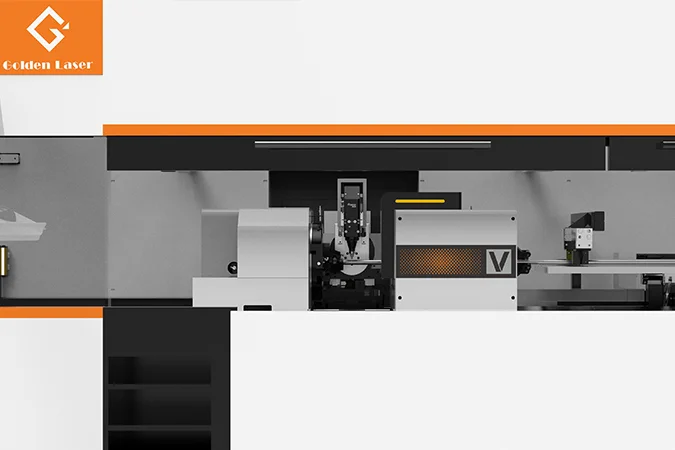

    S09 small tube laser cutter chuck avoid function

    Chuck-avoidance Cutting Reduces Waste Material



    Achieving ultimate optimization of material usage while ensuring the cutting accuracy of the last workpiece.



    Incorporating automatic avoidance cutting technology, the cutting head can flexibly move between the front and rear chucks, cutting close to the rear chuck's clamping area.

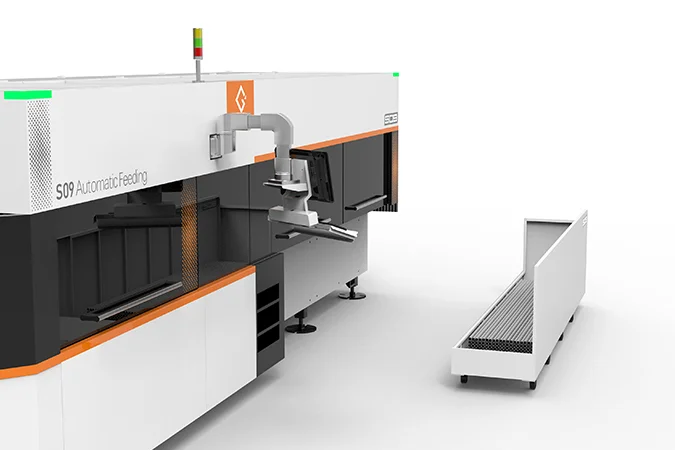

    Centralized Collection and Convenient Processing



    This provides a reliable guarantee for the smooth operation of the production process.

    With independent workpiece receiving boxes, this area can safely and orderly store a certain number of workpieces for unified retrieval and handling, significantly reducing the frequency of operations.

    It also avoids the problem of inefficient collection due to scattering.

    S09 small tube laser cutter materials collection
    S09 small tube laser cutting machine beveling on round tube

    Versatility in Pipe Beveling



    The intelligent cutting control system, combined with a multi-axis motion machine tool design, greatly enhances the equipment's applicability.



    This includes bevel chamfering, end face Y/V-shaped bevels, as well as circular, square holes, and V-shaped bevel cuts on the surface of tubes, significantly expanding the applicable scope of the equipment.

    FSCUT5000A BUS Controller system & TubesT Nesting software



    Including the design and nesting of the tube, will finish more than 90% working before laser cutting



    Various shape metal tubes can be cut, such as triangle, oval, waist tube, and other open shaped tube & pipes, I beam, Channel beam process, pls contact our sales...

    Details of S09 CE Equipment Composition

    Personalize design mainly focuses on solving the small tube laser cutting efficiency and consistency.

    Contact us if you are interested in or have any customization request.

    Get New Price

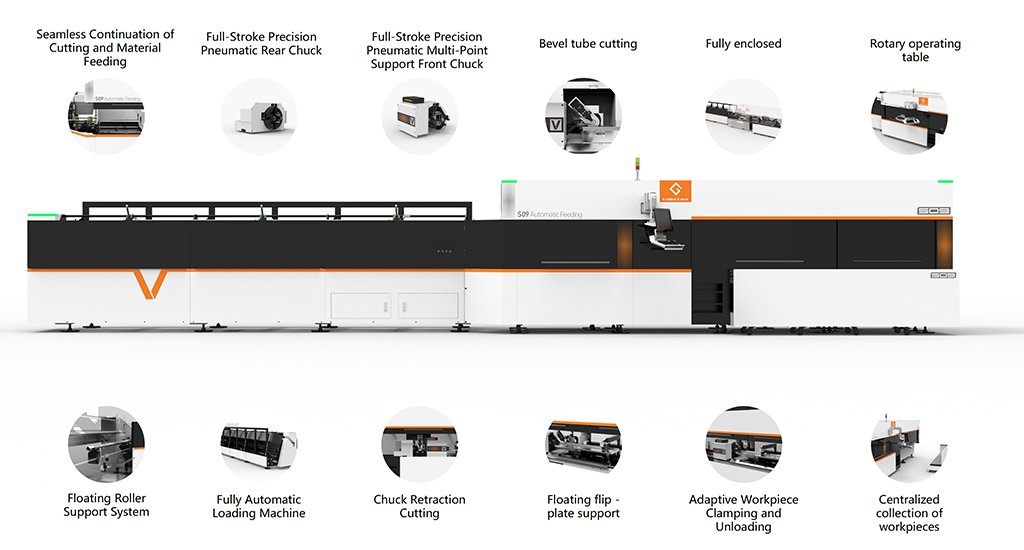

    S09 CE Details of Equipment Composition

    Samples Show

    Pipe Cutting Machine For Different Shape Tubes

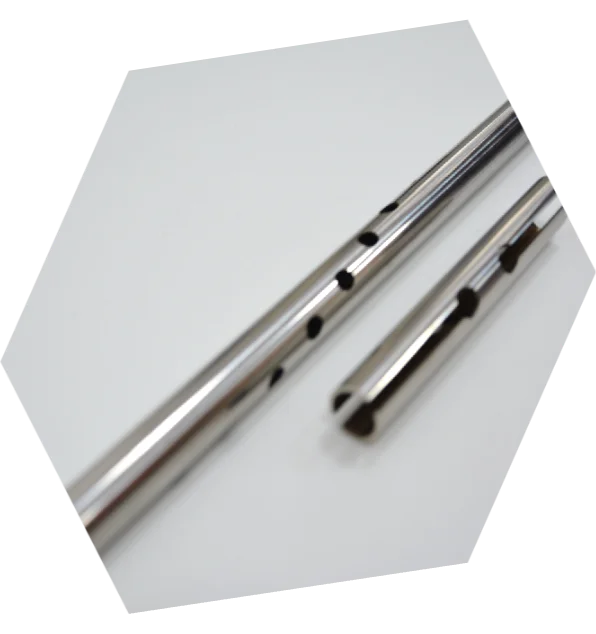

    Stainless Steel Round Tube Laser Cutting Result

    stainless steel round small tube laser cutting

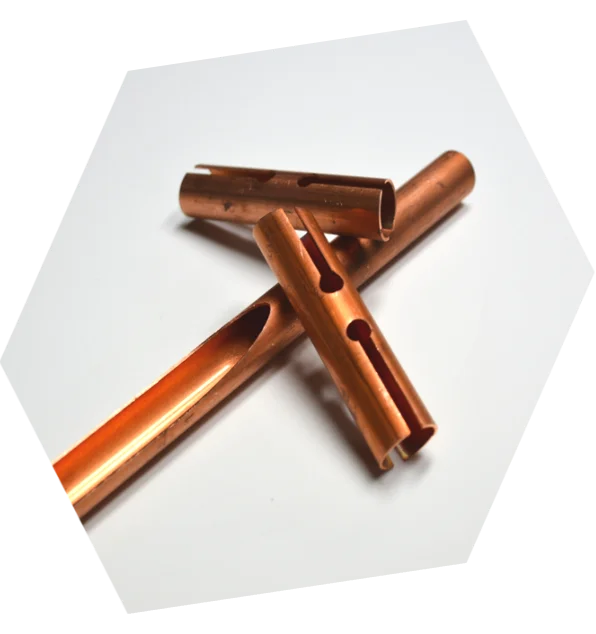

    Brass Tube Laser Cutting Result

    brass small tube laser cutting result

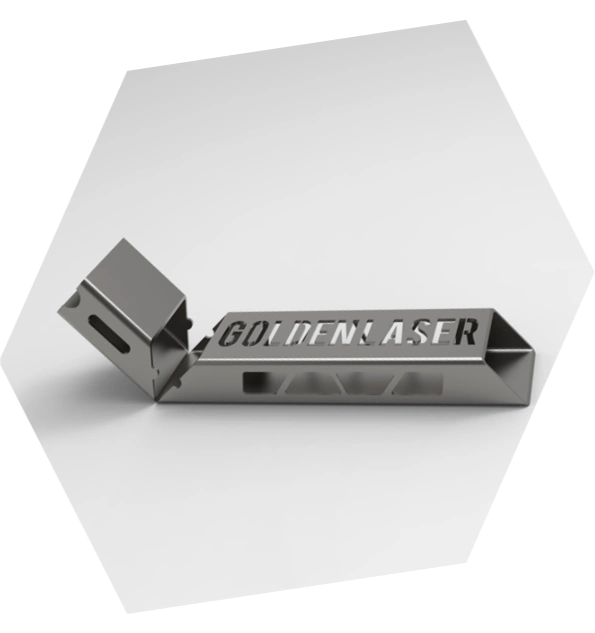

    Square Steel Tube Laser Cut Sample

    square tube laser cutting and bending
    View More Pipe Samples

    S09 CE Small Tube Laser Cutting Machine Video

    Contact Golden Laser experts today to get pricing on our CE standard tiny tube laser cutting machine for your desired tube diameter and length.

    Get a Quote

    Material & Industry Application

    Applicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel and so on.



    Applicable Types of Tubes

    Large diameter Round tube, Square tube, rectangular tube, I beam, Channel beam, Angle iron, and so on



    Application Industry

    Mega Series heavy-duty tube laser cutting machine. Mainly used in the tubes processing industry, etc, building structure, bridge, fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack, and other industries, tube and shaped pipe, and other profile processing.

    Baby bicylicDisplay frameMetal Furnture

    Machine Technical Parameters

    S09 Fully Enclosed (CE Standard) Fiber Laser Tube Cutting Machine Technical Parameters

    Model number S09  (European Market Edition)
    Laser power 3000watt; 4000watt; 6000watt; 8000watt;
    Laser source IPG / Raycus / Max fiber laser resonator
    Tube length 6000mm
    Automatic Loading Tube Diameter Round Tube: Ø10mm-Ø80mmSquare Tube:10*10mm -80*80mm/
    Tube diameter Round Tube: Ø10mm-Ø90mmSquare Tube:10*10mm -90*90mm/
    Tube type Round, square, rectangular, oval, OB-type, C-type, D-type, triangle, etc (standard);
    Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Position accuracy  ± 0.05mm/m
    Position speed Max 120m/min
    Chuck rotation speed Max 200r/min
    Acceleration 1.5g
    Controller FSCUT with TubesT
    Graphic format Solidworks, Pro/e, UG, IGS
    Bundle size Length: 3500mm to 6000mm,
    Bundle weight Max 1 Tons
