Four Chucks Tube Laser Cuttting Machine

  • Four Chucks Tube Laser Cuttting Machine
  • Four Chucks Tube Laser Cuttting Machine

Four Chucks automatic High-end intelligent CNC  laser tube cutting machine,

suit for 12meter long tube up loading and down loading automatically,

350mm diameter large tube and profile cutting.

Fiber laser cutting machine’s HS code: 84561100

  • Model number : Mega4
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets Per Month
  • Port: Wuhan / Shanghai or as your requirement
  • Payment Terms: T/T, L/C

Machine Details

Material & Industry Application

Machine Technical Parameters

Related products

0 Tailer Tube Laser Cutting Solution -Four Chucks Tube Laser Cutter

Side-Mounted Bed Structure...



Ensure the supper long design of tube laser cutting machine

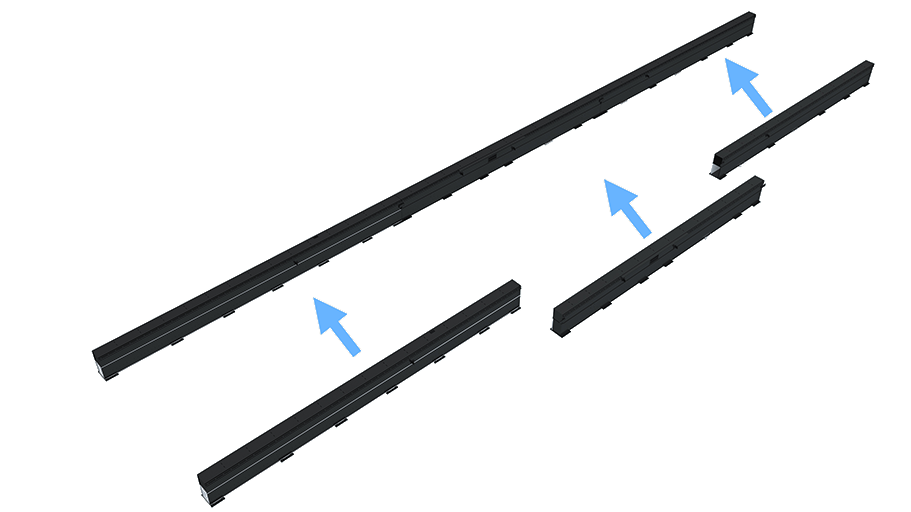

The modular bed structure ensures the customizable scalability of the overall machine body



Side-Mounted Bed Structure
two middle chucks of tube laser cutting machine

Two 350mm Diameter Tube Main Chucks...



Two New Generation Casting Main Chucks in the Center of the tube cutter.





Two Large Power Pneumatic Tube Tail Chuck...



Adjust power to capture large and heavy tubes,

The end chuck also uses a pneumatic chuck valid for tube diameter from 20-350mm. Special mold support special shape pipe, like L tubes, I beam, Channel steel...

end chuck to hold the tube for laser cutting

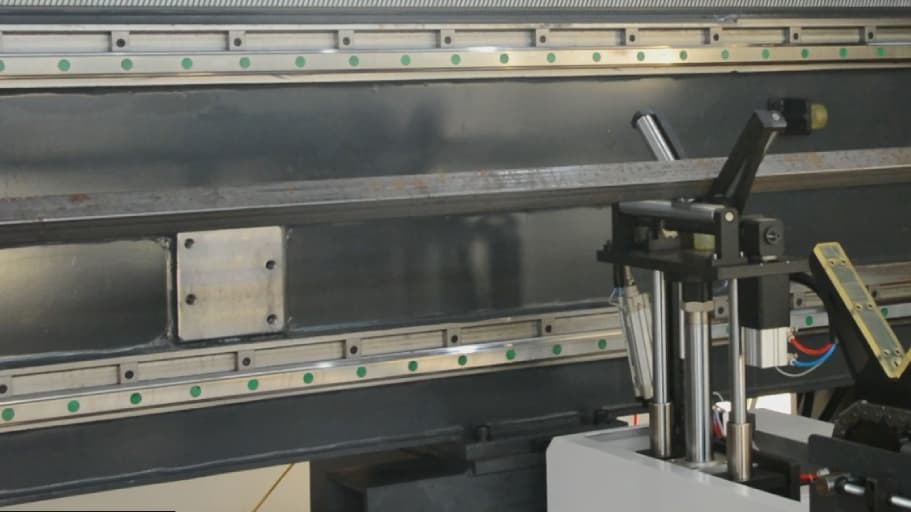

movable Tube supportor

Movable Servo Controller Strong Pipe Supporter...



Y and I Shape wheel suit for large sizes and heavy tubes with different shapes.



Germany PA BUS cnc controller with Spain Lanteck CAM software ...



Including the design and nesting of the tube, will finish more than 90% working before laser-cut,

Various shape metal tubes can be cut like a triangle, oval, waist tube, and other open shaped tube & pipe, I beam, Channel beam process, pls contact with our sales...

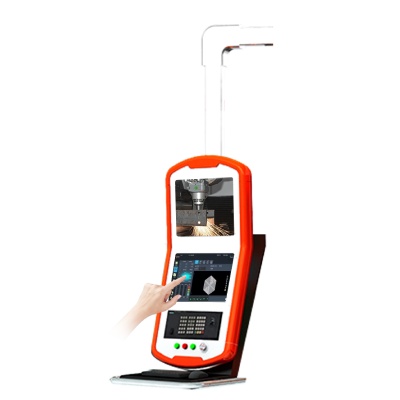

PA CNC controller new
touch screen

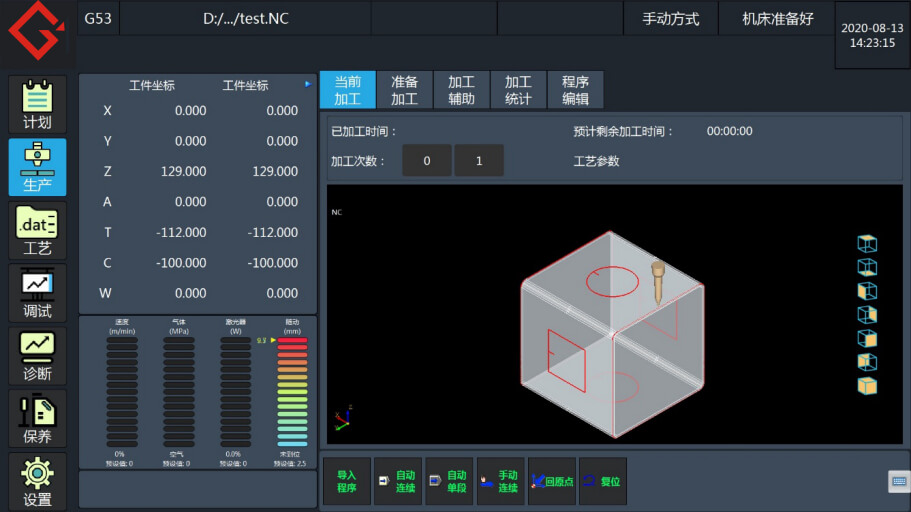

New architecture PA touch screen bus cutting system...



The cutting system uses a brand-new UI interface.



After the system is upgraded, it includes 7 modules: planning, production, process, debugging, maintenance, diagnosis, and setting.

The entire system is more intelligent and digital and can be seamlessly connected with the EMS intelligent cloud data management system of the intelligent manufacturing factory...

12 Meter Automatic Collecting Device...



Movable Tube Supporter to feed Finished Tube into the Tube Collection System.



12 meter tube loader
3D laser head for tube beveling

3D Laser Tube Easy for Beveling...



X, Y,  Metal Beveling as you need.



Imported Germany LT 3D Laser head and Golden Laser 3D laser Head for choice.

Samples Show - High-end intelligent CNC Laser Pipe Cutting Machine For Different Shape Tube

More Pipe Laser Cut Samples

H Beam Laser Cut

H steel laser cutting edge

4mm Stainless Steel Pipe Laser Beveling

Round Tube laser Cutting 4MM

Thick Carbon Steel Tube Laser Cut

CS thick pipe cut

Four Chucks Laser Tube Cutting Machine Video

  • Previous:
  • Next:

    • 0 Tailer Tube Laser Cutting Solution -Four Chucks Tube Laser Cutter

    Side-Mounted Bed Structure...



    Ensure the supper long design of tube laser cutting machine



    The modular bed structure ensures the customizable scalability of the overall machine body



    Side-Mounted Bed Structure
    two middle chucks of tube laser cutting machine

    Two 350mm Diameter Tube Main Chucks...



    Two New Generation Casting Main Chucks in the Center of the tube cutter.





    Two Large Power Pneumatic Tube Tail Chuck...



    Adjust power to capture large and heavy tubes,

    The end chuck also uses a pneumatic chuck valid for tube diameter from 20-350mm. Special mold support special shape pipe, like L tubes, I beam, Channel steel...

    end chuck to hold the tube for laser cutting
    movable Tube supportor

    Movable Servo Controller Strong Pipe Supporter...



    Y and I Shape wheel suit for large sizes and heavy tubes with different shapes.



    Germany PA BUS cnc controller with Spain Lanteck CAM software ...



    Including the design and nesting of the tube, will finish more than 90% working before laser-cut,

    Various shape metal tubes can be cut like a triangle, oval, waist tube, and other open shaped tube & pipe, I beam, Channel beam process, pls contact with our sales...

    PA CNC controller new
    touch screen

    New architecture PA touch screen bus cutting system...



    The cutting system uses a brand-new UI interface.



    After the system is upgraded, it includes 7 modules: planning, production, process, debugging, maintenance, diagnosis, and setting.

    The entire system is more intelligent and digital and can be seamlessly connected with the EMS intelligent cloud data management system of the intelligent manufacturing factory...

    12 Meter Automatic Collecting Device...



    Movable Tube Supporter to feed Finished Tube into the Tube Collection System.



    12 meter tube loader
    3D laser head for tube beveling

    3D Laser Tube Easy for Beveling...



    X, Y,  Metal Beveling as you need.



    Imported Germany LT 3D Laser head and Golden Laser 3D laser Head for choice.

    Samples Show - High-end intelligent CNC Laser Pipe Cutting Machine For Different Shape Tube

    More Pipe Laser Cut Samples

    H Beam Laser Cut

    H steel laser cutting edge

    4mm Stainless Steel Pipe Laser Beveling

    Round Tube laser Cutting 4MM

    Thick Carbon Steel Tube Laser Cut

    CS thick pipe cut

    Four Chucks Laser Tube Cutting Machine Video

  • Previous:
  • Next:

    • Material & Industry Application

    Applicable Materials

    Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel, alloy steel and so on.



    Applicable Types of Tubes

    Large diameter Round tube, Squre tube, Rectangle tube, I beam, Channel beam, Angle iron and so on



    Application Industry

    Mainly used in tubes processing industry etc, building structure, bridge  fitness equipment, office furniture, shelves, steel structure, medical industry, rail rack and other industries tube and shaped pipe and other profile processing.



    applicable-types-of-laser-cutting-tube

    Machine Technical Parameters

    High-end intelligent CNC  laser pipe cutting machine Mega Series

    Tube Laser Cutter Technical Parameters

    Model number Meag4 (P35120A)
    Laser power 4000watt; 6000watt; 8000watt; 12000watt;
    Laser source IPG / Raycus / Max fiber laser resonator
    Tube length 12000mm
    Tube diameter Ø20mm-Ø350mm /Ø20mm-Ø450mm
    Tube type Round, square, rectangular, oval, OB-type, C-type, D-type,triangle, etc (standard);
    Angle steel, channel steel, H-shape steel, L-shape steel, etc (option)
    Repeat position accuracy ± 0.08mm/10m
    Position accuracy  0.1mm/10m
    Position speed Max 60m/min
    Chuck rotate speed Max 75r/min
    Acceleration 0.8g
    Graphic format Solidworks, Pro/e, UG, IGS
    Bundle size 12000mm*350mm* 5 Pcs
    Bundle weight Max 1200kg*5
