Nesting Software Lantek Flex3d For Golden Vtop Tube Laser Cutting Machines

Lantek Flex3d Tubes is a CAD/CAM software system for designing, nesting and cutting parts of tubes and pipes, which plays a value role in Golden Vtop Laser Pipe Cutting Machine P2060A.

metal tube laser cutter price

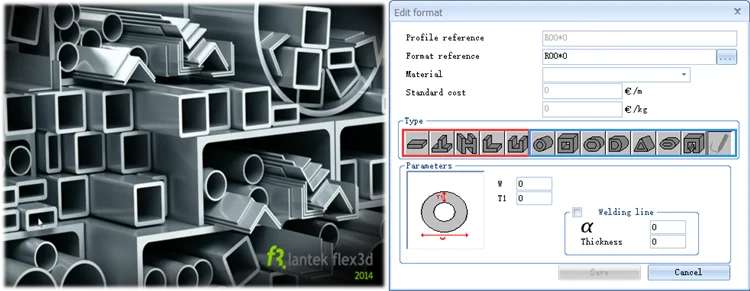

To meet the needs of industry applications, irregulared-shape pipes cutting has become very common; And Lantek flex3d can support various types of tubes including irregulared-shape pipes. (Standard pipes:Equal diameter pipes such as round, square, OB-type, D-type, triangular, oval etc. Meanwhile, flex3d is equipped with profile cutting function modules to cut angle steel, channel and H-shaped steel, etc.)

fiber laser tube cutting machine

Lantek Flex3d Tubes integrates with various kinds of tubular geometry importers such as SAT and IGES. This software allows 3D design to be simple and intuitive. It gives a true vision of the resulting design profile that will eventually be cut on a machine.

Spanish Lantek software – Focus on tube parts design module

图片3_副本

 Flex3d Main Operation Interface

Include abundant programming operation information such as spare parts list, material list, nesting list, parts preview, nesting picture preview.

fiber laser tube cutter price



tube laser cutter machine

FLEX3D Professional Pipe CAD Module

Automatic nesting fuction can be automatically matched with raw materials which have the same type and same cross-section

Complete the automatic nesting of various pipes at one time.

metal tube laser cutting machine

Supporting conventional nesting and edge-sharing nesting cutting; Supporting oblique angled edge-sharing nesting cutting.



fiber laser pipe cutting machine

Three-cut Oblique Angled Edge-sharing Nesting Cutting

Three-cut cutting is industry’s unique which aims at oblique angled edge-sharing.

To remove end surface protrusion of oblique angled edge-sharing cutting, thus faciliate welding and reduce follow up manual processing.

fiber laser tube cutter price

Automatic Island Edge-sharing

The system can automatically acheive island edge-sharing in the end surface; To be the first to ahcieve island one cut in the industry which greatly improved processing efficiency.

fiber laser tube cutter price

Segment Processing

For long holes, in order to avoid cutting holes into the chuck, the contours are taking segment processing.

steel pipe laser cutter price

Cutting Methods

As for different cutting ways for internal diameter and outer diameter, the system will componsate according to pipe thickness to ensure that the pipe can be successfully inserted.

fiber laser tube cutter price

Advanced Pipe Processing Technology

Lantek owns professional pipe processing technologies:

processing order, cutting direction, compensation (system / CNC compensation), hierarchical / automatic layering, introducing and pinout, micro-connections, contour cutting, add / modify / delete cutting vectors, and so on.

6m tube laser cutting machine

 Welding Beam Avoiding

The pipe welding position can be set to ensure that the cutting head could avoid welding beam in processing and aviod hole blasting in the weling joints.

fiber laser tube cutter price

Equal-diameter Welding Groove Technology

fiber laser sheet cutter price

 Vertical Cutting and Normal Cutting

As for small hole, it takes vertical cutting in which that the pipe does not need to rotate and complete process quickly

metal tube laser cutter price

 Modify Vector Angle – Inner Corner Avoiding

As for special and abnormal-shaped pipe cutting, in order to avoid the collisiion between cutting and pipe, the vertor can be modified manually.

laser cutter for metal tube

 Comparasion Between Advanced 3D and 2D

For same part, it can simultaneously dispaly 3D and 2D data model to faciliate the displaying and editing of multi-surface pipe processing.

steel pipe laser cutter

 4-axis Cutting Settings and Applications

Support 4-axis processing module (adding a swing shaft to the cutting head)

metal tube laser cutter price

 5-axis Cutting Settings and Applications

Supports 5-axis processing modules; Adding swing and rotation axis or double swing to the cutting head

steel pipe laser cutting machine

Groove Welding Setting and Application

Groove application for 4-axis and 5-axis machines

cnc pipe laser cutting machine

Simulation Processing

Simulation processing simulate the detailed single-step / single-profile / full-process to acheive real-time displaying of all axes coordinate information, automatically detect the cutting head collision and give alarming.

fiber laser tube cutter

Raw Material Inventory Management

stainless steel laser cutting machine

 Task Management

steel pipe laser cutting machine

 Offcut Management

fiber laser pipe cutter price
