700w Open Type Fiber Laser Cutting Machine GF-1530

The model GF-1530 fiber laser cutting machine with the cutting area 1500mm*3000mm ; Mainly adopts the small power, from 700w-3000w fiber laser generator, open design easy to loading and down load the metal materials. Drawer type collection box easy to sellect the finished pieces after cutting. The machine size right suit for a 20GP, easy for delivery.

…………………………………………………………………………………………………………………………………………….

Model number: GF-1530

Laser source: IPG / nLIGHT fiber laser generator

Laser power: 700w (1000w, 1200w, 1500w, 2500w, 3000w for option)

Cnc controller: Cypcut controller

Laser head: Raytools laser cutting head from Swiss

Cutting area: 1500mm X 3000mm

Max cutting thickness: 10mm carbon steel, 4mm stainless steel, 3mm aluminum, 3mm brass, 2mm copper, 3mm galvanized steel.

  • Model number : GF-1530

Machine Details

Material & Industry Application

Machine Technical Parameters

700w Open Type Fiber Laser Cutting Machine GF-1530

700w Fiber Laser Cutting 10mm Carbon Steel Sheet

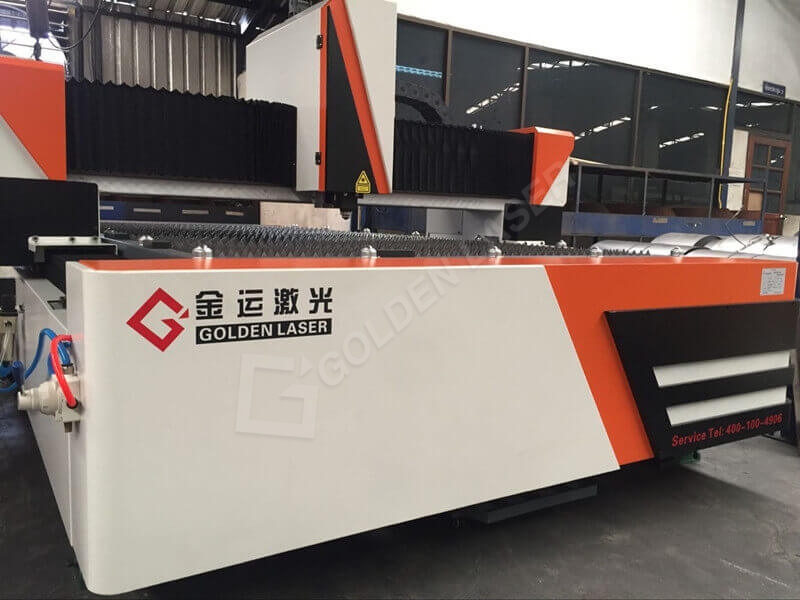

metal laser cutter

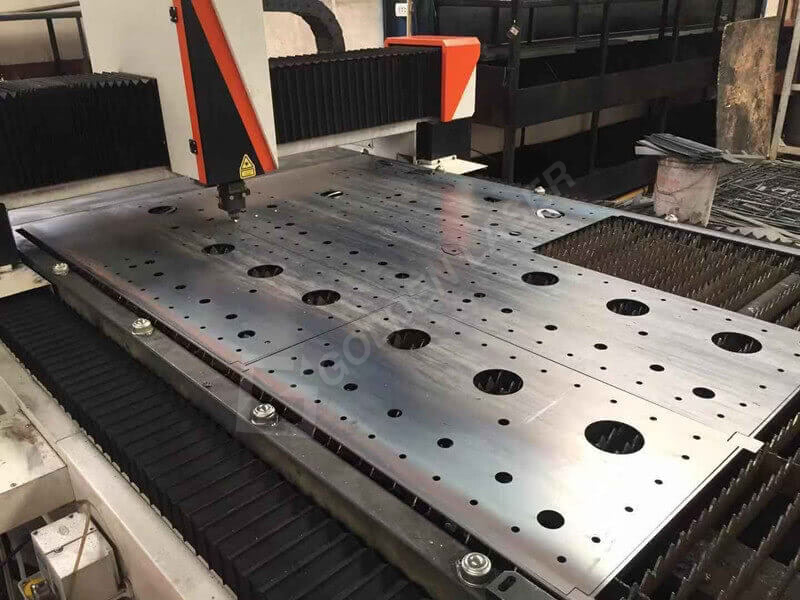

steel laser cutting

GF-1530 700W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

Material

Cutting Limit

Clean Cut

Carbon steel

10mm

8mm

Stainless steel

4mm

3mm

Aluminum

3mm

2mm

Brass

3mm

2mm

Copper

2mm

1mm

Galvanized steel

2mm

2mm

Machine Features

Open type structure for easy loading and unloading.

Single working table saves floor space.

Drawer trays facilitate the collection and cleaning of small parts and scraps after laser cutting.

Gantry dual-drive configuration, high damping bed, good rigidity, ensure high cutting speed and high acceleration cutting result.

Golden Laser mainly use the world’s leading fiber laser resonator like IPG, n-LIGHT, and germany electronic components to ensure superior stability.

Watch The Video - 700w GF-1530 Fiber Laser Cutting Machine In Thailand Factory


  • Previous:
  • Next:

  • 700w Open Type Fiber Laser Cutting Machine GF-1530

    700w Fiber Laser Cutting 10mm Carbon Steel Sheet

    metal laser cutter
    steel laser cutting

    GF-1530 700W Fiber Laser Cutting Capacity (Metal Cutting Thickness)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    10mm

    8mm

    Stainless steel

    4mm

    3mm

    Aluminum

    3mm

    2mm

    Brass

    3mm

    2mm

    Copper

    2mm

    1mm

    Galvanized steel

    2mm

    2mm

    Machine Features

    Open type structure for easy loading and unloading.

    Single working table saves floor space.

    Drawer trays facilitate the collection and cleaning of small parts and scraps after laser cutting.

    Gantry dual-drive configuration, high damping bed, good rigidity, ensure high cutting speed and high acceleration cutting result.

    Golden Laser mainly use the world’s leading fiber laser resonator like IPG, n-LIGHT, and germany electronic components to ensure superior stability.

    Watch The Video - 700w GF-1530 Fiber Laser Cutting Machine In Thailand Factory


  • Previous:
  • Next:

  • Material & Industry Application


    Applicable Materials

    Golden Vtop Fiber Laser Cutting Machine is a professional cutting equipment to cut carbon steel,mild steel,stainless steel, galvanized steel, aluminum, brass,copper and other various metal materials.

    Applicable Industries

    Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc.

    GF-1530 Machine For Cutting Metal Craft

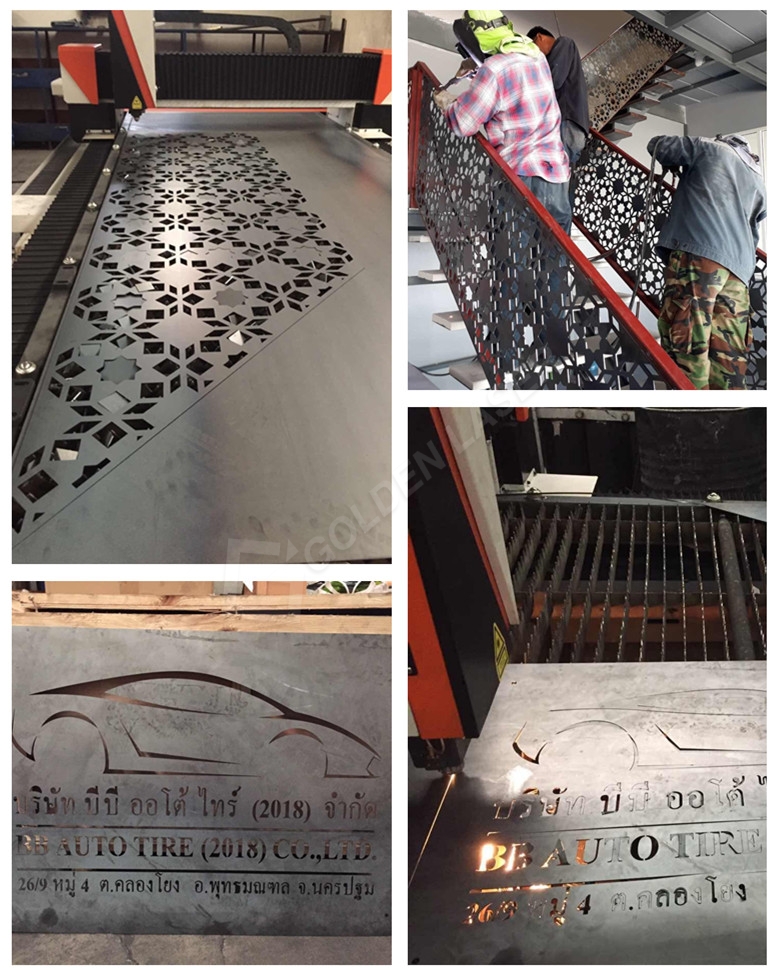

    laser cutting machine for metal door flower

    Machine Technical Parameters


    Open Type GF-1530 Sheet Fiber Laser Cutting Machine Technical Parameters

    Model number GF-1530
    Cutting area L3000mm*W1500mm
    Laser source power 700w (1000w, 1200w, 1500w, 2500w, 3000w for option)
    Repeat position accuracy ±0.03mm
    Position accuracy ±0.05mm
    Maximum position speed 60m/min
    Cut acceleration 0.6g
    Acceleration 0.8g
    Graphic format DXF, DWG, AI, supported AutoCAD, Coreldraw
    Electric power supply AC380V 50/60Hz 3P
    Total power consumption 14KW

                                                                   GF-1530 Machine Main Collocation

    Article Name Brand
    Fiber laser source IPG
    CNC Controller & Software CYPCUT LASER CUTTING CONTROL SYSTEM BMC1604
    Servo motor and driver DELTA
    Gear rack KH
    Liner guide HIWIN
    Laser head RAYTOOLS
    Gas valve AIRTAC
    Reduction gear box SHIMPO
    Chiller TONG FEI
