3000w Cnc Fiber Laser Round Square Rectangular Tube / Pipe Laser Cutter

P3080 is one of a full enclosed cnc laser tube cutting machine made by Golden Laser

which can process the tube with length 8m and tube diameter 20mm-300mm. automatic bundle loader is an optional choice

…………………………………………………………………………………………………………………………………….

Model number: P3080 (P3080A, automatic bundle loader for option)

Laser source: IPG / nLight fiber laser generator

Laser source power: 3000w (1000w 1500w 2000w 2500w 4000w optional)

Cnc controller: Cypcut / Germany PA HI8000

Nesting software: Spain Lantek

Laser head: Raytools or Precitec laser cutting head

Tube length: 8m

Tube diameter: 20mm-300mm

Applicable materials: Stainless steel, carbon steel, aluminum, brass, copper, galvanized steel etc.

Applicable industry: heavy machinery, steel structure, tube & pipe processing industry etc.



  • Model number : P3080

Machine Details

Material & Industry Application

Machine Technical Parameters

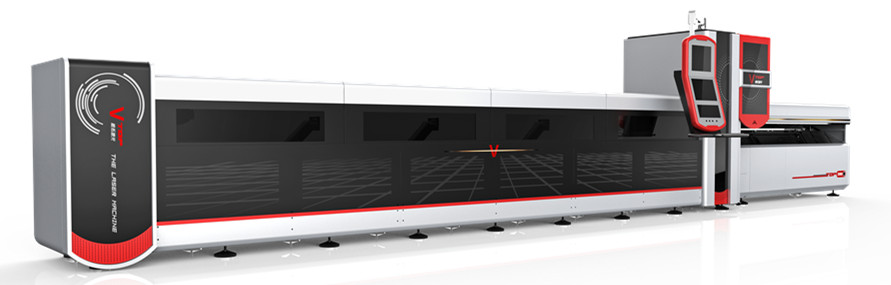

Cnc Fiber Laser Round Square Rectangular Tube / Pipe Laser Cutting Machine P3080

Golden Laser tube / pipe laser cutting machine P3080 adopts most sophisticated fiber laser resonator N-light / IPG, and imported fiber laser cutting head Raytools,combining self-design, gantry CNC machine and high strength welding body. And its processing tube length is 8m (6m optional), tube diameter Φ20mm-300mm. CNC PA controller with CAM Lantek nesting software realize industry 4.0

fiber laser tube cutting machine price

Machine Features

Integrated main body makes the whole tube laser cutting machine with good concentricity, verticality and precision.

Dual motive chucks are compatible with a variety of pipe without adjusting jaws.

Automatic boundary, automatically find center, automatic compensation function easy to process different shape tube.

Adjustable perforation frequency.

High damping bed, good rigidity, ensure high cutting speed and high acceleration.

Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose.

The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.

Professional CNC pipe laser cutting control system Germany PA and nesting software (CAM) Spain Lantek.

Integrated circuits, streamline laying provides easy maintenance and low failure rate.

Visual scale adjustable lifting support device saves feeding time, ensures concentricity, prevents pipe swinging during cutting.

Innovative one-way air control tightness claw helps extend cylinder life.

Optimized claw holding pressure ensure 1mm thickness tube without deformation.

3000w Fiber Laser Tube Cutting Machine (metal cutting thickness ability)

Material

Cutting Limit

Clean Cut

Carbon steel

22mm

20mm

Stainless steel

12mm

10mm

Aluminum

10mm

8mm

Brass

8mm

8mm

Copper

6mm

5mm

Galvanized steel

8mm

6mm

Laser Tube Cutting Machine Customer Site

Watch The Video

Tube laser cutting machine in metal Furniture factory


  • Previous:
  • Next:

  • Cnc Fiber Laser Round Square Rectangular Tube / Pipe Laser Cutting Machine P3080

    Golden Laser tube / pipe laser cutting machine P3080 adopts most sophisticated fiber laser resonator N-light / IPG, and imported fiber laser cutting head Raytools,combining self-design, gantry CNC machine and high strength welding body. And its processing tube length is 8m (6m optional), tube diameter Φ20mm-300mm. CNC PA controller with CAM Lantek nesting software realize industry 4.0

    fiber laser tube cutting machine price

    Machine Features

    Integrated main body makes the whole tube laser cutting machine with good concentricity, verticality and precision.

    Dual motive chucks are compatible with a variety of pipe without adjusting jaws.

    Automatic boundary, automatically find center, automatic compensation function easy to process different shape tube.

    Adjustable perforation frequency.

    High damping bed, good rigidity, ensure high cutting speed and high acceleration.

    Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose.

    The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.

    Professional CNC pipe laser cutting control system Germany PA and nesting software (CAM) Spain Lantek.

    Integrated circuits, streamline laying provides easy maintenance and low failure rate.

    Visual scale adjustable lifting support device saves feeding time, ensures concentricity, prevents pipe swinging during cutting.

    Innovative one-way air control tightness claw helps extend cylinder life.

    Optimized claw holding pressure ensure 1mm thickness tube without deformation.

    3000w Fiber Laser Tube Cutting Machine (metal cutting thickness ability)

    Material

    Cutting Limit

    Clean Cut

    Carbon steel

    22mm

    20mm

    Stainless steel

    12mm

    10mm

    Aluminum

    10mm

    8mm

    Brass

    8mm

    8mm

    Copper

    6mm

    5mm

    Galvanized steel

    8mm

    6mm

    Laser Tube Cutting Machine Customer Site

    Watch The Video

    Tube laser cutting machine in metal Furniture factory


  • Previous:
  • Next:

  • Material & Industry Application


    Applicable Industry

    Metal furniture, medical device, fitness equipment, sports equipment, oil exploration, display shelf, farm machinery, bridge, boating, structure parts, etc

    industryApplicable Types Of Tubes

    Specially for round, square, rectangular, oval, waist round tube and other metal pipes

    tube type

    Customer Site – Fiber Laser Cutting Batches Of Metal Pipes  Demonstration

    fiber tube laser cutter

    Machine Technical Parameters


                                        3000w Cnc Fiber Laser Round Square Rectangular Tube / Pipe Laser Cutter
    Model Number P3080
    Tube/Pipe type round, square, rectangular, oval, OB-type, D-type, Triangle, etc;
    Tube/Pipe type angle steel, channel steel, H-shape steel, L-shape steel, steel band, etc (for option)
    Tube/Pipe length Max 8m
    Tube/Pipe size Φ20mm-300mm
    Tube/Pipe loading weight Max 400kg
    Tube/Pipe loading weight Max 500kg (for option)
    Repeat position accuracy +0.03mm
    Position accuracy +0.05mm
    Fiber laser source 3000w (1000w 1500w 2000w 2500w 4000w optional)
    Position speed Max 90m/min
    Chuck rotate speed Max 105r/min
    Acceleration 1.2g
    Cut Acceleration 1g
    Graphic format Solidworks, Pro/e, UG, IGS
    Electric power supply AC380V 60Hz 3PH
    Total power consumption 26KW

                                                                                         High-end Configuration

    Article Name Brand
    Fiber laser source IPG
    CNC controller HIGERMAN POWER AUTOMATION
    Software LANTEK FLEX3D
    Servo motor and driver YASKAWA
    Gear rack ATLANTA
    Liner guide REXROTH
    Laser head RAYTOOLS
    Gas proportional valve SMC
    Main electric components SCHNEIDER
    Reduction gear box APEX
    Chiller TONG FEI
    Rotate chuck system GOLDEN LASER
    Automatic bundle loading system GOLDEN LASER
    Automatic unloading system GOLDEN LASER
    Stabilizer & Transformer JUN WEN
